Product Information

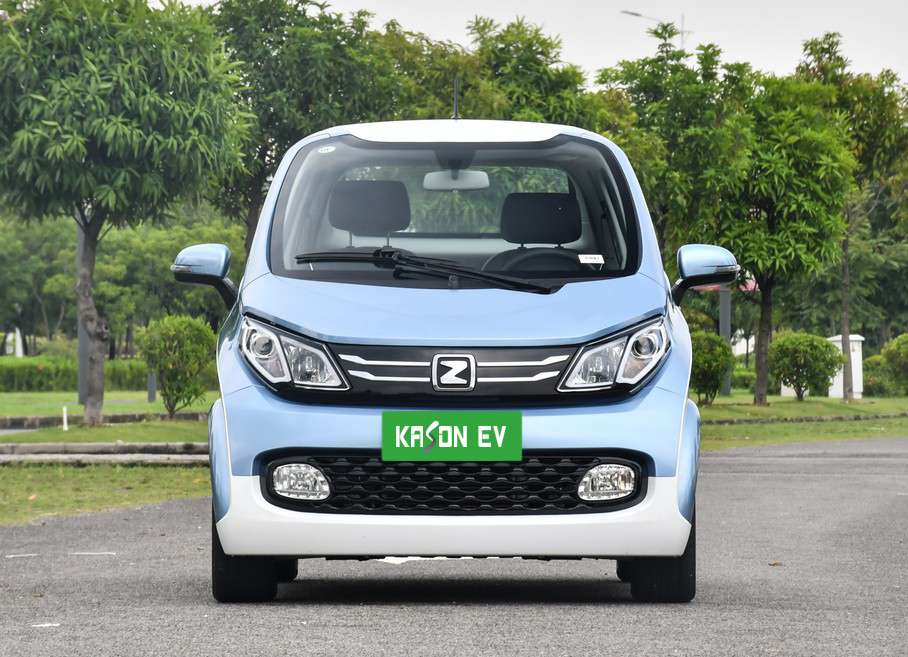

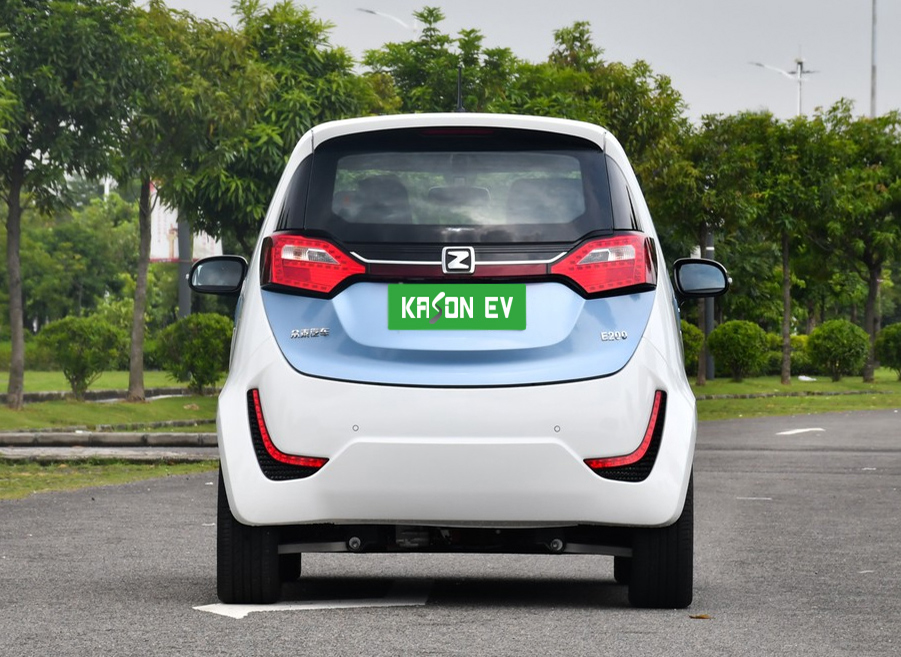

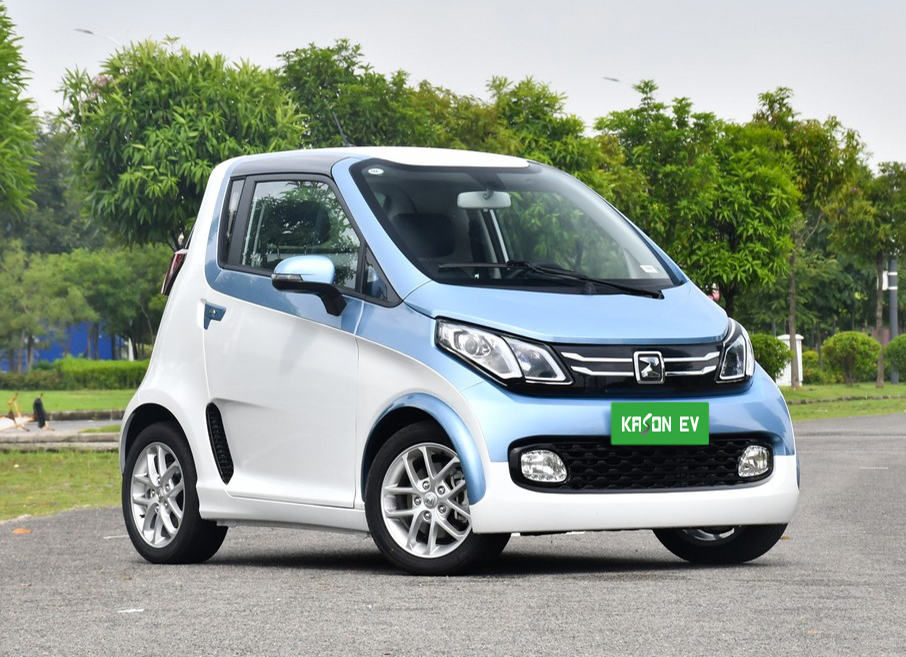

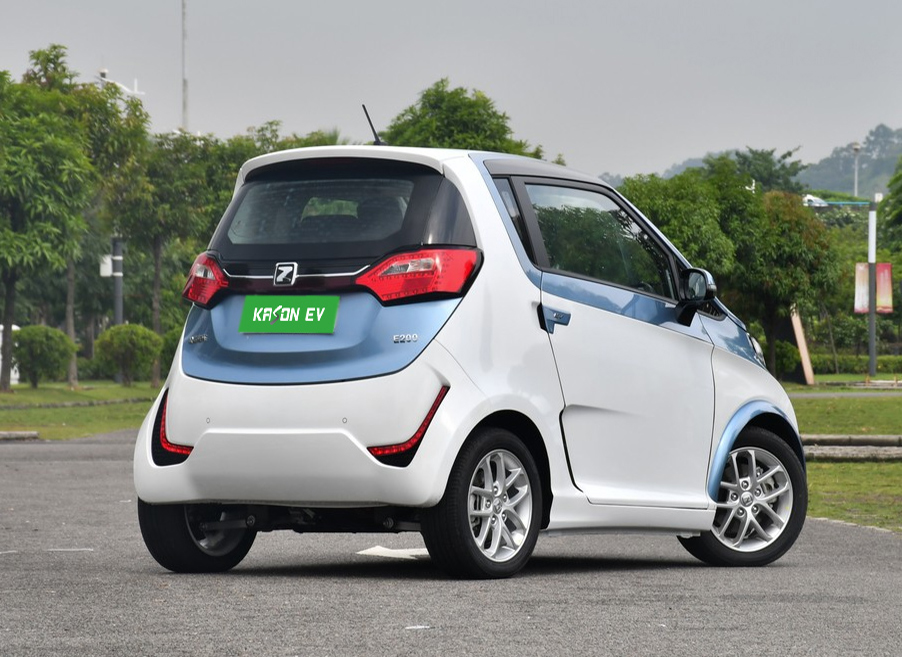

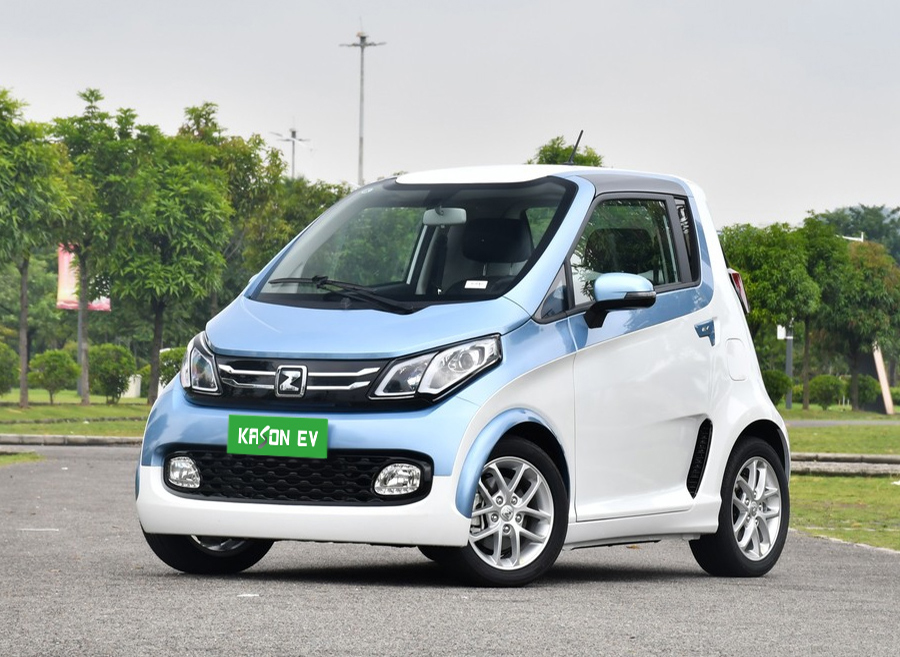

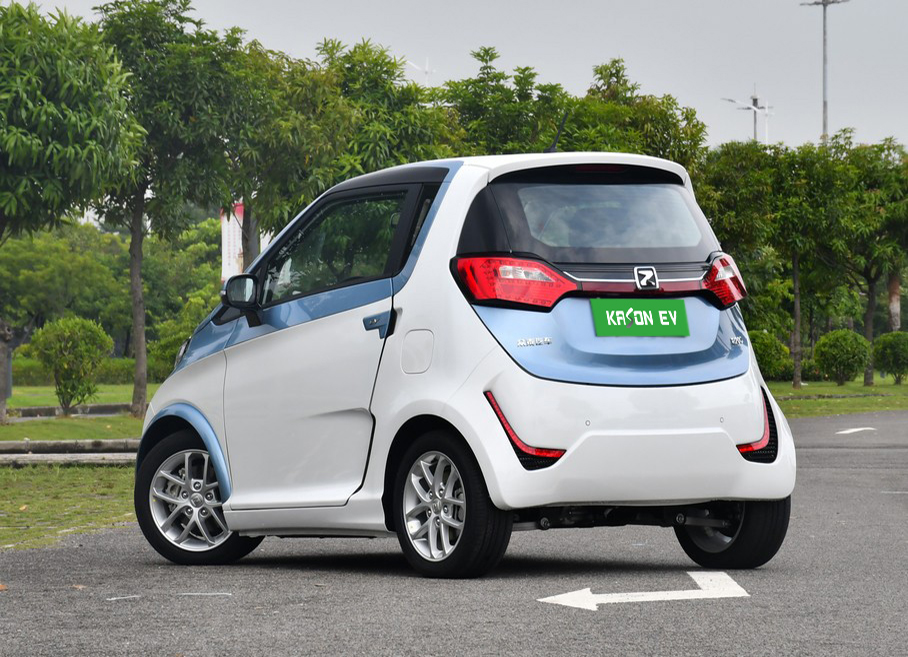

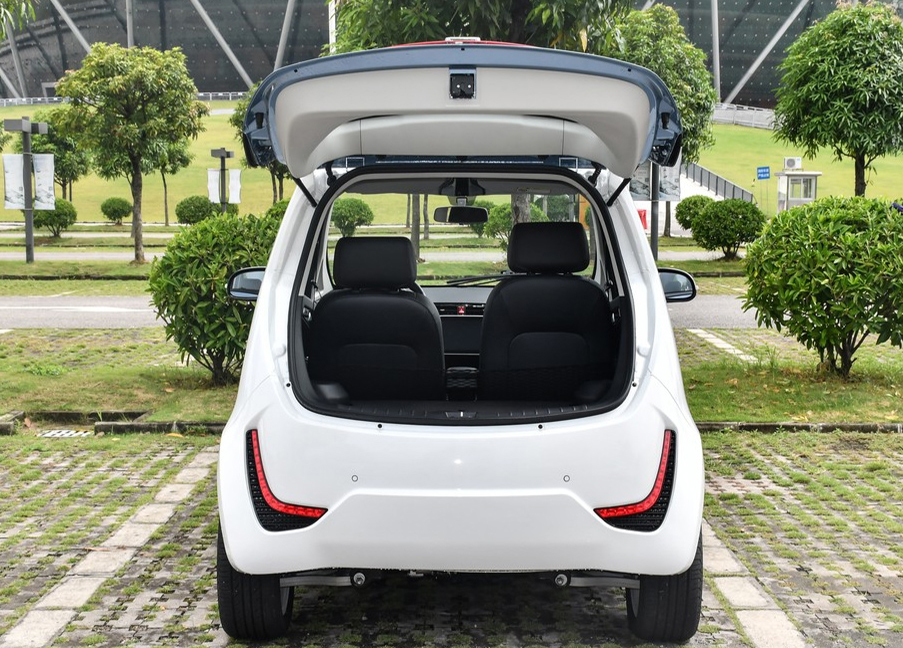

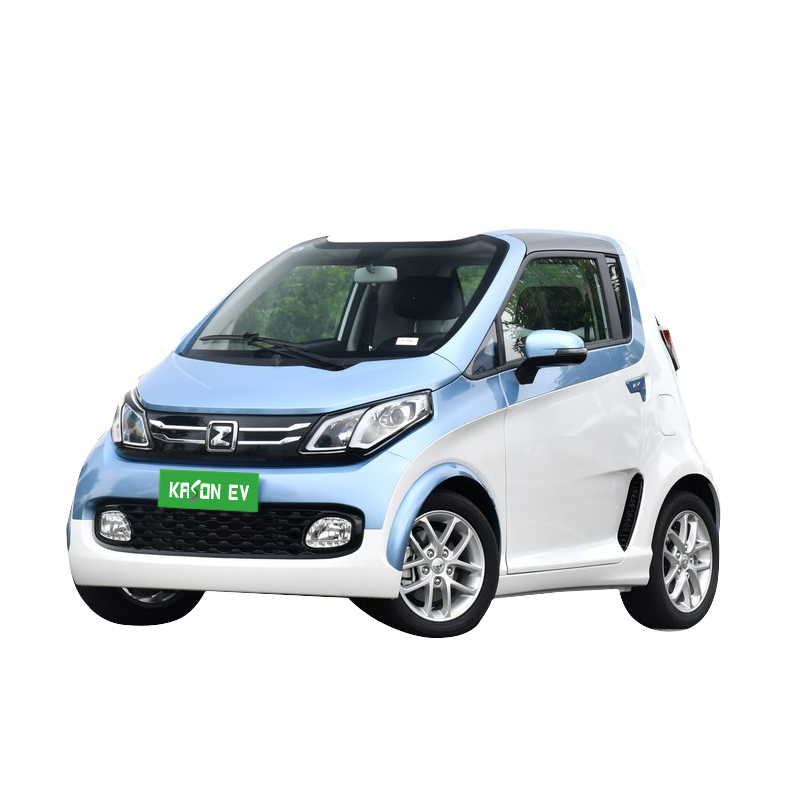

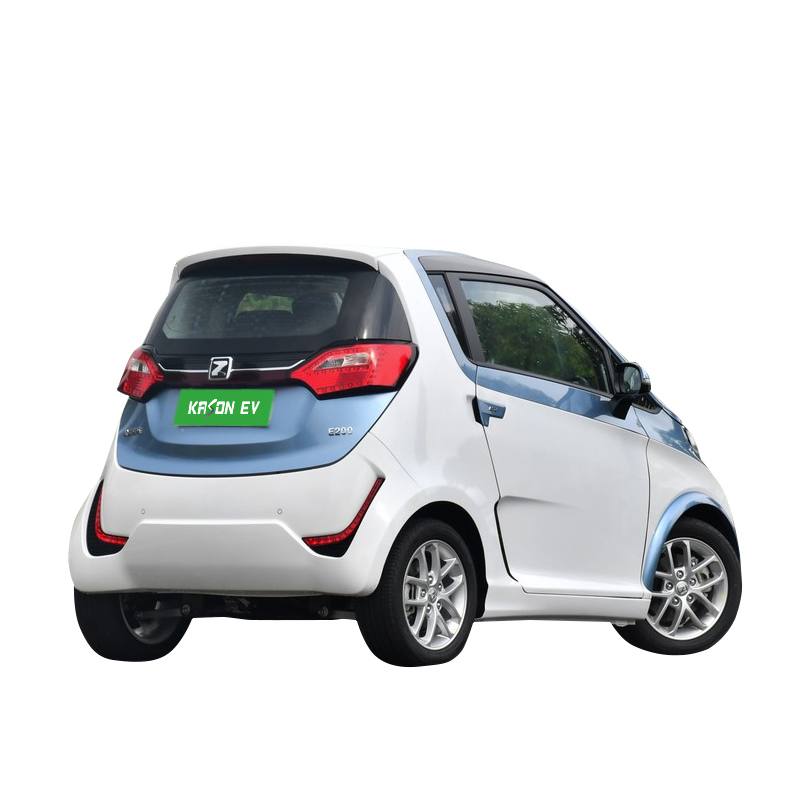

In terms of modeling, its cute and playful modeling with two-color body design is very in line with the positioning of its miniature pure electric vehicle. Although the front intake grille adopts a closed design, the chrome banner is still retained, and the wavy design of the lower intake grille also makes the front face present a strong sense of hierarchy. On the side, zotye E200 Pro's body lines are very compact, with several ridges that add to the car's three-dimensional feel. The shape of the tail is more rounded and full. When the taillight group with LED light source is lit, the recognition will be further improved.

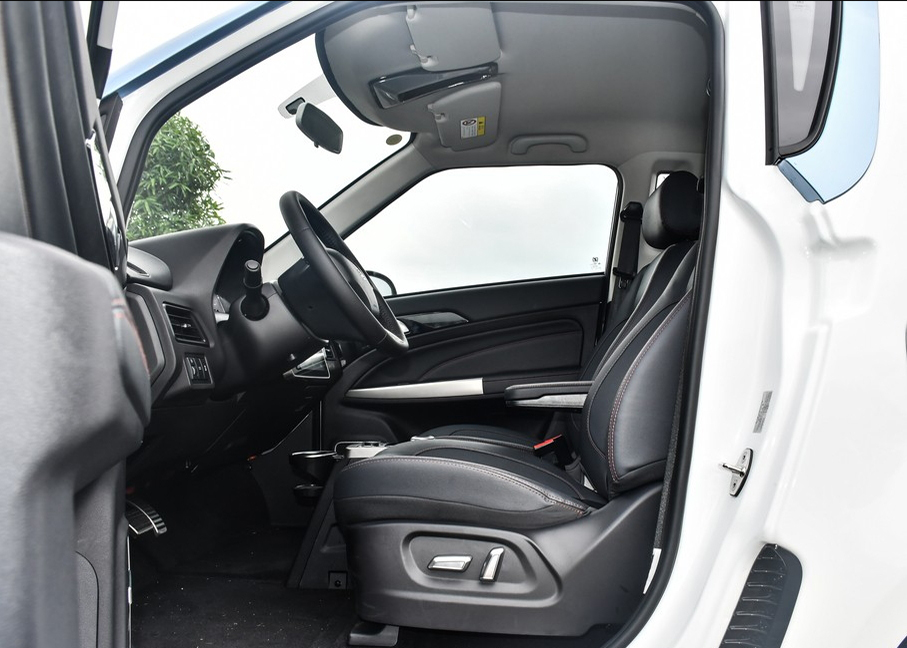

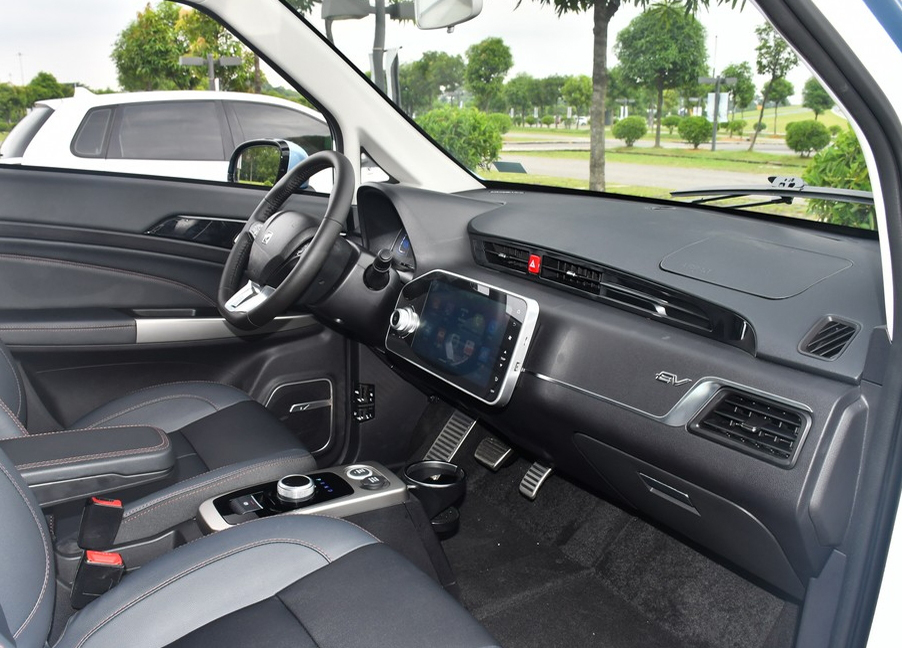

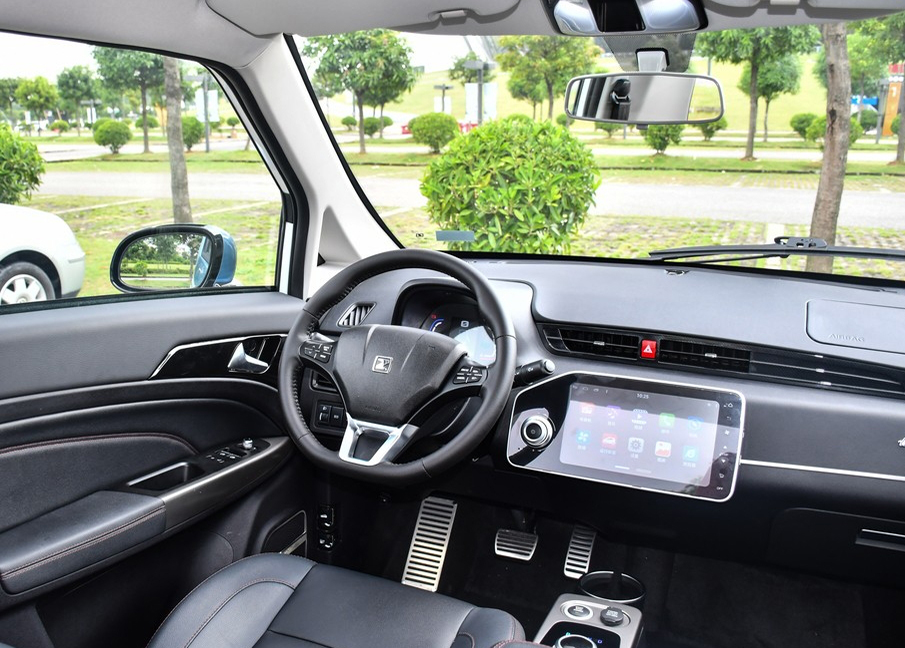

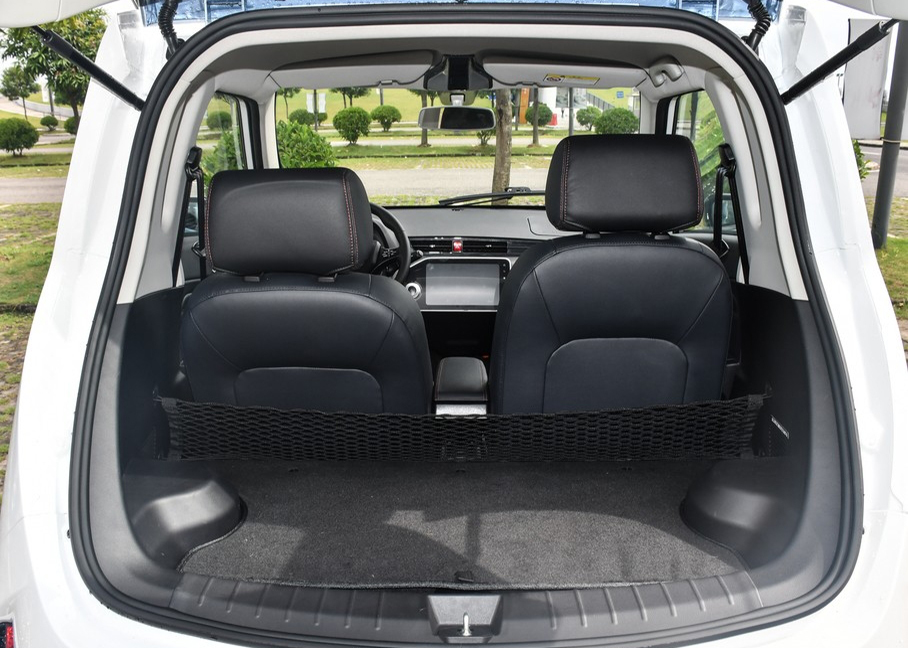

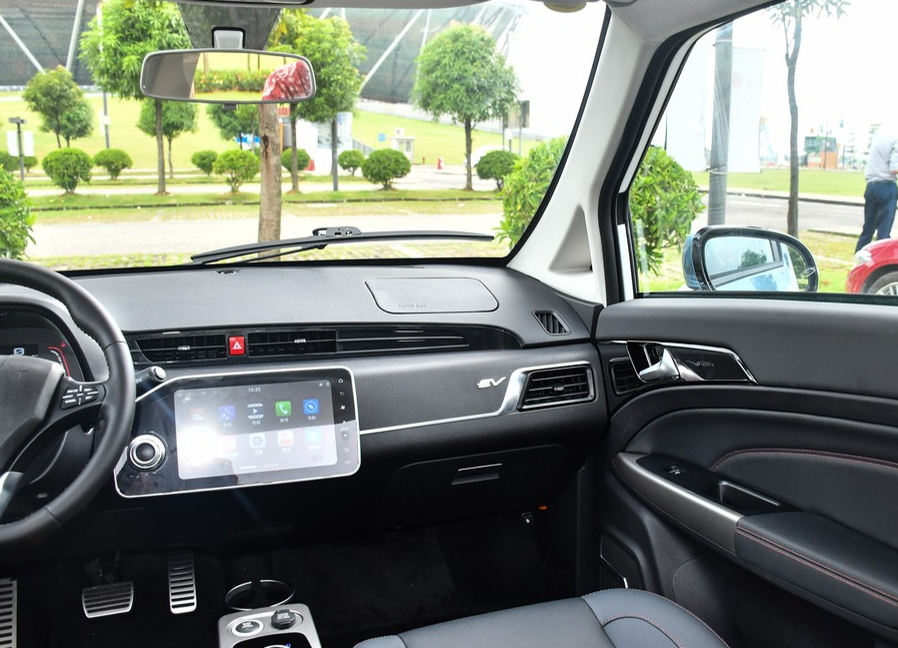

In the interior, the all-black interior color is used to highlight the sporty wind, and the details are embellished with silver sashes. The simple style of the center console is equipped with a suspended 10-inch LCD touch screen, t-box vehicle intelligent system, and integrated air conditioning, Bluetooth phone, entertainment system, navigation and driving computer, reversing radar, mobile phone interconnection and other functions. At the same time, the new car has also been optimized in terms of humanization, such as raising the position of the front center armrest to increase practicality.
In terms of power, it is equipped with a permanent magnet synchronous drive motor and adopts a rear rear drive layout. The maximum power of the drive motor is 60kW, the peak torque is 180Nm, and it is equipped with three yuan lithium battery pack. This gives the vehicle a maximum speed of 105km/h and a range of 301km in NEDC and 330km at constant speed. In addition, the car also supports two charging modes of slow charge and fast charge, which can be charged to 80% in 45 minutes.
Product Specifications
Brand | ZOTYE AUTO |
Model | E200 |
Version | 2018 Pro |
Basic parameters | |
Car model | Mini Car |
Type of Energy | Pure electric |
Time to market | July.2018 |
NEDC pure electric cruising range (KM) | 301 |
Fast charging time[h] | 0.75 |
Slow charging time[h] | 14 |
Maximum power (KW) | 60 |
Maximum torque [Nm] | 180 |
Motor horsepower [Ps] | 82 |
Length*width*height (mm) | 2735*1600*1630 |
Body structure | 3-door 2-seat hatchback |
Top Speed (KM/H) | 105 |
Car body | |
Longth(mm) | 2735 |
Width(mm) | 1600 |
Higth(mm) | 1630 |
Wheel base(mm) | 1810 |
Front track (mm) | 1360 |
Rear track (mm) | 1350 |
Minimum ground clearance (mm) | 128 |
Body structure | hatchback |
Number of doors | 3 |
Number of seats | 2 |
Mass (kg) | 1080 |
Electric motor | |
Motor type | Permanent magnet synchronization |
Total motor power (kw) | 60 |
Total motor torque [Nm] | 180 |
Rear motor maximum power (kW) | 60 |
Rear motor maximum torque (Nm) | 180 |
Number of drive motors | Single motor |
Motor placement | Rear |
Battery Type | Ternary lithium battery |
NEDC pure electric cruising range (KM) | 301 |
Battery Power(kwh) | 31.9 |
Gearbox | |
Number of gears | 1 |
Transmission type | Fixed gear ratio gearbox |
Short name | Electric vehicle single speed gearbox |
Chassis Steer | |
Form of drive | Rear-engine Rear-drive |
Type of front suspension | McPherson independent suspension |
Type of rear suspension | Double A-arm independent suspension |
Boost type | Electric assist |
Car body structure | Load bearing |
Wheel braking | |
Type of front brake | Ventilated Disc |
Type of rear brake | Disc |
Type of parking brake | Electric brake |
Front Tire Specifications | 195/50 R15 |
Rear tire specifications | 195/50 R15 |
Cab Safety Information | |
Primary driver airbag | YES |
Co-pilot airbag | YES |
Seat belt not fastened reminder | Driver's seat |
ABS anti-lock | YES |
Brake force distribution (EBD/CBC, etc.) | YES |
Brake Assist (EBA/BAS/BA, etc.) | YES |
Traction Control (ASR/TCS/TRC, etc.) | YES |
Body Stability Control (ESC/ESP/DSC, etc.) | YES |
Assist/Control configuration | |
Front parking radar | ~ |
Rear parking radar | YES |
Driving assistance video | Reverse image |
Cruise system | Cruise control |
Driving mode switching | economy |
Hill assist | YES |
External / Anti-Theft Configuration | |
Rim material | Aluminum alloy |
Interior central lock | YES |
Key type | Remote key |
Keyless start system | YES |
Internal configuration | |
Steering wheel material | Genuine Leather |

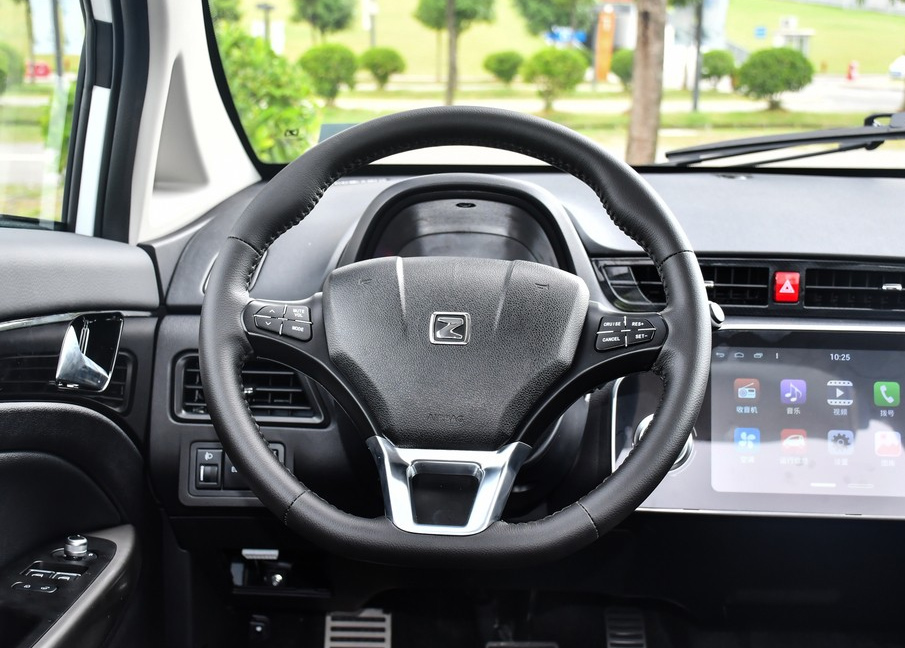

Multifunction steering wheel | YES |
Trip computer display screen | Color |

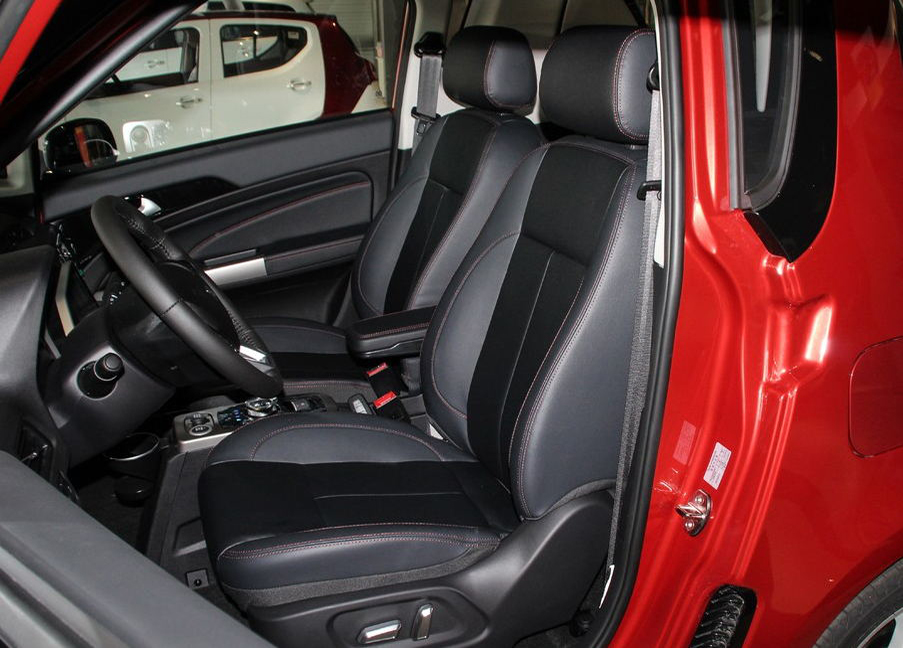

Seat configuration | |
Seat materials | Imitation leather |
Driver's seat adjustment | Front and rear adjustment, backrest adjustment |
Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
Main/assistant seat electric adjustment | YES |
Front/rear center armrest | Front |
Multimedia configuration | |
Central control color screen | Touch LCD |
Central control screen size (inch) | 10 |
Satellite navigation system | YES |
Bluetooth/Car Phone | YES |
Mobile phone interconnection/mapping | Factory interconnect/mapping |
Internet of Vehicles | YES |
Multimedia/charging interface | USB |
Number of speakers (pcs) | 2 |
Lighting configuration | |
Low beam light source | LED |
High beam light source | Halogen |
LED daytime running lights | YES |
Front fog lights | Halogen |
Headlight height adjustable | YES |
Glass/Rearview mirror | |
Front power windows | YES |
Post audition feature | Electric adjustment |
Inside rearview mirror function | Manual anti-dazzle |
Interior vanity mirror | Driver's seat Co-pilot |
Air conditioner/refrigerator | |
Air conditioner temperature control method | Manual air conditioner |
