Product Information

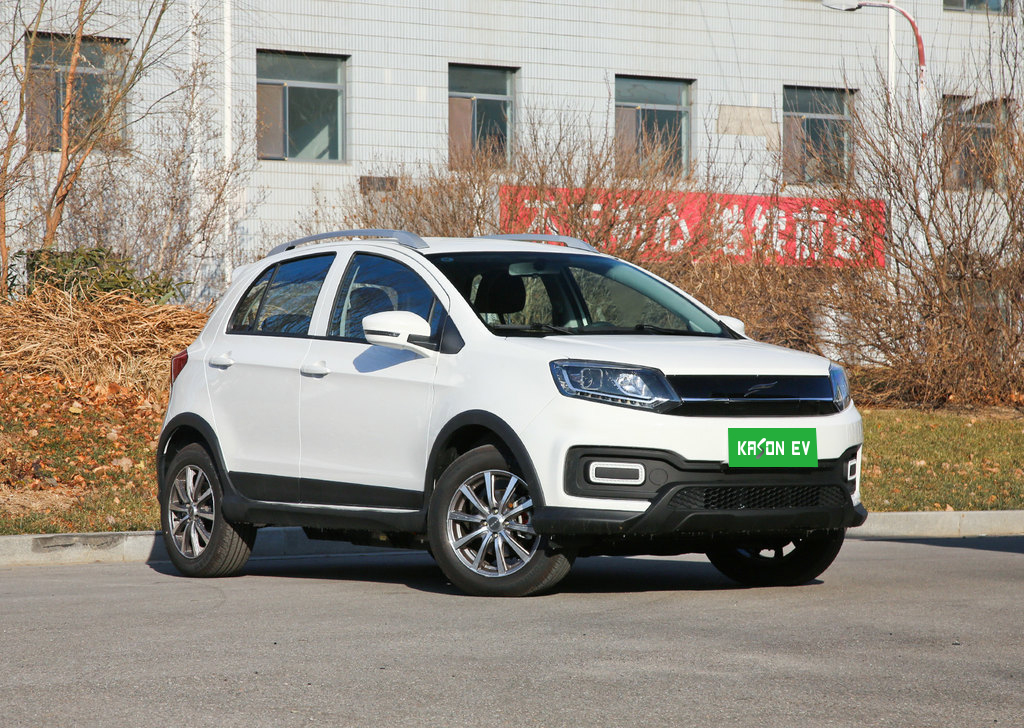

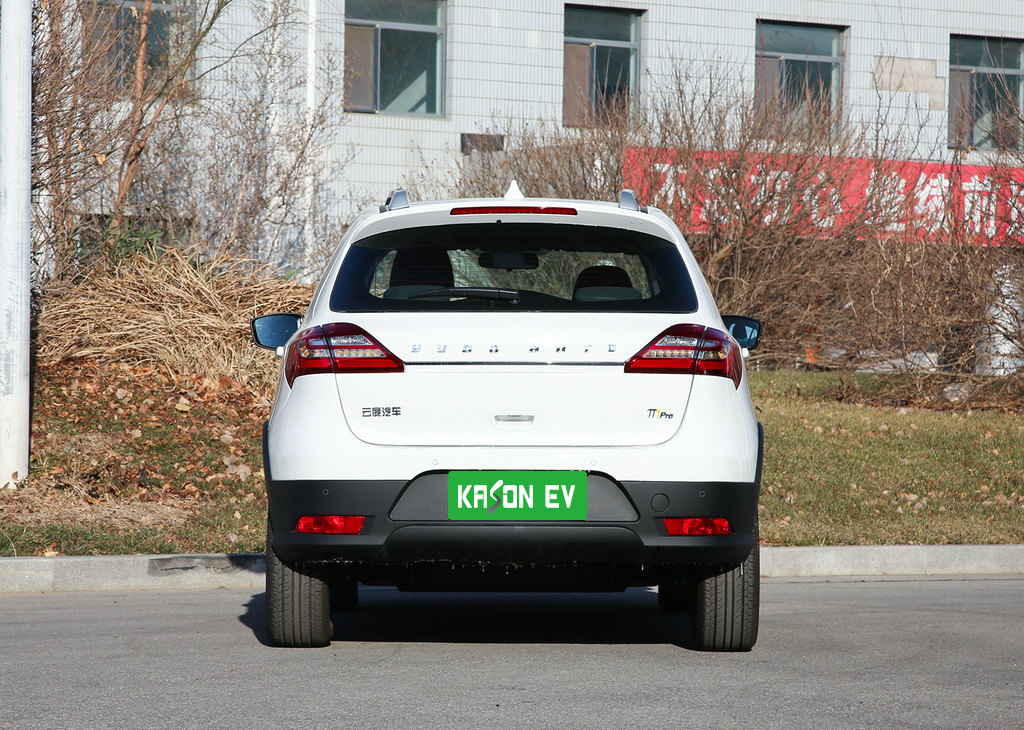

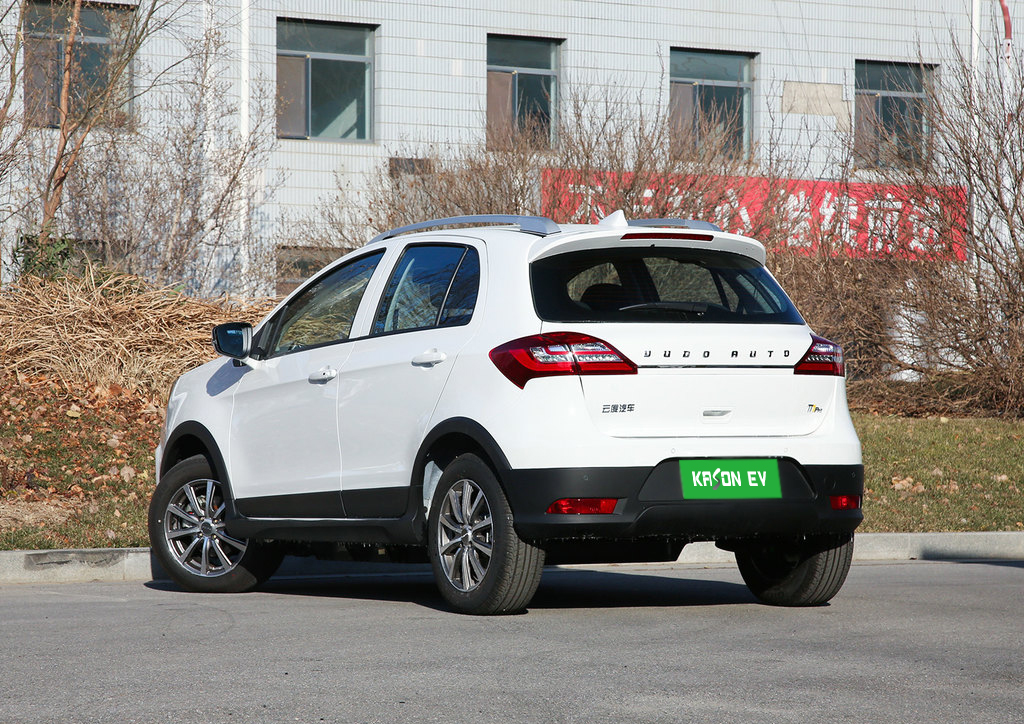

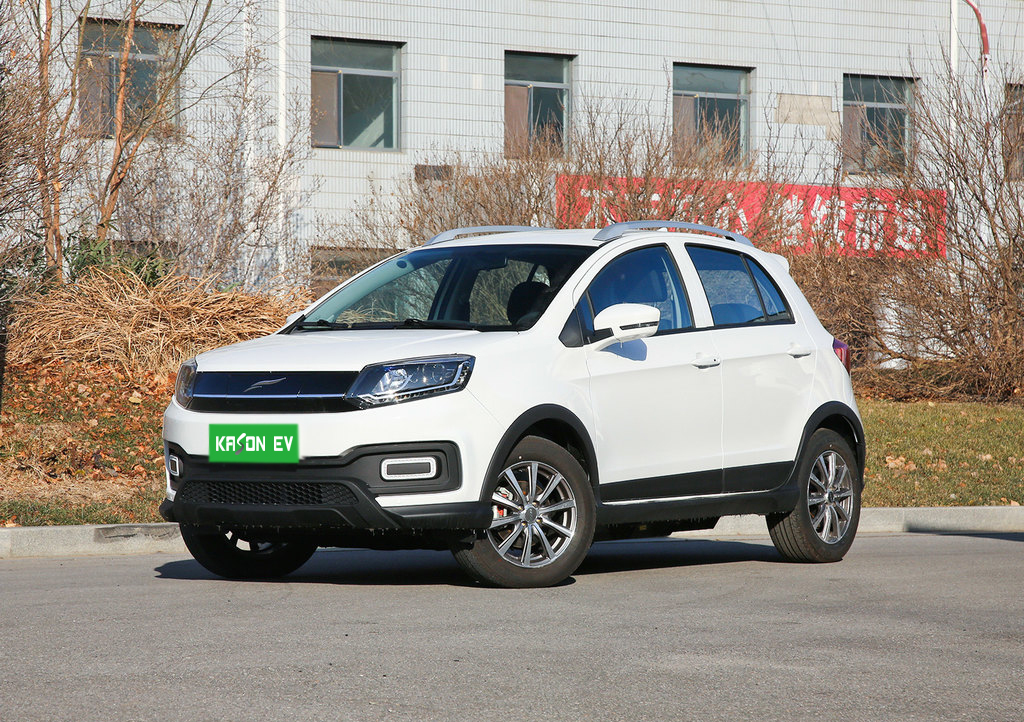

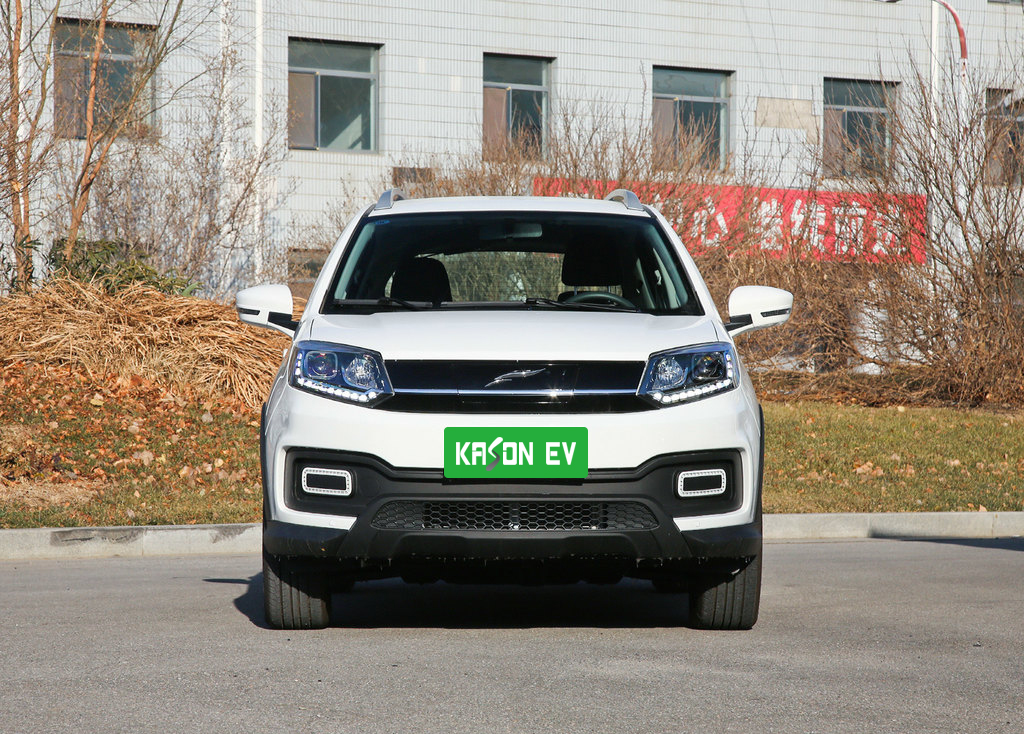

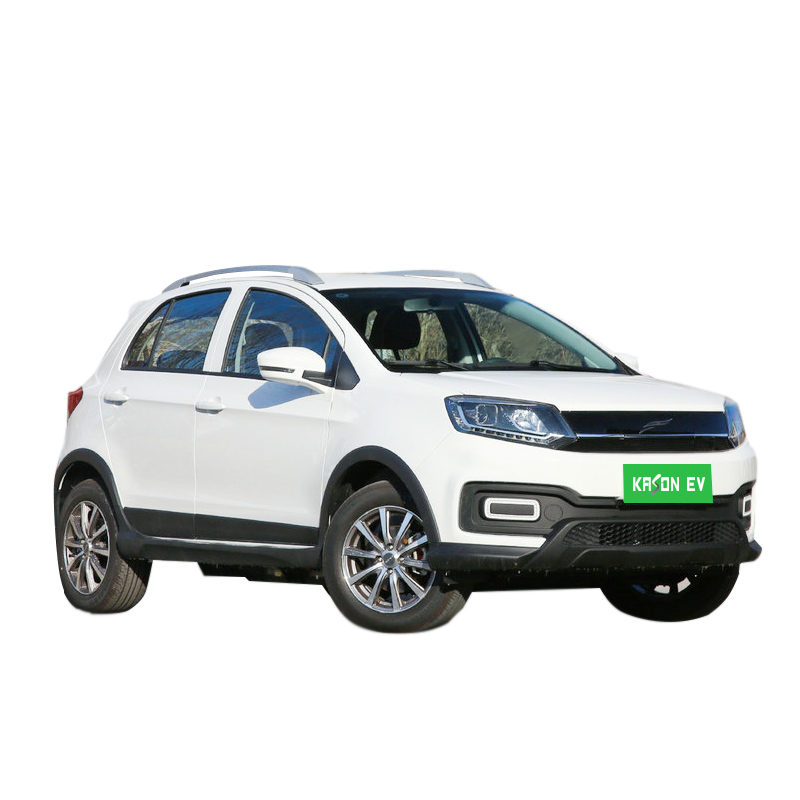

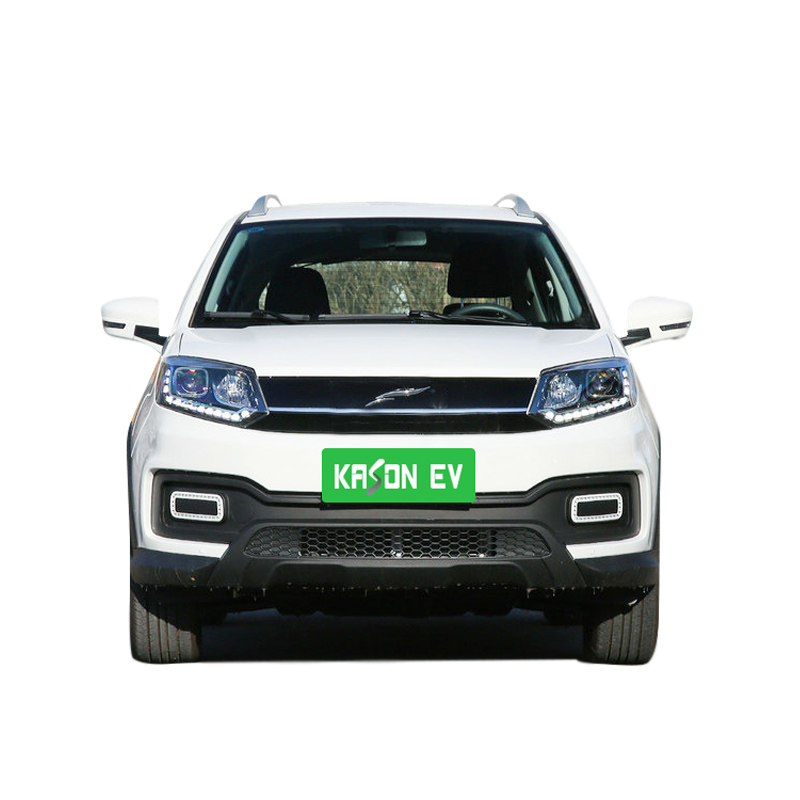

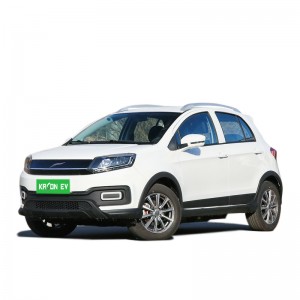

The overall shape of Cloud degree π1 is relatively tough. The front air intake grille is decorated with bright black and is closed. The connection of left and right headlights widens the overall visual effect of the front. The front grille features a closed design common in pure electric cars, with a chrome LOGO and cross-trim below. The lower part of the bumper is honeycomb design, and the fog lamps on both sides are equipped with three-dimensional decorative covers. The front face looks sporty and highly recognizable. In addition, below the front sign is the charging interface of the vehicle. The rear shape of the car has a distinct sense of layering, and the taillight is also integrated into the LED light source.
With a length of 4010×1729×1621 mm and a wheelbase of 2,460 mm, the new car is positioned as an entry-level small SUV.

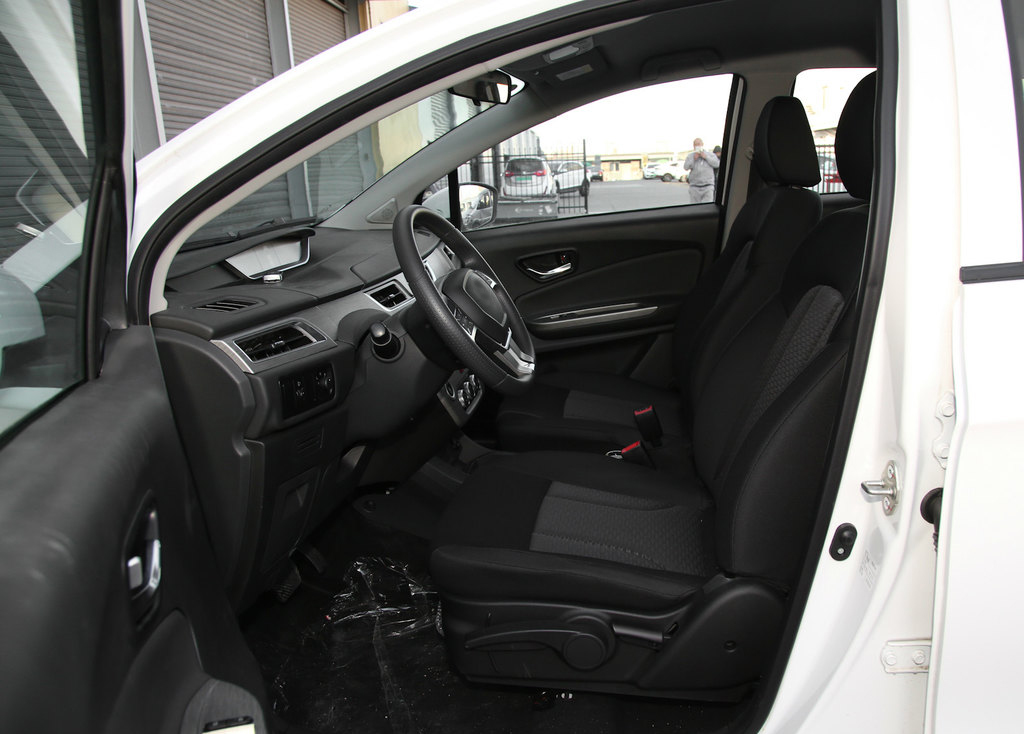

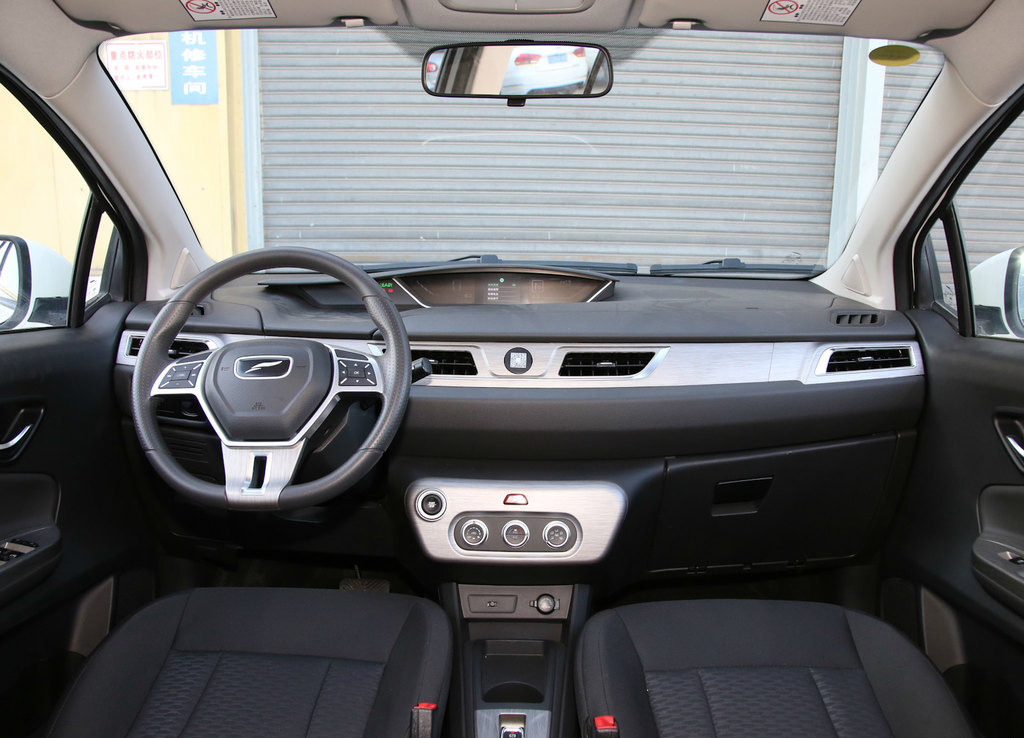

The overall interior design is simple, the function keys are clear, the central console is equipped with a multimedia tablet computer, personalized. Configurations such as keyless systems, remote vehicle control, electronic parking and a knob shift mechanism all appear on Cloudpi 1.
Yundu PI 1 comes in two models, city and intercity, with the city version equipped with a 24 kilowatt-hour battery pack and a range of 200 kilometers. The intercity version has a 40-kilowatt-hour battery pack and a range of 330 kilometers.
Product Specifications
| Brand | YUDO | YUDO |
| Model | π1 | π1 |
| Version | 2020 Pro Far Travel Edition Music Style | 2020 Pro Far Travel Edition Smart Pie |
| Basic parameters | ||
| Car model | Small SUV | Small SUV |
| Type of Energy | Pure electric | Pure electric |
| NEDC pure electric cruising range (KM) | 430 | 430 |
| Fast charging time[h] | 0.5 | 0.5 |
| Fast charge capacity [%] | 80 | 80 |
| Slow charging time[h] | 8.0 | 8.0 |
| Maximum power (KW) | 55 | 55 |
| Maximum torque [Nm] | 170 | 170 |
| Motor horsepower [Ps] | 75 | 75 |
| Length*width*height (mm) | 4010*1729*1621 | 4010*1729*1621 |
| Body structure | 5-door 5-seat SUV | 5-door 5-seat SUV |
| Top Speed (KM/H) | 105 | 105 |
| Car body | ||
| Longth(mm) | 4010 | 4010 |
| Width(mm) | 1729 | 1729 |
| Higth(mm) | 1621 | 1621 |
| Wheel base(mm) | 2460 | 2460 |
| Body structure | SUV | SUV |
| Number of doors | 5 | 5 |
| Number of seats | 5 | 5 |
| Mass (kg) | 1380 | 1380 |

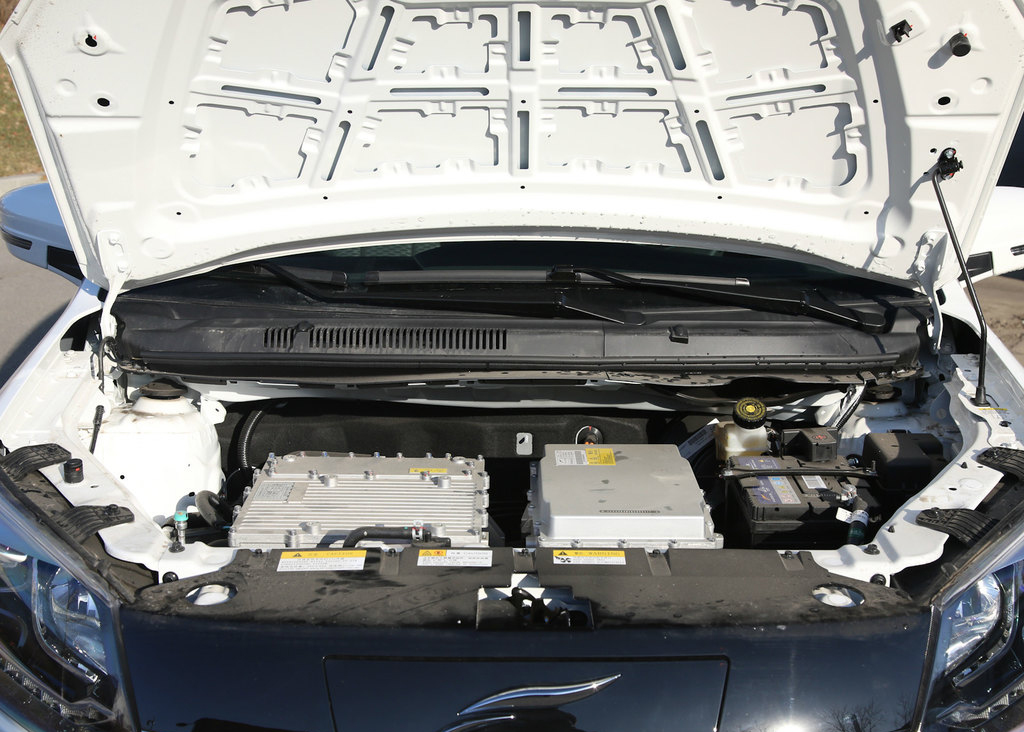

| Electric motor | ||
| Motor type | Permanent magnet synchronization | Permanent magnet synchronization |
| Total motor power (kw) | 55 | 55 |
| Total motor torque [Nm] | 170 | 170 |
| Front motor maximum power (kW) | 55 | 55 |
| Front motor maximum torque (Nm) | 170 | 170 |
| Number of drive motors | Single motor | Single motor |
| Motor placement | Prepended | Prepended |
| Battery Type | Ternary lithium battery | Ternary lithium battery |
| NEDC pure electric cruising range (KM) | 430 | 430 |
| Battery Power(kwh) | 49.8 | 49.8 |
| Gearbox | ||
| Number of gears | 1 | 1 |
| Transmission type | Fixed Ratio Transmission | Fixed Ratio Transmission |
| Short name | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Chassis Steer | ||
| Form of drive | FF | FF |
| Type of front suspension | McPherson independent suspension | McPherson independent suspension |
| Type of rear suspension | Torsion Beam Dependent Suspension | Torsion Beam Dependent Suspension |
| Boost type | Electric assist | Electric assist |
| Car body structure | Load bearing | Load bearing |
| Wheel braking | ||
| Type of front brake | Ventilated Disc | Ventilated Disc |
| Type of rear brake | Disc | Disc |
| Type of parking brake | Electric brake | Electric brake |
| Front Tire Specifications | 205/60 R16 | 205/60 R16 |
| Rear tire specifications | 205/60 R16 | 205/60 R16 |
| Cab Safety Information | ||
| Primary driver airbag | YES | YES |
| Co-pilot airbag | YES | YES |
| Tire pressure monitoring function | Tire pressure display | Tire pressure display |
| Seat belt not fastened reminder | Front row | Front row |
| ISOFIX Child seat connector | YES | YES |
| ABS anti-lock | YES | YES |
| Brake force distribution (EBD/CBC, etc.) | YES | YES |
| Assist/Control configuration | ||
| Rear parking radar | YES | YES |
| Driving assistance video | ~ | Reverse image |
| Hill assist | YES | YES |
| External / Anti-Theft Configuration | ||
| Rim material | Aluminum alloy | Aluminum alloy |
| Roof rack | YES | YES |
| Interior central lock | YES | YES |
| Key type | Remote control key | Remote control key |
| Keyless start system | YES | YES |
| Keyless entry function | Driver's seat | Driver's seat |
| Battery preheating | YES | YES |
| Internal configuration | ||
| Steering wheel material | Plastic | Cortex |
| Steering wheel position adjustment | Manual up and down | Manual up and down |
| Multifunction steering wheel | YES | YES |
| Trip computer display screen | Color | Color |
| Seat configuration | ||

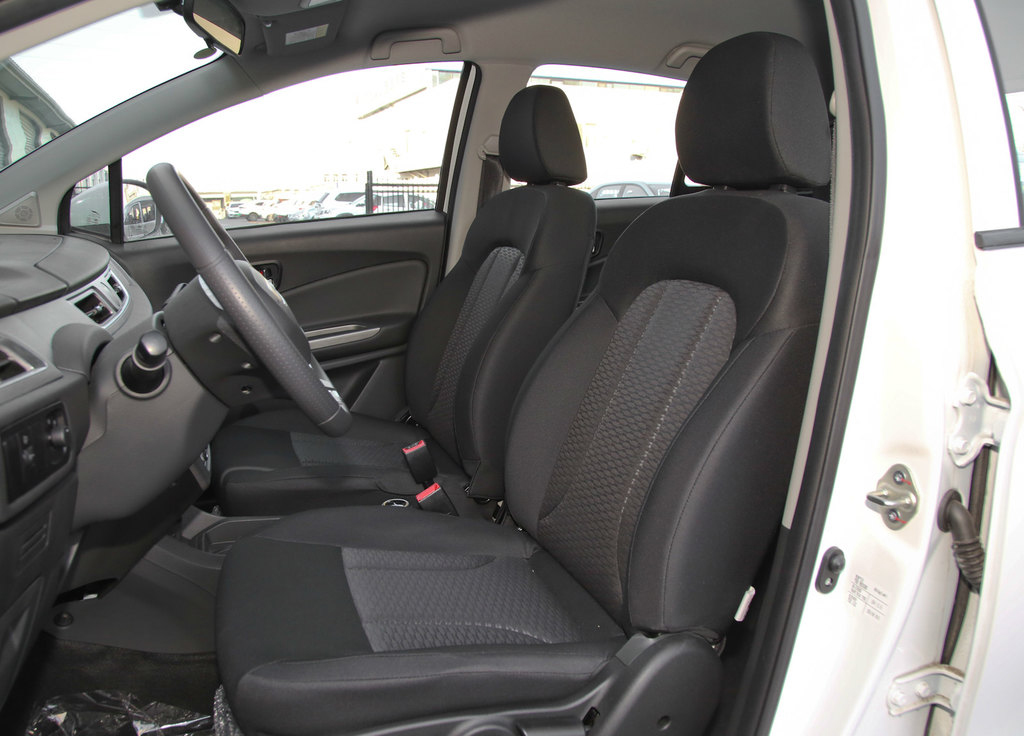

| Seat materials | Fabric | Imitation leather |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment | Front and rear adjustment, backrest adjustment |

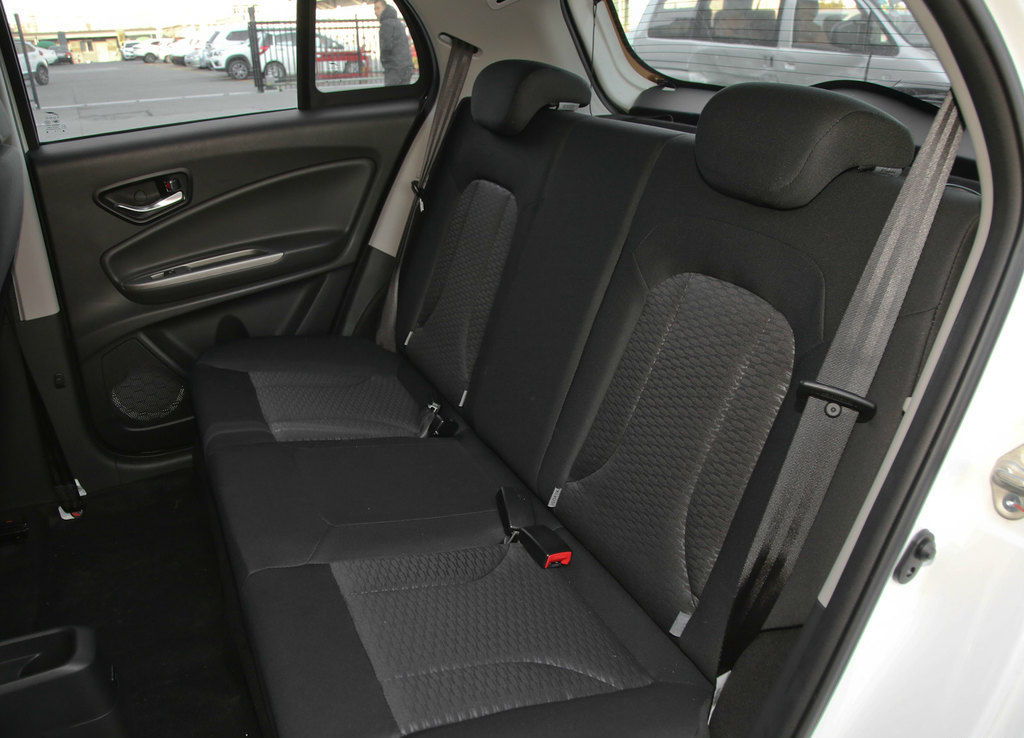

| Rear seats folded down | Proportion down | Proportion down |
| Multimedia configuration | ||
| Central control color screen | ~ | Touch LCD |
| Central control screen size (inch) | ~ | 9 |
| Satellite navigation system | ~ | YES |
| Navigation traffic information display | ~ | YES |
| Roadside assistance call | YES | YES |
| Bluetooth/Car Phone | YES | YES |
| Voice recognition control system | ~ | Multimedia system, navigation, telephone |
| Internet of Vehicles | ~ | YES |
| OTA upgrade | YES | YES |
| Multimedia/charging interface | USB | USB |
| Number of USB/Type-c ports | 1 in front,1 in rear | 1 in front,1 in rear |
| Number of speakers (pcs) | 4 | 6 |
| Lighting configuration | ||
| Low beam light source | Halogen | Halogen |
| High beam light source | Halogen | Halogen |
| LED daytime running lights | YES | YES |
| Headlight height adjustable | YES | YES |
| Headlights turn off | YES | YES |
| Glass/Rearview mirror | ||

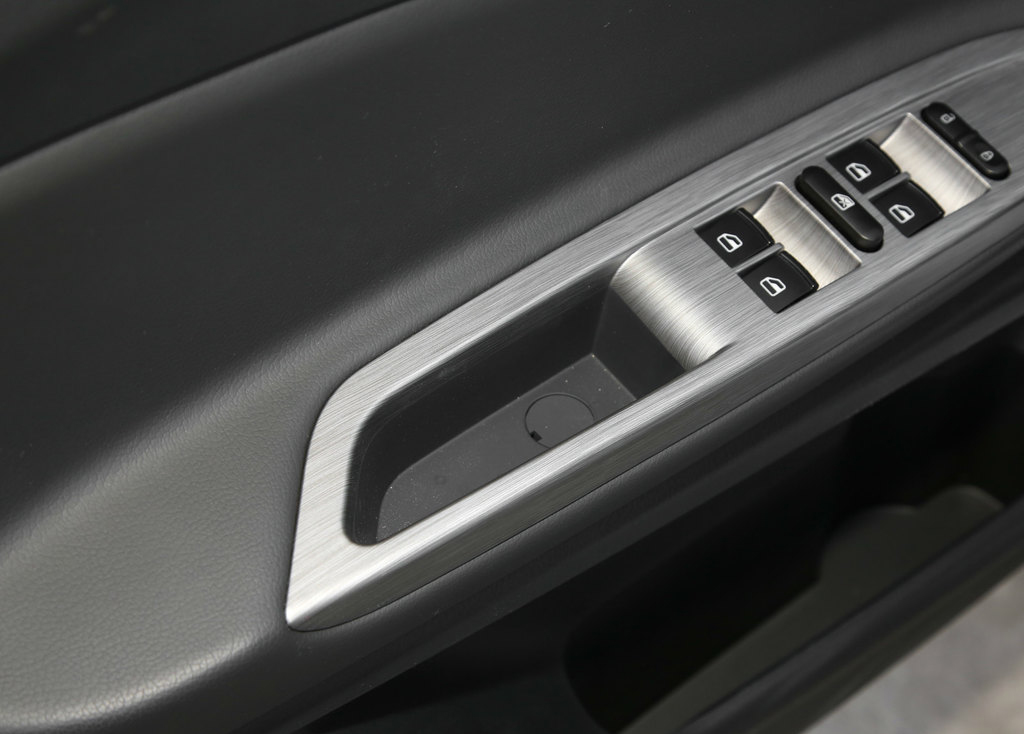

| Front power windows | YES | YES |
| Rear power windows | YES | YES |
| Post audition feature | Electric adjustment | Electric adjustment |
| Inside rearview mirror function | Manual anti-dazzle | Manual anti-dazzle |
| Interior vanity mirror | Main driver Co-pilot |
Main driver Co-pilot |
| Rear wiper | YES | YES |
| Air conditioner/refrigerator | ||
| Air conditioner temperature control method | Manual air conditioner | Manual air conditioner |
| Manual air conditioner | YES | YES |
