Product Information

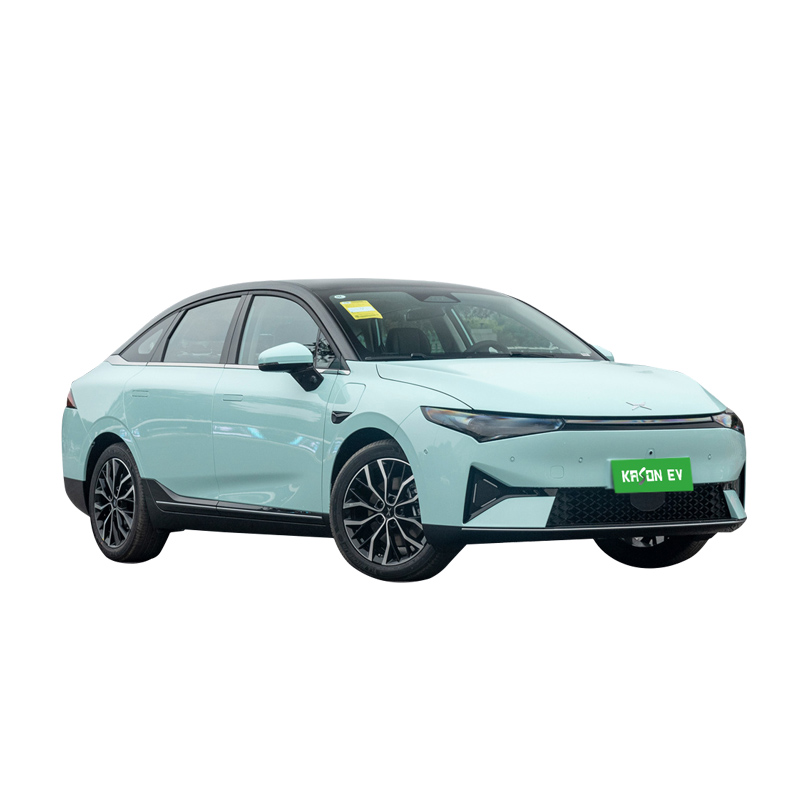

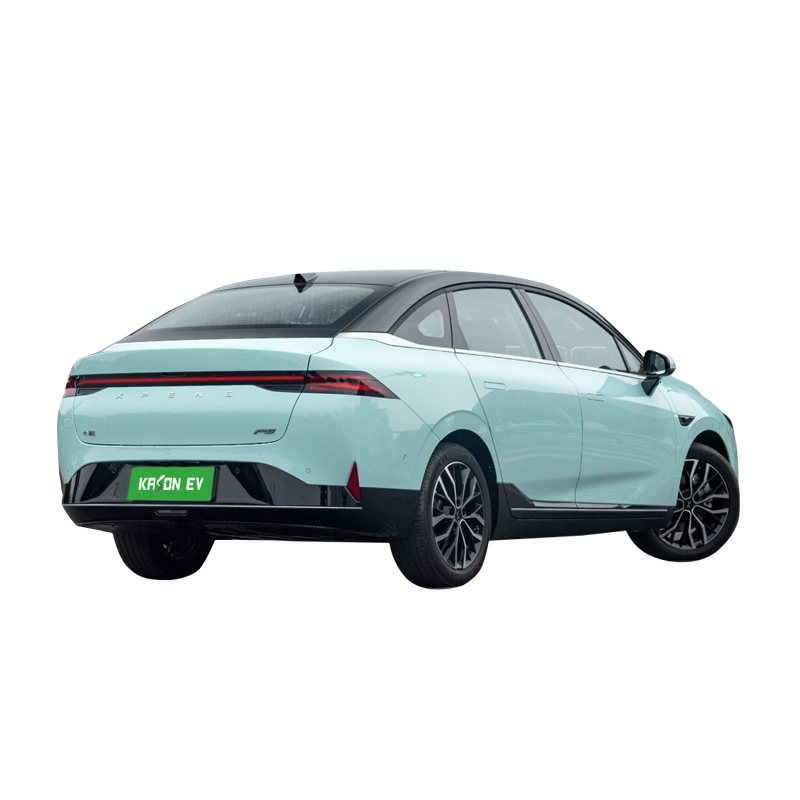

Xpeng P5 has a length of 4808mm, a wheelbase of 2768mm, and a comprehensive NEDC range of 600km. The front part has an active air intake grille, the hidden telescopic electric door handle, and the vehicle has an ultra-low drag coefficient of 0.223.
The vehicle is equipped with HAP lidar provided by Livox Technology on both sides of the front. The single lateral Angle of view is 120°, and the detection range for low reflective objects can reach 150 meters. The angular resolution is up to 0.16°*0.2°, and the point cloud density is equivalent to 144-line lidar. In addition, the body is also equipped with 5 millimeter wave radars, 12 ultrasonic radars, 13 cameras. In addition, it also has a set of high-precision positioning units (GPU+IMU), which can realize NGP automatic navigation assisted driving covering expressways, urban expressways and some urban roads.
The proportion of high strength steel in Xpeng P5 body reaches 46.8%, and ultra-high strength steel accounts for 13.8%. X-safety active and passive Safety system can provide automatic emergency braking, blind area monitoring and warning, car distance warning and other functions.
The car is equipped with x-HP intelligent thermal management system and heat pump air conditioning to ensure the comfort of the passenger cabin. For the battery, the battery pack is IP68 waterproof. Adopt safe design of battery without heat spread, also can prevent needle prick.
Equipped with Xmart OS 3.0 intelligent vehicle-mounted system, it can carry out rich entertainment functions and unlock mobile phones with bluetooth digital keys. Equipped with the third-generation Qualcomm Snapdragon SA8155P chip, Xiaopeng P5 has 12GB of memory, 128GB of storage space and powerful computing performance. The car also supports voice-controlled DJI Mavic 2 Pro drones, and video footage can be streamed in real time to a large central screen.
Product Specifications
| Brand | XPENG | XPENG |
| Model | P5 | P5 |
| Version | 2021 460G | 2021 460G+ |
| Basic Parameters | ||
| Car model | Compact car | Compact car |
| Type of Energy | Pure electric | Pure electric |
| Time to market | Sep,2021 | Feb,2022 |
| NEDC pure electric cruising range (KM) | 460 | 450 |
| Fast charging time[h] | 0.5 | 0.5 |
| Fast charge capacity [%] | 80 | 80 |
| Maximum power (KW) | 155 | 155 |
| Maximum torque [Nm] | 310 | 310 |
| Motor horsepower [Ps] | 211 | 211 |
| Length*width*height (mm) | 4808*1840*1520 | 4808*1840*1520 |
| Body structure | 4-door 5-seat Sedan | 4-door 5-seat Sedan |
| Top Speed (KM/H) | 170 | 170 |
| Official 0-100km/h acceleration (s) | 7.5 | 7.5 |
| Car body | ||
| Longth(mm) | 4808 | 4808 |
| Width(mm) | 1840 | 1840 |
| Higth(mm) | 1520 | 1520 |
| Wheel base(mm) | 2768 | 2768 |
| Body structure | Sedan | Sedan |
| Number of doors | 4 | 4 |
| Number of seats | 5 | 5 |

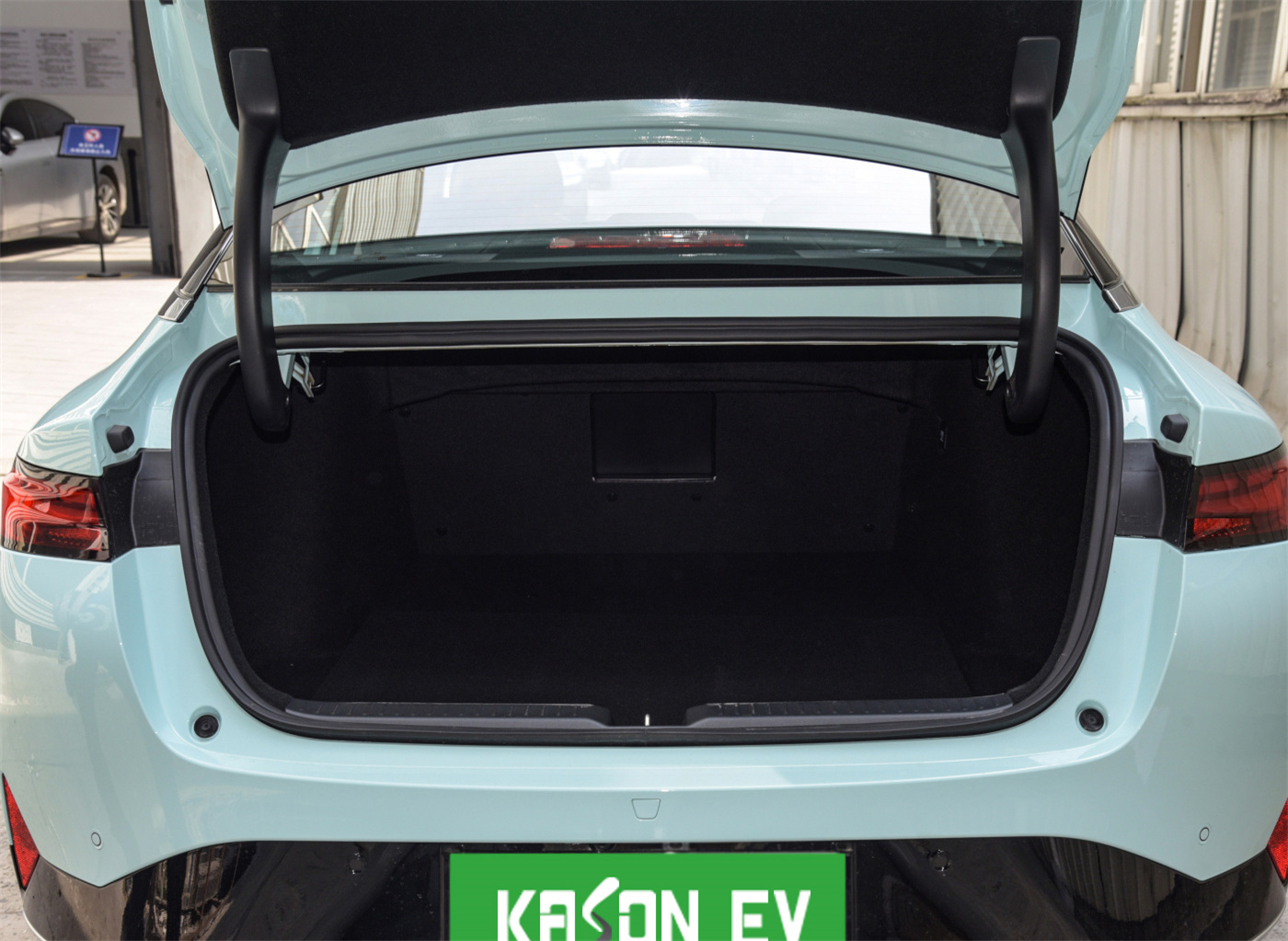

| Trunk volume (L) | 450 | 450 |
| Electric motor | ||
| Motor type | Permanent magnet synchronization | Permanent magnet synchronization |
| Total motor power (kw) | 155 | 155 |
| Total motor torque [Nm] | 310 | 310 |
| Front motor maximum power (kW) | 155 | 155 |
| Front motor maximum torque (Nm) | 310 | 310 |
| Number of drive motors | Single motor | Single motor |
| Motor placement | Prepended | Prepended |
| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery |
| NEDC pure electric cruising range (KM) | 460 | 450 |
| Battery Power(kwh) | 55.9 | 57.4 |
| Gearbox | ||
| Number of gears | 1 | 1 |
| Transmission type | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
| Short name | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Chassis Steer | ||
| Form of drive | FF | FF |
| Type of front suspension | McPherson independent suspension | McPherson independent suspension |
| Type of rear suspension | Torsion Beam Dependent Suspension | Torsion Beam Dependent Suspension |
| Boost type | Electric assist | Electric assist |
| Car body structure | Load bearing | Load bearing |
| Wheel braking | ||
| Type of front brake | Ventilated Disc | Ventilated Disc |
| Type of rear brake | Disc | Disc |
| Type of parking brake | Electric brake | Electric brake |
| Front Tire Specifications | 215/55 R17 | 215/55 R18 |
| Rear tire specifications | 215/55 R17 | 215/55 R18 |
| Cab Safety Information | ||
| Primary driver airbag | YES | YES |
| Co-pilot airbag | YES | YES |
| Front side airbag | YES | YES |
| Front head airbag (curtain) | YES | YES |
| Rear head airbag (curtain) | YES | YES |
| Tire pressure monitoring function | Tire pressure display | Tire pressure display |
| Seat belt not fastened reminder | Full car | Full car |
| ISOFIX Child seat connector | YES | YES |
| ABS anti-lock | YES | YES |
| Brake force distribution (EBD/CBC, etc.) | YES | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES | YES |
| Assist/Control configuration | ||
| Rear parking radar | YES | YES |
| Driving assistance video | Reverse image | Reverse image |
| Cruise system | Cruise control | Cruise control |
| Driving mode switching | Sport/Economy/Standard Comfort | Sport/Economy/Standard Comfort |
| Automatic parking | YES | YES |
| Hill assist | YES | YES |
| Steep descent | YES | YES |
| External / Anti-Theft Configuration | ||
| Sunroof type | Panoramic sunroof cannot be opened | Panoramic sunroof cannot be opened |
| Rim material | Aluminum alloy | Aluminum alloy |
| Interior central lock | YES | YES |
| Key type | Remote control key bluetooth key | Remote control key bluetooth key |
| Keyless start system | YES | YES |
| Keyless entry function | YES | YES |
| Hide electric door handle | YES | YES |
| Active closing grille | YES | YES |
| Remote start function | YES | YES |
| Battery preheating | YES | YES |
| Internal configuration | ||

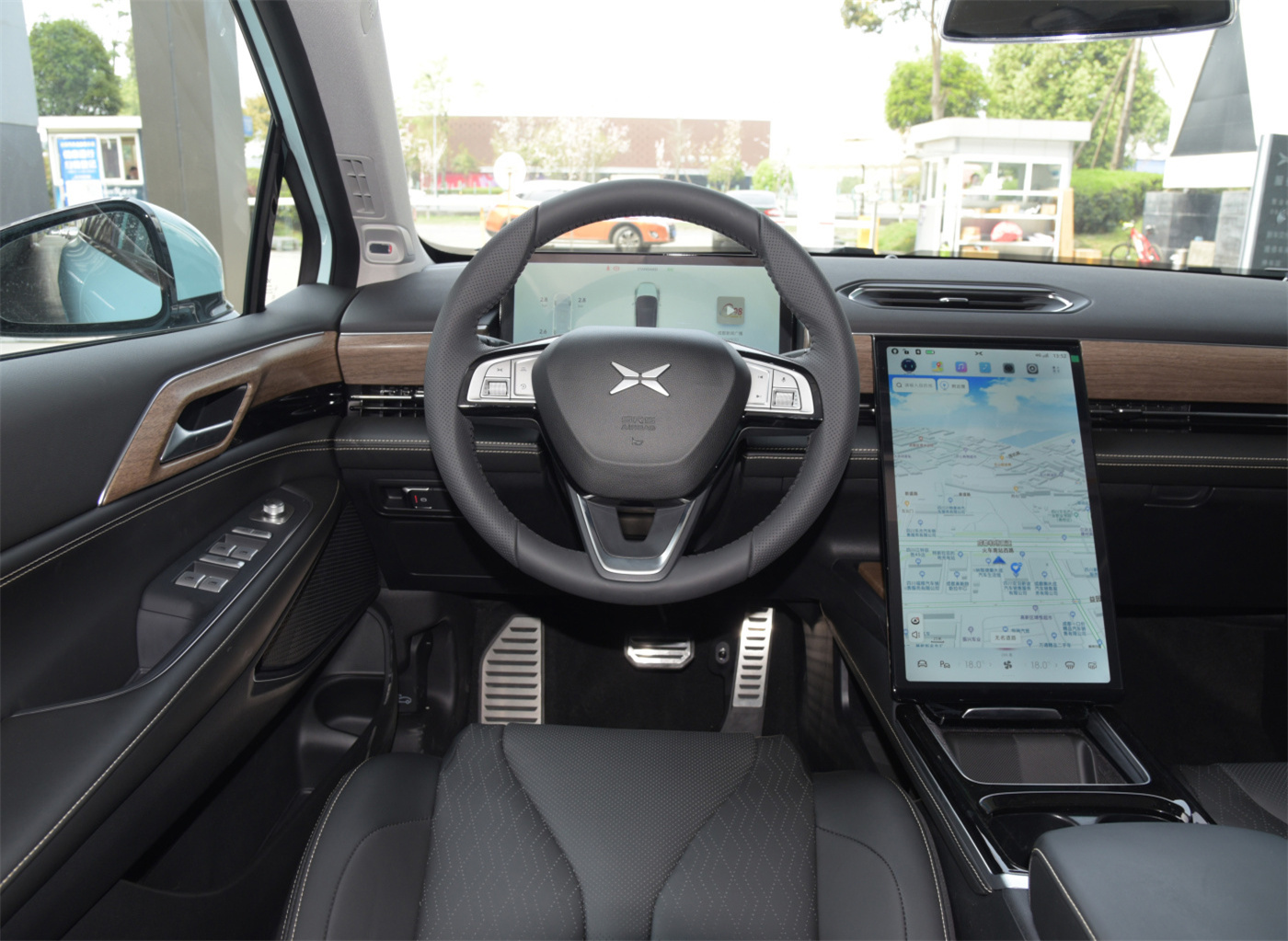

| Steering wheel material | Genuine Leather | Genuine Leather |
| Steering wheel position adjustment | Manual up and down | Manual up and down |
| Multifunction steering wheel | YES | YES |
| Trip computer display screen | Color | Color |
| Full LCD Dashboard | YES | YES |
| LCD meter size (inch) | 12.3 | 12.3 |
| Mobile phone wireless charging function | Front row | Front row |

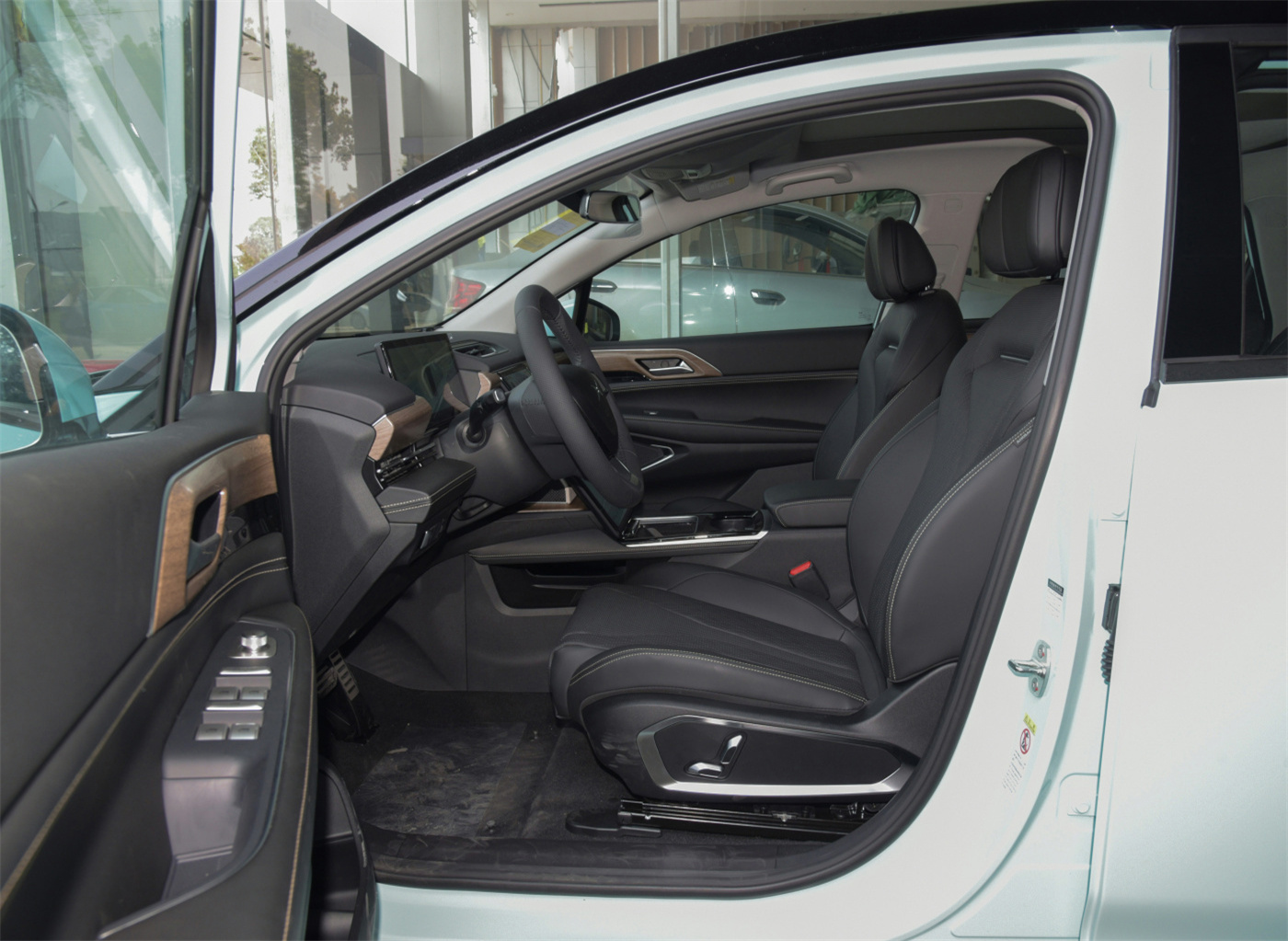

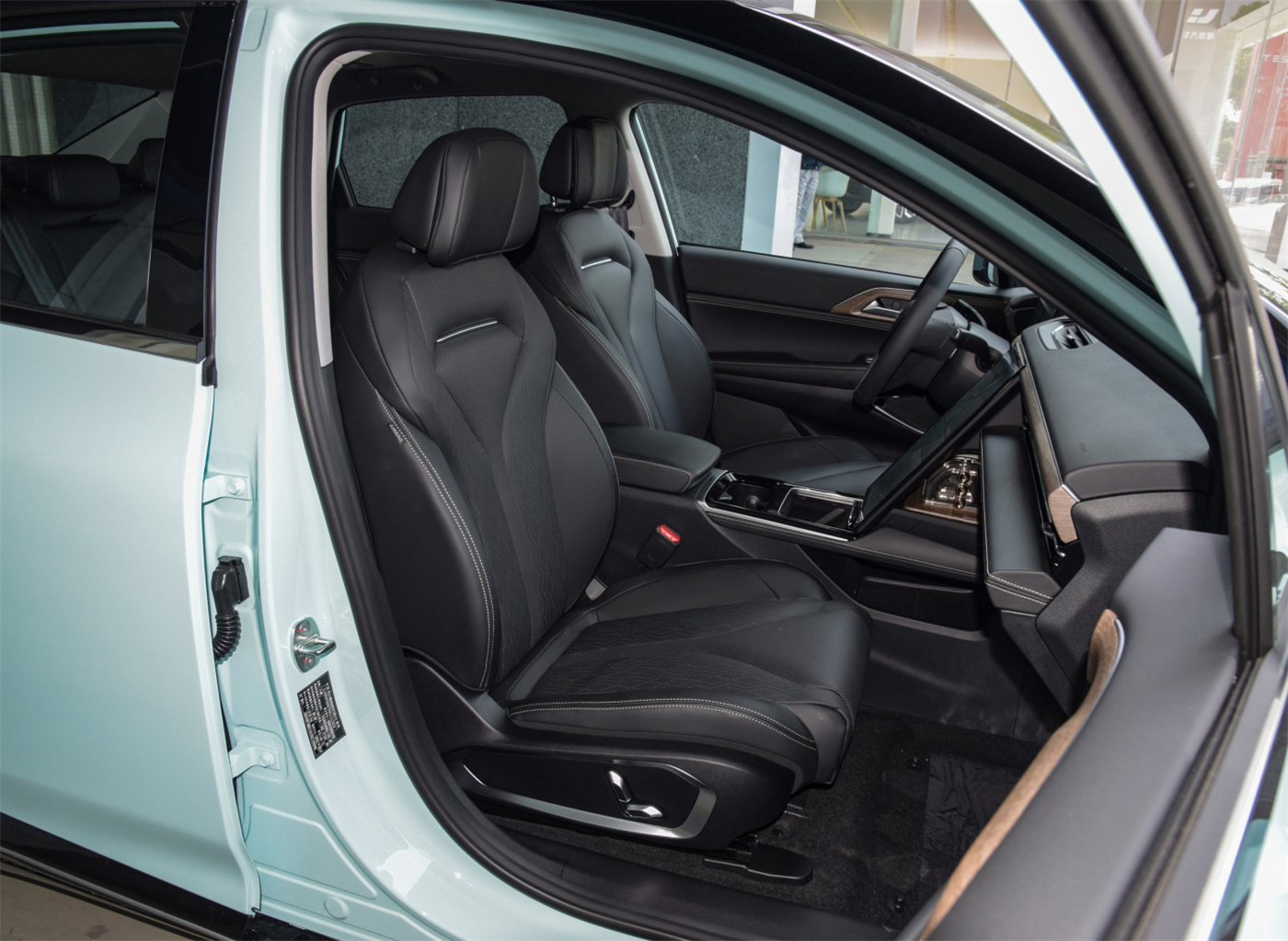

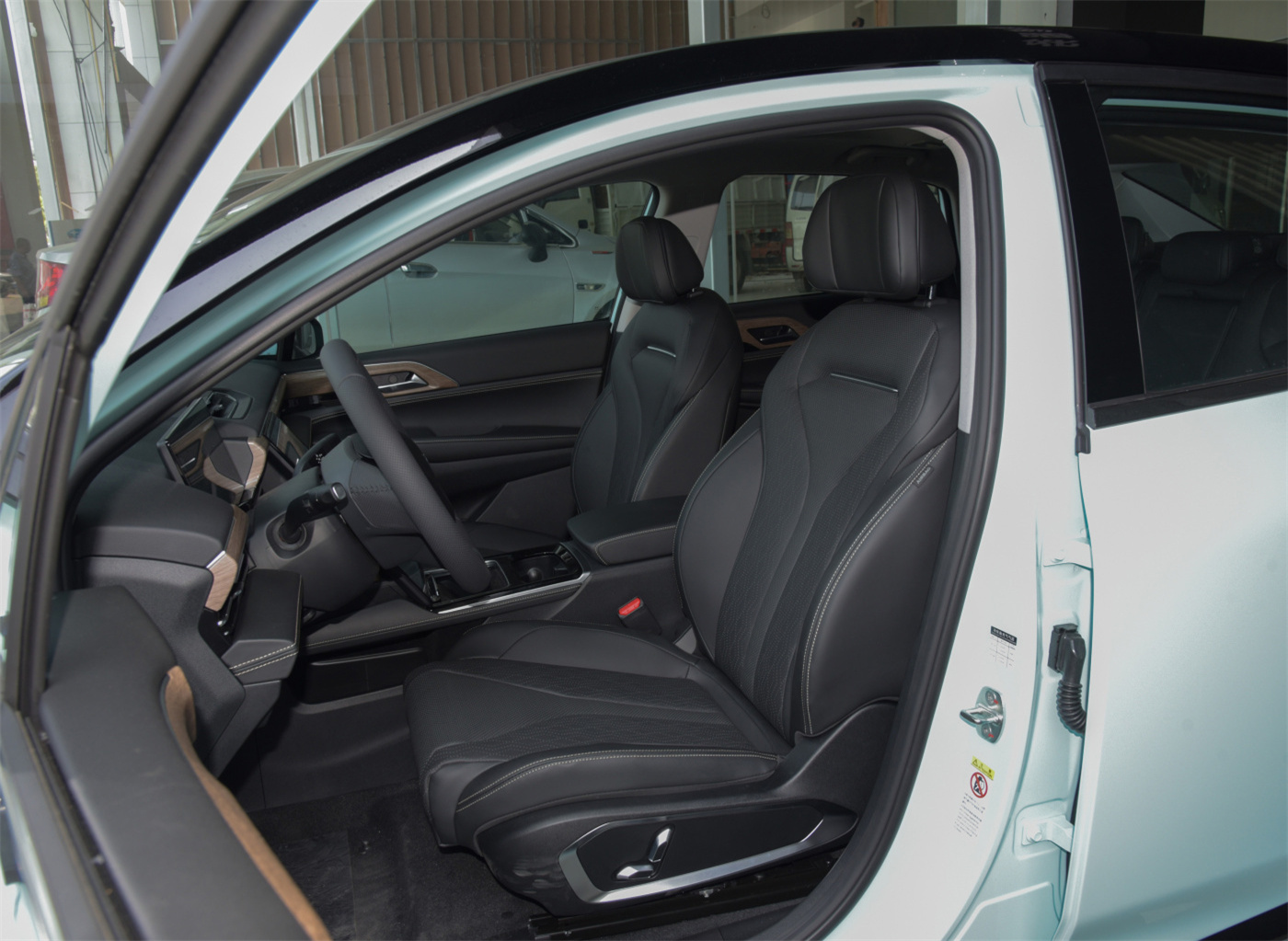

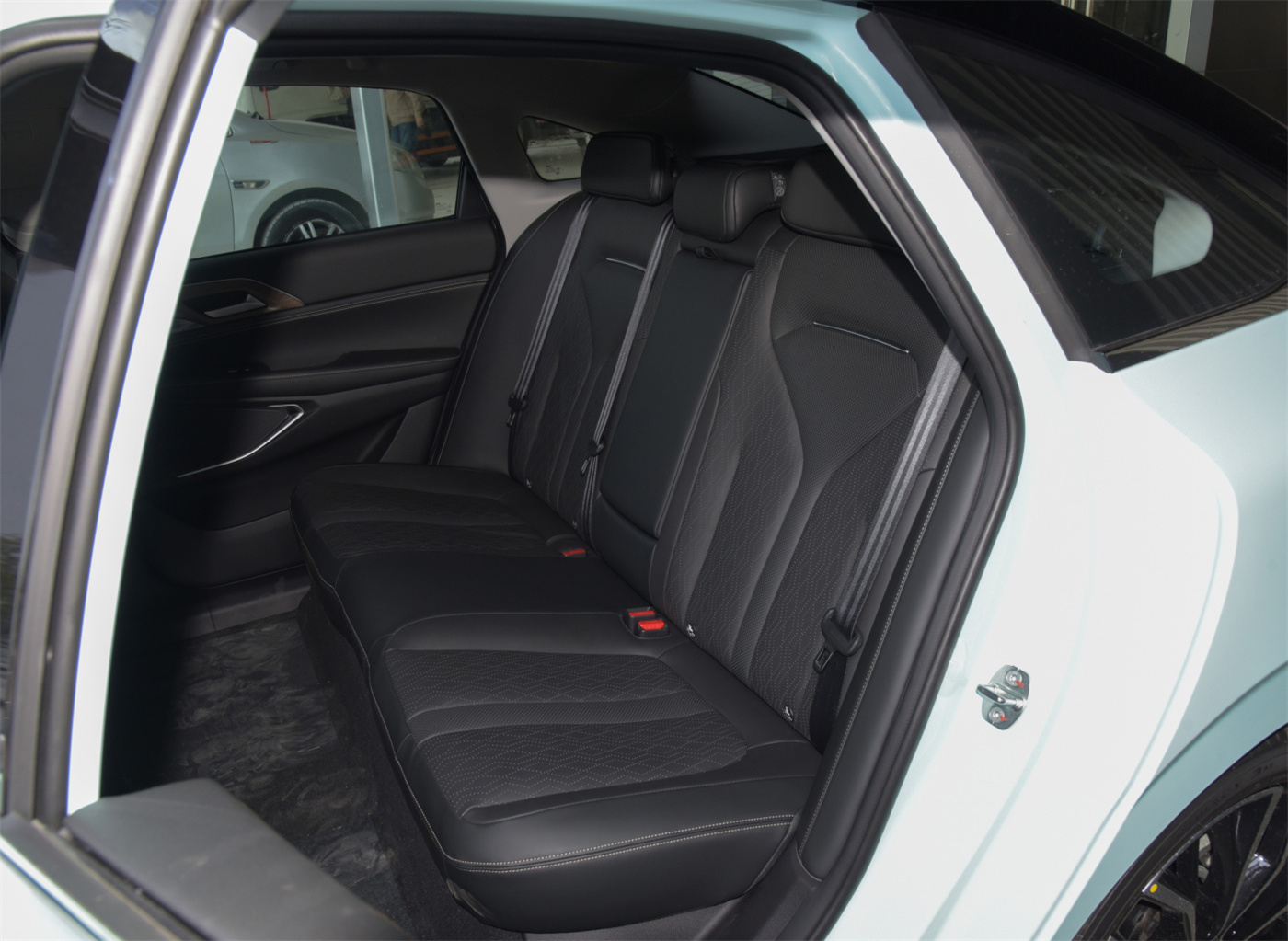

| Seat configuration | ||
| Seat materials | Imitation leather | Imitation leather |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment | Front and rear adjustment, backrest adjustment |
| Main/assistant seat electric adjustment | YES | YES |
| Power seat memory function | Driver's seat | Driver's seat |
| Rear cup holder | YES | YES |
| Front/rear center armrest | Front,Rear | Front,Rear |
| Multimedia configuration | ||

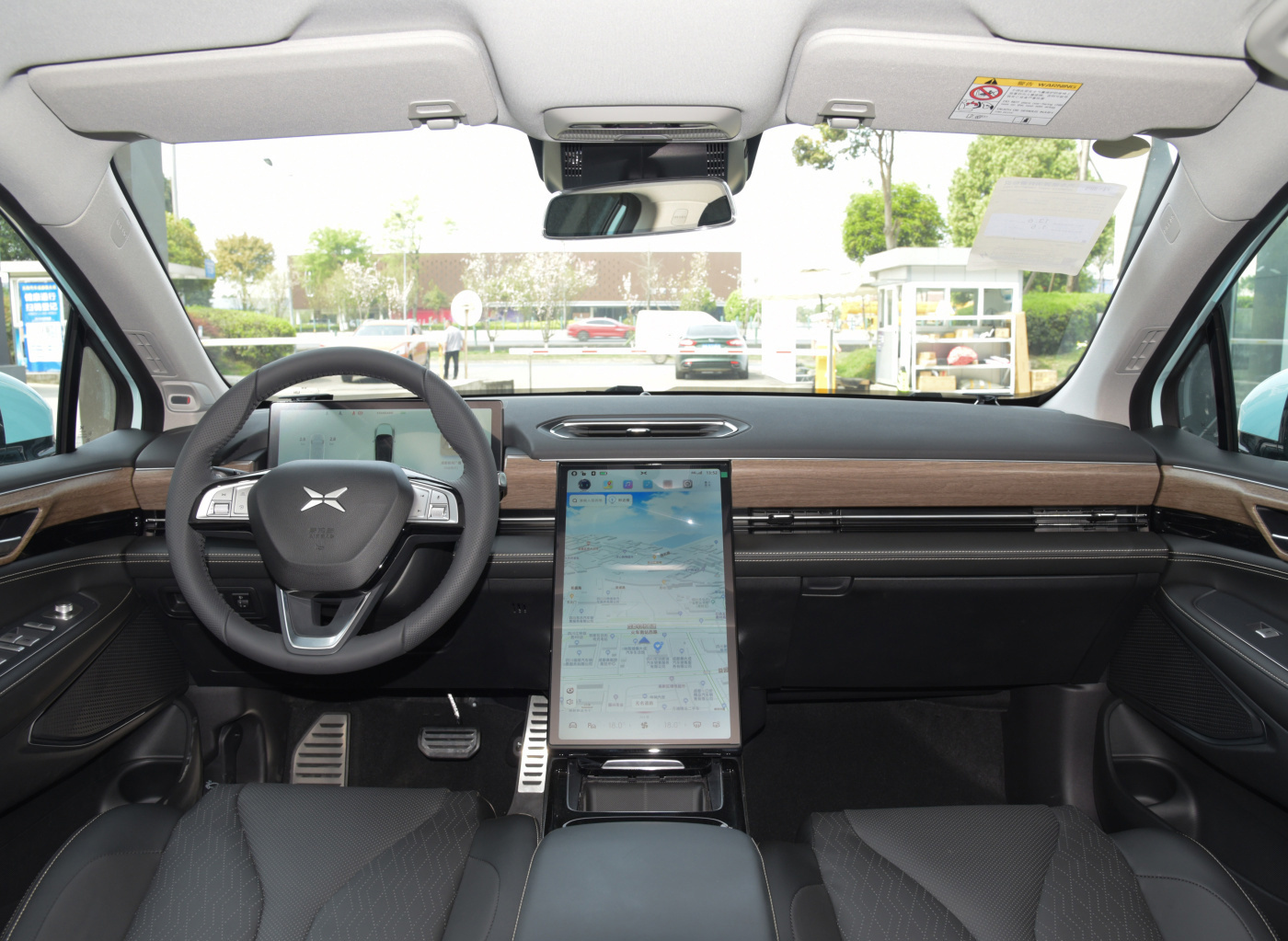

| Central control color screen | Touch LCD | Touch LCD |
| Central control screen size (inch) | 15.6 | 15.6 |
| Satellite navigation system | YES | YES |
| Navigation traffic information display | YES | YES |
| Bluetooth/Car Phone | YES | YES |
| Voice recognition control system | Multimedia system, navigation, telephone, air conditioning | Multimedia system, navigation, telephone, air conditioning |
| Internet of Vehicles | YES | YES |
| OTA upgrade | YES | YES |
| Multimedia/charging interface | USB Type-C | USB Type-C |
| Number of USB/Type-c ports | 3 in front/2 in rear | 3 in front/2 in rear |
| Luggage compartment 12V power interface | YES | YES |
| Number of speakers (pcs) | 6 | 6 |
| Lighting configuration | ||
| Low beam light source | LED | LED |
| High beam light source | LED | LED |
| LED daytime running lights | YES | YES |
| Automatic headlights | YES | YES |
| Headlight height adjustable | YES | YES |
| Headlights turn off | YES | YES |
| Glass/Rearview mirror | ||

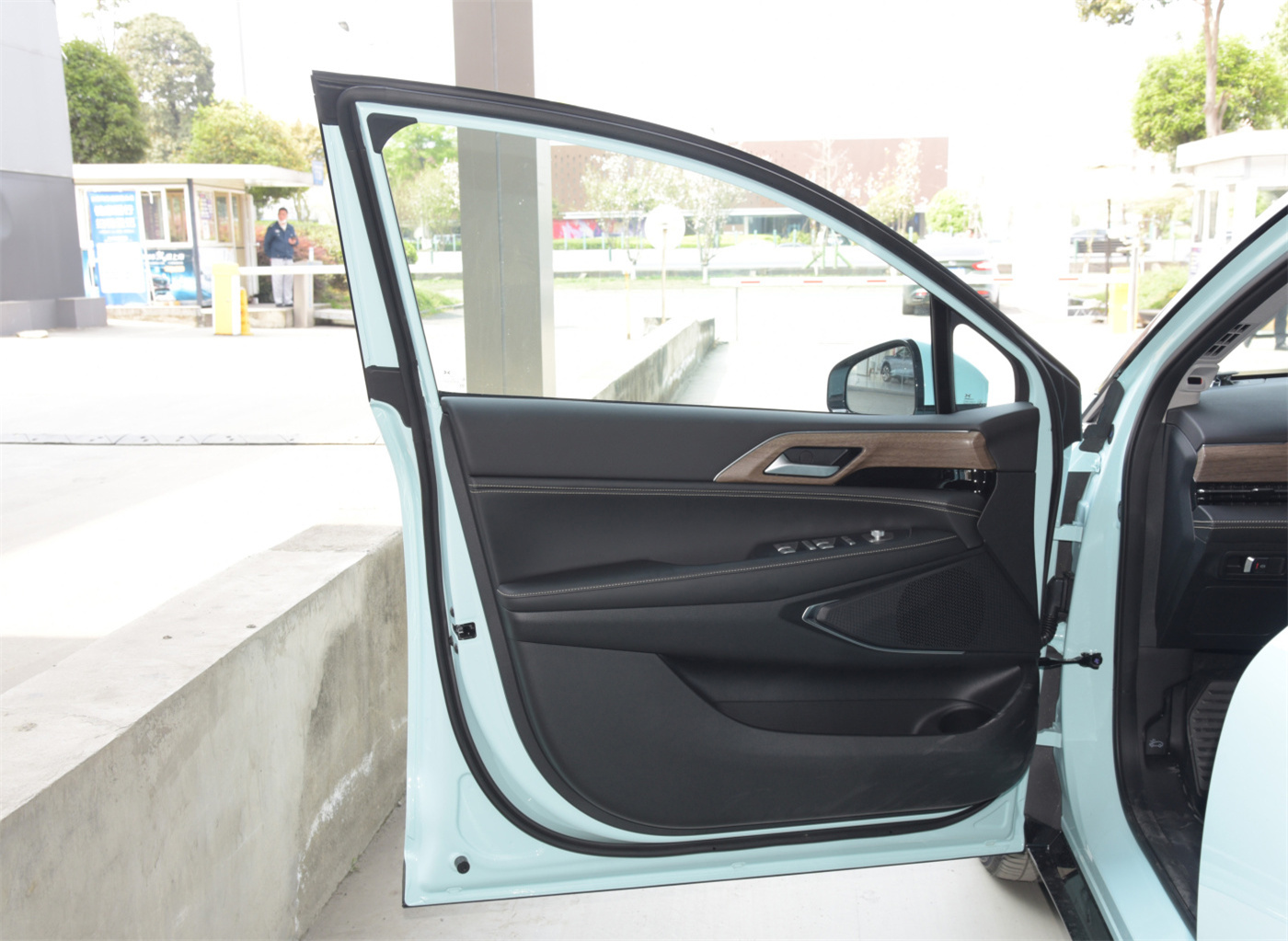

| Front power windows | YES | YES |
| Rear power windows | YES | YES |
| Window one-button lift function | Full car | Full car |
| Window anti-pinch function | YES | YES |
| Post audition feature | Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic downturn when reversing, automatic folding after locking the car | Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic downturn when reversing, automatic folding after locking the car |
| Inside rearview mirror function | Automatic anti-dazzle | Automatic anti-dazzle |
| Interior vanity mirror | Driver's seat Co-pilot |
Driver's seat Co-pilot |
| Air conditioner/refrigerator | ||
| Air conditioner temperature control method | Automatic air conditioner | Automatic air conditioner |
| Rear air outlet | YES | YES |
| Temperature zone control | YES | YES |
| Car air purifier | YES | YES |
| In-car PM2.5 filter | YES | YES |
| Smart hardware | ||
| Number of cameras | 1 | 1 |
| Ultrasonic radar quantity | 4 | 4 |

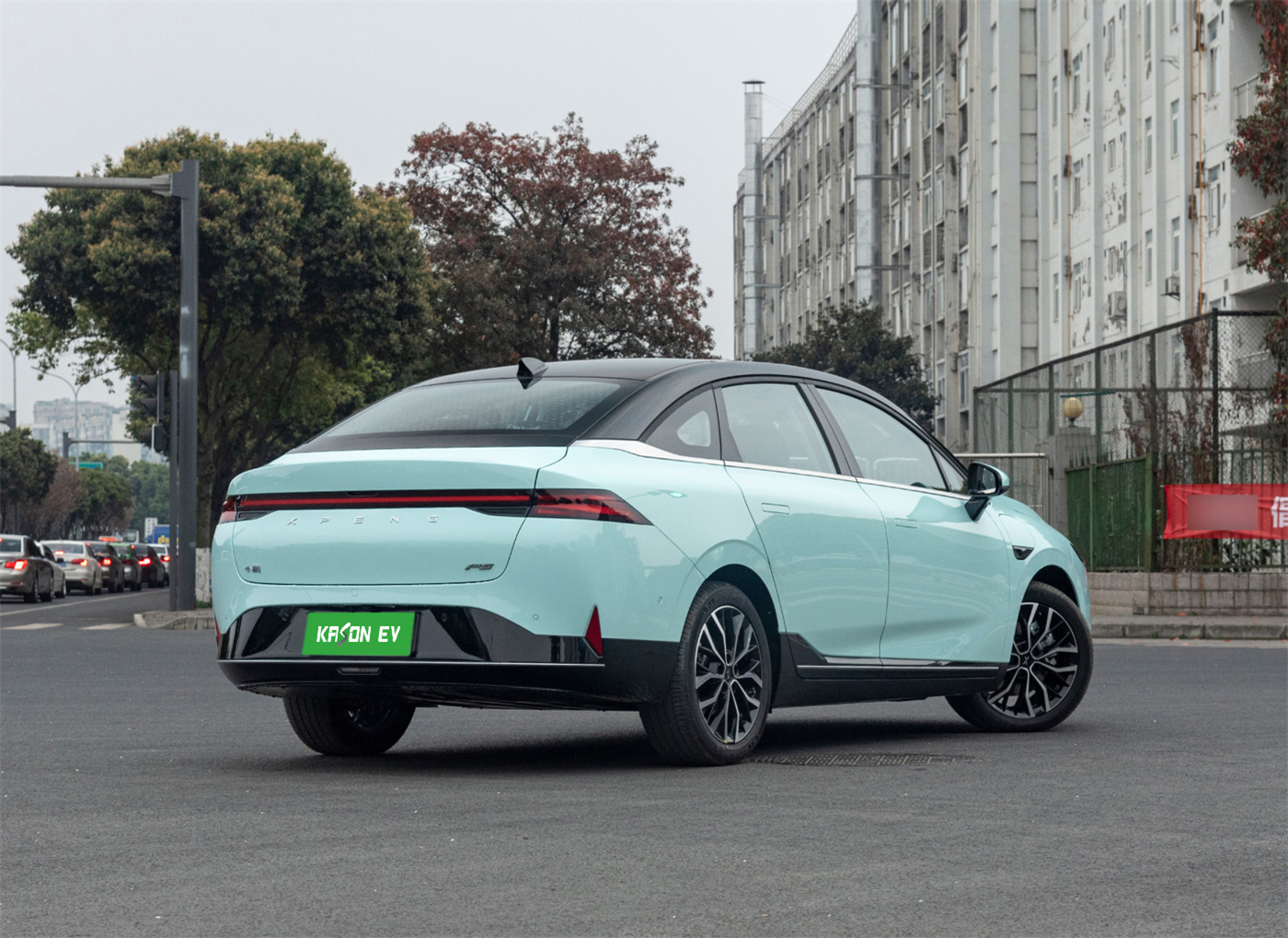

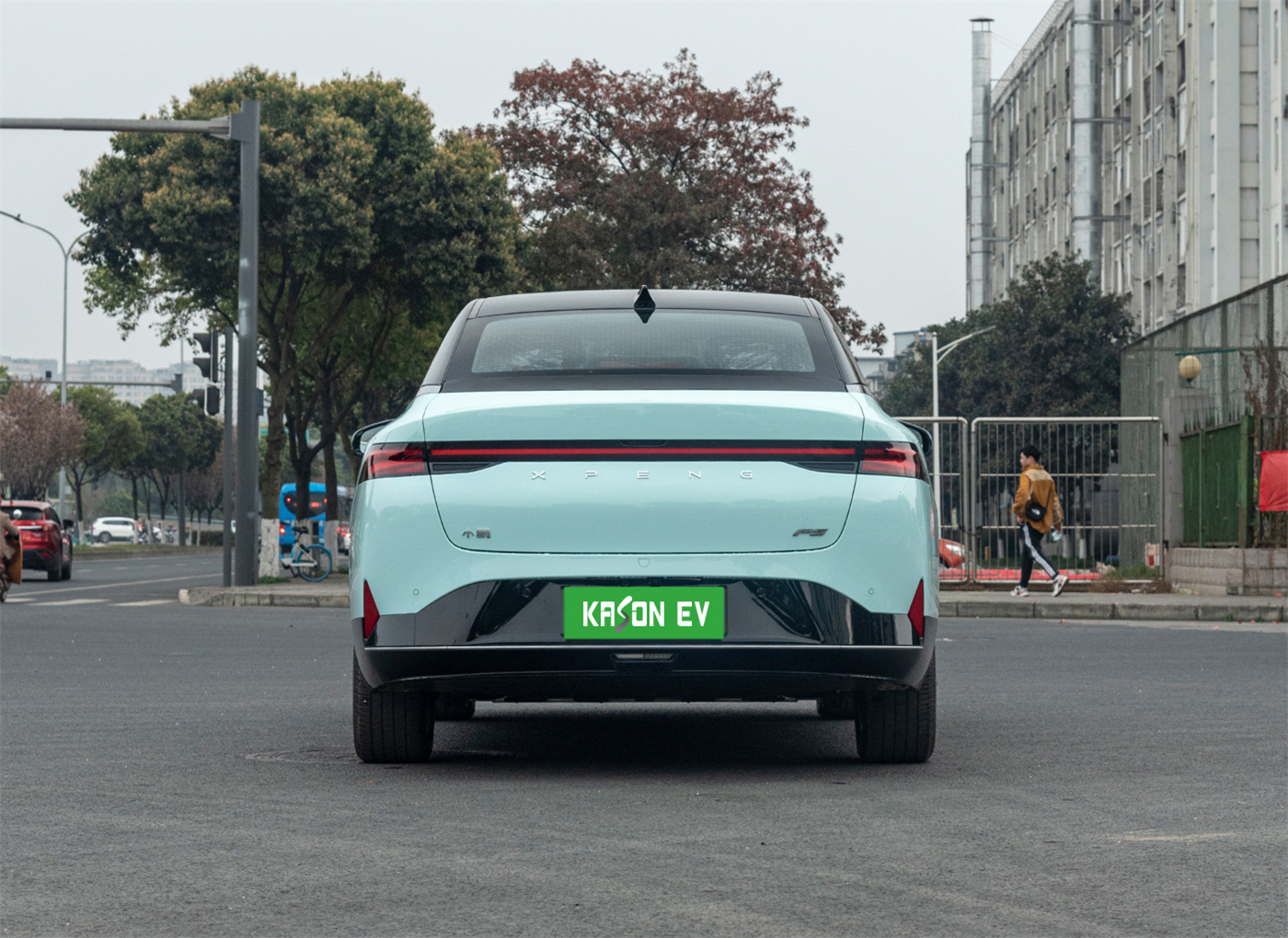

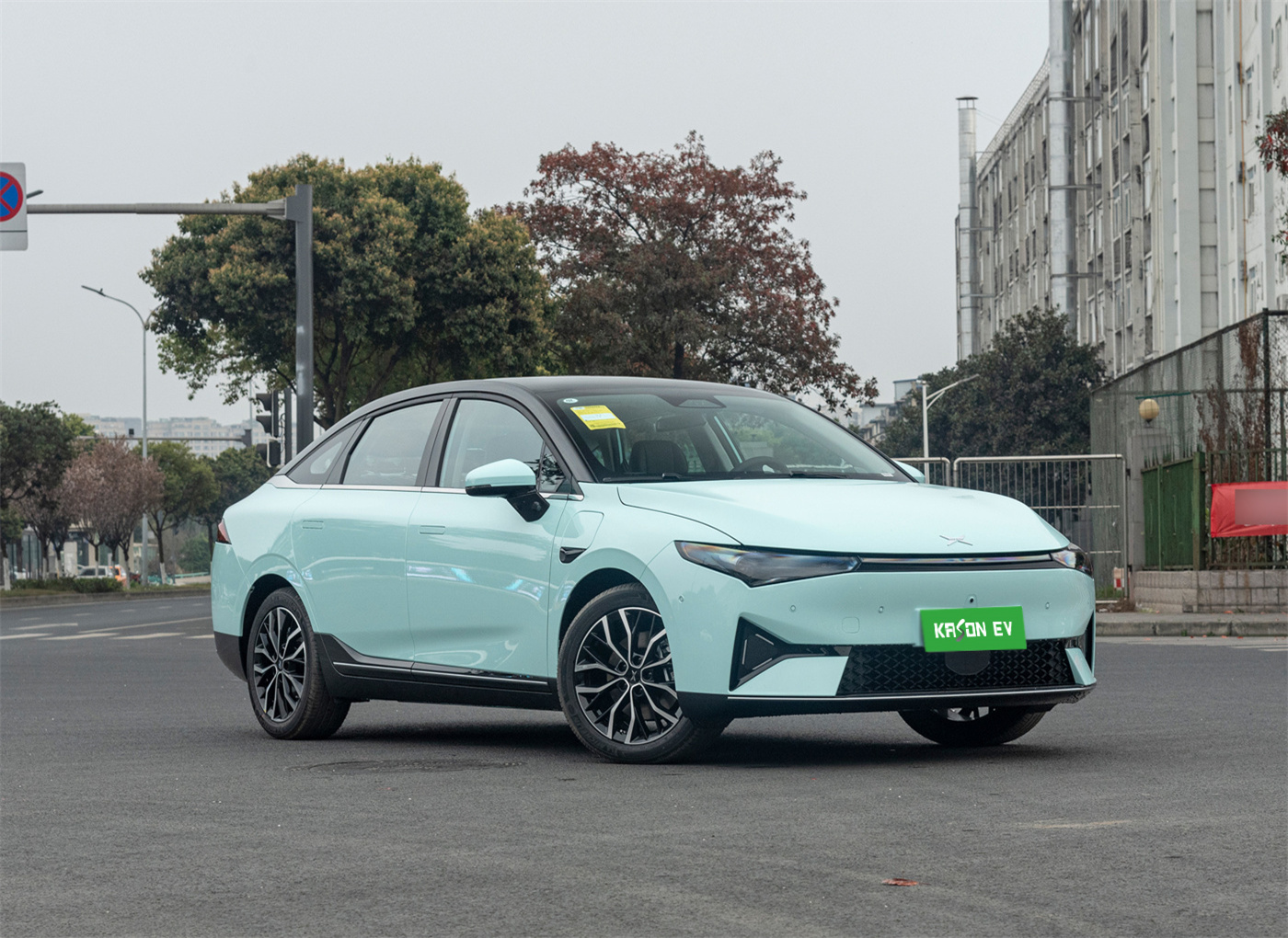

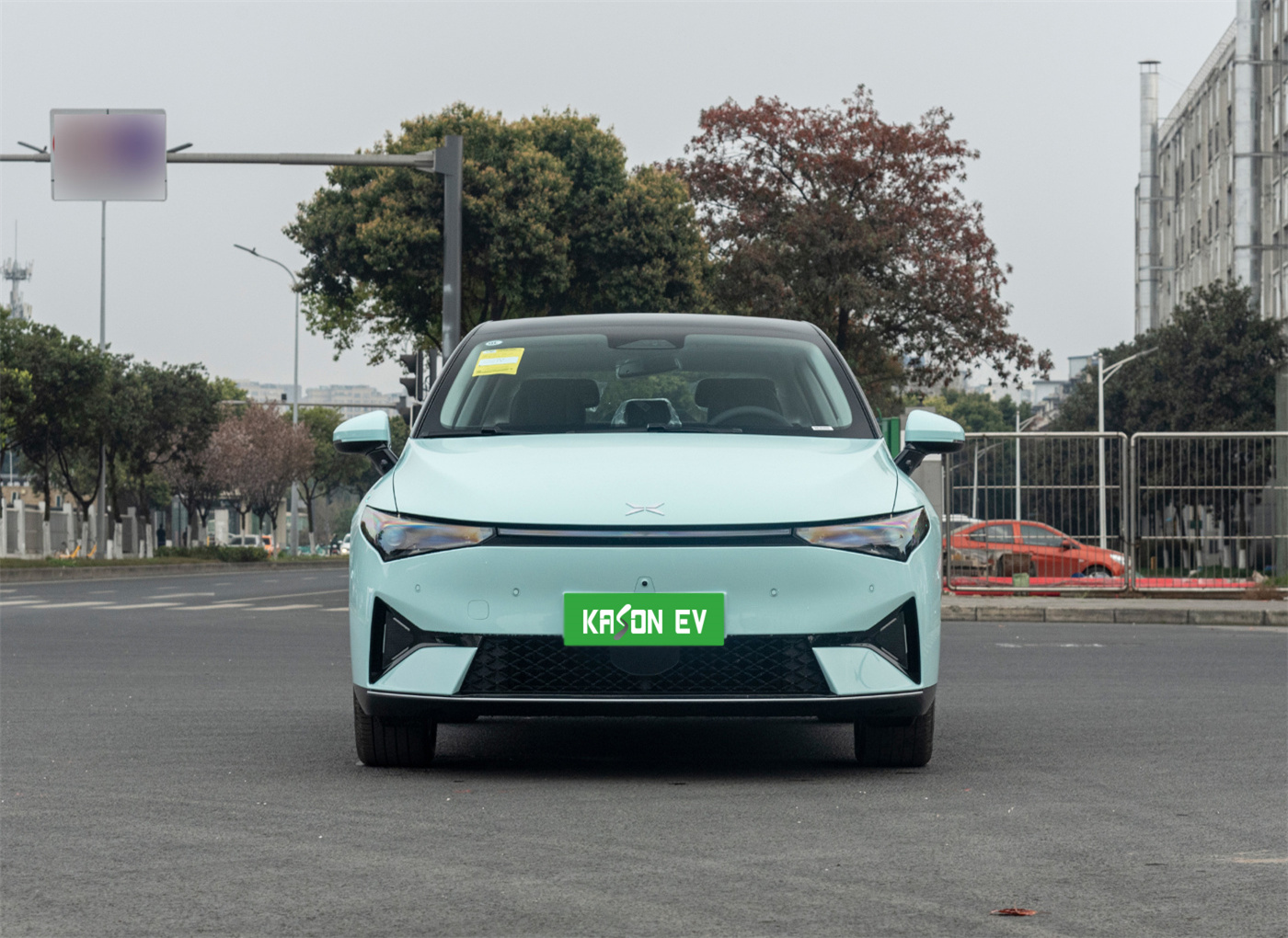

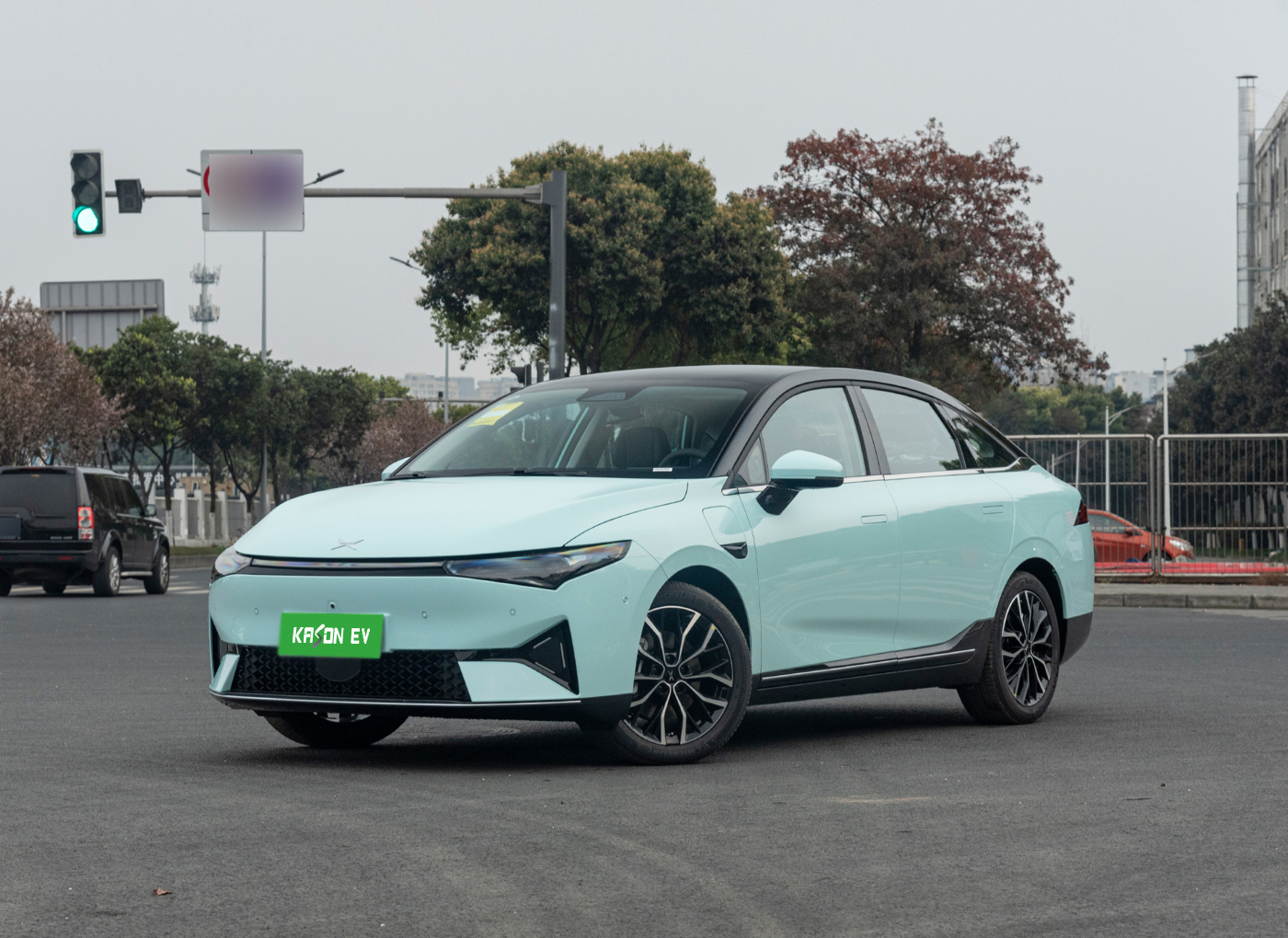

Appearance
