Product Information

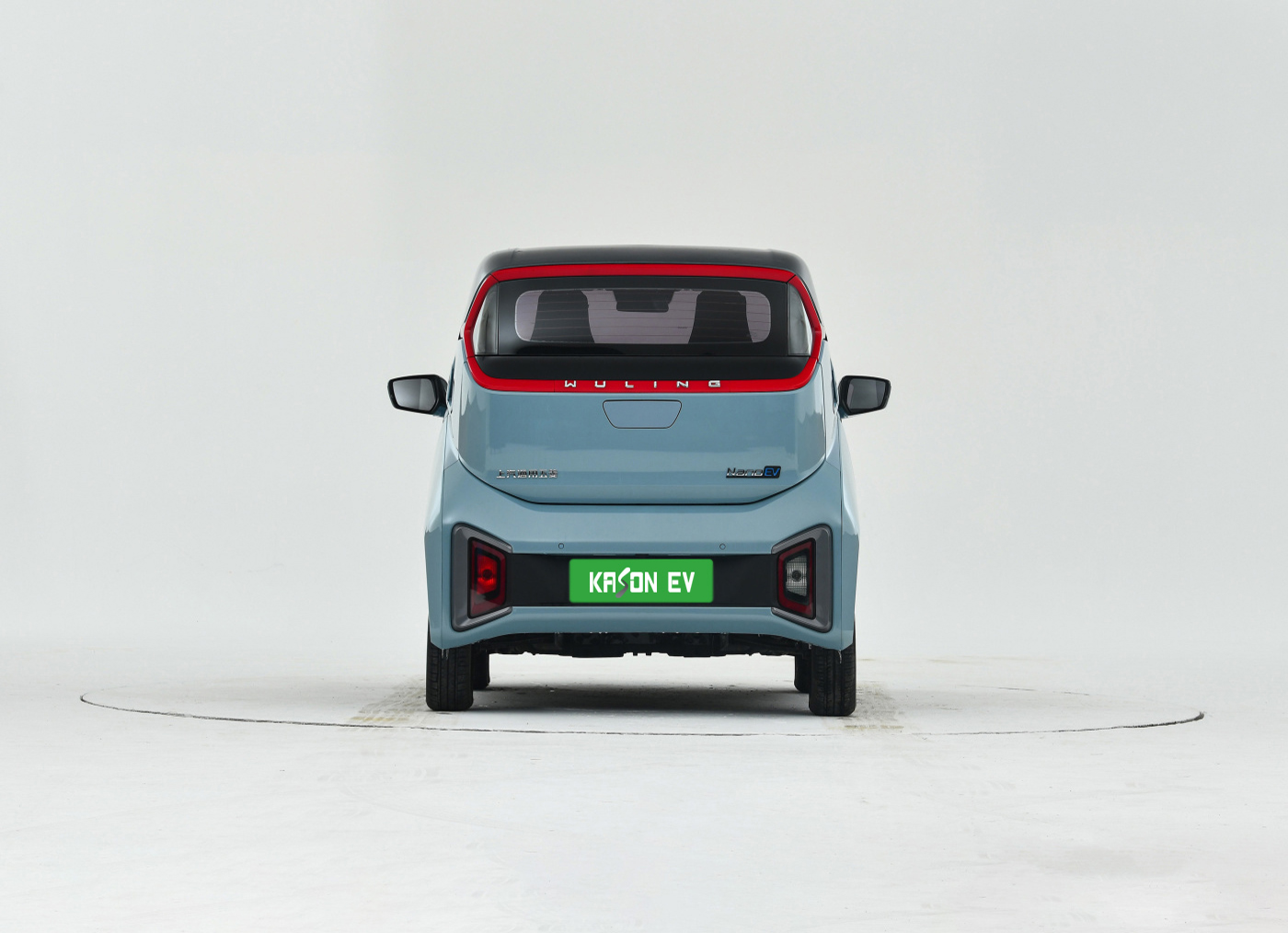

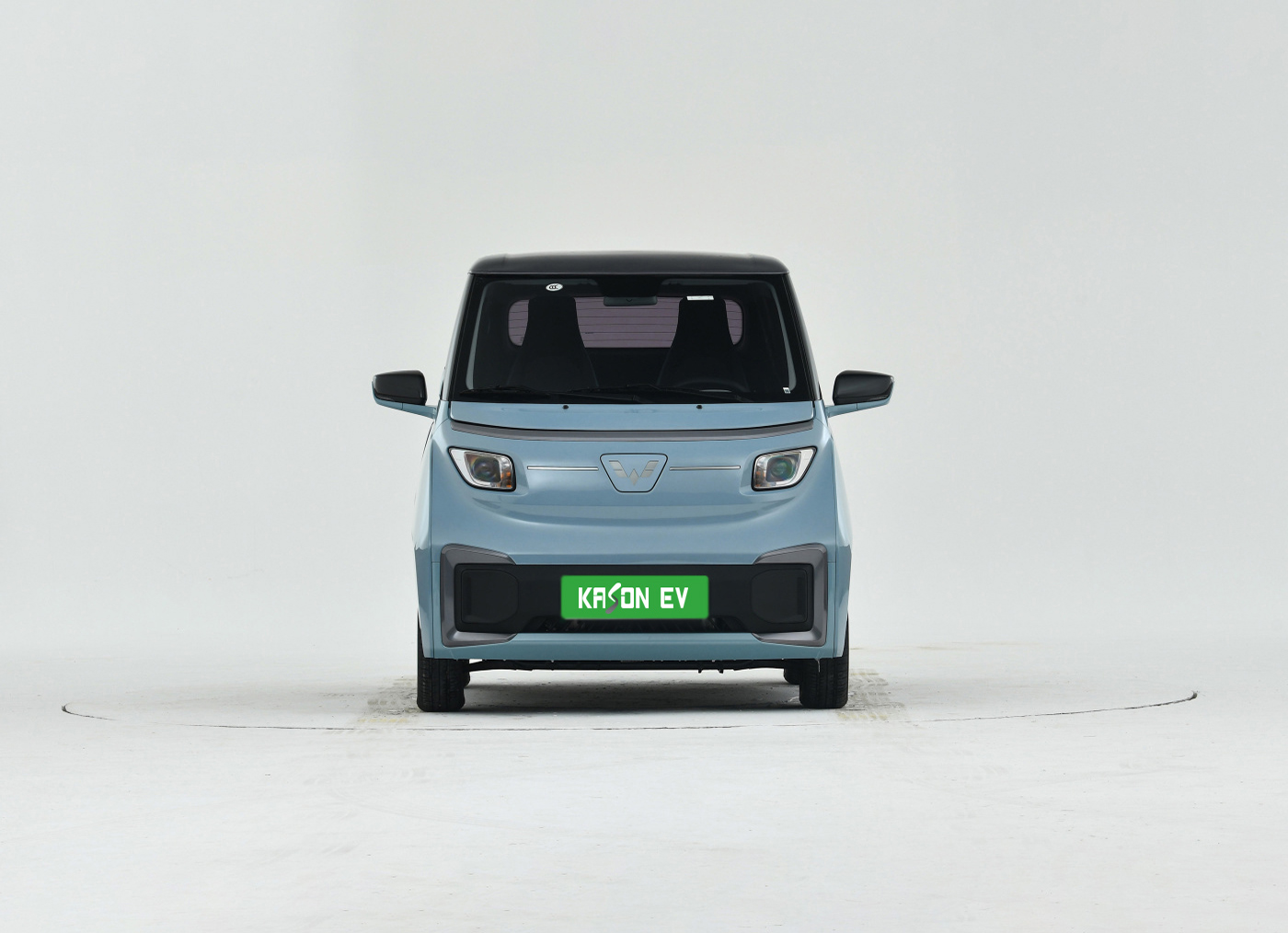

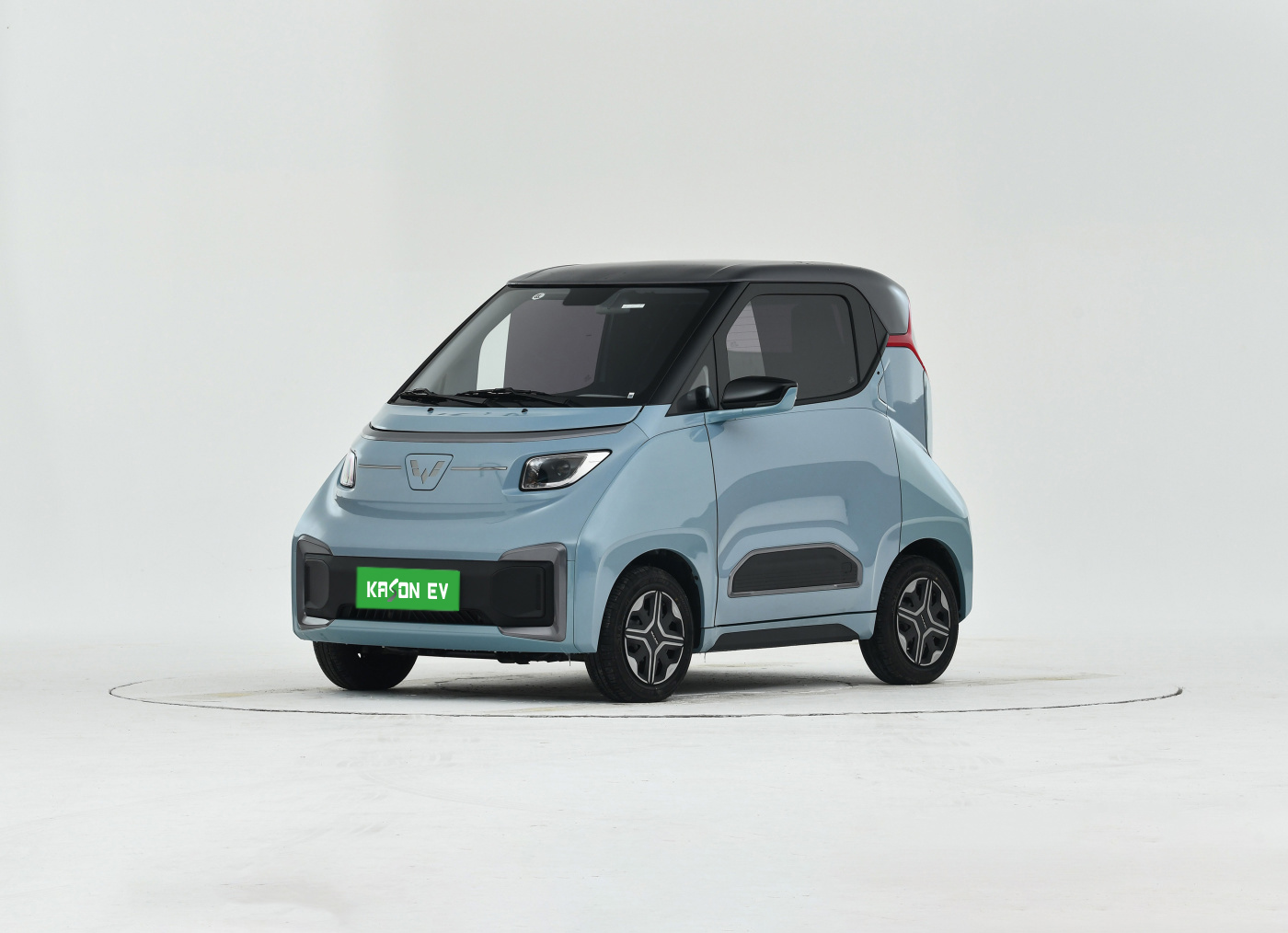

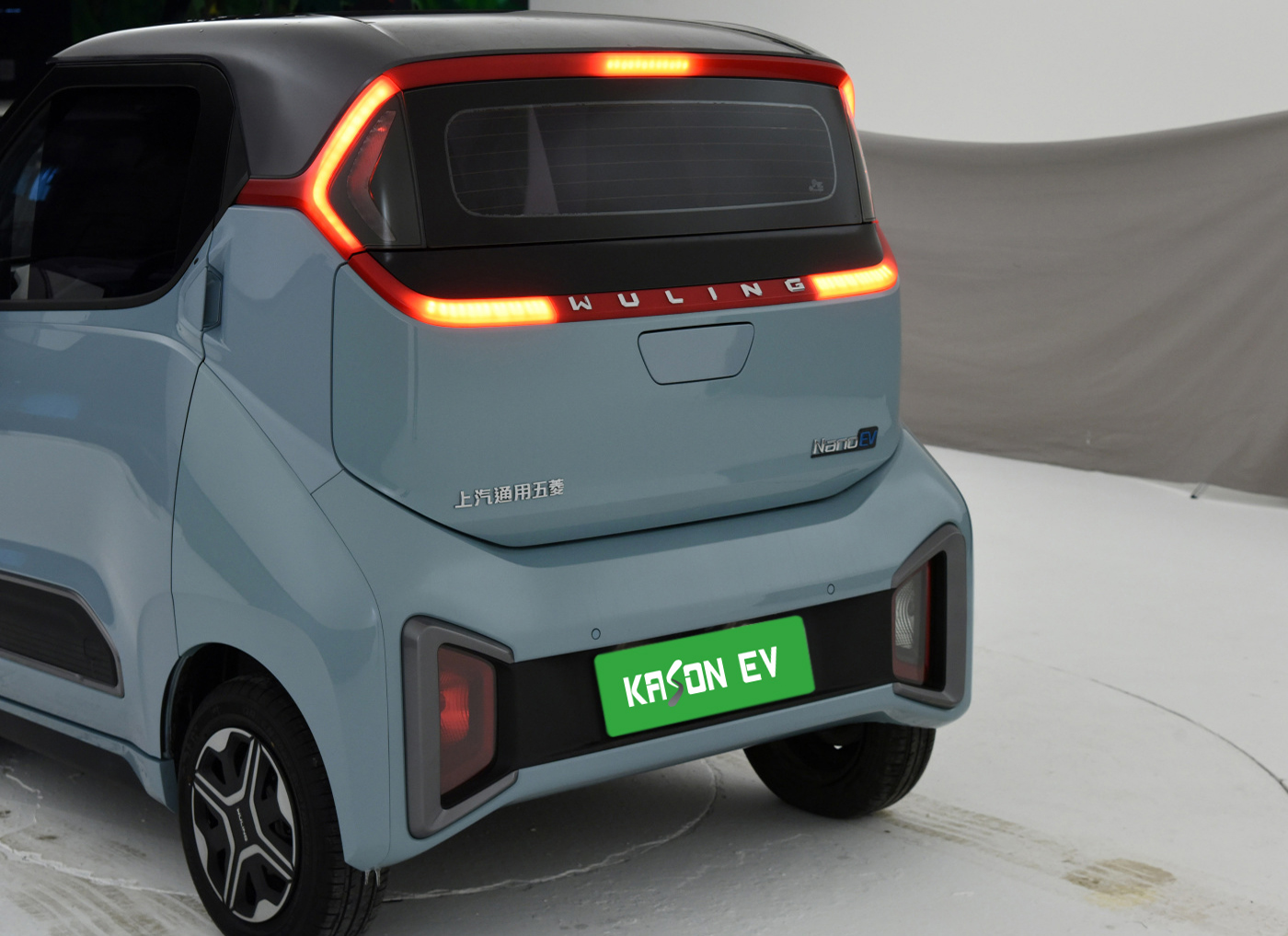

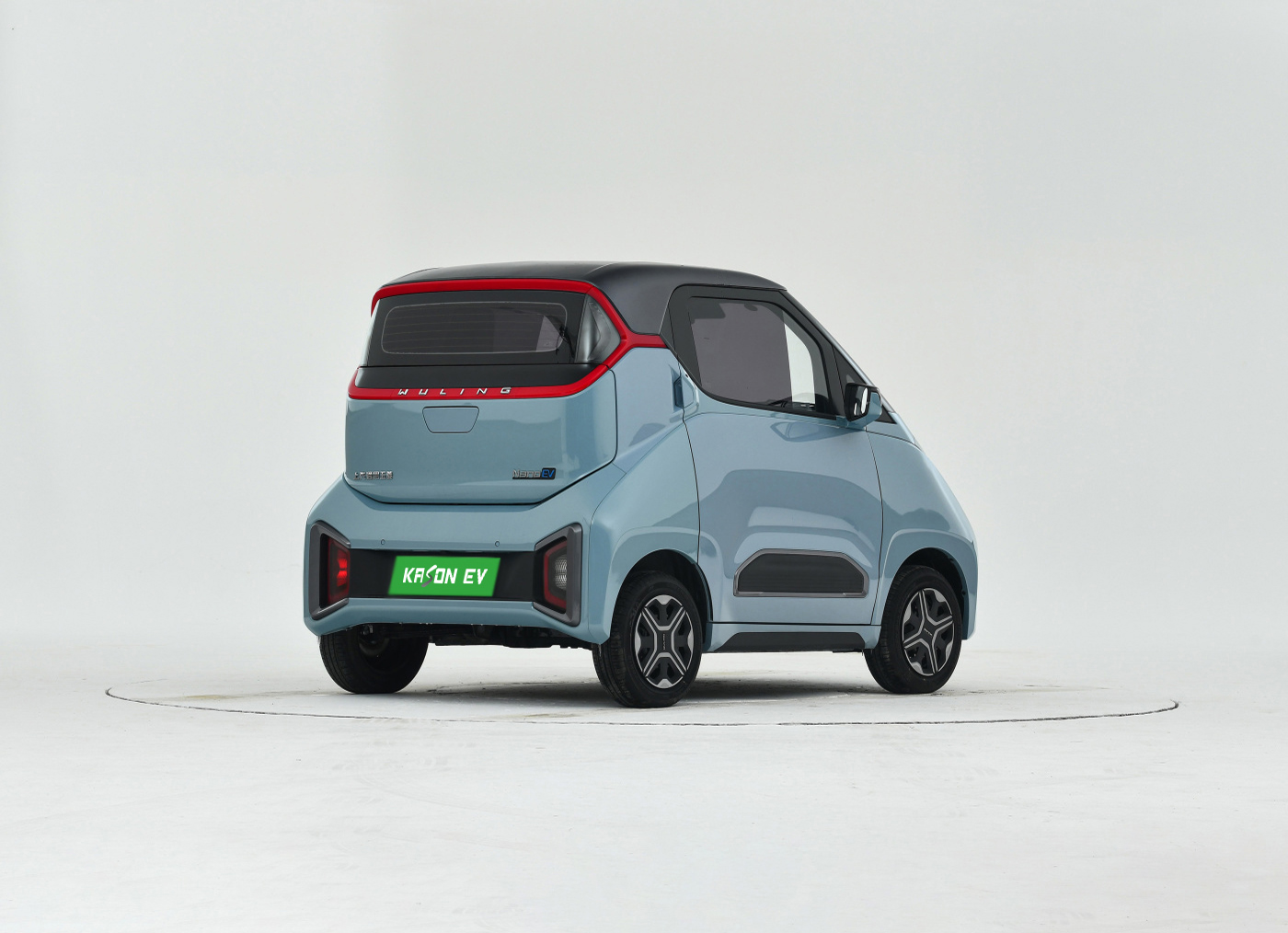

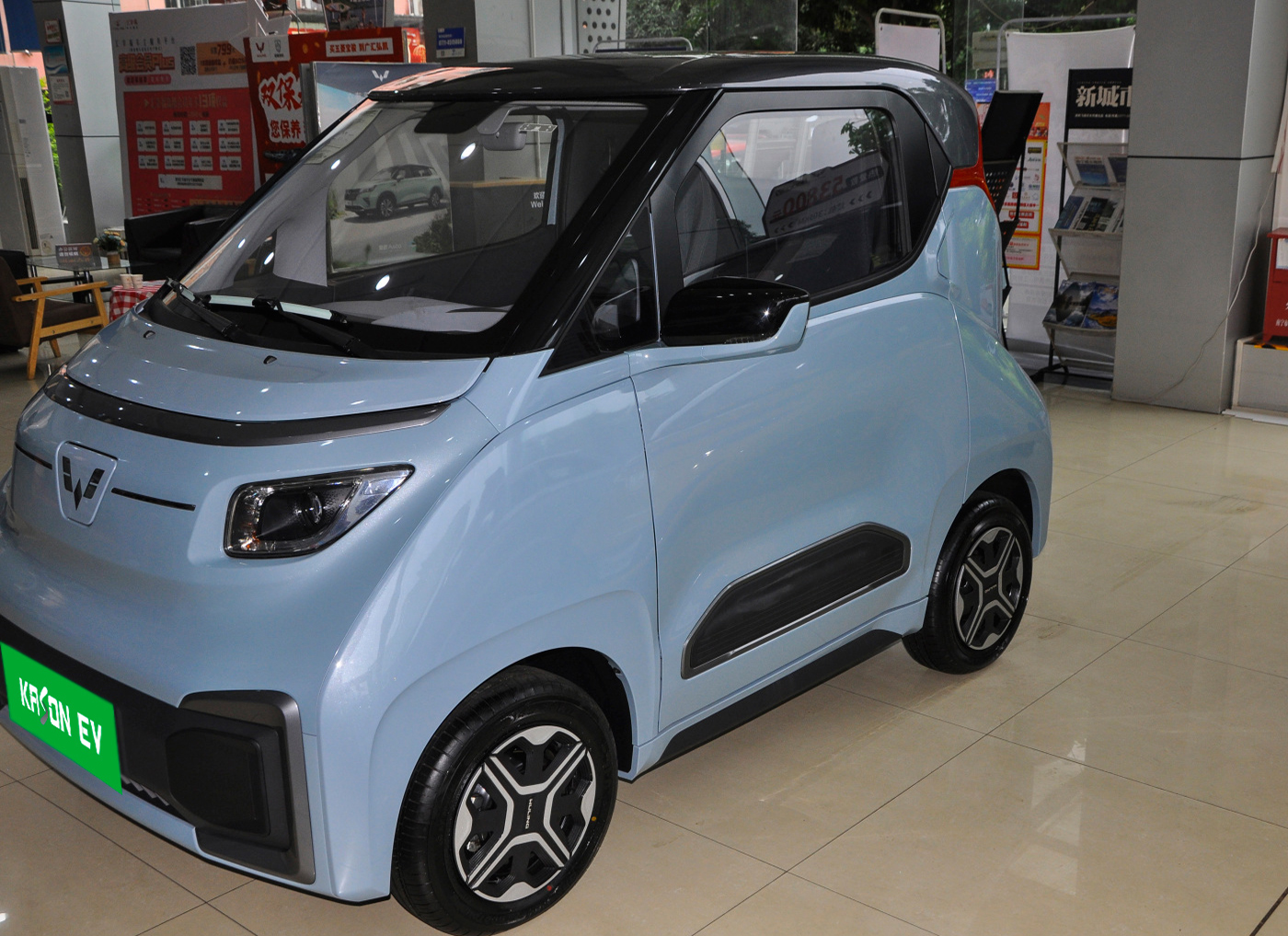

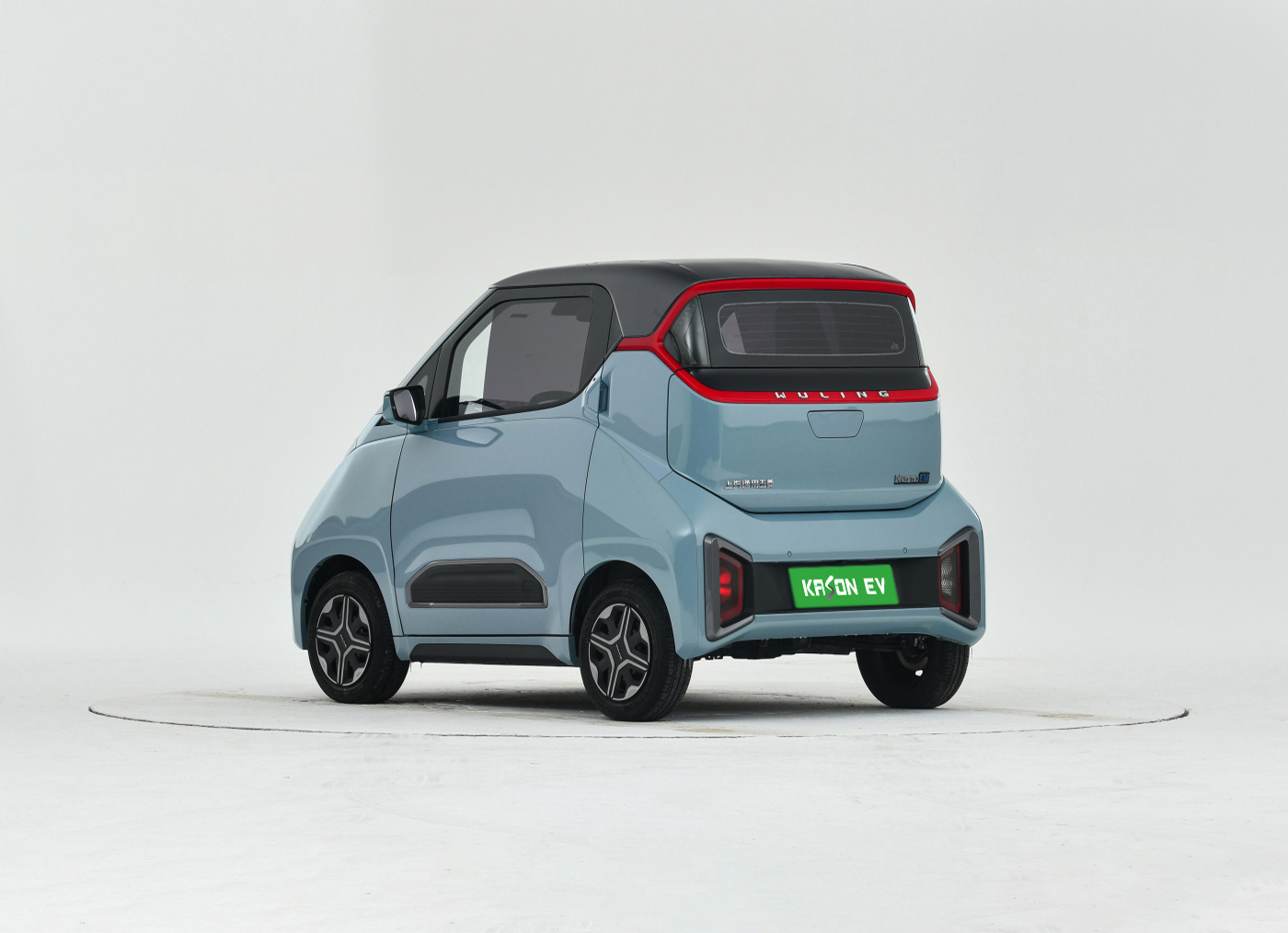

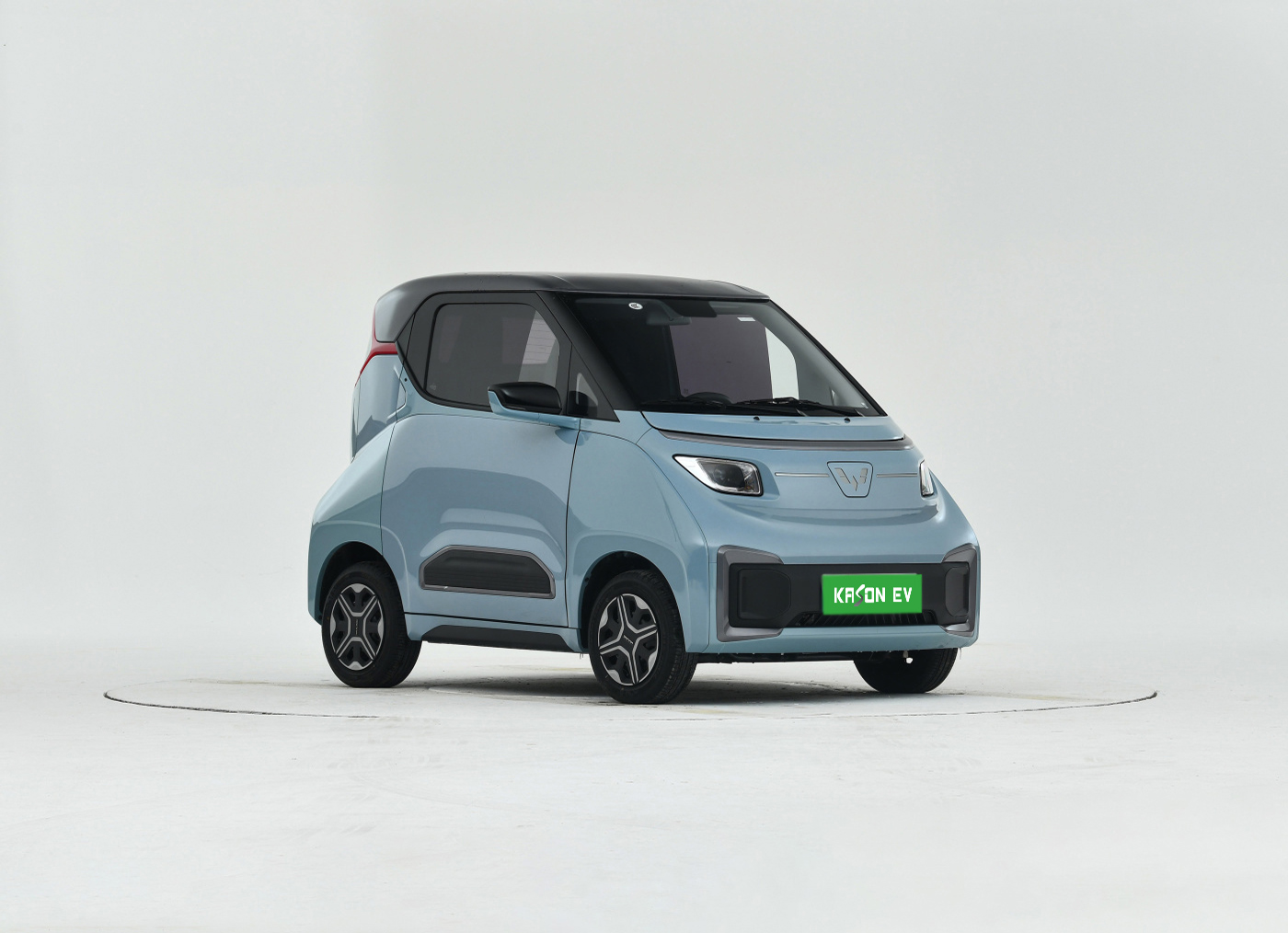

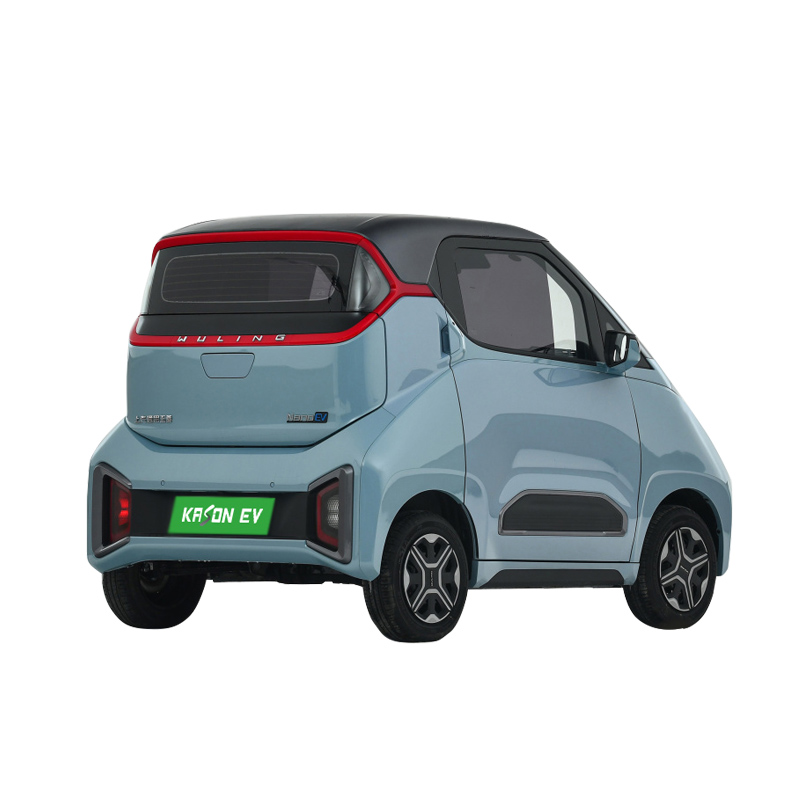

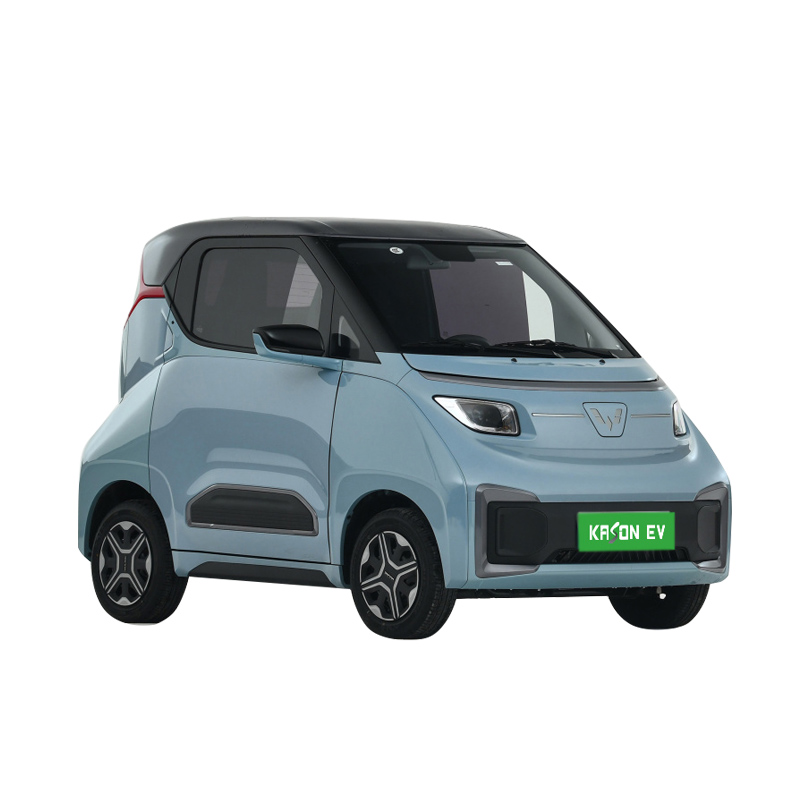

In terms of appearance, Wuling Nano EV has adopted a more lovely and compact modeling design. Although it is pure electric MINIEV like Hongguang MINIEV, Wuling Nano EV has a shorter body length and wheelbase, and the new car can only accommodate 2 people, which is more suitable for the pursuit of personality of young people. On the side of the body, Wuling Nano EV modeling is more compact, a-pillar using black processing, create A suspension roof of both visual sense, and the rear view mirror and wheel rim are also adopted two-color design, the overall more dynamic. Wuling Nano EV tail adopts the design of front and rear echo, split taillight with high recognition, rear surrounding on both sides of the fog lights and reverse lights with irregular shape design, the outside also added to enhance the visual effect of the decorative strip.

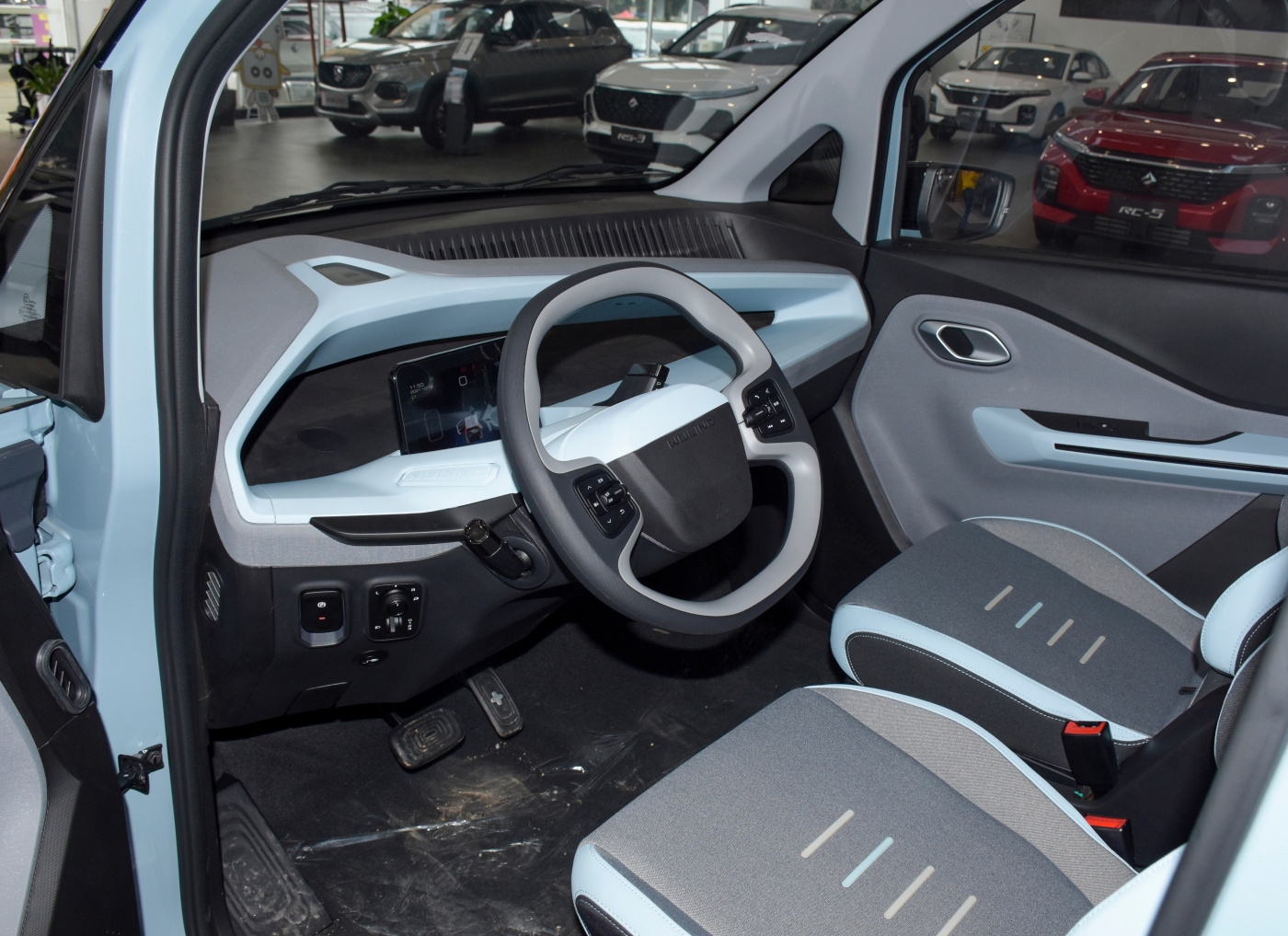

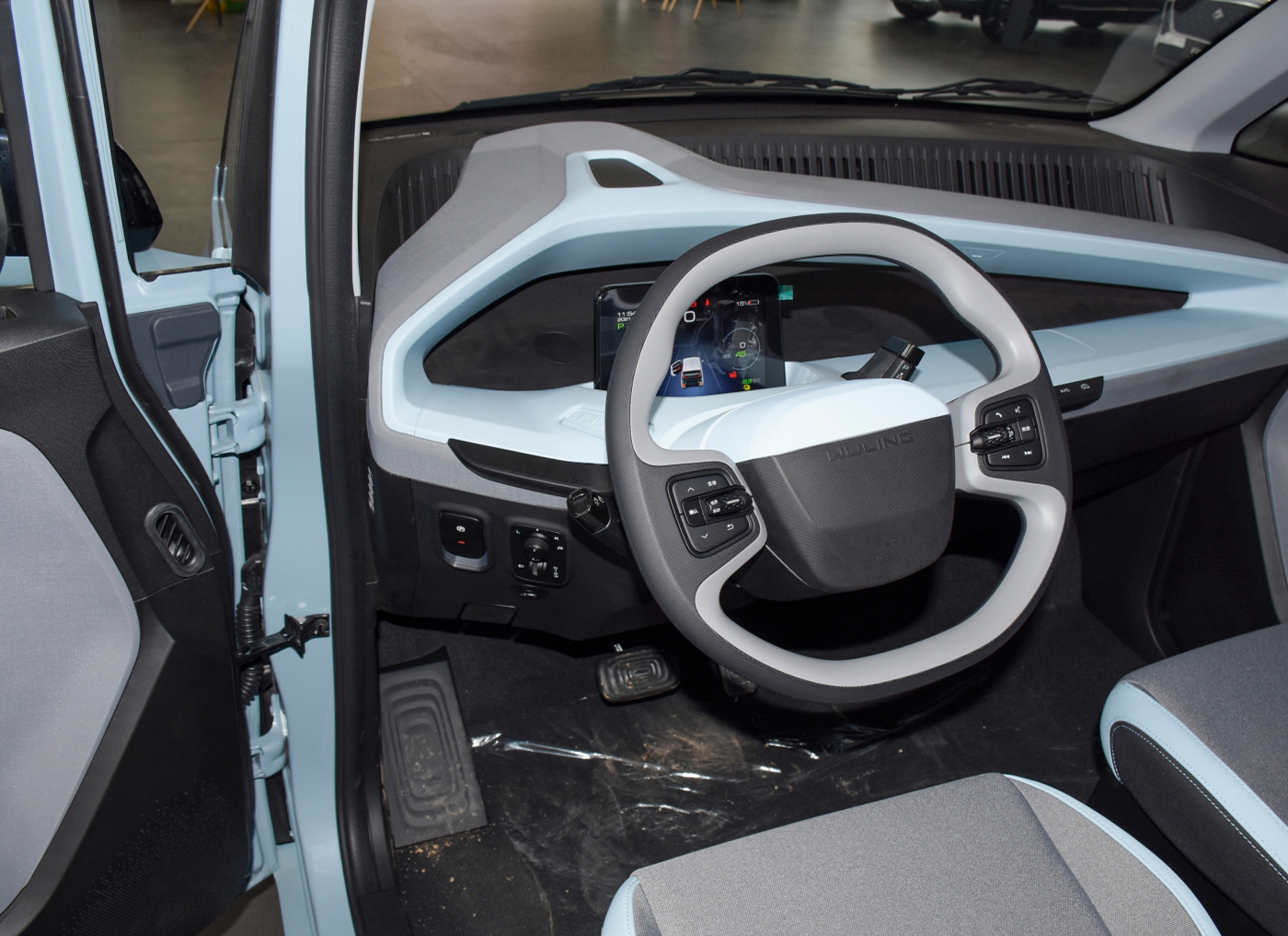

In terms of interior, Wuling Nano EV interior adopts irregular design, dual-spoke steering wheel adopts dual-color collocation, and multi-functional control buttons are added on both sides. Like the Macrooptical MINIEV, Nano EV's central console has a through-through design.
In terms of power, The Wuling Nano EV is equipped with a motor with a maximum power of 24kW (35hp) and a maximum torque of 85Nm. It is also equipped with a lithium iron phosphate battery with a capacity of 28kWh and a NEDC range of 305km.
Product Specifications
Brand | WULING |
Model | NANO EV |
Version | 2021 Play Style High power version |
Basic Parameters | |
Car model | Minicar |
Type of Energy | Pure electric |
Time to market | Nov,2021 |
NEDC pure electric cruising range (KM) | 305 |
Slow charging time[h] | 13.5 |
Maximum power (KW) | 29 |
Maximum torque [Nm] | 110 |
Motor horsepower [Ps] | 39 |
Length*width*height (mm) | 2497*1526*1616 |
Body structure | 3-door 2-seat hatchback |
Top Speed (KM/H) | 100 |
Car body | |
Longth(mm) | 2497 |
Width(mm) | 1526 |
Higth(mm) | 1616 |
Wheel base(mm) | 1600 |
Front track (mm) | 1310 |
Rear track (mm) | 1320 |
Minimum ground clearance (mm) | 125 |
Body structure | hatchback |
Number of doors | 3 |
Number of seats | 2 |
Mass (kg) | 860 |
Electric motor | |
Motor type | Permanent magnet synchronization |
Total motor power (kw) | 29 |
Total motor torque [Nm] | 110 |
Front motor maximum power (kW) | 29 |
Front motor maximum torque (Nm) | 100 |
Drive mode | Pure electric |
Number of drive motors | Single motor |
Motor placement | Prepended |
Battery Type | Lithium iron phosphate battery |
NEDC pure electric cruising range (KM) | 305 |
Battery Power(kwh) | 28 |
Gearbox | |
Number of gears | 1 |
Transmission type | Fixed gear ratio gearbox |
Short name | Electric vehicle single speed gearbox |
Chassis Steer | |
Form of drive | FF |
Type of front suspension | McPherson independent suspension |

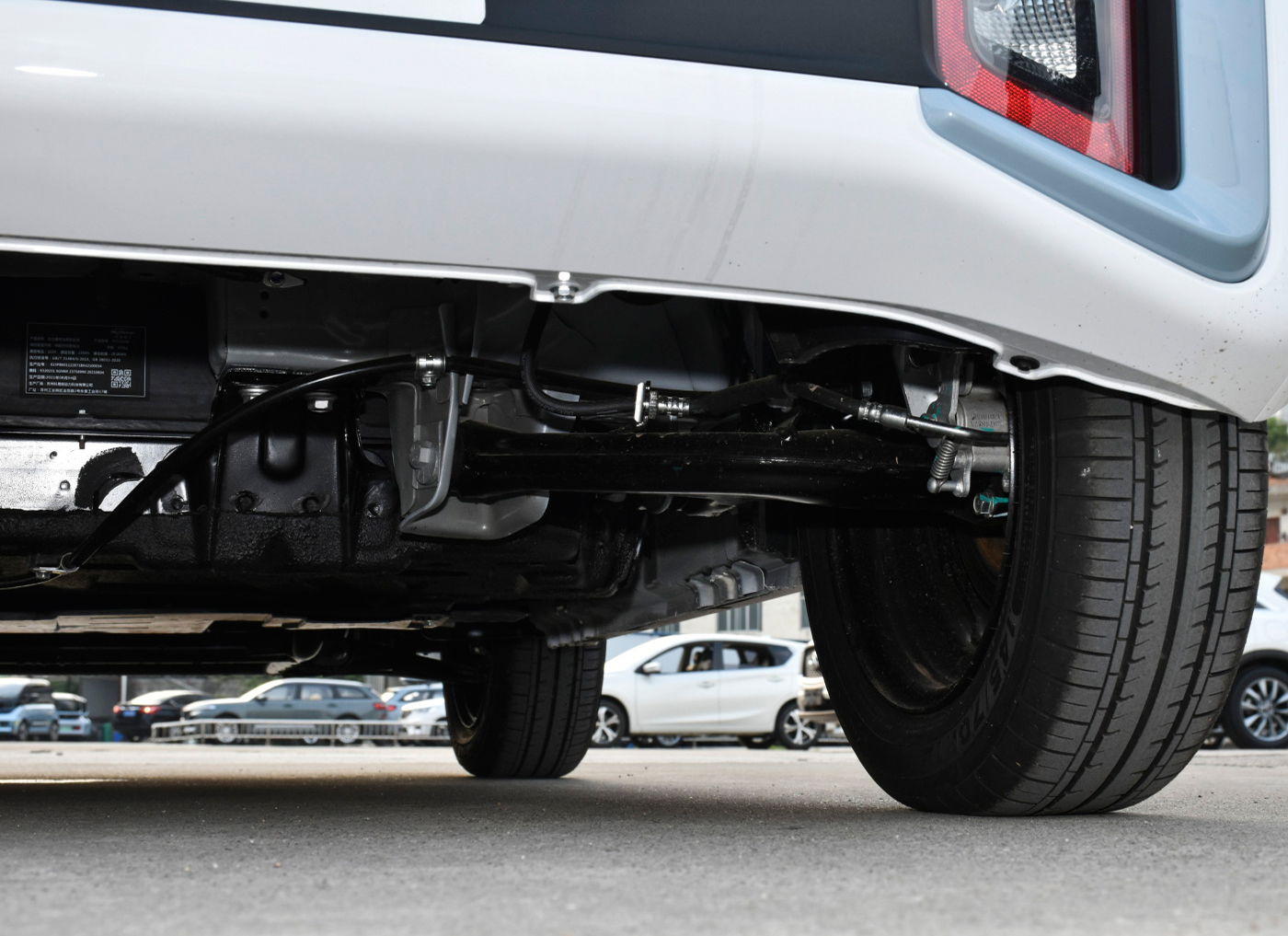

Type of rear suspension | Single-arm rear independent suspension |
Boost type | Electric assist |
Car body structure | Load bearing |
Wheel braking | |
Type of front brake | Disc |
Type of rear brake | Disc |
Type of parking brake | Foot brake |
Front Tire Specifications | 145/70 R12 |
Rear tire specifications | 145/70 R12 |
Cab Safety Information | |
Primary driver airbag | YES |
Tire pressure monitoring function | Tire pressure display |
Seat belt not fastened reminder | Driver's seat |
ISOFIX Child seat connector | YES |
ABS anti-lock | YES |
Brake force distribution (EBD/CBC, etc.) | YES |
Assist/Control configuration | |
Rear parking radar | YES |
Driving mode switching | Sport/Economy/Standard Comfort |
Hill assist | YES |
External / Anti-Theft Configuration | |
Rim material | Steel |
Interior central lock | YES |
Key type | Remote control key |
Battery preheating | YES |
Internal configuration | |
Steering wheel material | Plastic |
Steering wheel position adjustment | Manual up and down |
Multifunction steering wheel | YES |
Trip computer display screen | Color |
Full LCD Dashboard | YES |
LCD meter size (inch) | 7 |
Seat configuration | |

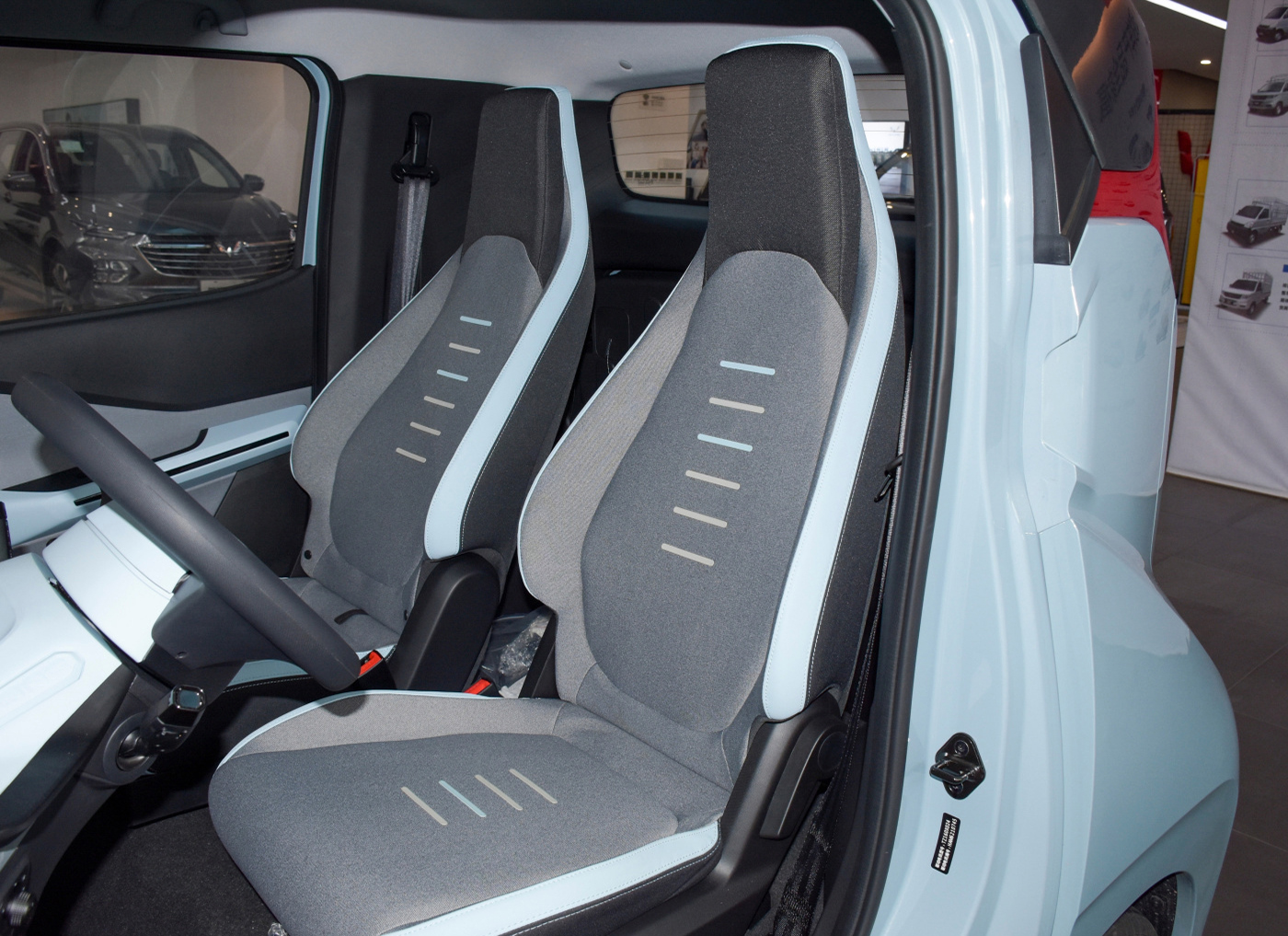

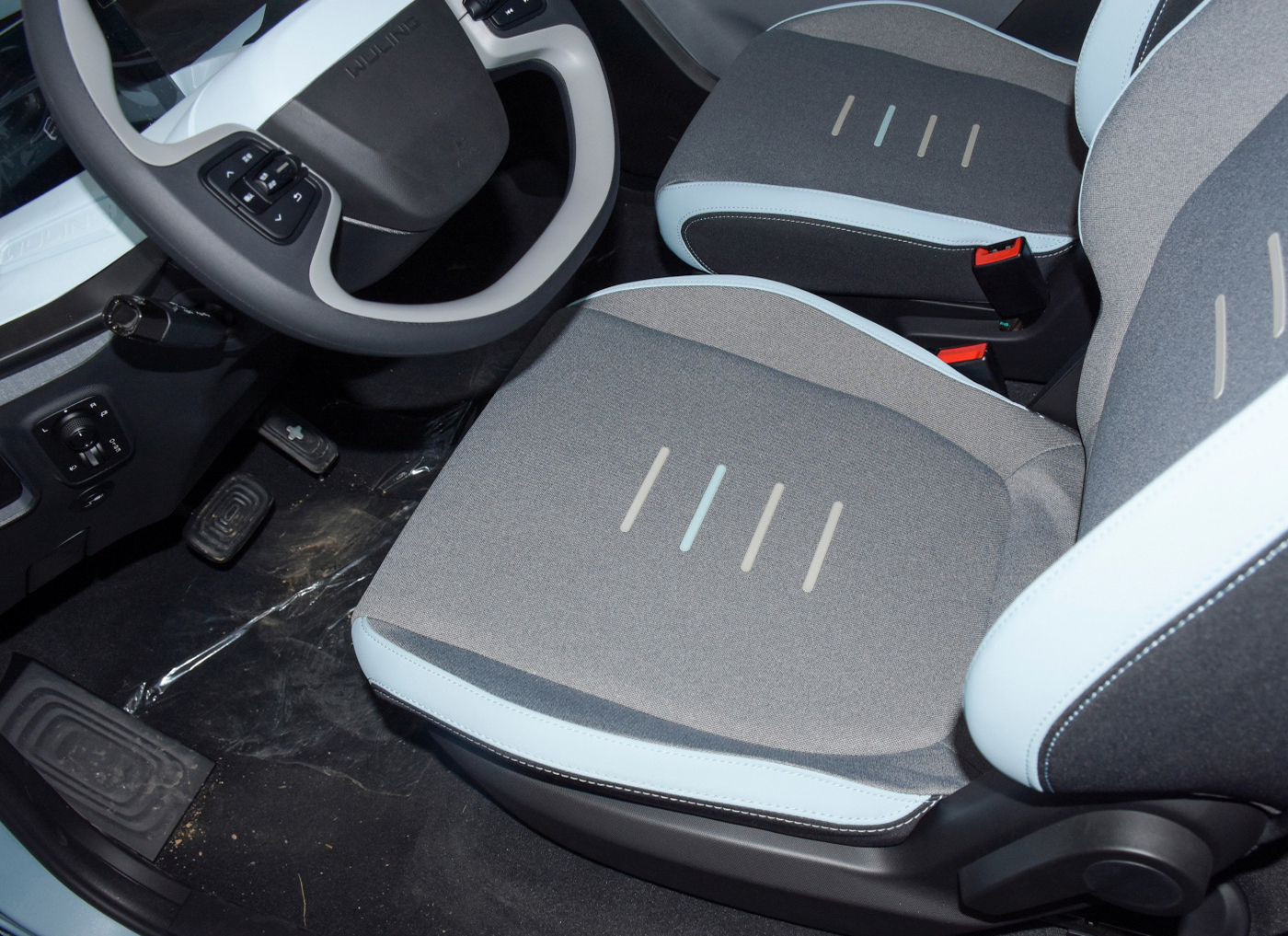

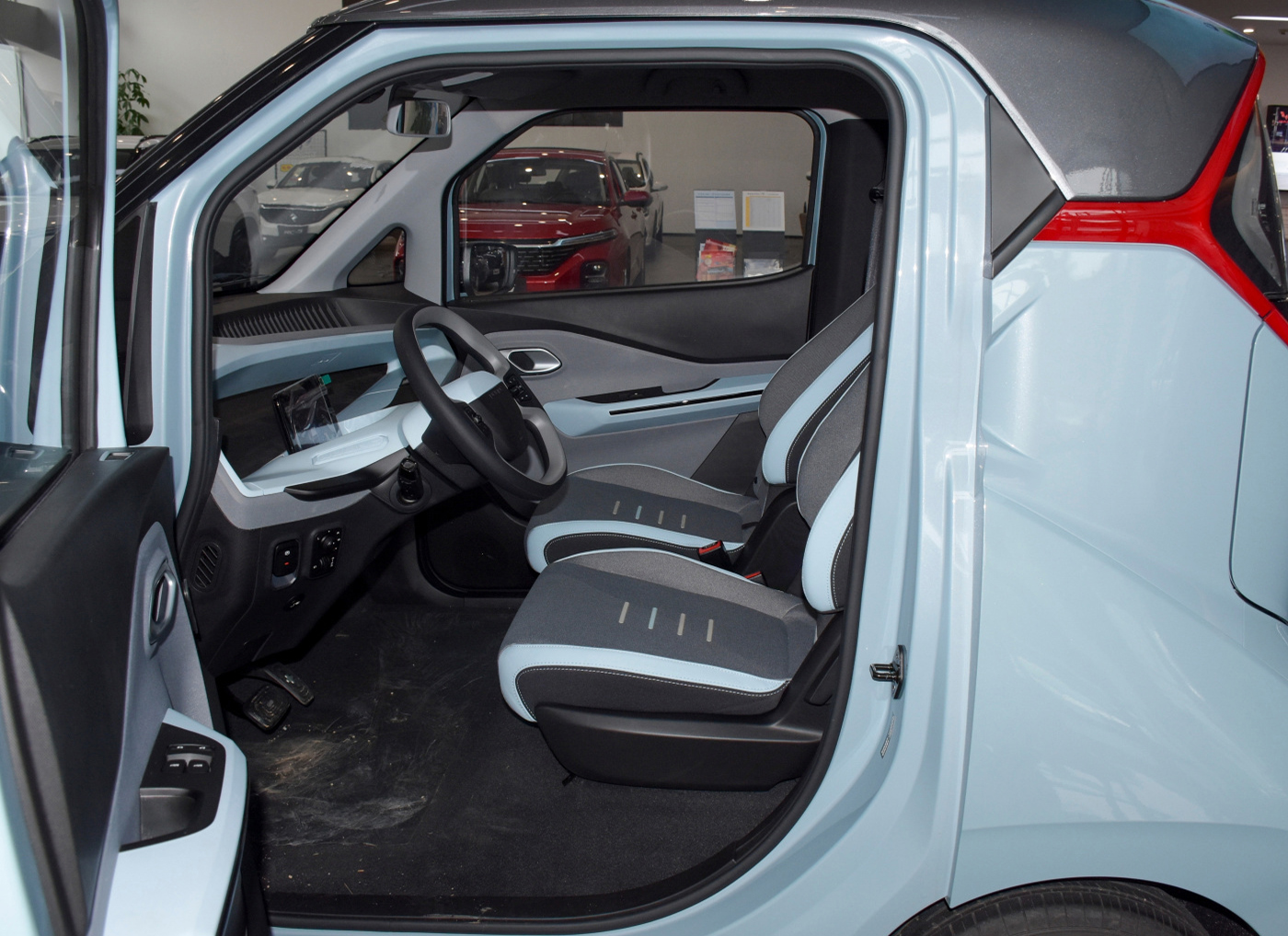

Seat materials | Fabric |
Driver's seat adjustment | Front and rear adjustment, backrest adjustment |
Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
Bluetooth/Car Phone | YES |
Voice recognition control system | Multimedia system,telephone |
Multimedia/charging interface | USB |
Number of USB/Type-c ports | 2 in front |
Number of speakers (pcs) | 1 |
Lighting configuration | |
Low beam light source | Halogen |
High beam light source | Halogen |
Headlight height adjustable | YES |
Headlights turn off | YES |
Glass/Rearview mirror | |
Front power windows | YES |
Air conditioner/refrigerator | |
Air conditioner temperature control method | Manual air conditioner |
