Product Information

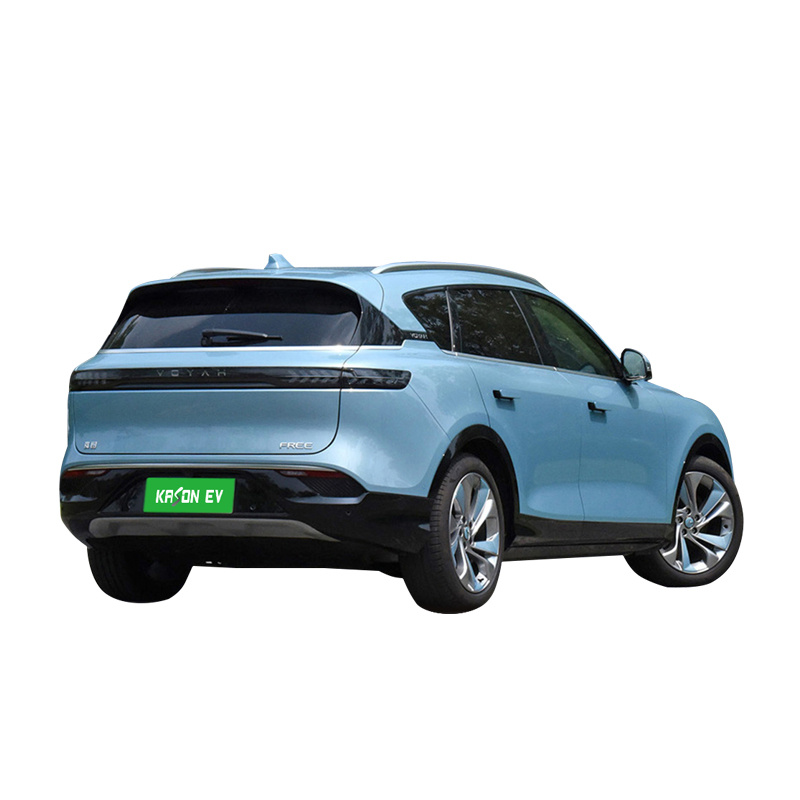

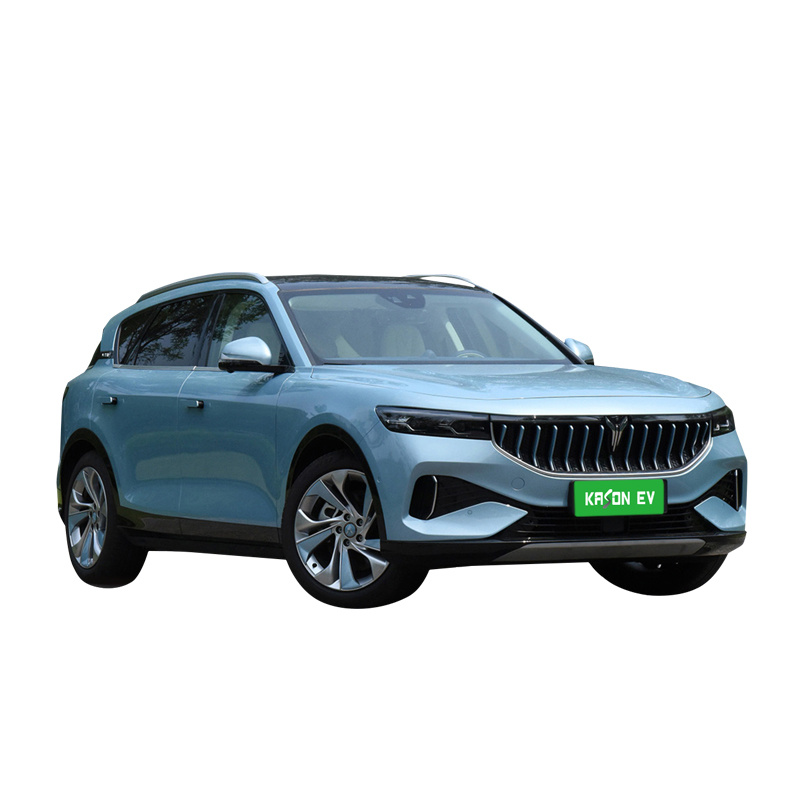

VOYAH FREE is 4905×1950×1660mm in length, width and height, and 2960mm in wheelbase. It adopts a 5-seat layout, so the performance of space is satisfactory. The waist line of the side is round and straight, the line of the lower window extends to the tail window, and the black surrounding below increases the clearance from the ground visually, making the car more slender. The layering of the rear of the FREE car is very strong, which can be divided into upper, middle and lower parts, from the windshield to the taillight and then to the surrounding, from narrow to wide and then to narrow. The visual effect of the through-through taillight is widened. The surface of the lamp group is blackened with the built-in English LOGO of LAN map. The turn lamp is shaped like an arrow plume, with outstanding visual effect.
The most conspicuous part of the interior of VOYAH FREE is the central control triple screen, which has the function of lifting up and down, and has a strong sense of science and technology. VOYAH Performance automatically drops when you open the high-energy driving mode, making the UI simpler. The screen also drops when you lock the car and rises when you unlock it. Three-link screen can realize three-screen interconnection, and content can be moved to the next screen by swiping three fingers. VOYAH has in-depth cooperation with Huawei to jointly build 5G intelligent architecture. OTA upgrades are supported for vehicles and vehicles. Mobile phones can be connected to vehicles and vehicles through Huawei HiCar, and Huawei HiLink enables users to remotely control smart homes in cars.
Product Specifications
| Brand | VOYAH |
| Model | FREE |
| Version | 2021 version four-wheel drive extended range version |
| Basic parameters | |
| Car model | Medium and large SUV |
| Type of Energy | Program extension |
| Environmental standards | VI |
| Time to matket | July,2021 |
| NEDC pure electric cruising range (KM) | 140 |
| Fast charging time[h] | 0.75 |
| Fast charge capacity [%] | 80 |
| Slow charging time[h] | 3.75 |
| Maximum power (KW) | 510 |
| Maximum torque [Nm] | 1040 |
| Engine | 109 hp with extended range |
| Electric motor [Ps] | 694 |
| Gearbox | Electric vehicle single speed gearbox |
| Length*width*height (mm) | 4905*1950*1660 |
| Body structure | 5-door 5-seat SUV |
| Top Speed (KM/H) | 200 |
| Official 0-100km/h acceleration (s) | 4.5 |
| WLTC comprehensive fuel consumption (L/100km) | 1.3 |
| Car body | |
| Longth(mm) | 4905 |
| Width(mm) | 1950 |
| Higth(mm) | 1660 |
| Wheel base(mm) | 2960 |
| Minimum ground clearance (mm) | 180 |
| Body structure | SUV |
| Number of doors | 5 |
| Number of seats | 5 |
| Oil tank capacity(L) | 56 |
| Trunk volume (L) | 560-1320 |
| Mass (kg) | 2290 |
| Engine | |
| Engine Model | SFG15TR |
| Displacement(mL) | 1498 |
| Displacement(L) | 1.5 |
| Intake form | Turbo supercharging |
| Engine layout | Engine transverse |
| Cylinder arrangement | L |
| Number of cylinders (pcs) | 4 |
| Number of valves per cylinder (pcs) | 4 |
| Air Supply | DOHC |
| Maximum horsepower (PS) | 109 |
| Maximum power (KW) | 80 |
| Maximum Net Power (kW) | 80 |
| Fuel form | Program extension |
| Fuel label | 92# |
| Cylinder head material | Aluminum alloy |
| Cylinder material | Cast iron |
| Environmental standards | VI |
| Electric motor | |
| Motor type | AC/Asynchronous |
| Total motor power (kw) | 510 |
| Total motor torque [Nm] | 1040 |
| Front motor maximum power (kW) | 255 |
| Front motor maximum torque (Nm) | 520 |
| Rear motor maximum power (kW) | 255 |
| Rear motor maximum torque (Nm) | 520 |
| System integrated power (kW) | 510 |
| Overall system torque [Nm] | 1040 |
| Number of drive motors | Double motor |
| Motor placement | Front + rear |
| Battery Type | Ternary lithium battery |
| NEDC pure electric cruising range (KM) | 140 |
| Battery Power(kwh) | 33 |
| Electricity consumption per 100 kilometers (kWh/100km) | 20.2 |
| Gearbox | |
| Number of gears | 1 |
| Transmission type | Fixed gear ratio gearbox |
| Short name | Electric vehicle single speed gearbox |
| Chassis Steer | |
| Form of drive | Dual-motor four-wheel drive |
| Four-wheel drive | Electric four-wheel drive |
| Type of front suspension | Double wishbone independent suspension |
| Type of rear suspension | Multi-link independent suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Ventilated Disc |
| Type of parking brake | Electric brake |
| Front Tire Specifications | 255/45 R20 |
| Rear tire specifications | 255/45 R20 |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Front side airbag | YES |
| Front head airbag (curtain) | YES |
| Rear head airbag (curtain) | YES |
| Tire pressure monitoring function | Tire pressure display |
| Seat belt not fastened reminder | Full car |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES |
| Parallel Auxiliary | YES |
| Lane Departure Warning System | YES |
| Lane Keeping Assist | YES |
| Road traffic sign recognition | YES |
| Active Braking/Active Safety System | YES |
| Fatigue driving tips | YES |
| Assist/Control configuration | |
| Front parking radar | YES |
| Rear parking radar | YES |
| Driving assistance video | 360 degree panoramic image |
| Reversing side warning system | YES |
| Cruise system | Full speed adaptive cruise |
| Driving mode switching | Sport/Economy/Standard Comfort/Off-Road |
| Automatic parking | YES |
| Automatic parking | YES |
| Hill assist | YES |
| Steep descent | YES |
| External / Anti-Theft Configuration | |
| Sunroof type | Openable panoramic sunroof |
| Rim material | Aluminum alloy |
| Electric trunk | YES |
| Induction trunk | YES |
| Electric trunk position memory | YES |
| Roof rack | YES |
| Engine electronic immobilizer | YES |
| Interior central lock | YES |
| Key type | Remote control key Bluetooth key |
| Keyless start system | YES |
| Keyless entry function | Full Car |
| Hide electric door handle | YES |
| Remote start function | YES |
| Battery preheating | YES |
| Internal configuration | |
| Steering wheel material | Cortex |
| Steering wheel position adjustment | Manual up and down + front and rear adjustment |
| Multifunction steering wheel | YES |
| Trip computer display screen | Color |
| Full LCD Dashboard | YES |
| LCD meter size (inch) | 12.3 |
| Built-in driving recorder | YES |
| Mobile phone wireless charging function | Front row |
| Seat configuration | |
| Seat materials | Leather/suede material mix and match |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (4-way), lumbar support (4-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (4-way), lumbar support (4-way) |
| Main/assistant seat electric adjustment | YES |
| Front seat function | Heating, Ventilation, Massage |
| Power seat memory function | Driver's Seat |
| Rear seats folded down | Proportion down |
| Rear cup holder | YES |
| Front/rear center armrest | Front/Rear |
| Multimedia configuration | |
| Central control color screen | Touch LCD |
| Central control screen size (inch) | Double 12.3 |
| Satellite navigation system | YES |
| Navigation traffic information display | YES |
| Bluetooth/Car Phone | YES |
| Mobile phone interconnection/mapping | Support HiCar |
| Voice recognition control system | Multimedia system, navigation, telephone, air conditioning |
| Gesture control | YES |
| Face recognition | YES |
| Internet of Vehicles | YES |
| OTA upgrade | YES |
| Multimedia/charging interface | USB Type-C |
| Number of USB/Type-c ports | 2 in front/2 in rear |
| Luggage compartment 12V power interface | YES |
| Speaker brand name | Dynaudio |
| Number of speakers (pcs) | 10 |
| Lighting configuration | |
| Low beam light source | LED |
| High beam light source | LED |
| Lighting Features | Matrix |
| LED daytime running lights | YES |
| Adaptive far and near light | YES |
| Automatic headlights | YES |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| In-car ambient lighting | Colour |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Window one-button lift function | Full car |
| Window anti-pinch function | YES |
| Multilayer soundproof glass | Front row |
| Post audition feature | Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic downturn when reversing, automatic folding after locking |
| Rear side privacy glass | YES |
| Interior vanity mirror | Driver's seat Co-pilot |
| Rear wiper | YES |
| Sensor wiper function | Rain sensor |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Automatic air conditioner |
| Rear air outlet | YES |
| Temperature zone control | YES |
| In-car PM2.5 filter | YES |
| Smart hardware | |
| Number of cameras | 8 |
| Ultrasonic radar quantity | 12 |
| Number of mmWave radars | 3 |
| Featured configuration | |
| AR navigation | YES |
| Transparent chassis | YES |
| V2L external discharge function (3.6kW) | YES |
