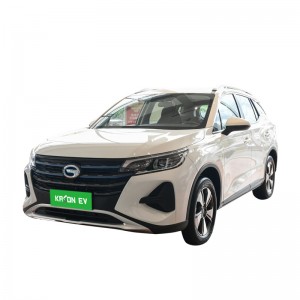

TRUMPCHI GS4 cost-effective new energy SUV

Short Description:

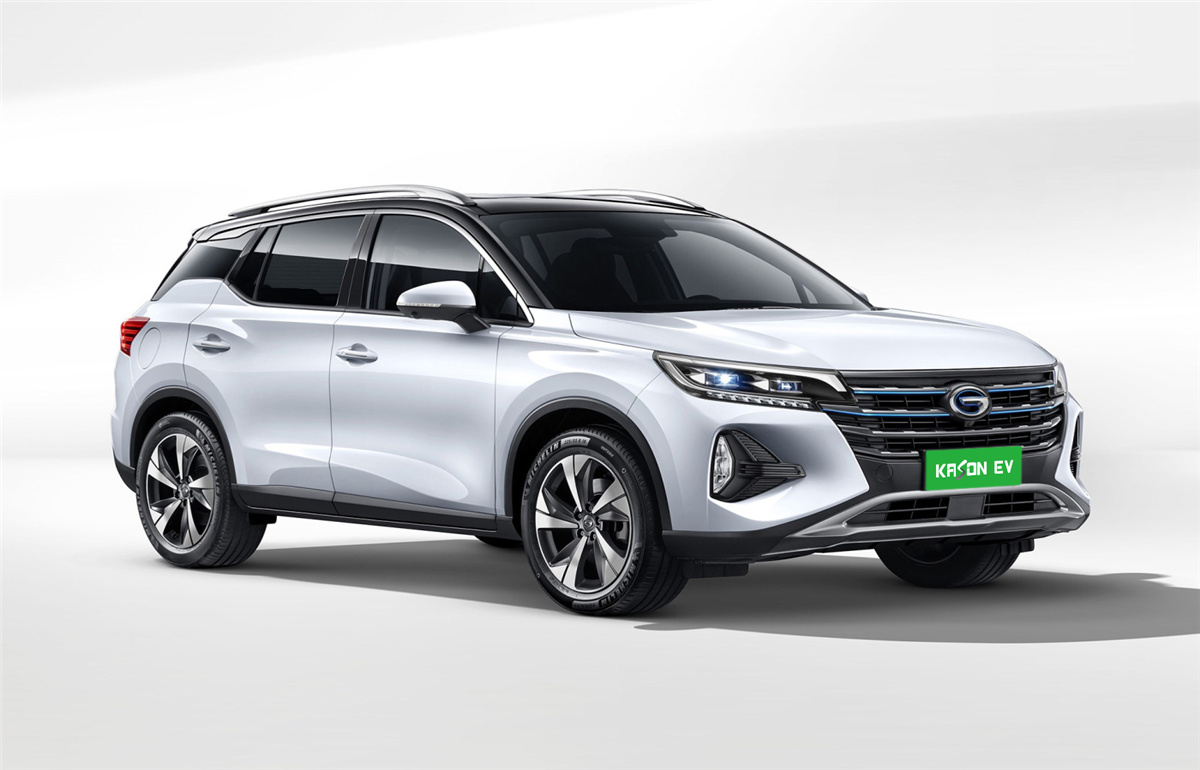

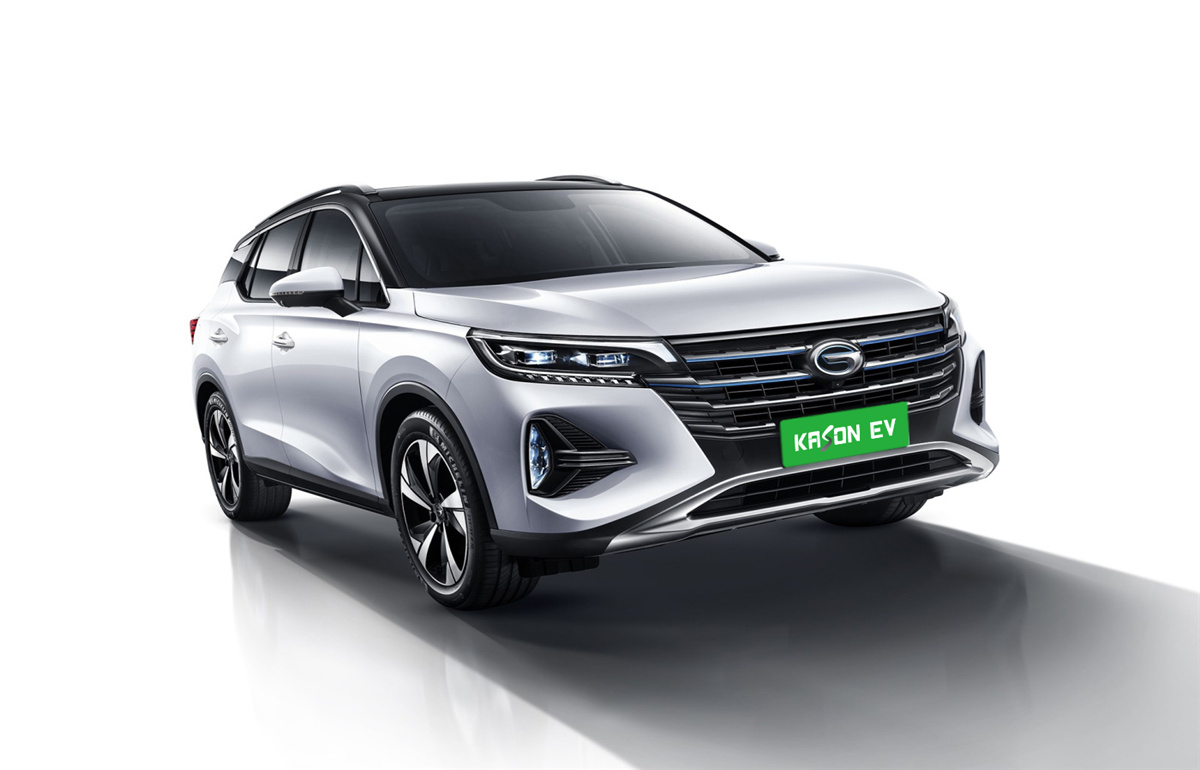

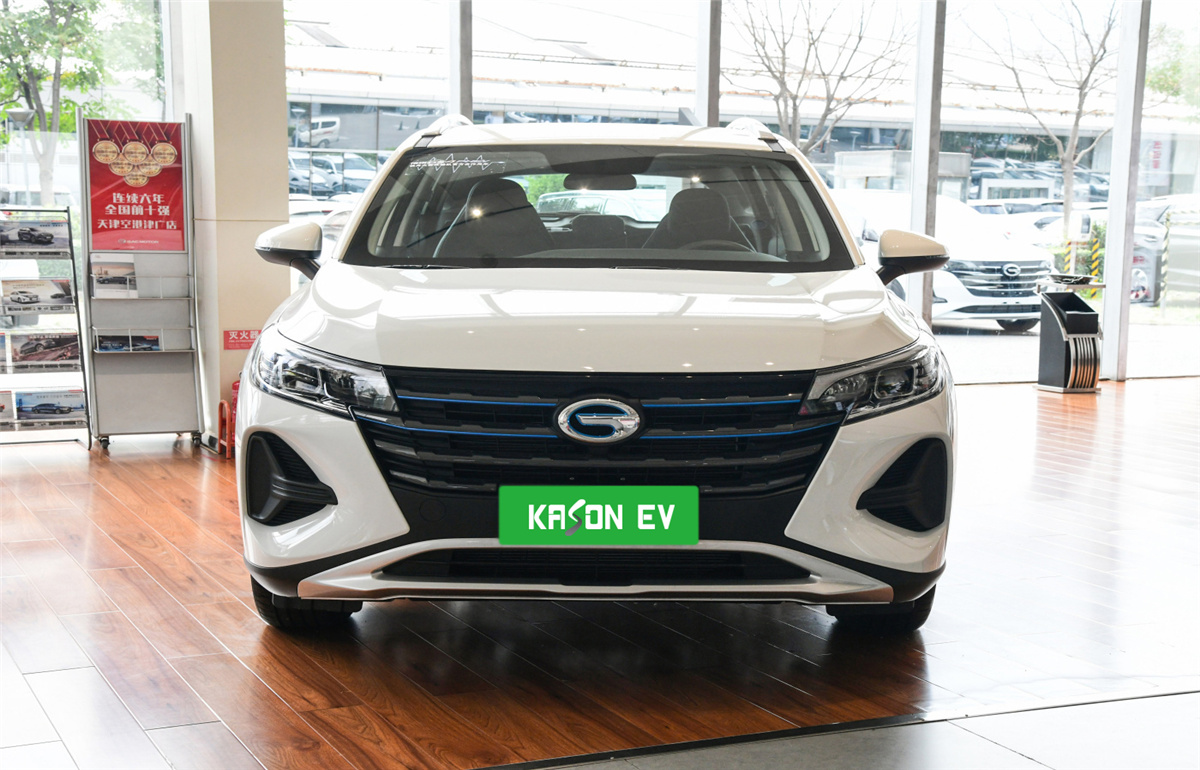

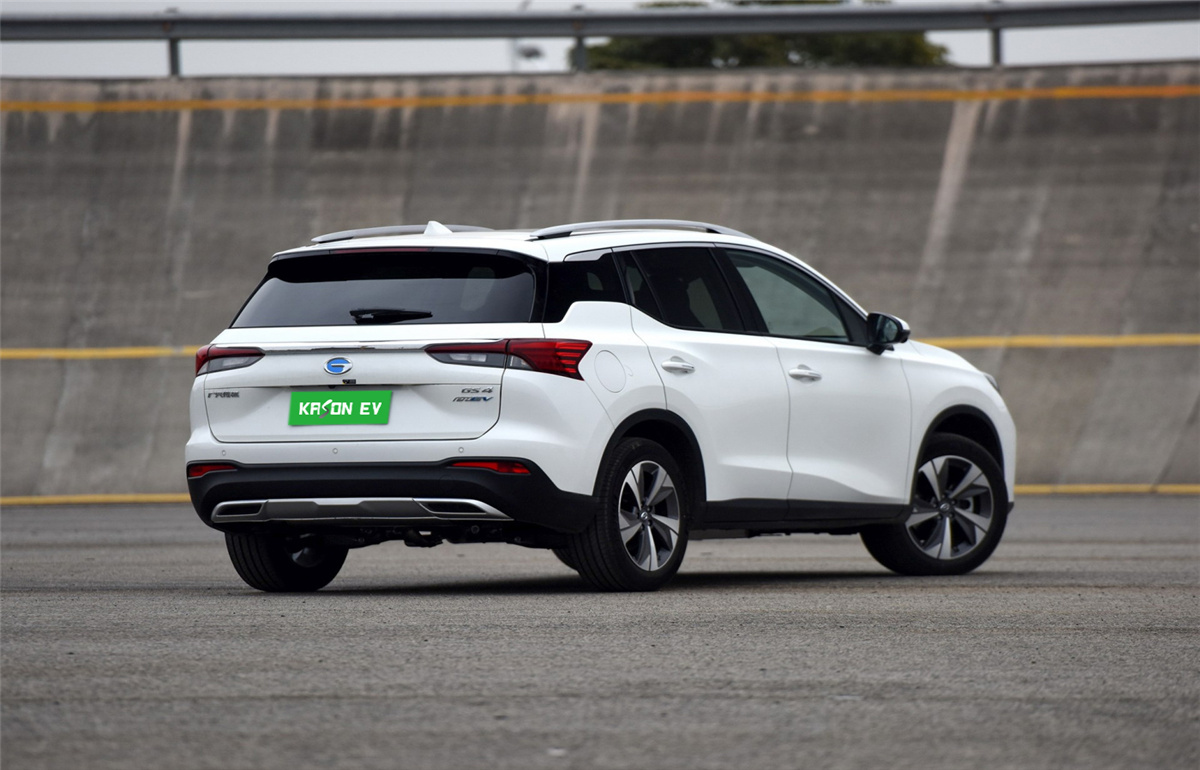

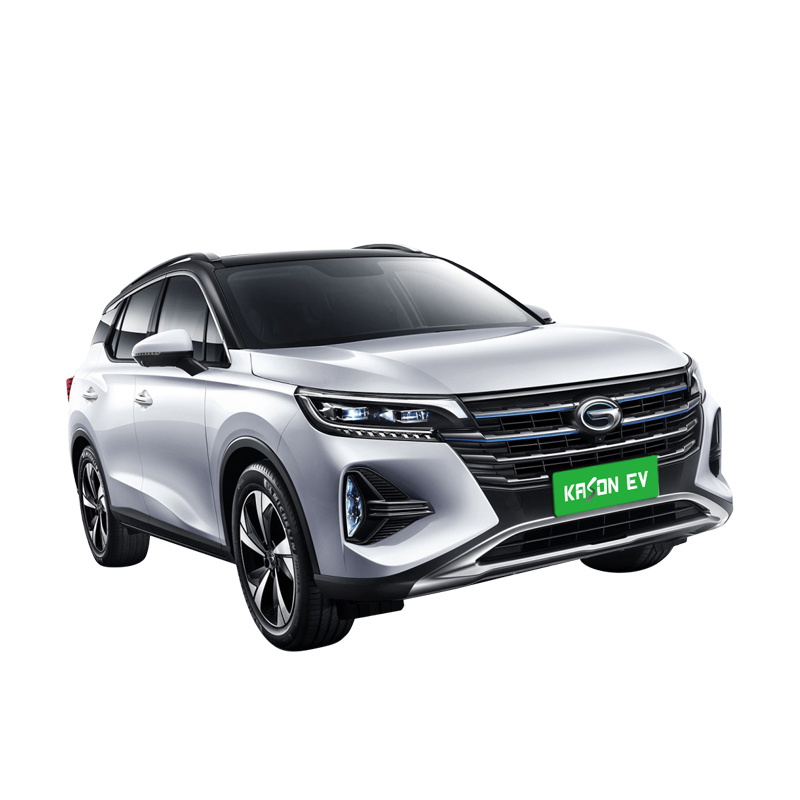

In terms of appearance, the car adopts GAC Trumpchi third-generation design language, enlarges the air intake grille area, and the interior is still multi-banner style. The sectional waist line on the side and the floating roof make it more stylish and sporty than current models.


Product Detail

Product Tags

Product Information

In terms of appearance, the car adopts GAC Trumpchi third-generation design language, enlarges the air intake grille area, and the interior is still multi-banner style. The sectional waist line on the side and the floating roof make it more stylish and sporty than current models.

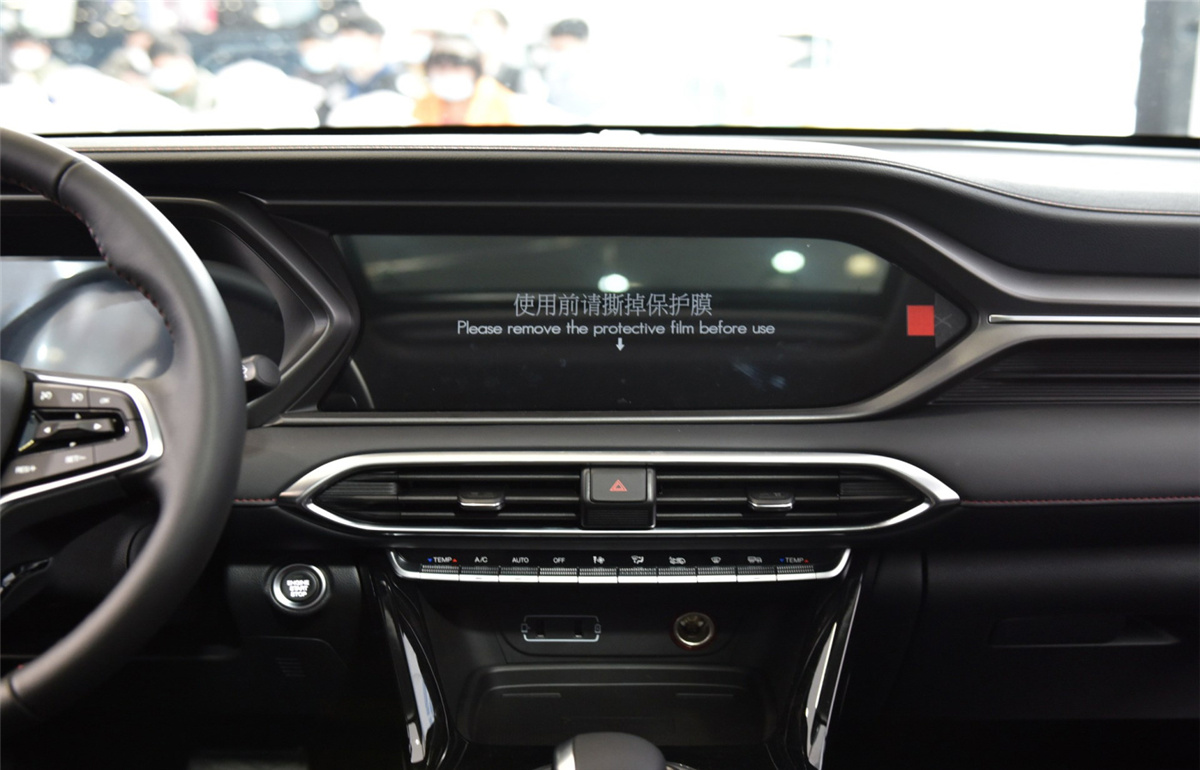

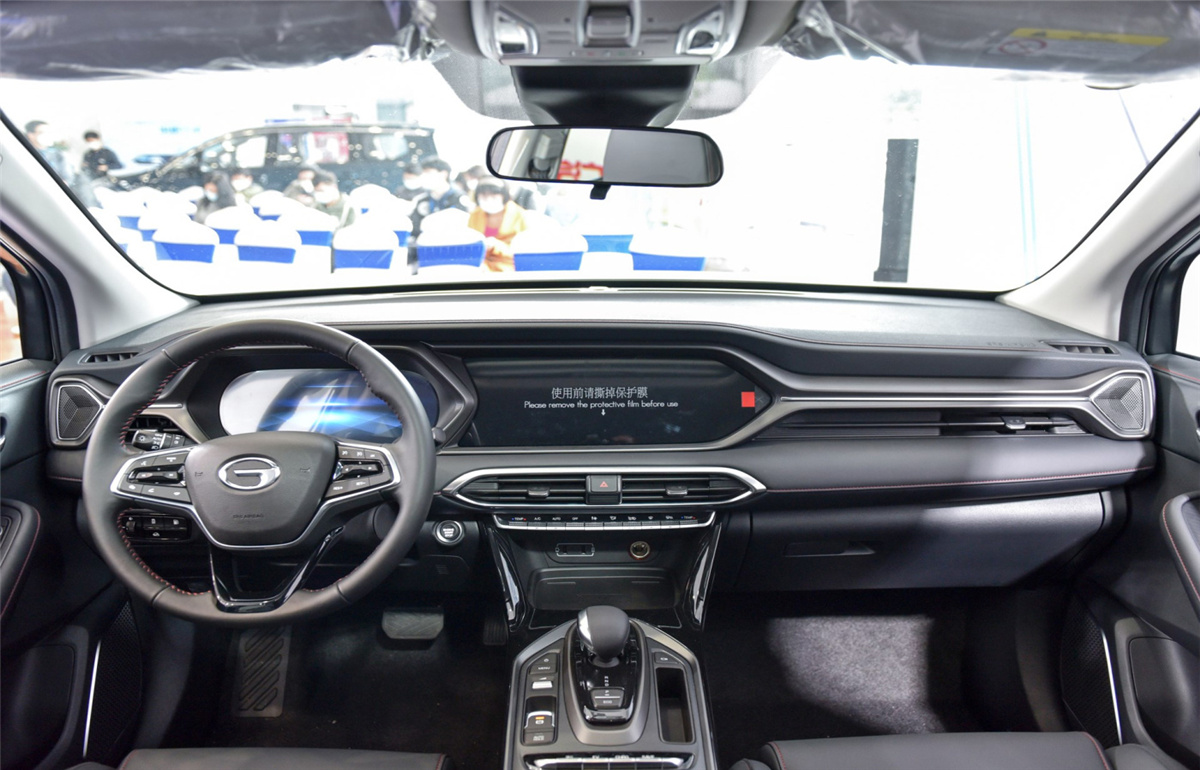

The interior is a two-tone design, with highlighted chrome for the central console and an "X" design. There's also a 12.3-inch dual screen that adds a lot of tech flair.

The power performance of this car is also very excellent, the engine used by this car is the third generation of 270T 1.5T engine, this engine is a high power engine, its maximum power has reached 124KW, but also equipped with the aixin 6-speed hand automatic integrated transmission. The best part is that it also uses GCCS combustion control technology to balance the system between low fuel consumption and high energy consumption, thus achieving the lowest fuel consumption.

Product Specifications

Brand TRUMPCHI
Model GS4
Version 2020 1.5T PHEV Smart Edition
Basic parameters
Car model Compact SUV
Type of Energy Plug-in hybrid
Time to Market April.2020
NEDC pure electric cruising range (KM) 61
Total motor power (kw) 130
Total motor torque [Nm] 300
Maximum power (KW) 110
Maximum torque [Nm] 235
Electric Motor(Ps) 177
Engine 1.5T 150PS L3
Gearbox 7-speed wet dual clutch                                       Electric vehicle single speed gearbox
Length*width*height (mm) 4545*1856*1700
Body structure 5-door 5-seat SUV
NEDC Comprehensive fuel consumption (L/100km) 1.3
Minimum state of charge fuel consumption (L/100km) 4.6
Car body
Longth(mm) 4545
Width(mm) 1856
Higth(mm) 1700
Wheel base(mm) 2680
Body structure SUV
Number of doors 5
Number of seats 5
Oil tank capacity(L) 37

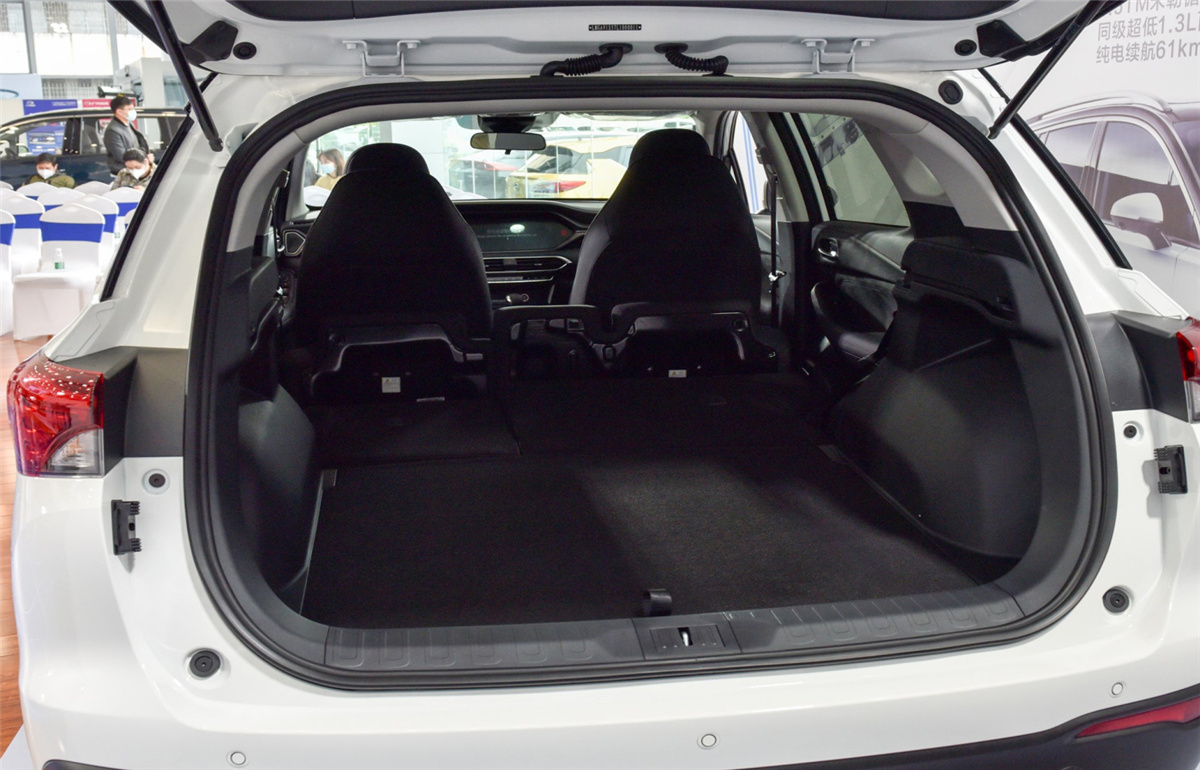

Trunk volume (L) 470-1560
Mass (kg) 1705
Engine
Engine Model 3B15J1
Displacement(mL) 1493
Displacement(L) 1.5
Intake form Turbo supercharging
Engine layout Engine transverse
Cylinder arrangement L
Number of cylinders (pcs) 3
Number of valves per cylinder (pcs) 4
Air Supply DOHC
Maximum horsepower (PS) 150
Maximum power (KW) 110
Maximum power speed (rpm) 5500
Maximum torque(N-m) 235
Maximum torque speed (rpm) 1500-4000
Maximum Net Power (kW) 108
Engine specific technology DCVVT Dual Continuously Variable Valve Timing System
Fuel form Plug-in hybrid
Fuel label 92#
Oil supply method Direct injection
Cylinder head material Aluminum alloy
Cylinder material Aluminum alloy
Environmental standards VI
Electric motor
Motor type Permanent magnet synchronization
Total motor power (kw) 130
Total motor torque [Nm] 300
Front motor maximum power (kW) 130
Front motor maximum torque (Nm) 300
Number of drive motors Single motor
Motor placement Prepended
Battery Type Ternary lithium battery
NEDC pure electric cruising range (KM) 61
Battery Power(kwh) 13
Gearbox
Number of gears 1
Transmission type Fixed Ratio Transmission
Short name Electric vehicle single speed gearbox
Chassis Steer
Form of drive  FF
Type of front suspension McPherson independent suspension
Type of rear suspension Multi-link independent suspension
Boost type Electric assist
Car body structure Load bearing
Wheel braking
Type of front brake Ventilated Disc
Type of rear brake  Disc
Type of parking brake Electric brake
Front Tire Specifications 225/60 R17
Rear tire specifications 225/60 R17
Cab Safety Information
Primary driver airbag YES
Co-pilot airbag YES
Front side airbag YES
Tire pressure monitoring function Tire pressure display
Seat belt not fastened reminder Front row
ISOFIX Child seat connector YES
ABS anti-lock YES
Brake force distribution (EBD/CBC, etc.) YES
Brake Assist (EBA/BAS/BA, etc.) YES
Traction Control (ASR/TCS/TRC, etc.) YES
Body Stability Control (ESC/ESP/DSC, etc.) YES
Assist/Control configuration
Rear parking radar YES
Driving assistance video Reverse image
Cruise system Cruise control
Driving mode switching Economy
Automatic parking YES
Hill assist YES
Steep descent YES
External / Anti-Theft Configuration
Rim material Aluminum alloy
Roof rack YES
Engine electronic immobilizer YES
Interior central lock YES
Key type Remote control key
Keyless start system YES
Keyless entry function Front row
Remote start function YES
Internal configuration
Steering wheel material Plastic
Steering wheel position adjustment Manual up and down + front and rear adjustment

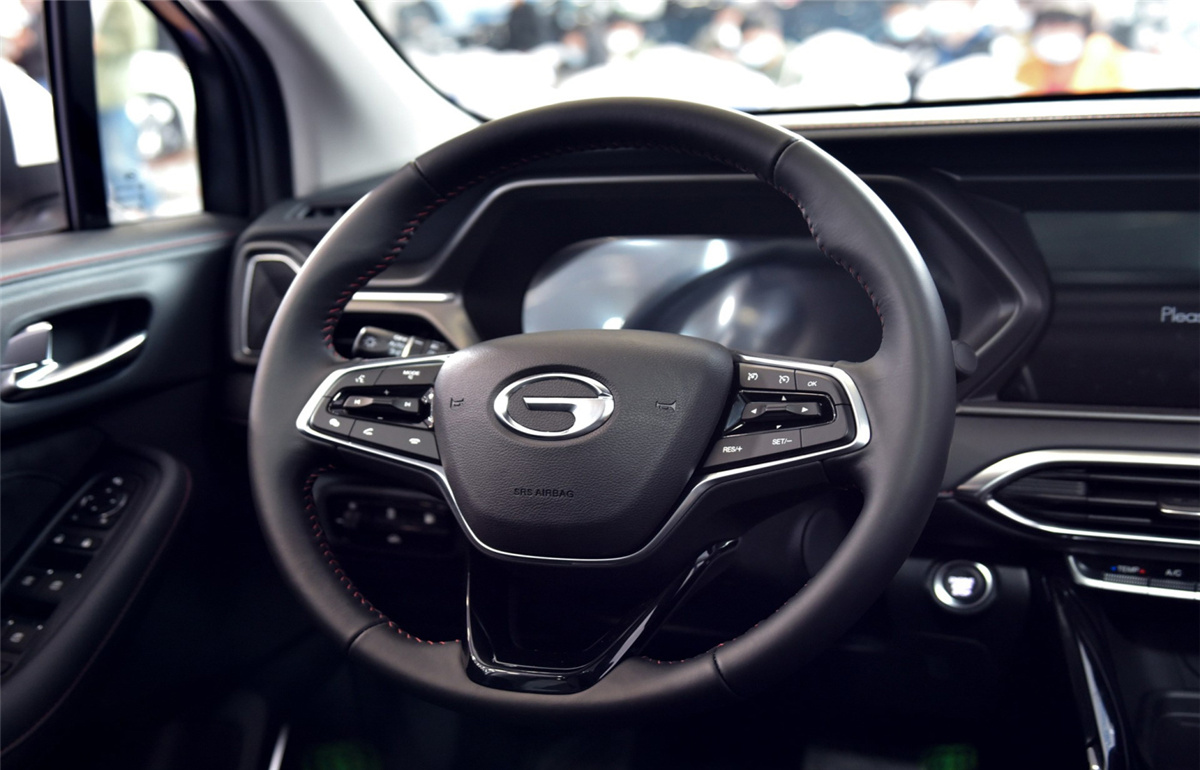

Multifunction steering wheel YES
Trip computer display screen  Color
LCD meter size (inch) 3.5
Mobile phone wireless charging function Front row

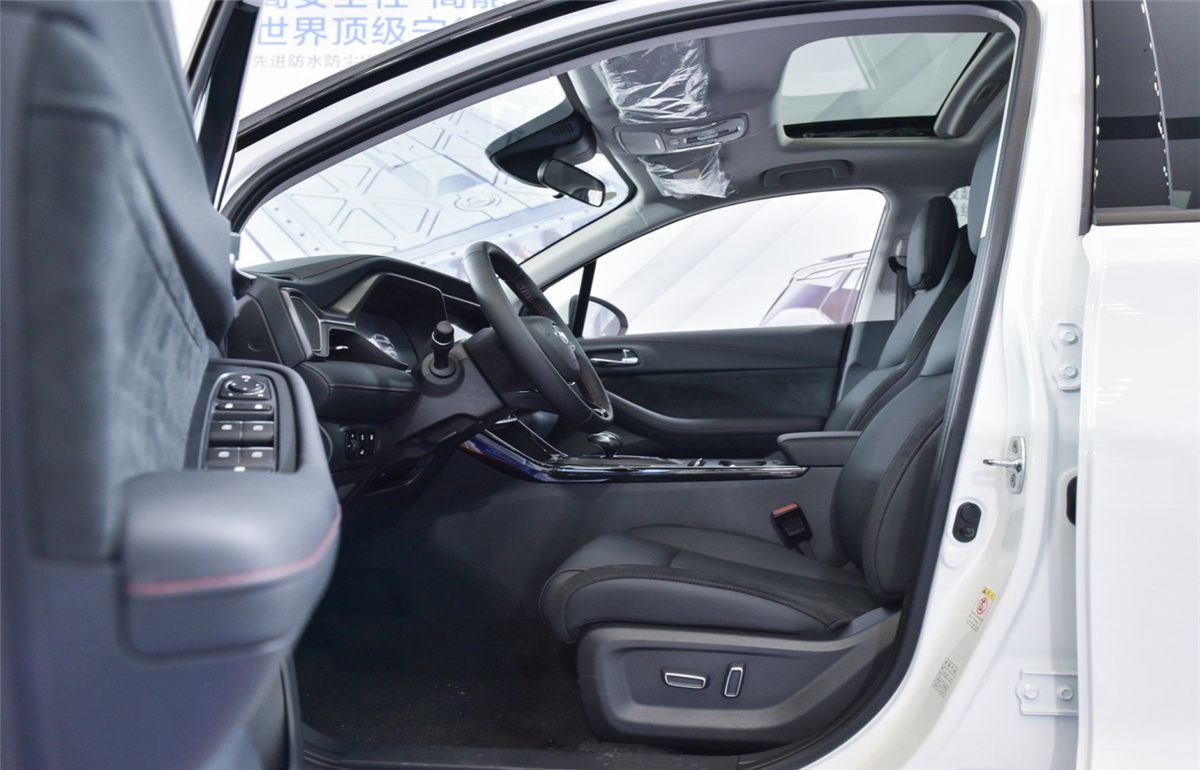

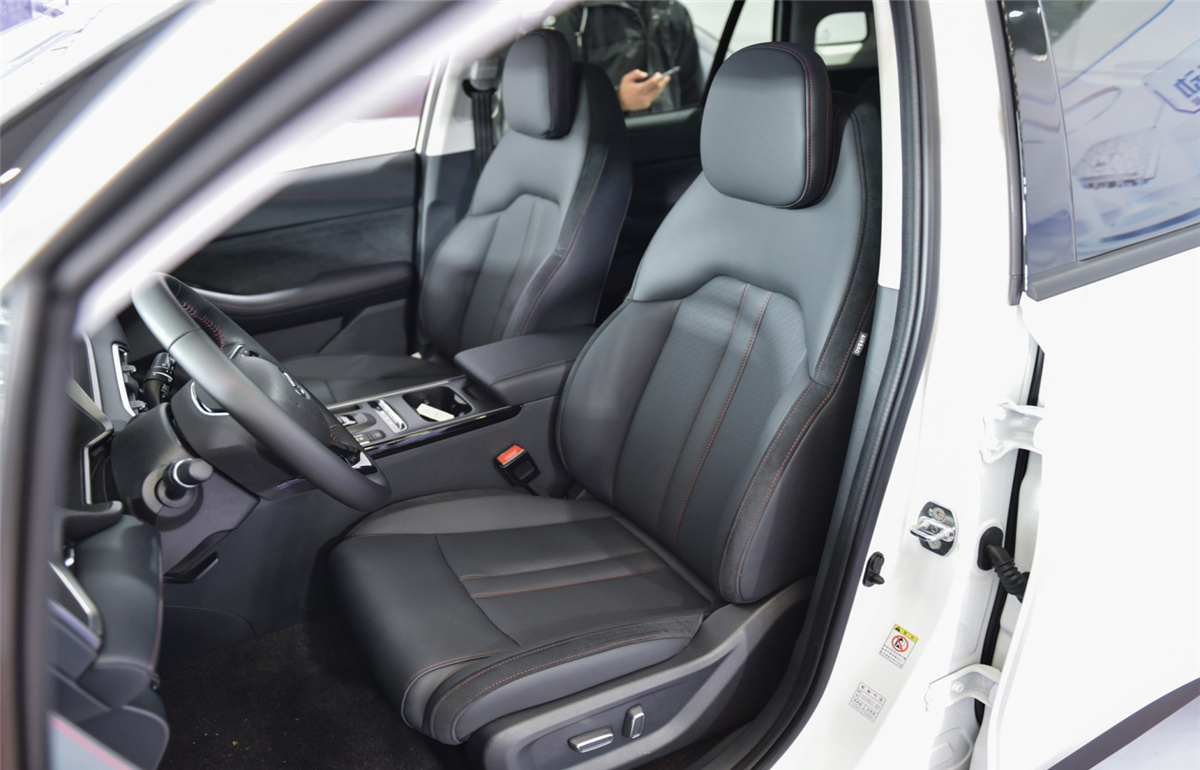

Seat configuration
Seat materials Imitation leather
Sports style seat YES
Driver's seat adjustment Front and rear adjustment, backrest adjustment, height adjustment (2-way)
Co-pilot  seat adjustment Front and rear adjustment, backrest adjustment

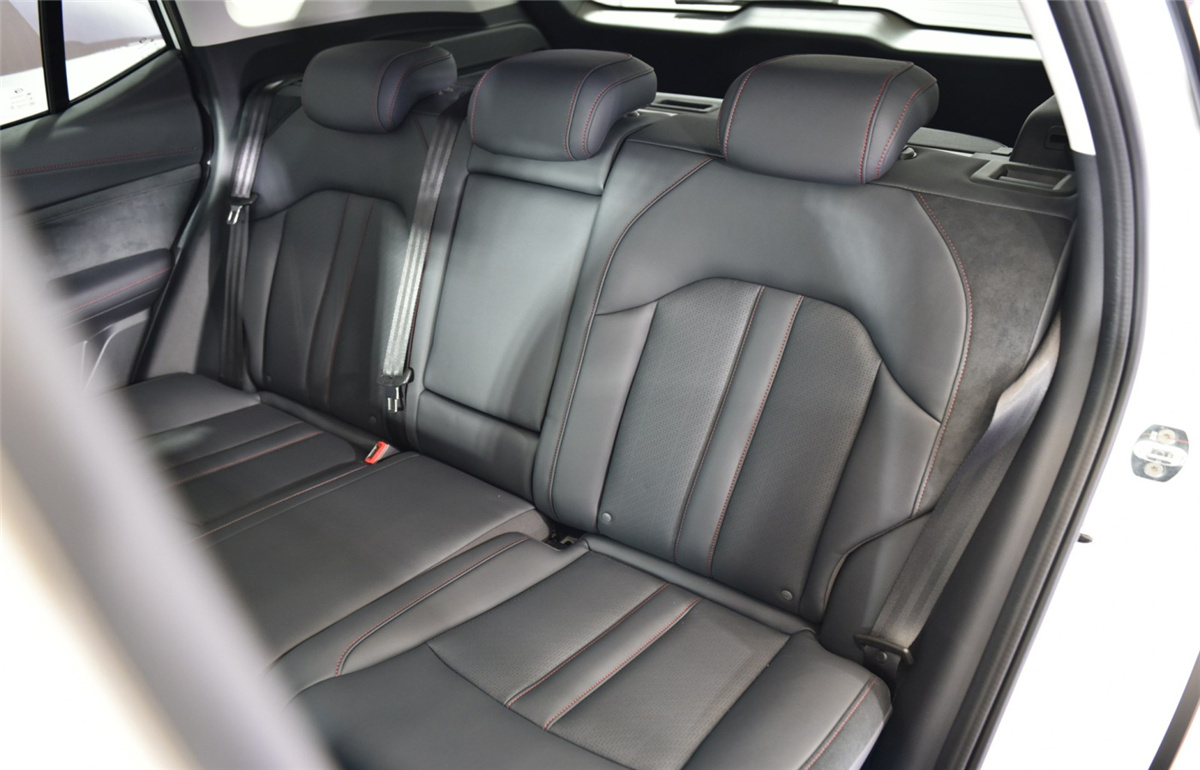

Second row seat adjustment Backrest adjustment

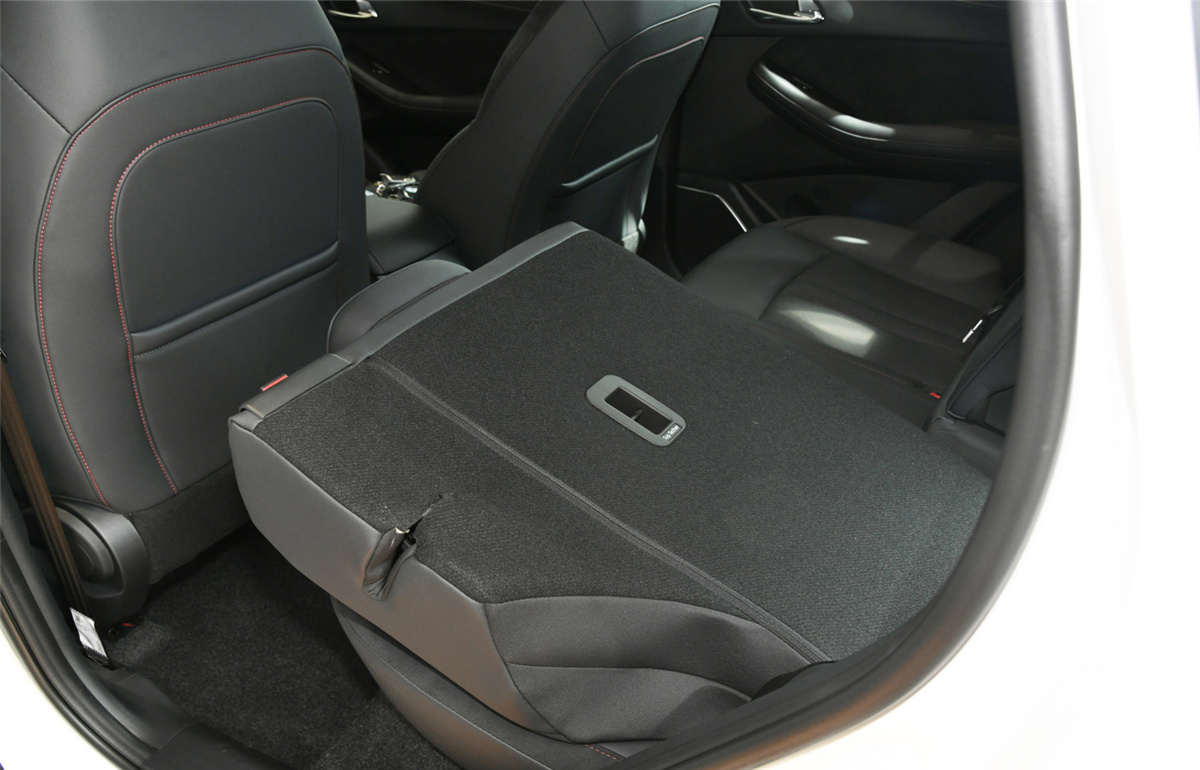

Rear seats folded down Proportion down

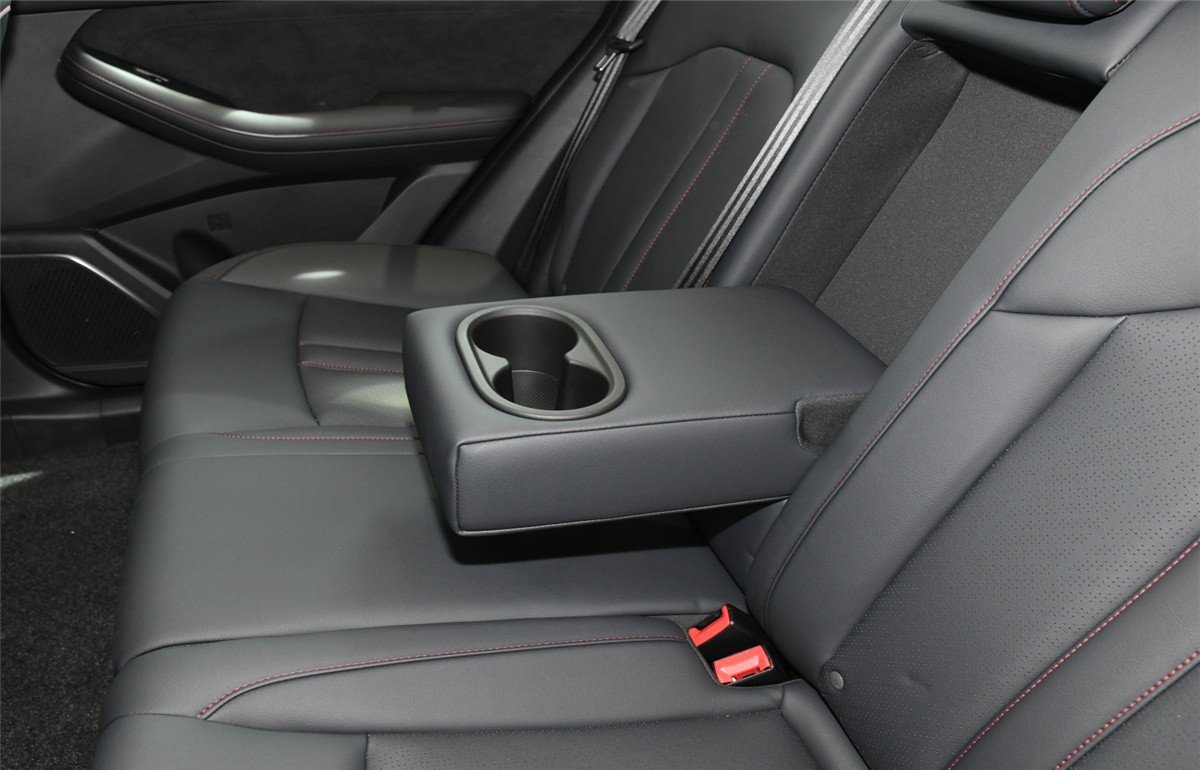

Rear cup holder YES
Front/rear center armrest Front/Rear
Multimedia configuration
Central control color screen Touch OLED
Central control screen size (inch) 8
Roadside assistance call YES
Bluetooth/Car Phone YES
Mobile phone interconnection/mapping Support CarPlay
Multimedia/charging interface USB
Number of USB/Type-c ports 2 in front/2 in rear
Number of speakers (pcs) 6
Lighting configuration
Low beam light source Halogen
High beam light source Halogen
LED daytime running lights YES
Headlight height adjustable YES
Headlights turn off YES
Glass/Rearview mirror
Front power windows YES
Rear power windows YES
Window one-button lift function Driver's seat
Window anti-pinch function YES
Post audition feature Electric adjustment
Inside rearview mirror function Manual anti-dazzle
Interior vanity mirror Driver's seat
Co-pilot
Rear wiper YES
Air conditioner/refrigerator
Air conditioner temperature control method Automatic air conditioner
Rear air outlet YES
Temperature zone control YES
Car air purifier YES
In-car PM2.5 filter YES
Negative ion generator YES

Appearance
