Product Information

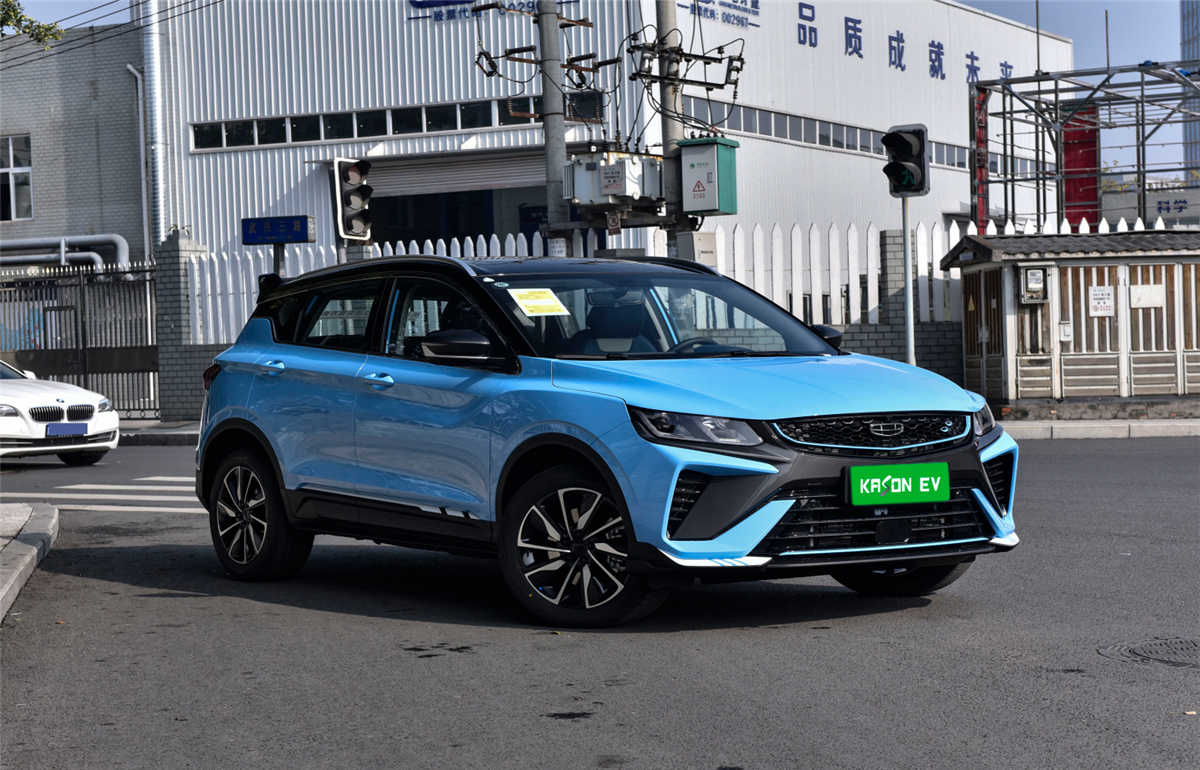

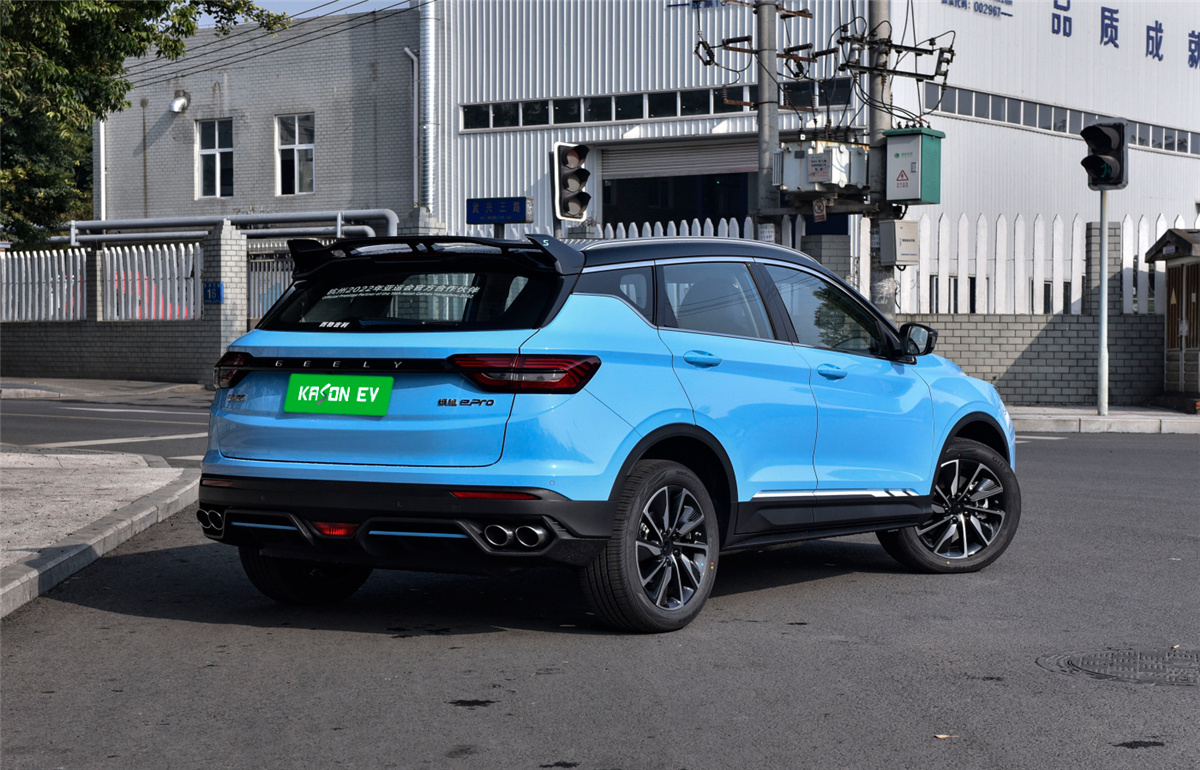

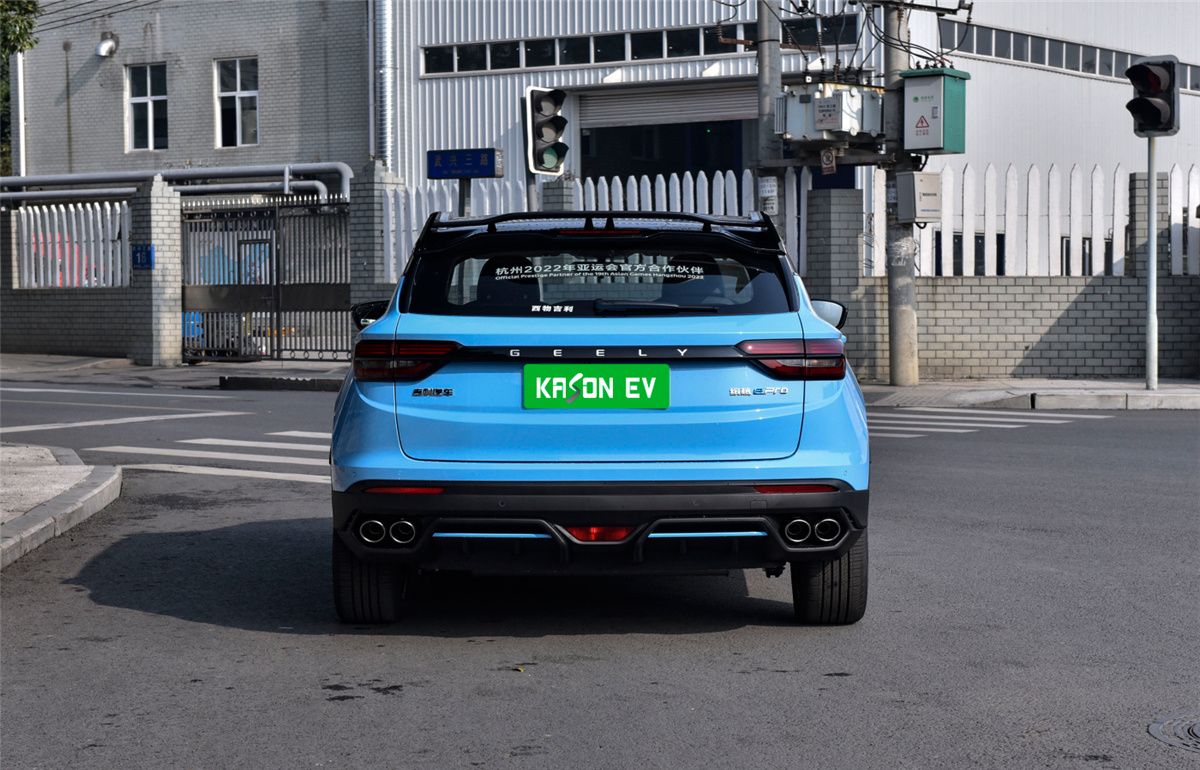

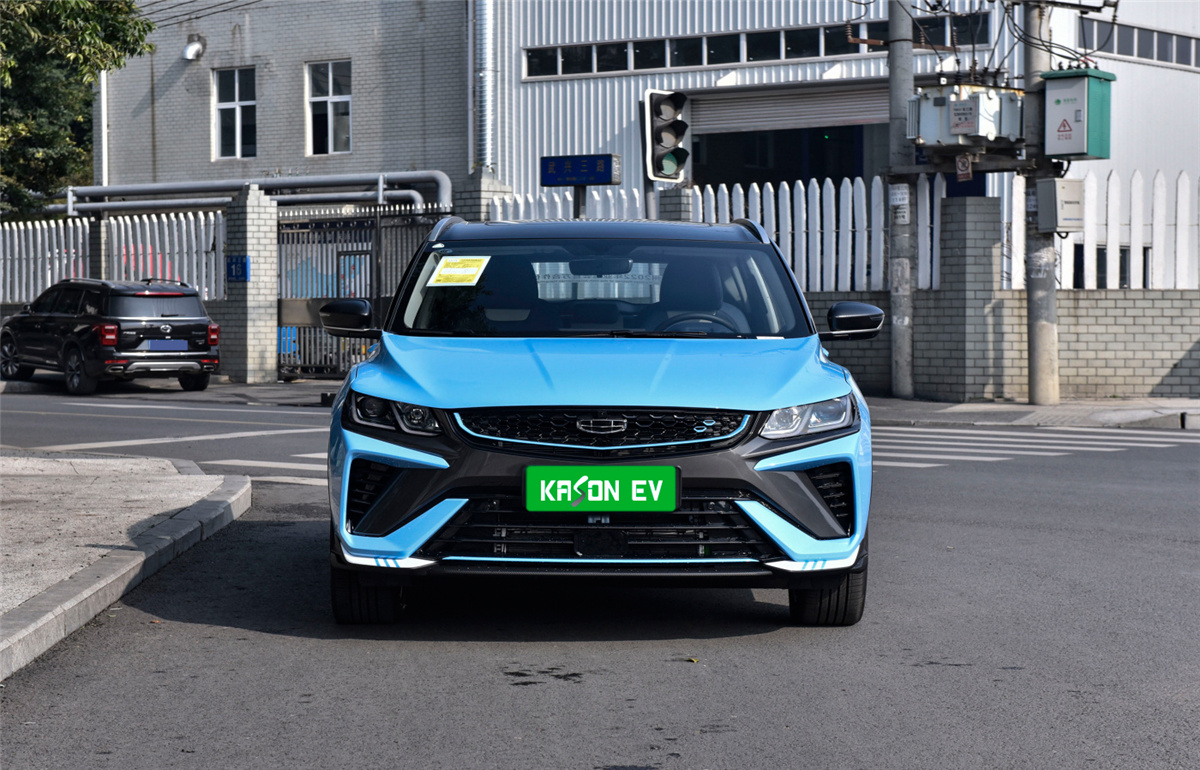

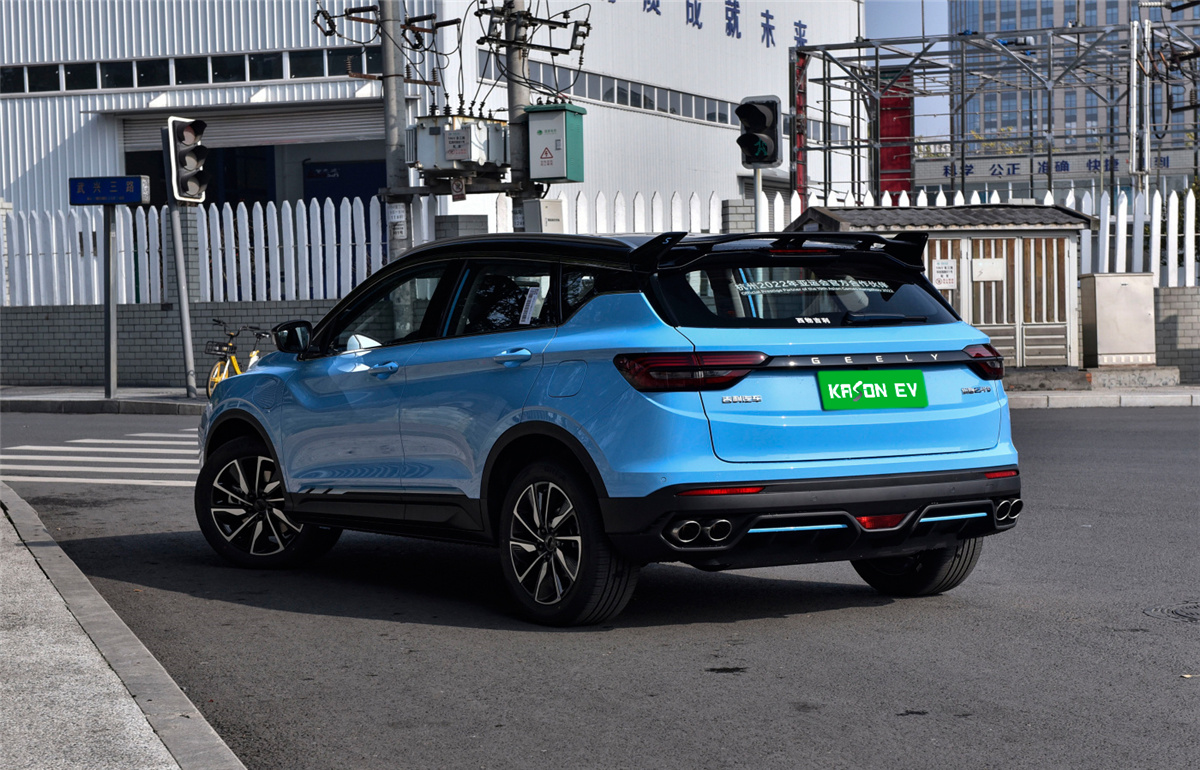

The overall shape of the car follows the Bin Yue fuel version of the "time racing aesthetics" design concept, ripple back pattern mesh is very brand recognition, the vehicle emits a strong unrestrained fashion against the background of the two-color body. The newly added charging port above the left front wheel eyebrow and the newly added "PHEV" logo at the rear fit the identity of the Bin Yue PHEV new energy models.

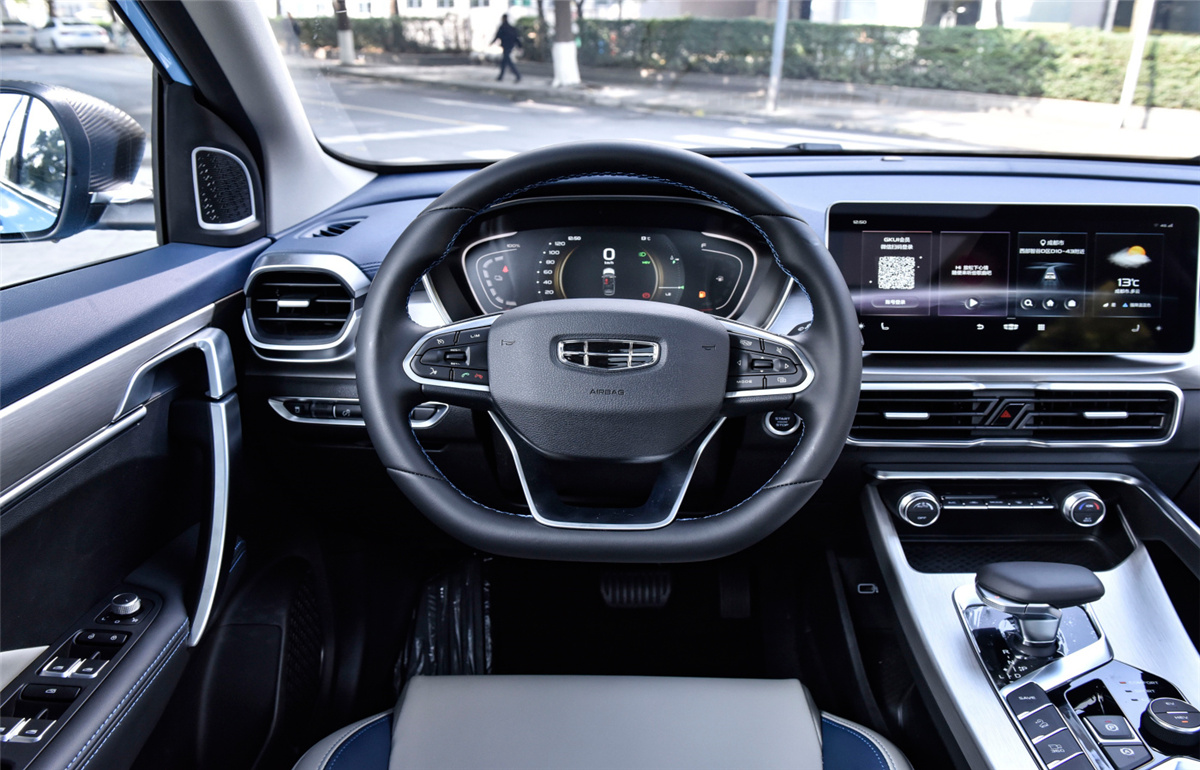

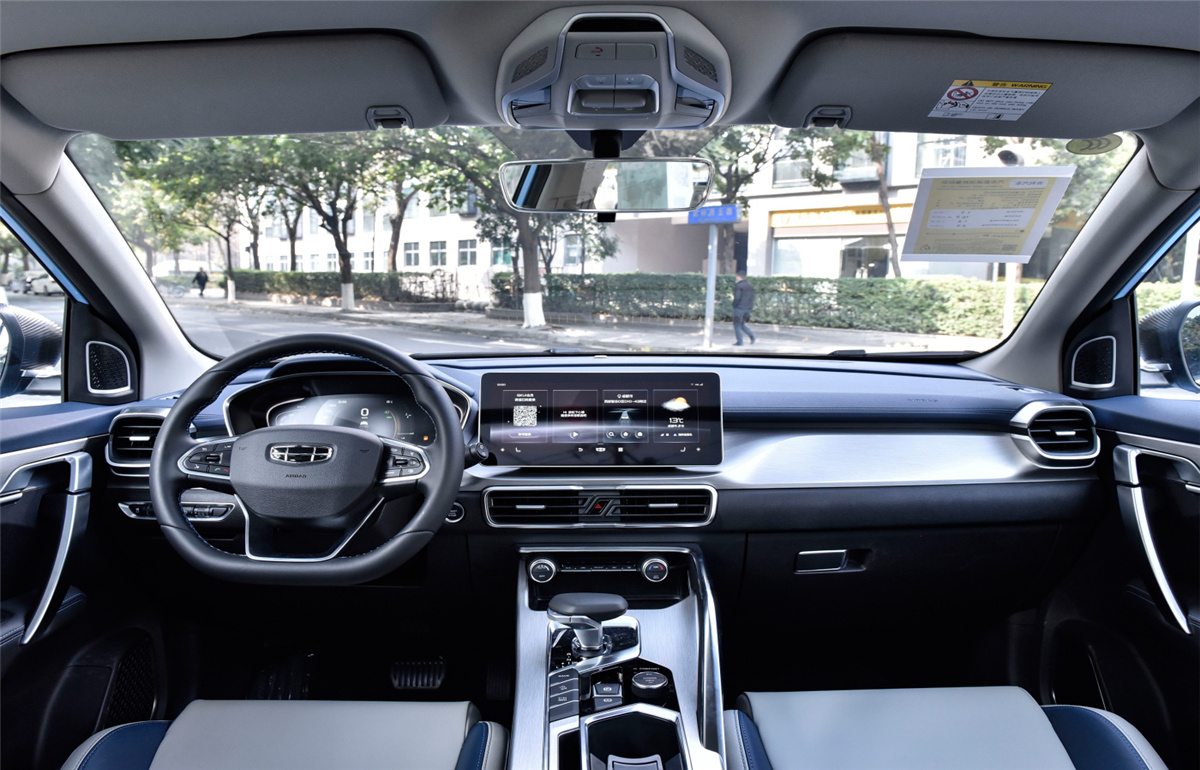

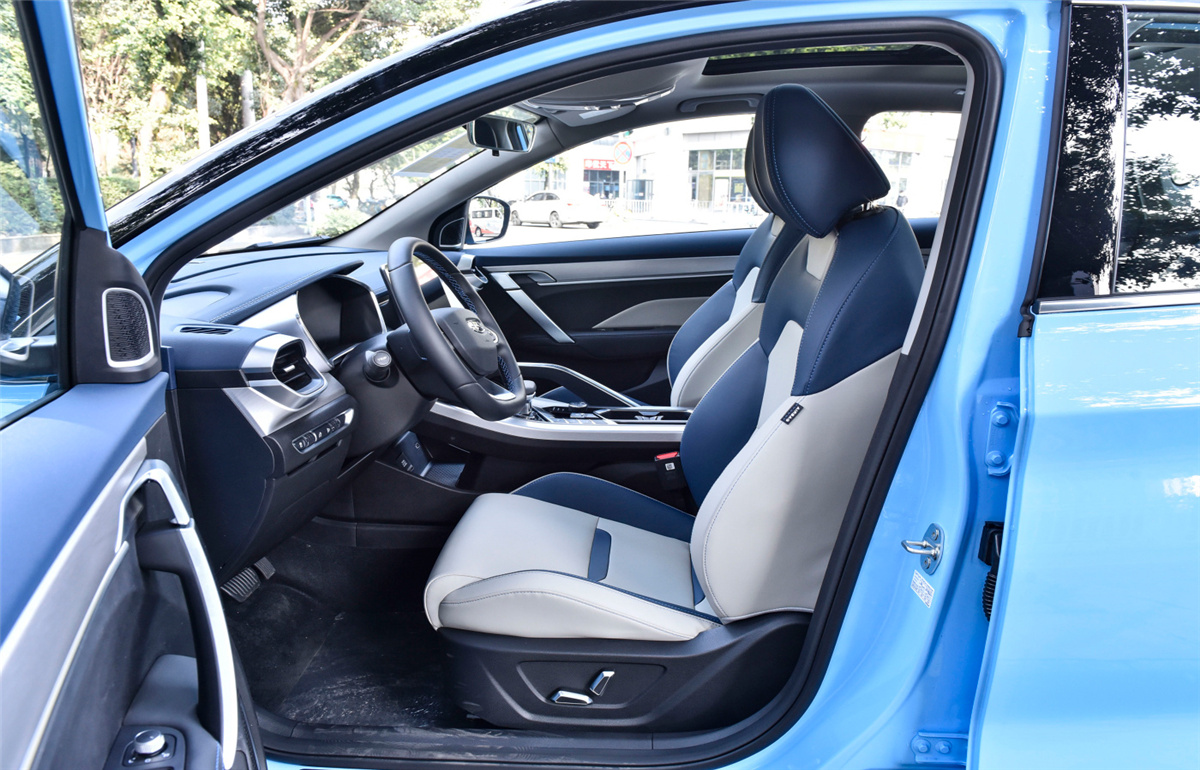

Compared with the fuel version, the interior design is only adjusted in detail for the identity of the new energy vehicle, the entire cockpit atmosphere is still outstanding sports wind, shift and driving mode control area has made certain changes: the fuel version of the manual "M" shift is replaced by energy recovery level adjustment, and the new EV/HEV driving mode switch button.
The Bin Yue PHEV is equipped with an intelligent energy management system, which boasts industry-specific technologies such as smart power sensing mode and smart map charging mode, enabling dynamic energy saving based on the user's driving habits and road congestion. In addition, the new car is equipped with ICC intelligent piloting system, APA automatic parking system, AEB-P pedestrian recognition and protection function, LKA Lane keeping assistance and SLIF traffic speed limit sign recognition and other high-tech intelligent features.
Product Specifications
| Brand | GEELY |
| Model | BINYUE |
| Version | 2022 1.5T ePro 85KM Star Edition |
| Basic parameters | |
| Car model | Small SUV |
| Type of Energy | Plug-in hybrid |
| Time to Market | Nov.2021 |
| NEDC pure electric cruising range (KM) | 85 |
| Maximum power (KW) | 190 |
| Maximum torque [Nm] | 415 |
| Engine | 1.5T 177PS L3 |
| Gearbox | 7-speed wet dual clutch |
| Length*width*height (mm) | 4330*1800*1609 |
| Body structure | 5-door 5-seat SUV |
| NEDC Comprehensive fuel consumption (L/100km) | 1.2 |
| Car body | |
| Longth(mm) | 4330 |
| Width(mm) | 1800 |
| Higth(mm) | 1609 |
| Wheel base(mm) | 2600 |
| Body structure | SUV |
| Number of doors | 5 |
| Number of seats | 5 |

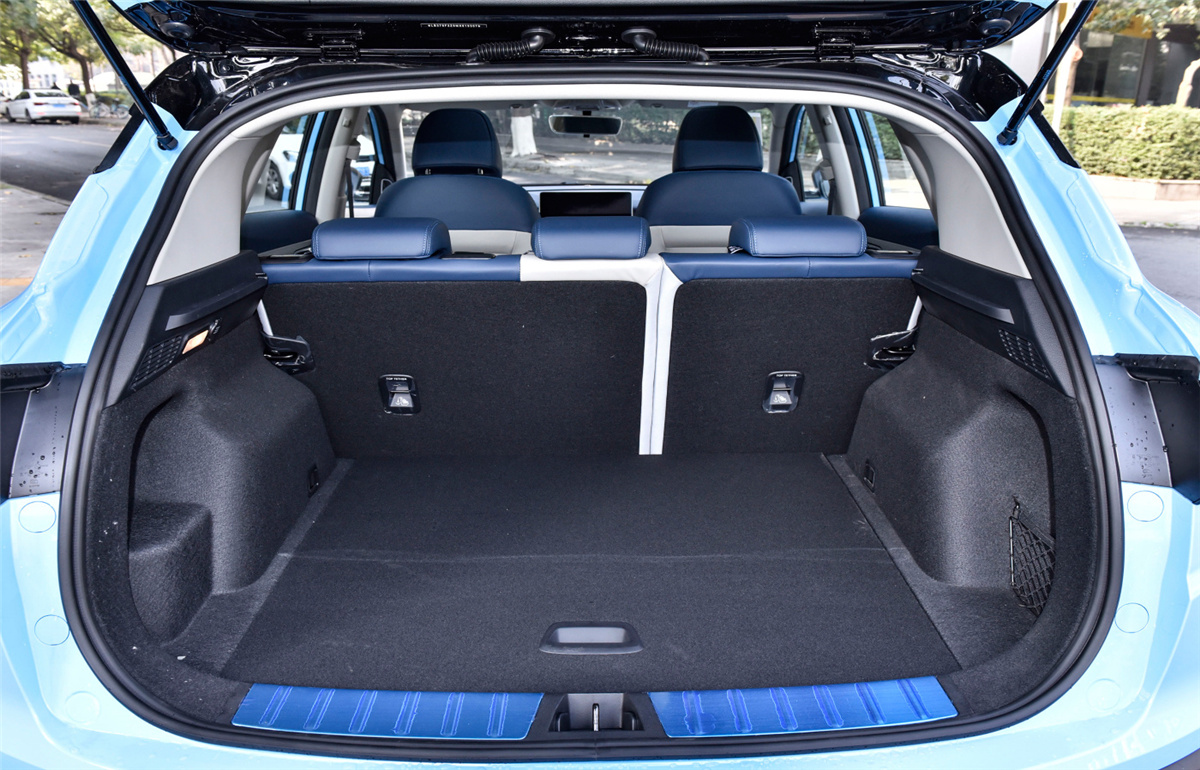

| Trunk volume (L) | 295 |
| Mass (kg) | 1552 |
| Engine | |
| Engine Model | JLH-3G15TD |
| Displacement(mL) | 1477 |
| Displacement(L) | 1.5 |
| Intake form | Turbo supercharging |
| Engine layout | Engine transverse |
| Cylinder arrangement | L |
| Number of cylinders (pcs) | 3 |
| Number of valves per cylinder (pcs) | 4 |
| Air Supply | DOHC |
| Maximum horsepower (PS) | 177 |
| Maximum power (KW) | 130 |
| Maximum power speed (rpm) | 5500 |
| Maximum torque(N-m) | 255 |
| Maximum torque speed (rpm) | 1500-4000 |
| Maximum Net Power (kW) | 130 |
| Fuel form | Plug-in hybrid |
| Fuel label | 92# |
| Oil supply method | Direct injection |
| Cylinder head material | Aluminum alloy |
| Cylinder material | Aluminum alloy |
| Environmental standards | VI |
| Electric motor | |
| System integrated power (kW) | 190 |
| Overall system torque [Nm] | 415 |
| Number of drive motors | Single motor |
| Motor placement | Prepended |
| Battery Type | Ternary lithium battery |
| NEDC pure electric cruising range (KM) | 85 |
| Gearbox | |
| Number of gears | 7-speed wet dual clutch |
| Transmission type | Wet Dual Clutch Transmission (DCT) |
| Short name | 7-speed wet dual clutch |
| Chassis Steer | |
| Form of drive | FF |
| Type of front suspension | McPherson independent suspension |
| Type of rear suspension | Torsion Beam Dependent Suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Disc |
| Type of parking brake | Electric brake |
| Front Tire Specifications | 215/55 R18 |
| Rear tire specifications | 215/55 R18 |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Front side airbag | YES |
| Tire pressure monitoring function | Tire pressure display |
| Seat belt not fastened reminder | Front row |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES |
| Assist/Control configuration | |
| Rear parking radar | YES |
| Driving assistance video | Reverse image Car side blind spot image |
| Cruise system | Cruise control |
| Driving mode switching | Sport/Economy/Standard Comfort |
| Automatic parking | YES |
| Hill assist | YES |
| Steep descent | YES |
| External / Anti-Theft Configuration | |

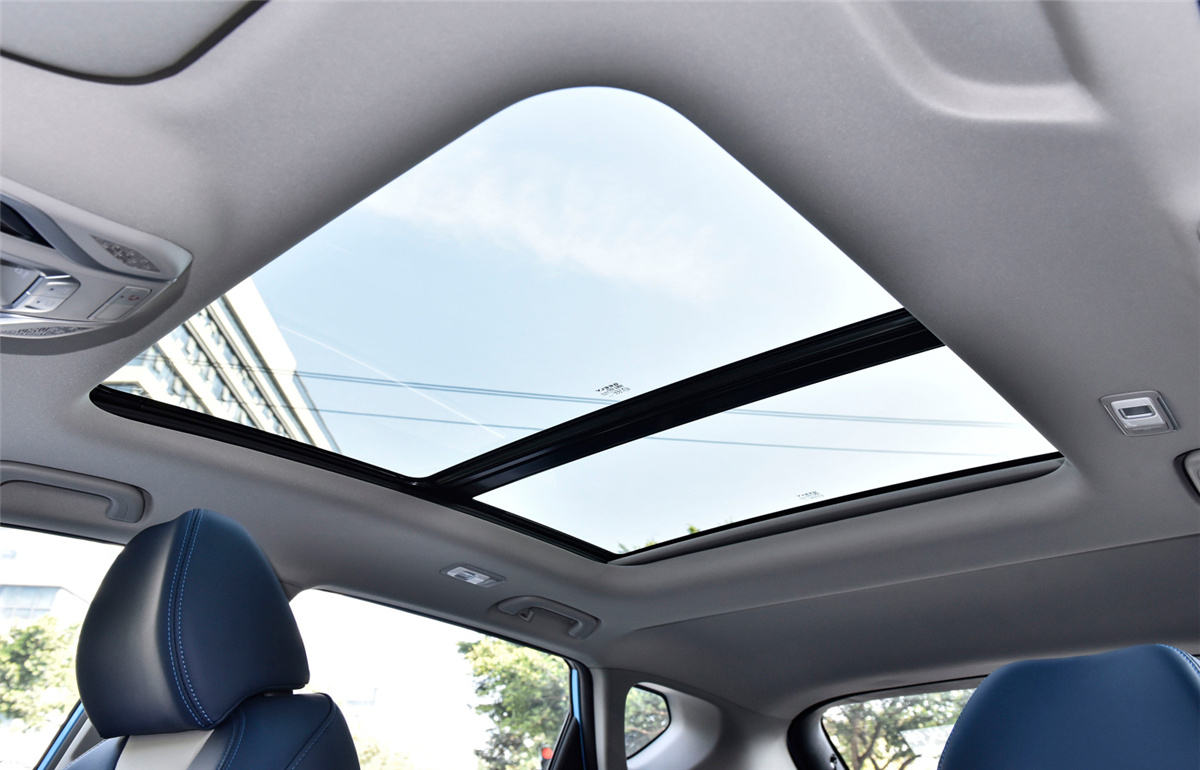

| Sunroof type | Openable panoramic sunroof（Option) |
| Rim material | Aluminum alloy |
| Roof rack | YES |
| Engine electronic immobilizer | YES |
| Interior central lock | YES |
| Key type | Remote control key |
| Keyless start system | YES |
| Keyless entry function | Driver's Seat |
| Remote start function | YES |
| Internal configuration | |
| Steering wheel material | Genuine Leather |
| Steering wheel position adjustment | Manual up and down + front and rear adjustment |
| Multifunction steering wheel | YES |
| Trip computer display screen | Color |
| LCD meter size (inch) | 7 |
| Seat configuration | |

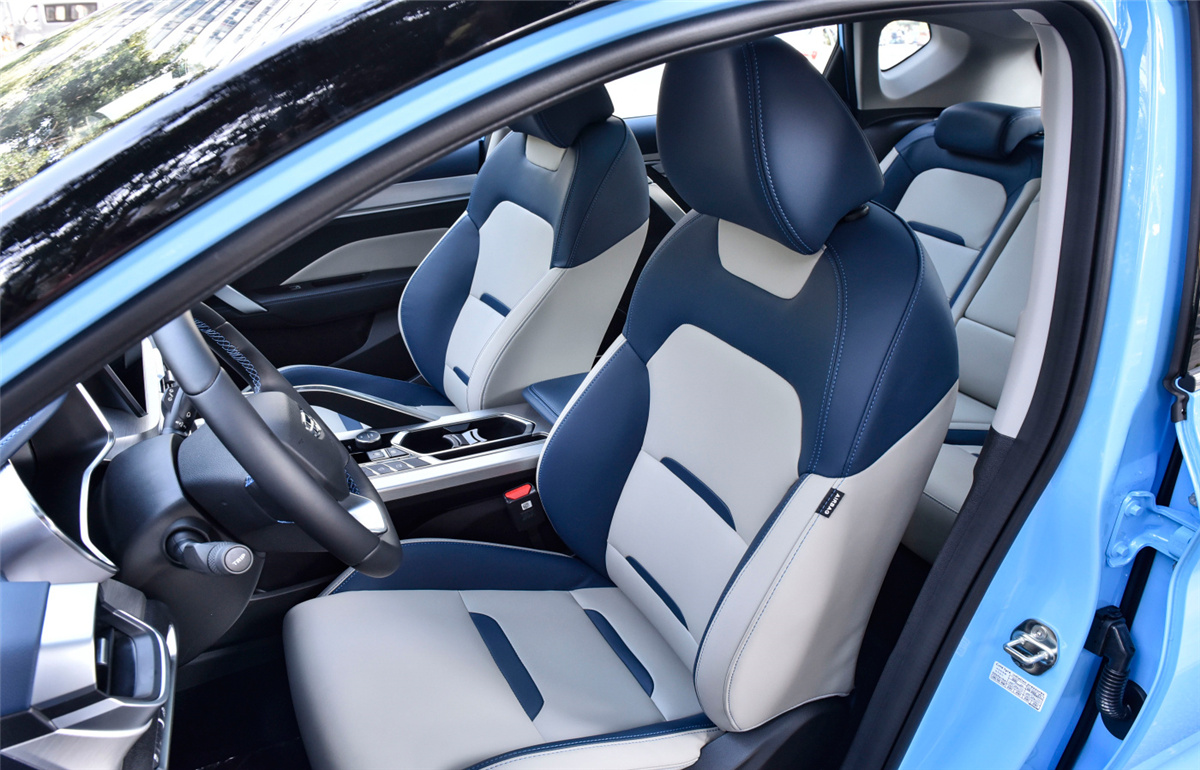

| Seat materials | Leather/fabric mix |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
| Rear seats folded down | Proportion down |
| Front/rear center armrest | Front/Rear |
| Multimedia configuration | |

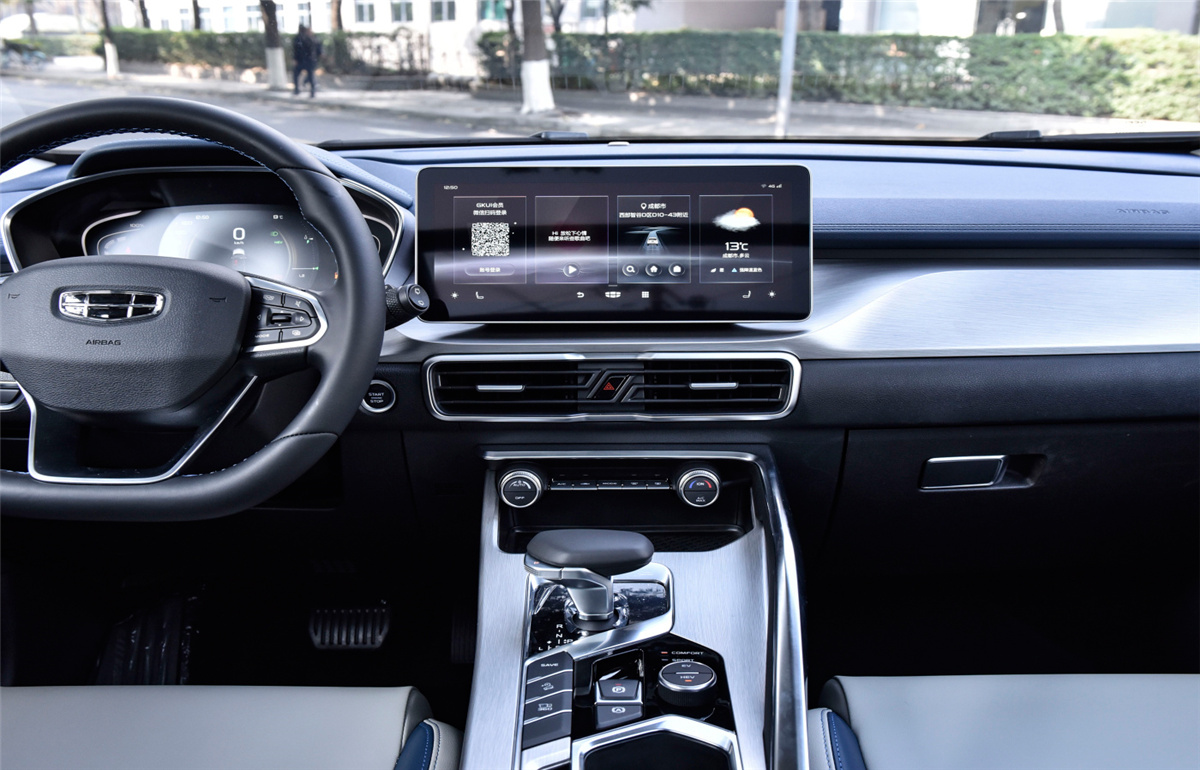

| Central control color screen | Touch OLED |
| Central control screen size (inch) | 12.3 |
| Satellite navigation system | YES |
| Navigation traffic information display | YES |
| Roadside assistance call | YES |
| Bluetooth/Car Phone | YES |
| Voice recognition control system | Multimedia system, navigation, telephone, air conditioning |
| Internet of Vehicles | YES |
| Multimedia/charging interface | USB |
| Number of USB/Type-c ports | 1 in front |
| Number of speakers (pcs) | 4 |
| Lighting configuration | |
| Low beam light source | Halogen |
| High beam light source | Halogen |
| LED daytime running lights | YES |
| Automatic headlights | YES |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Window one-button lift function | Full car |
| Window anti-pinch function | YES |
| Multilayer soundproof glass | Front row |
| Post audition feature | Electric adjustment,rearview mirror heatingr |
| Inside rearview mirror function | Manual anti-dazzle |
| Interior vanity mirror | Driver's seat Co-pilot |
| Rear wiper | YES |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Automatic air conditioner |
| In-car PM2.5 filter | YES |
