Product Information

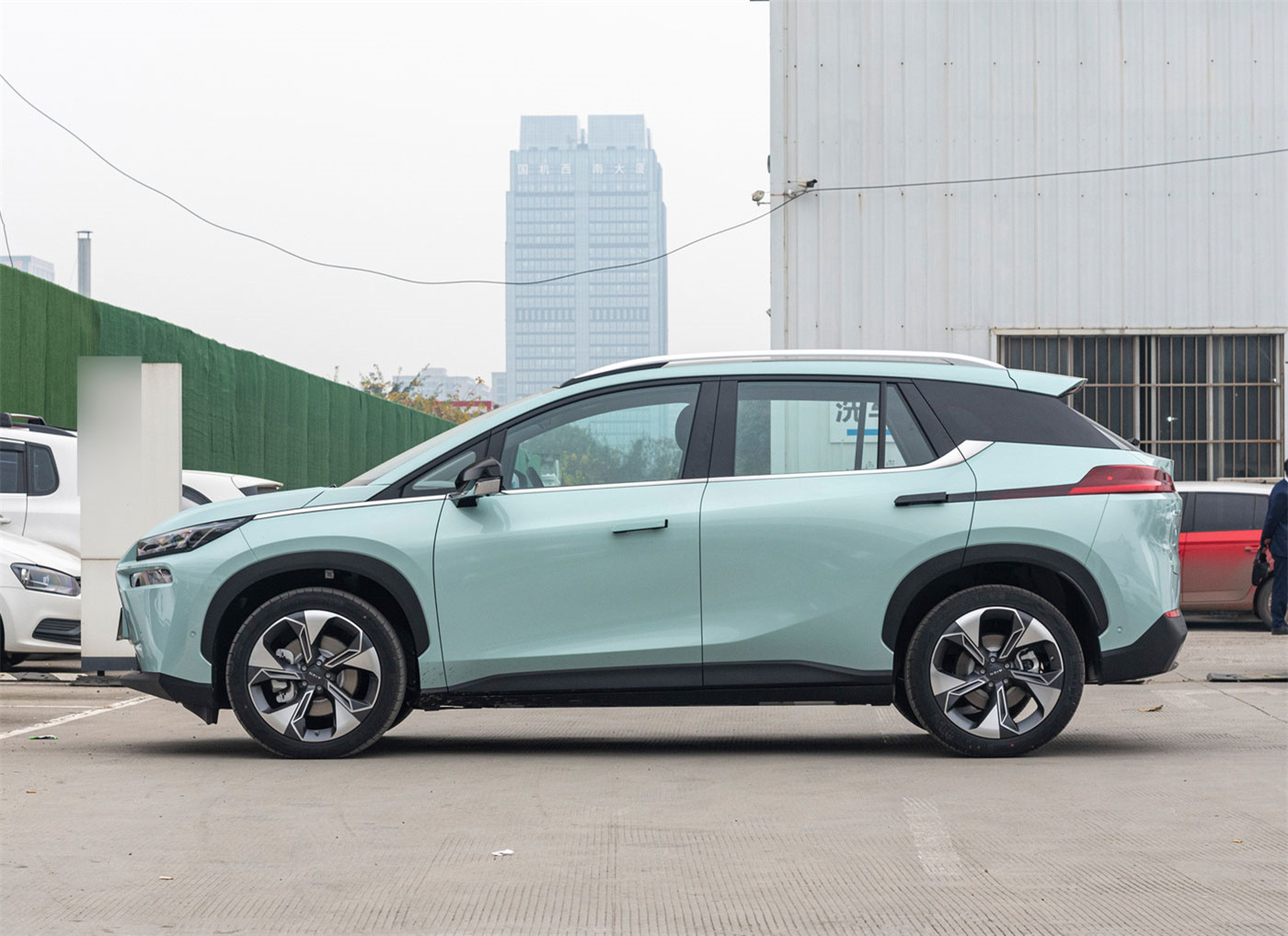

In terms of appearance, the designer takes the mecha elements in science fiction movies as inspiration, and creates a four-dimensional science fiction mecha design theme belonging to Aion V , with a strong sense of science fiction.

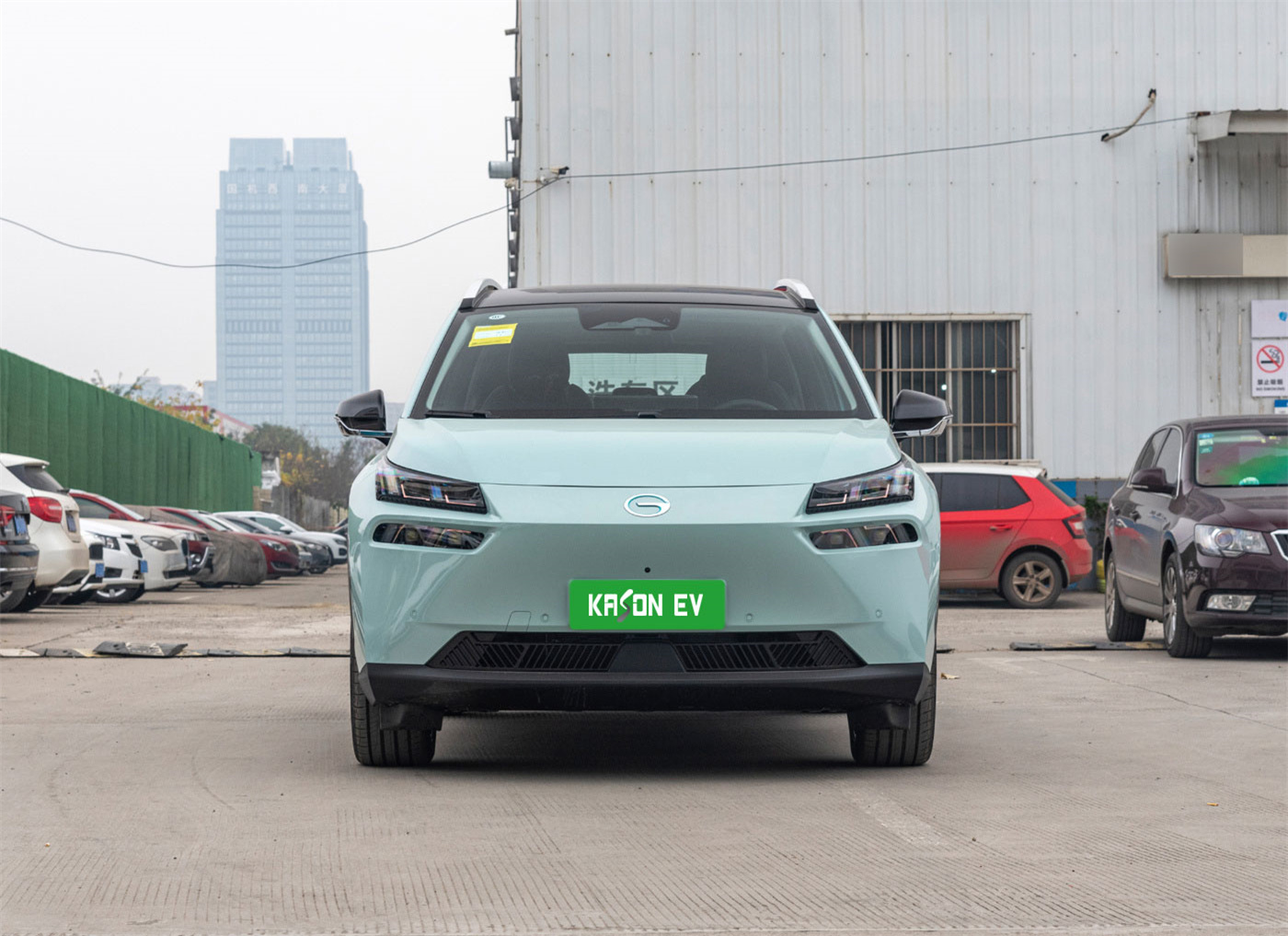

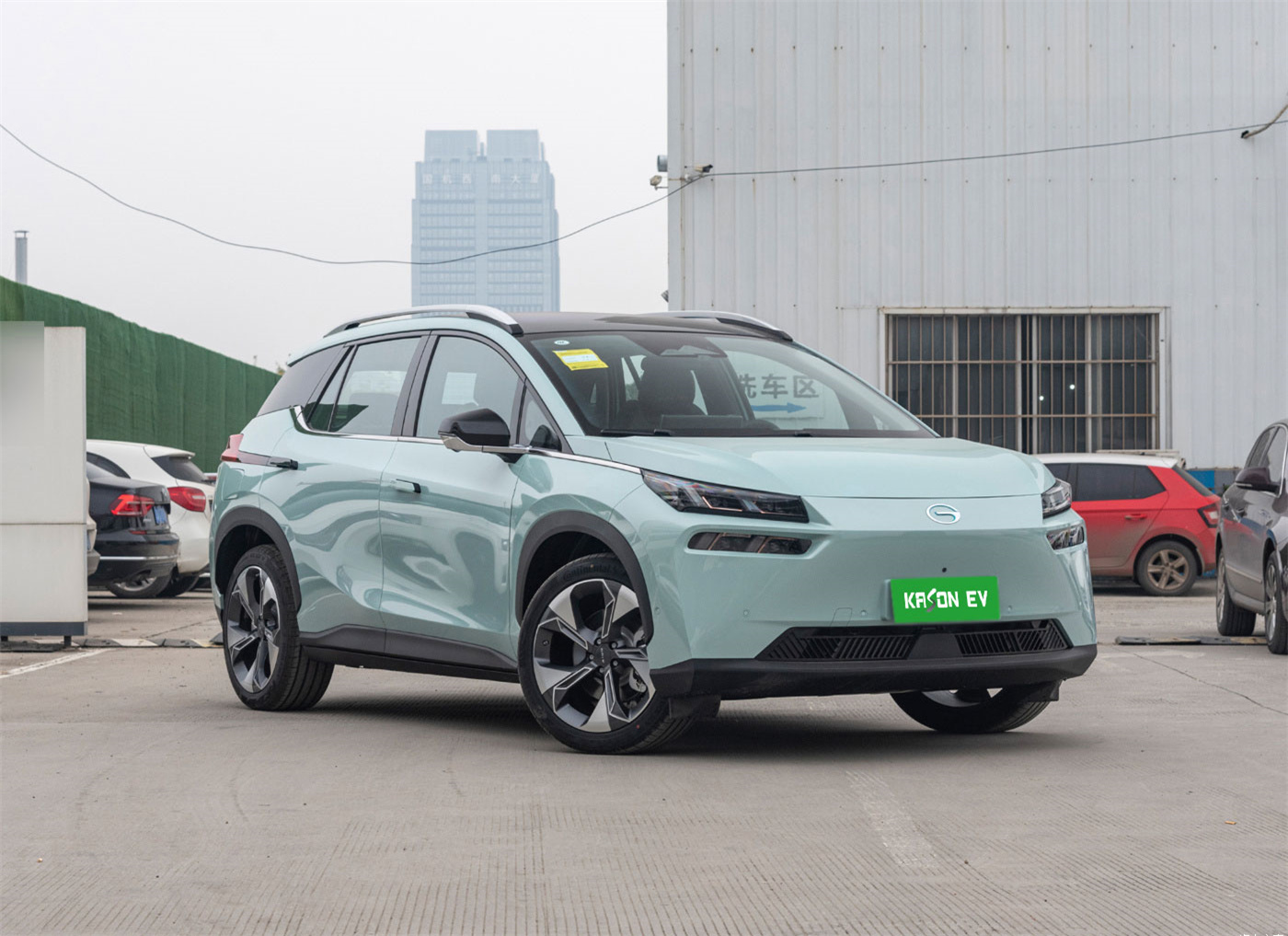

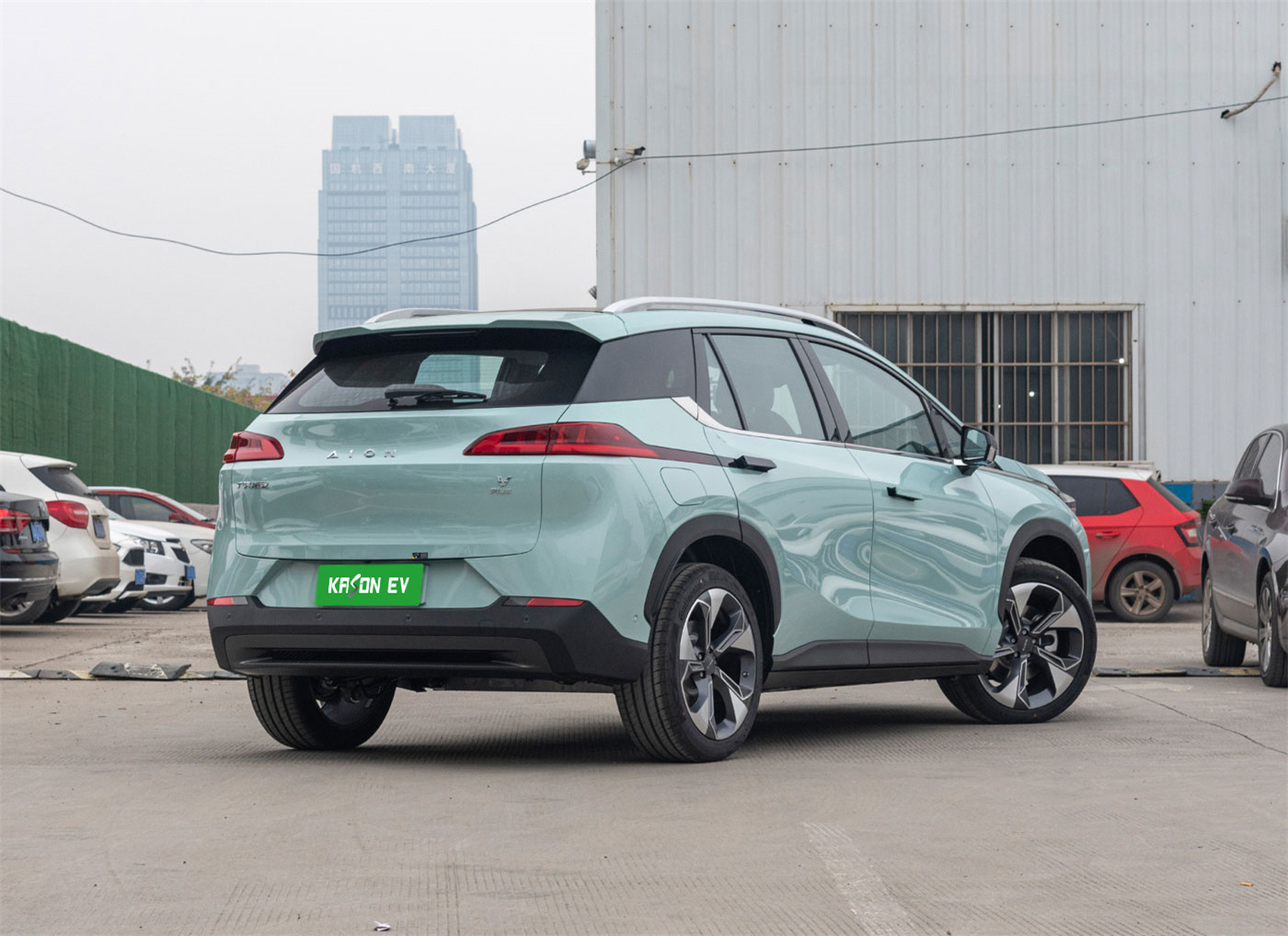

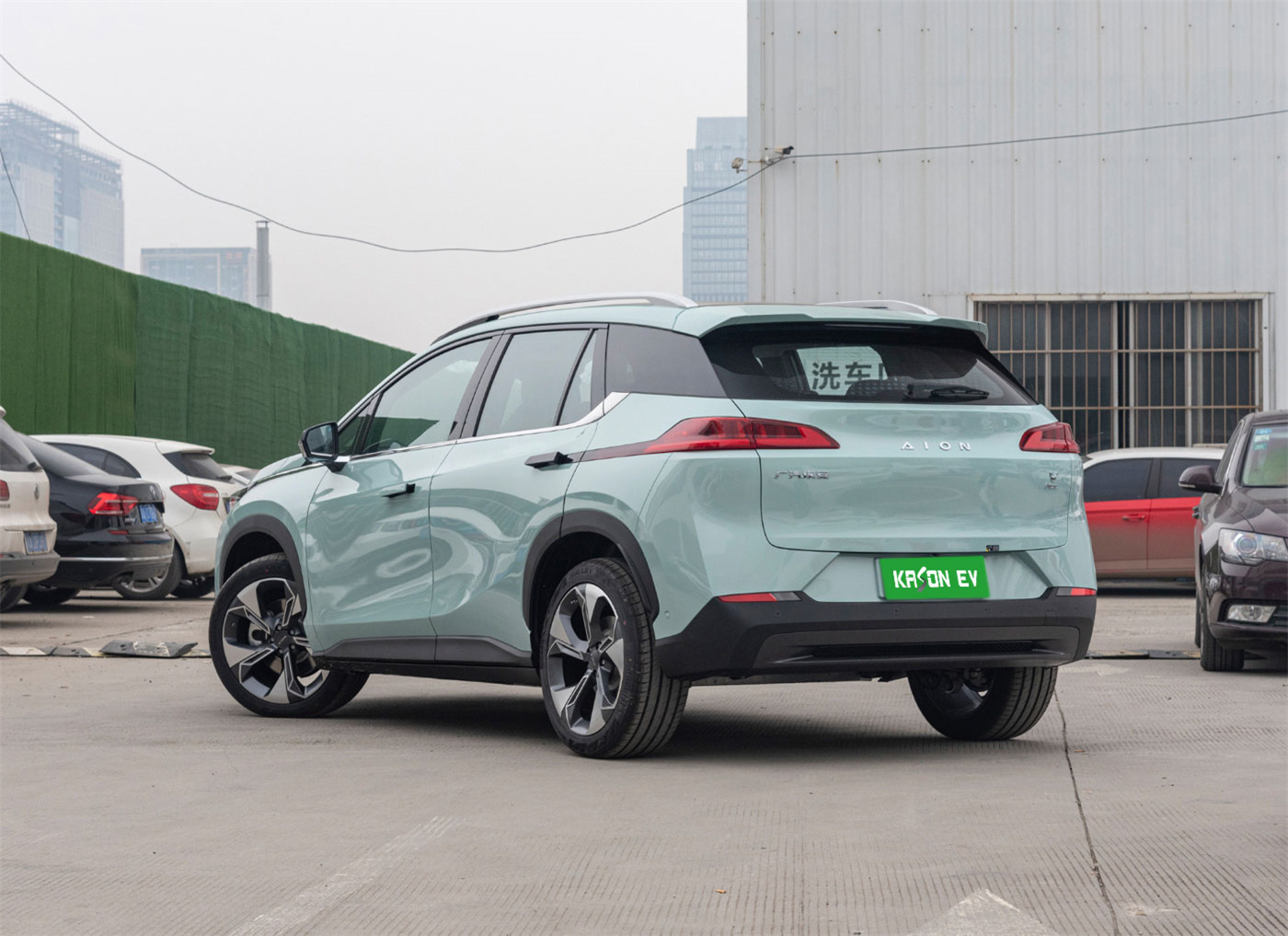

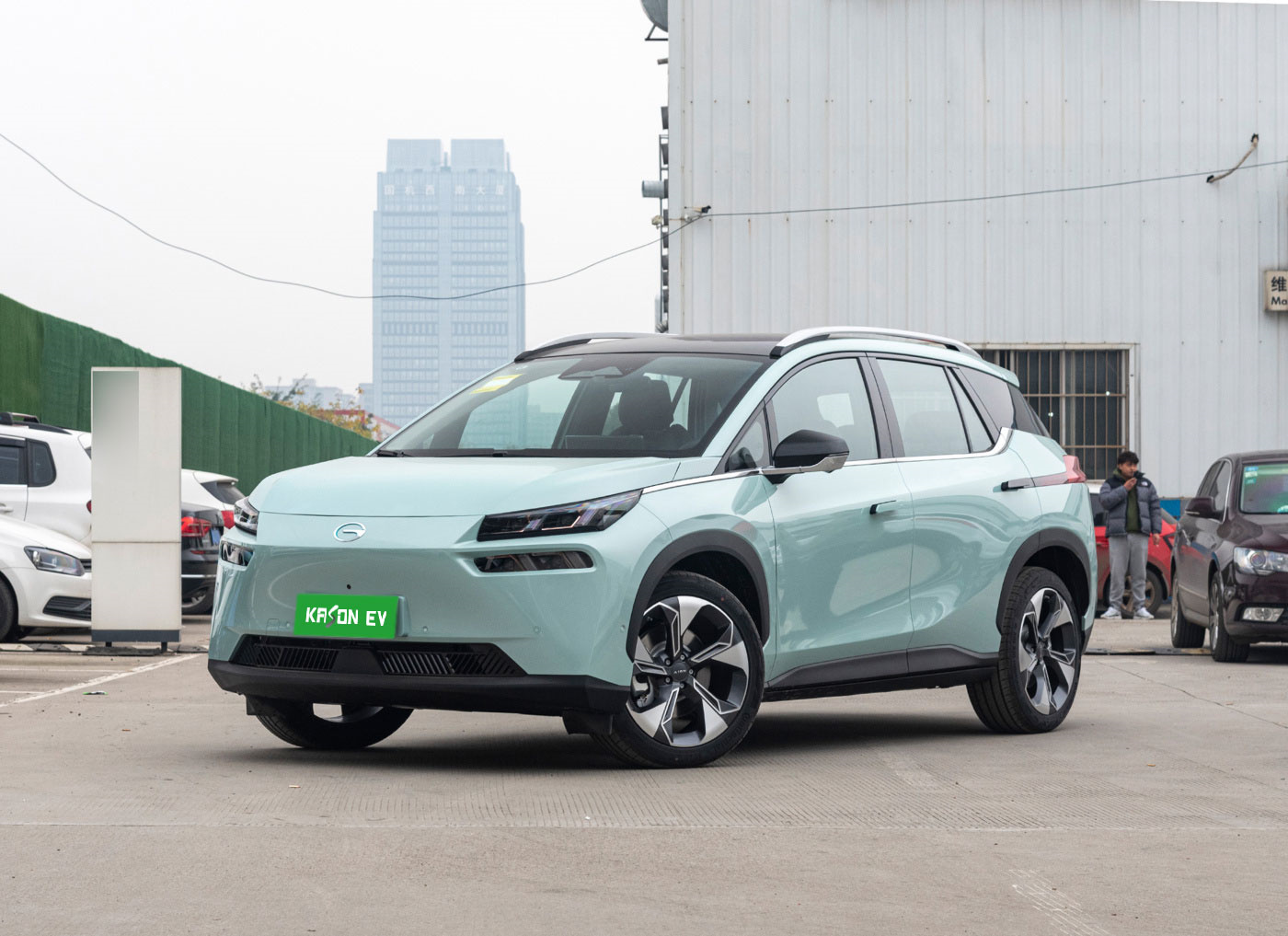

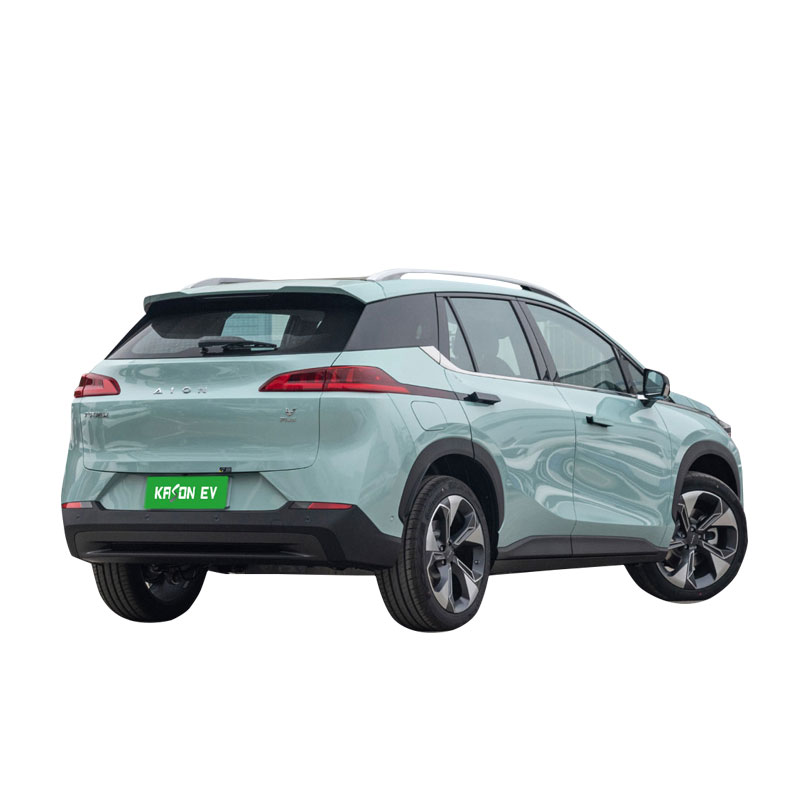

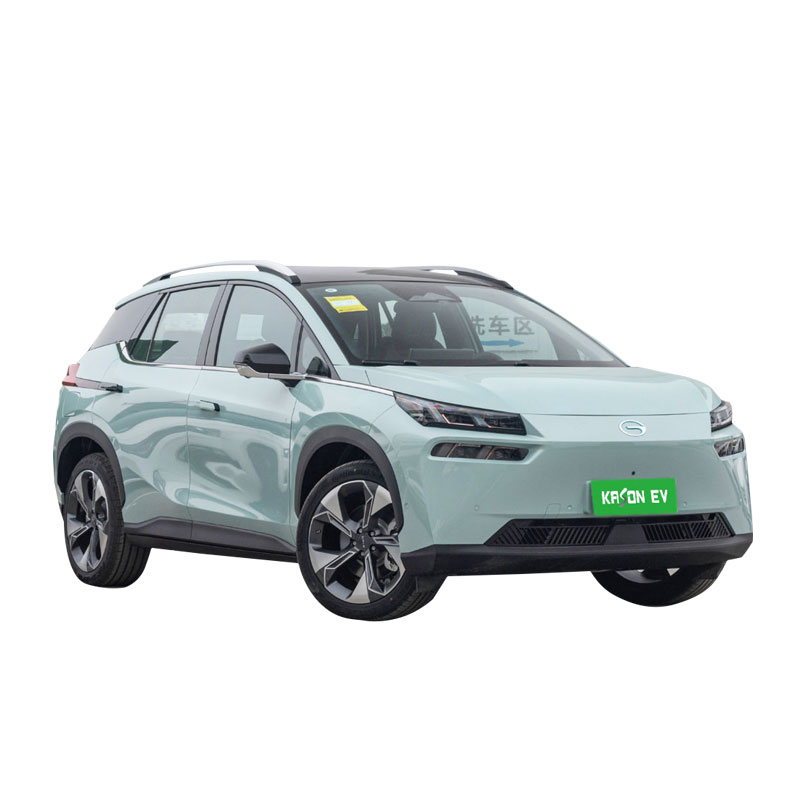

The front face is based on the prototype of "mecha beast", plus the split LED headlight of "light claw and electric eye", which is very recognizable and sci-fi. "Flying wing type" black rear view mirror, 100 variable star wheel hub, "universal blade" taillight combination, so that the vehicle gives a person a feeling from outer space.
As a pure electric vehicle, GAC New Energy Aion V defines a new standard for the next generation of smart cars with its own standards.
Aion V is built based on GEP2.0 all-aluminum pure electric exclusive platform, with a weight ratio of 50:50 before and after. The advantages of aluminum body are light and anti-rust and anti-corrosion, so the safety, handling and durability will be more enhanced than ordinary models. The longest wheelbase at the same level, 2830mm, allows more space in the car, plus 25 storage space design, more convenient to use.
The ev has a maximum range of 600km in its class, thanks to its all-aluminum pure level platform and deeply integrated three-in-one electric drive system, as well as power battery and management technology and ultra-low wind resistance design.
Aion V is equipped with China's first integrated 5G+C-V2X vehicle-mounted intelligent communication system independently developed by GAC New Energy, and is equipped with HUAWEI's new generation 5G vehicle-mounted module MH5000, which is a 5G model.
There are also some high-tech practical features:
Eion V can achieve horizontal and vertical parking in and out, support ramp, oblique and intelligent tracking parking and other scenarios of intelligent parking. The callable function supports remote parking within a range of 6 meters, realizing automatic parking in vertical and horizontal narrow parking Spaces by remote control outside the car; When picking up the car, the car can be summoned by the way of remote control berthing, avoiding the embarrassment of getting on the car because the parking space is too narrow.
Product Specifications
Brand | AION |
Model | V |
Version | 2021 PLUS 70 Smart Collar Edition |
Car model | Compact SUV |
Type of Energy | Pure electric |
NEDC pure electric cruising range (KM) | 500 |
Maximum power (KW) | 165 |
Motor horsepower [Ps] | 224 |
Length*width*height (mm) | 4650*1920*1720 |
Body structure | 5-door 5-seat SUV |
Official 0-100km/h acceleration (s) | 7.9 |
Car body | |
Longth(mm) | 4650 |
Width(mm) | 1920 |
Higth(mm) | 1720 |
Wheel base(mm) | 2830 |
Minimum ground clearance (mm) | 150 |
Body structure | SUV |
Number of doors | 5 |
Number of seats | 5 |

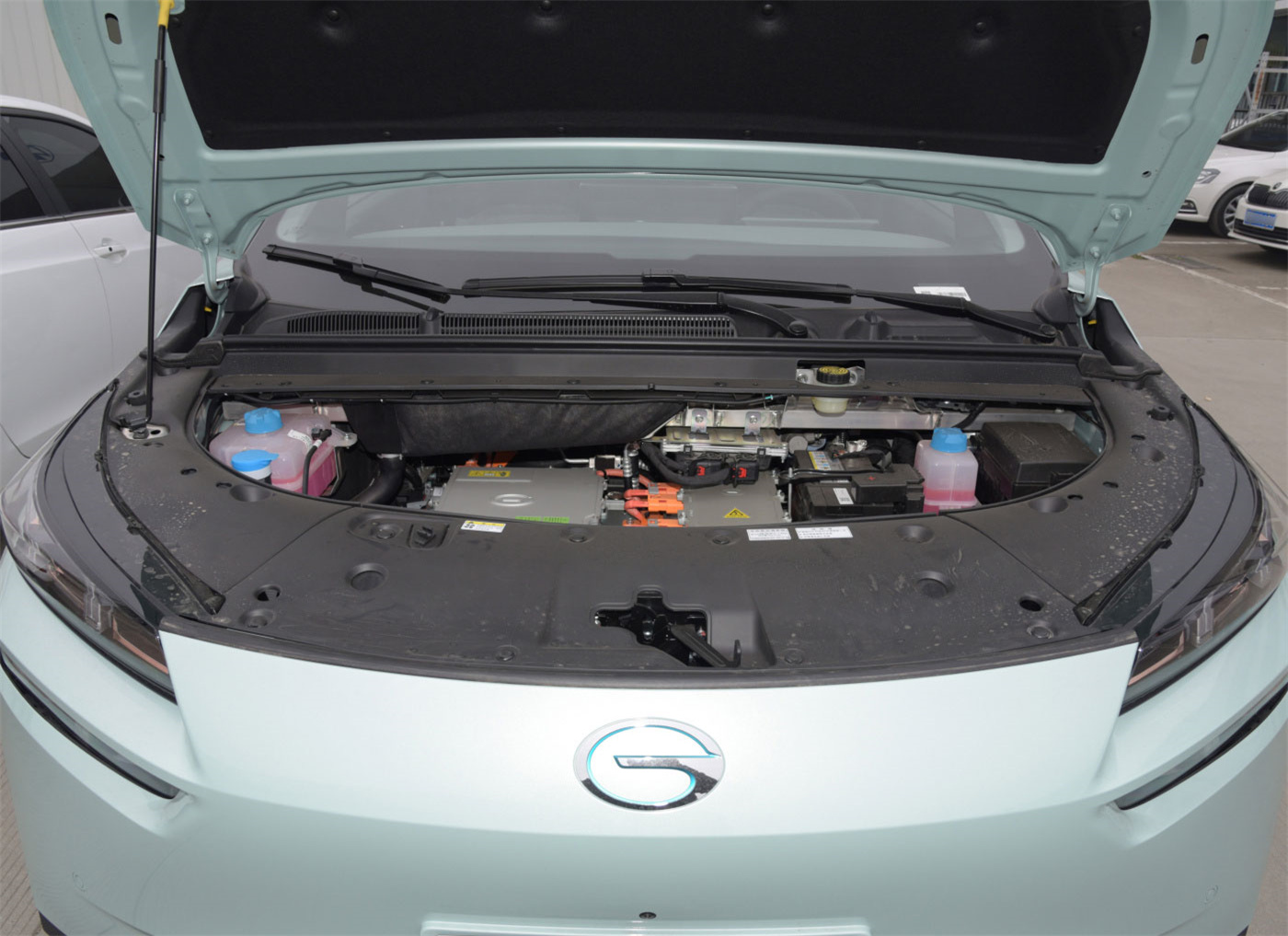

Electric motor | |
Motor type | Permanent magnet synchronization |
Total motor power (kw) | 165 |
Front motor maximum power (kW) | 165 |
Number of drive motors | Single motor |
Motor placement | Prepended |
Battery Type | Lithium iron phosphate battery |
NEDC pure electric cruising range (KM) | 500 |
Battery Power(kwh) | 71.8 |
Gearbox | |
Number of gears | 1 |
Transmission type | Fixed gear ratio gearbox |
Short name | Electric vehicle single speed gearbox |
Chassis Steer | |
Form of drive | FF |
Type of front suspension | McPherson independent suspension |
Type of rear suspension | Multi-link independent suspension |
Boost type | Electric assist |
Car body structure | Load bearing |
Wheel braking | |
Type of front brake | Ventilated Disc |
Type of rear brake | Disc |
Type of parking brake | Electric brake |
Front Tire Specifications | 235/55 R19 |
Rear tire specifications | 235/55 R19 |
Cab Safety Information | |
Primary driver airbag | YES |
Co-pilot airbag | YES |
Front side airbag | YES |
Front head airbag (curtain) | YES |
Rear head airbag (curtain) | YES |
Tire pressure monitoring function | Tire pressure display |
Seat belt not fastened reminder | Full car |
ISOFIX Child seat connector | YES |
ABS anti-lock | YES |
Brake force distribution (EBD/CBC, etc.) | YES |
Brake Assist (EBA/BAS/BA, etc.) | YES |
Traction Control (ASR/TCS/TRC, etc.) | YES |
Body Stability Control (ESC/ESP/DSC, etc.) | YES |
Assist/Control configuration | |
Rear parking radar | YES |
Driving assistance video | 360 degree panoramic image |
Cruise system | Cruise control |
Driving mode switching | Sport/Economy/Standard Comfort |
Automatic parking | YES |
Hill assist | YES |
Steep descent | YES |
External / Anti-Theft Configuration | |
Sunroof type | Panoramic sunroof cannot be opened |
Rim material | Aluminum alloy |
Electric trunk | YES |
Electric trunk position memory | YES |
Roof rack | YES |
Interior central lock | YES |
Key type | Remote control key Bluetooth key |
Keyless start system | YES |
Keyless entry function | Front row |
Hide electric door handle | YES |
Battery preheating | YES |

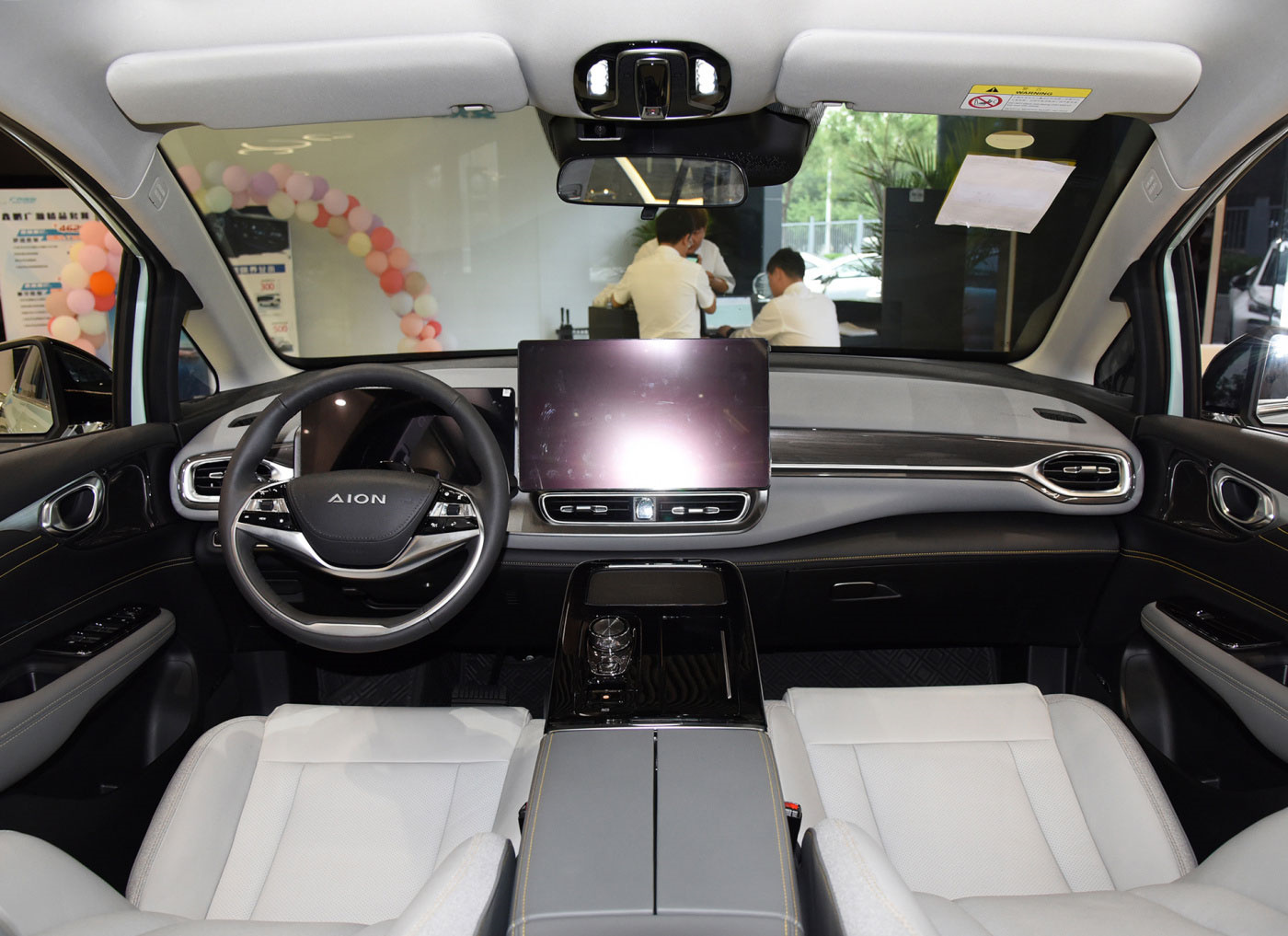

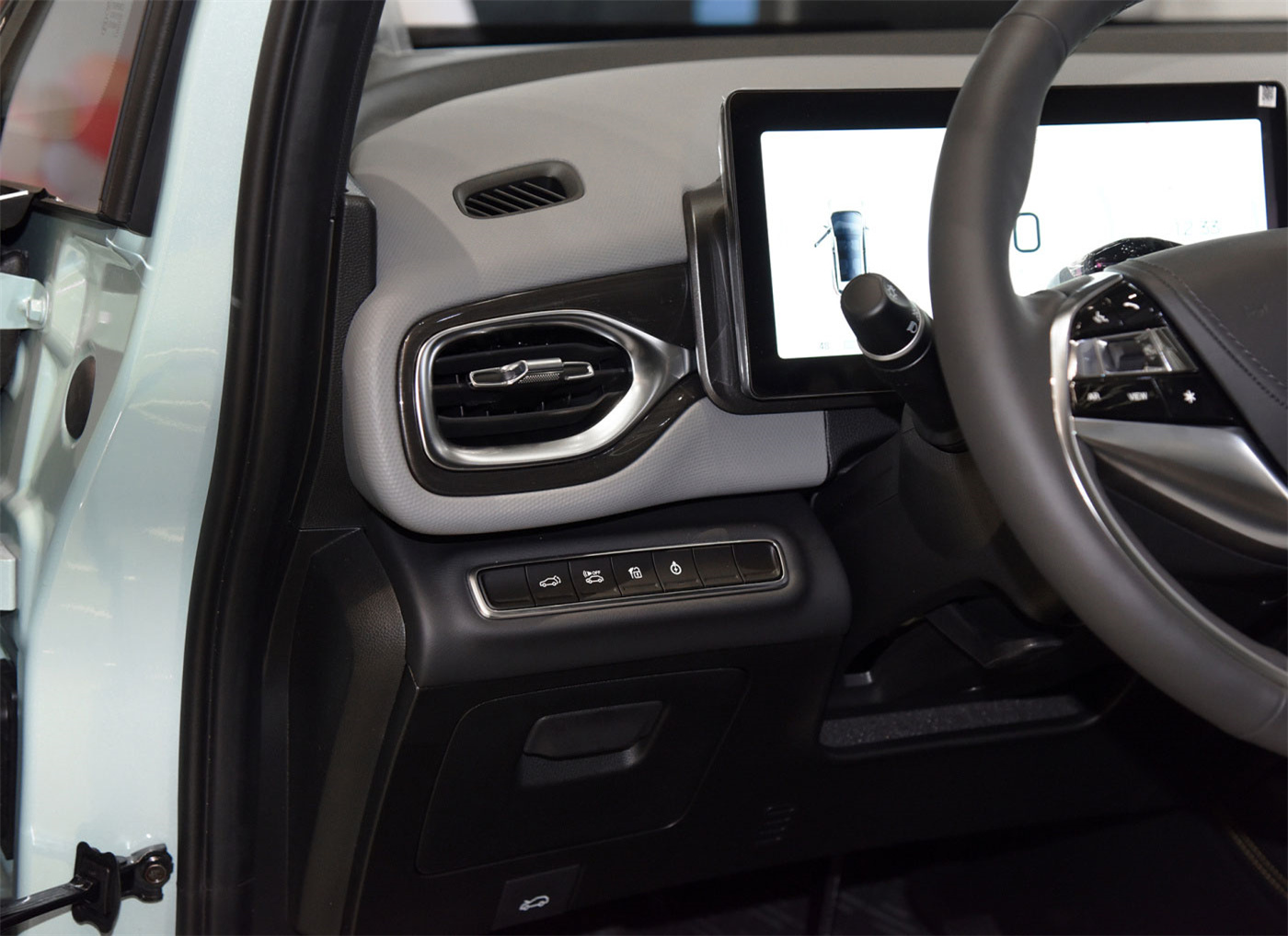

Internal configuration | |

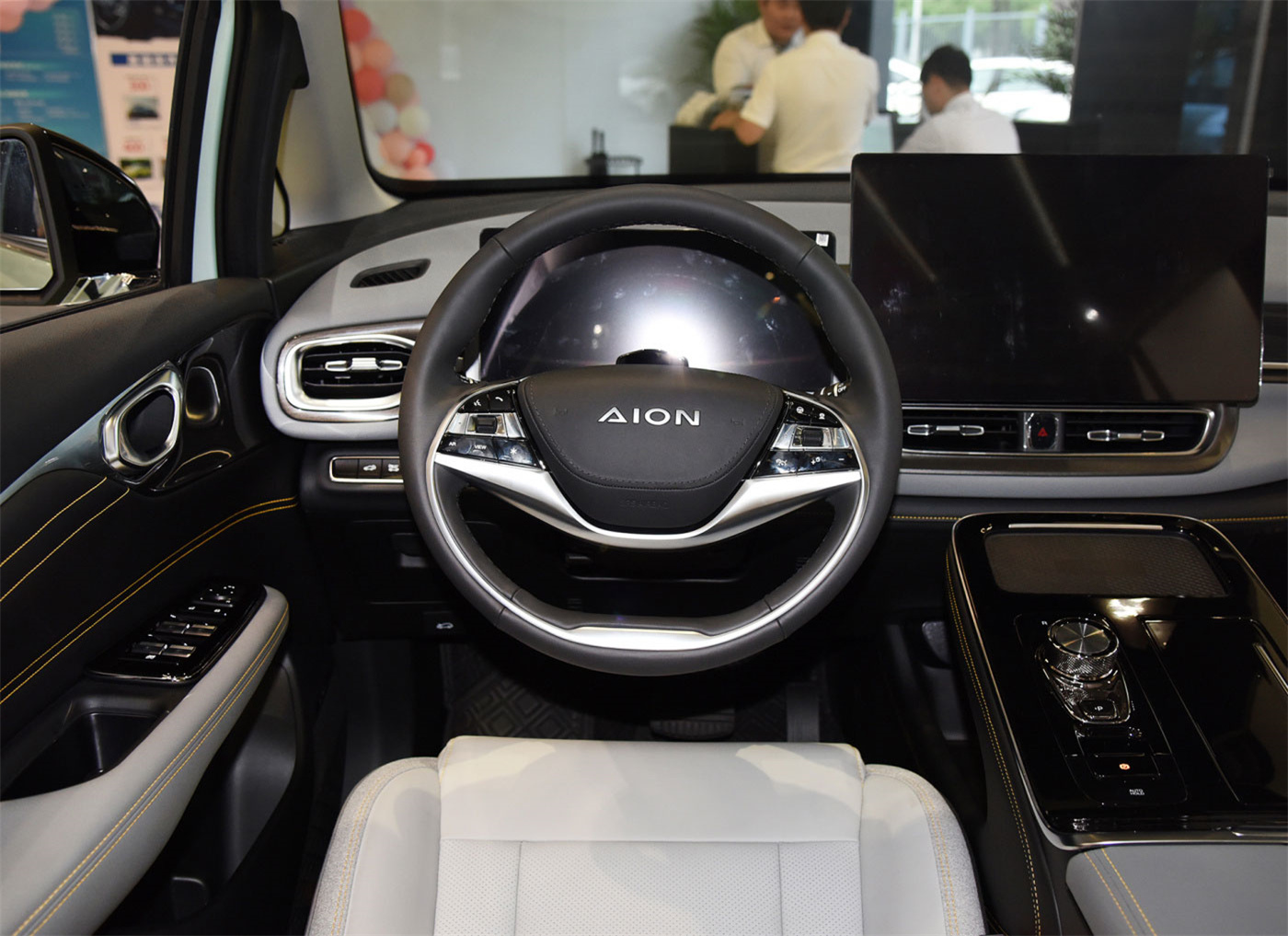

Steering wheel material | Plastic |
Steering wheel position adjustment | Manual up and down + front and rear adjustment |
Multifunction steering wheel | YES |
Trip computer display screen | Color |

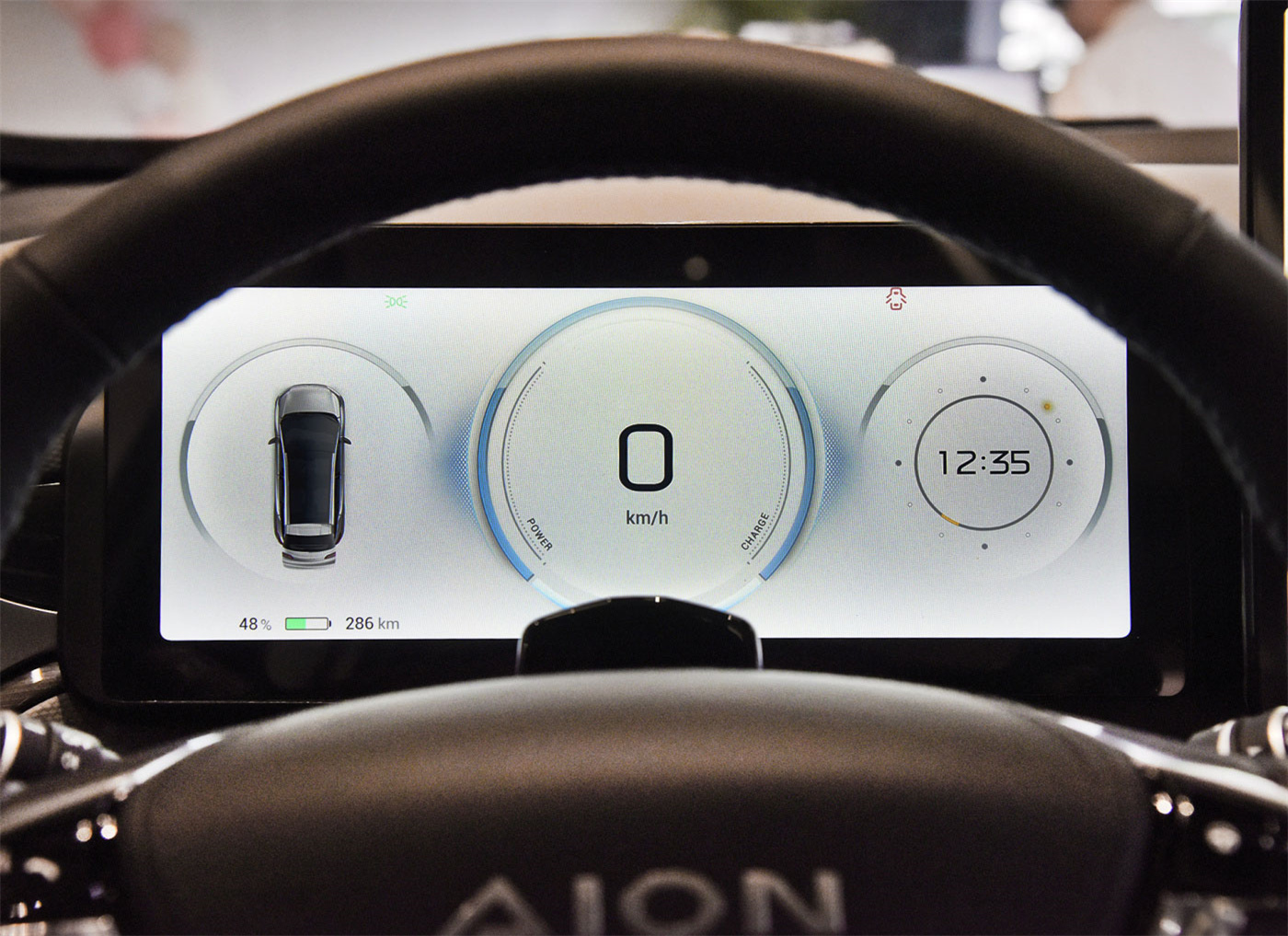

Full LCD Dashboard | YES |
LCD meter size (inch) | 12.3 |

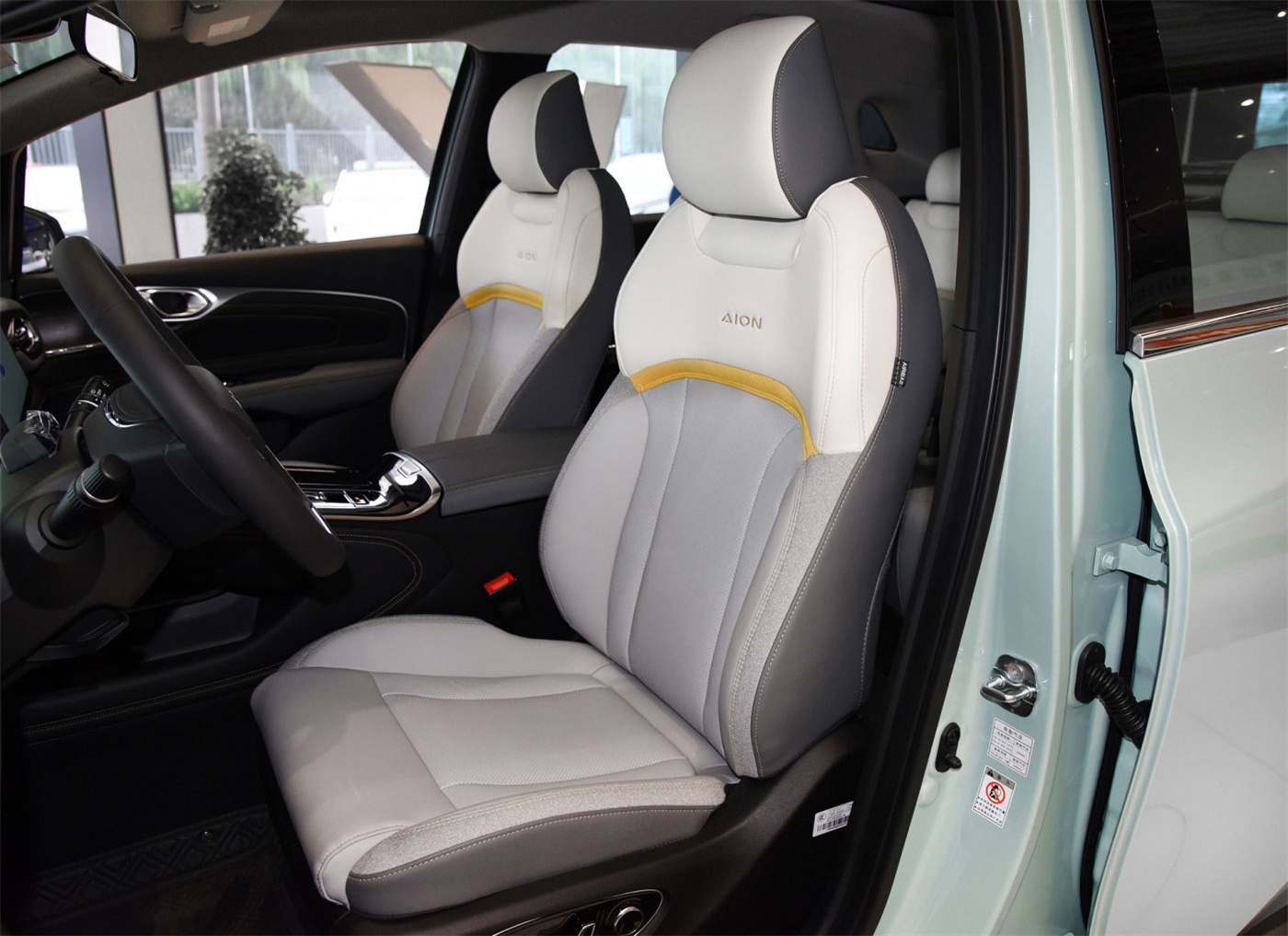

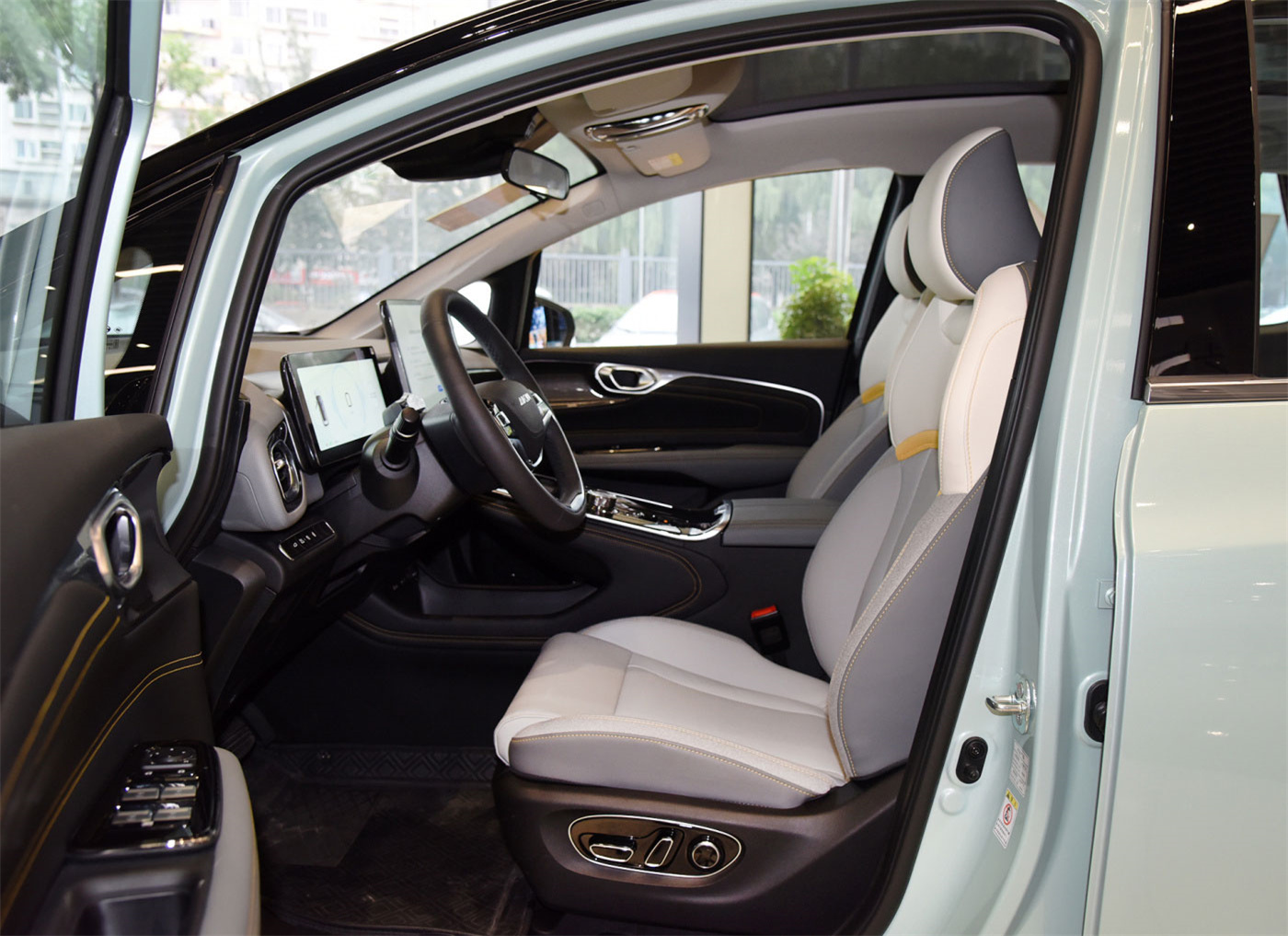

Seat configuration | |
Seat materials | Imitation leather |
Driver's seat adjustment | Front and rear adjustment, backrest adjustment,height adjustment (2-way),lumbar support (2-way) |
Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
Main/assistant seat electric adjustment | Main Seat |
Second row seat adjustment | Backrest adjustment |
Rear seats folded down | Proportion down |
Rear cup holder | YES |
Front/rear center armrest | Front/Rear |
Multimedia configuration | |
Central control color screen | Touch LCD |
Central control screen size (inch) | 15.6 |
Satellite navigation system | YES |
Navigation traffic information display | YES |
Roadside assistance call | YES |
Bluetooth/Car Phone | YES |
Voice recognition control system | Multimedia system, navigation, telephone, air conditioning |
Internet of Vehicles | YES |
OTA upgrade | YES |
Multimedia/charging interface | USB |
Number of USB/Type-c ports | 2 in front/1 in rear |
Lighting configuration | |
Low beam light source | LED |
High beam light source | LED |
LED daytime running lights | YES |
Automatic headlights | YES |
Headlight height adjustable | YES |
Headlights turn off | YES |
Touch reading light | YES |
Glass/Rearview mirror | |
Front power windows | YES |
Rear power windows | YES |
Window one-button lift function | Full car |
Window anti-pinch function | YES |
Post audition feature | Electric adjustment, electric folding, rearview mirror heating |
Inside rearview mirror function | Manual anti-dazzle |
Interior vanity mirror | YES |
Rear wiper | YES |
Sensor wiper function | Rain sensor |
Air conditioner/refrigerator | |
Air conditioner temperature control method | Automatic air conditioner |
Rear air outlet | YES |
Temperature zone control | YES |
In-car PM2.5 filter | YES |
