Product Information
First of all, the POWERtrain of the ET7 is very powerful. Front axle 180kW permanent magnet synchronous motor, rear axle 300kW induction asynchronous motor, the total power of 480kW, the comprehensive torque of 850N·m, zero hundred acceleration only 3.9s. The braking system is also a four-piston high gear with a 100-kilometer braking range of only 33.5 meters. The whole system is equipped with the standard AIR suspension CDC dynamic damping control. The "4D" body control system with high-precision sensors can sense road bumps in advance and actively adjust the suspension damping, which not only maintains the supercar level grip and handling, but also makes the comfort beyond the ordinary meaning of the supercar.
Battery pack part has also been unprecedentedly strengthened, in addition to comparing the "conventional" 500km and 700km range models, high range models are equipped with up to 150kWh ultra high capacity battery pack, the range of more than 1000km, completely cure range anxiety. The only uncertainty is the safety of such a large battery pack.
From the appearance, we can see that ET7 has several "small horns" on the front and back of the roof, which are hiding various perceptive elements. For example, inside the bulge in the middle of the front is ultra-wide-angle lidar, and behind is a high-definition camera. The whole car has 33 high-performance sensing hardware, including 11 HD cameras, 1 laser radar, 5 millimeter wave radar, 12 ultrasonic radar, and these sensing hardware are standard for all configurations of the whole system.
Product Specifications
| Brand | NIO |
| Model | ET7 |
| Version | 2022 75kWh |
| Basic parameters | |
| Car model | Medium and large car |
| Type of Energy | Pure electric |
| Time to Market | Jan,2021 |
| NEDC pure electric cruising range (KM) | 500 |
| Maximum power (KW) | 480 |
| Maximum torque [Nm] | 850 |
| Motor horsepower [Ps] | 653 |
| Length*width*height (mm) | 5101*1987*1509 |
| Body structure | 4-door 5-seat sedan |
| Official 0-100km/h acceleration (s) | 3.8 |
| Car body | |
| Longth(mm) | 5101 |
| Width(mm) | 1987 |
| Higth(mm) | 1509 |
| Wheel base(mm) | 3060 |
| Front track (mm) | 1668 |
| Rear track (mm) | 1672 |
| Body structure | Sedan |
| Number of doors | 4 |
| Number of seats | 5 |
| Electric motor | |
| Motor type | Front PM/Sync Rear AC/Asynchronous |
| Total motor power (kw) | 480 |
| Total motor torque [Nm] | 850 |
| Front motor maximum power (kW) | 180 |
| Rear motor maximum power (kW) | 300 |
| Number of drive motors | Double motor |
| Motor placement | Prepended+Rear |
| Battery Type | Ternary lithium battery+Lithium iron phosphate battery |
| NEDC pure electric cruising range (KM) | 500 |
| CLTC pure electric cruising range (KM) | 530 |
| Battery Power(kwh) | 75 |
| Gearbox | |
| Number of gears | 1 |
| Transmission type | Fixed gear ratio gearbox |
| Short name | Electric vehicle single speed gearbox |
| Chassis Steer | |
| Form of drive | Dual motor 4 drive |
| Four-wheel drive | Electric four-wheel drive |
| Type of front suspension | Five-link independent suspension |
| Type of rear suspension | Multi-link independent suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Ventilated Disc |
| Type of parking brake | Electric brake |
| Front Tire Specifications | 245/50 R19 |
| Rear tire specifications | 245/50 R19 |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Front side airbag | YES |
| Front head airbag (curtain) | YES |
| Rear head airbag (curtain) | YES |
| Front middle air bag | YES |
| Tire pressure monitoring function | Tire pressure display |
| Seat belt not fastened reminder | Full car |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES |
| Parallel Auxiliary | YES |
| Lane Departure Warning System | YES |
| Lane Keeping Assist | YES |
| Road traffic sign recognition | YES |
| Active Braking/Active Safety System | YES |
| Fatigue driving tips | YES |
| Assist/Control configuration | |
| Front parking radar | YES |
| Rear parking radar | YES |
| Driving assistance video | 360 degree panoramic image |
| Reversing side warning system | YES |
| Cruise system | Full speed adaptive cruise |
| Driving mode switching | Sport/Economy/Standard Comfort/Snow |
| Automatic parking | YES |
| Automatic parking | YES |
| Hill assist | YES |
| Variable suspension function | Suspension soft and hard adjustment Suspension height adjustment |
| Air suspension | YES |
| External / Anti-Theft Configuration | |
| Sunroof type | Segmented non-openable sunroof |
| Rim material | Aluminum alloy Carbon fiber（Option) |
| Electric suction door | Full car |
| Frameless Design Door | YES |
| Electric trunk | YES |
| Induction trunk | YES |
| Interior central lock | YES |
| Key type | Remote control key Bluetooth key NFC/RFID key UWB digital key |
| Keyless start system | YES |
| Keyless entry function | First row |
| Hide electric door handle | YES |
| Active closing grille | YES |
| Remote start function | YES |
| Battery preheating | YES |
| Internal configuration | |
| Steering wheel material | Genuine Leather |
| Steering wheel position adjustment | Electric up and down + front and rear adjustment |
| Multifunction steering wheel | YES |
| Steering wheel heating | YES |
| Steering wheel memory | YES |
| Trip computer display screen | Color |
| Full LCD Dashboard | YES |
| LCD meter size (inch) | 10.2 |
| HUD head up digital display | YES |
| Built-in driving recorder | YES |
| Mobile phone wireless charging function | Front row |
| Seat configuration | |
| Seat materials | Imitation leather Genuine Leather(Option) |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (4-way), Leg rest adjustment,lumbar support (4-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (4-way), Leg rest adjustment,lumbar support (4-way) |
| Main/assistant seat electric adjustment | YES |
| Second row seat adjustment | Backrest adjustment, waist adjustment |
| Rear seat function | Ventilation Heating Massage |
| Rear cup holder | YES |
| Front/rear center armrest | Front/Rear |
| Multimedia configuration | |
| Central control color screen | Touch OLED |
| Central control screen size (inch) | 12.8 |
| Satellite navigation system | YES |
| Navigation traffic information display | YES |
| Roadside assistance call | YES |
| Bluetooth/Car Phone | YES |
| Voice recognition control system | Multimedia system, navigation, telephone, air conditioning |
| Internet of Vehicles | YES |
| OTA upgrade | YES |
| Rear control multimedia | YES |
| Multimedia/charging interface | USB Type-C |
| Number of USB/Type-c ports | 2 in front/2 in rear |
| Luggage compartment 12V power interface | YES |
| Number of speakers (pcs) | 23 |
| Lighting configuration | |
| Low beam light source | LED |
| High beam light source | LED |
| LED daytime running lights | YES |
| Adaptive far and near light | YES |
| Automatic headlights | YES |
| Turn assist light | YES |
| Front fog lights | LED |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| Touch reading light | YES |
| In-car ambient lighting | 256 Colour |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Window one-button lift function | Full car |
| Window anti-pinch function | YES |
| Multilayer soundproof glass | Full car |
| Post audition feature | Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic downturn when reversing, automatic folding after locking the car |
| Inside rearview mirror function | Automatic anti-dazzle |
| Rear side privacy glass | YES |
| Interior vanity mirror | Driver's seat+light Co-pilot+light |
| Sensor wiper function | Rain sensor |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Automatic air conditioner |
| Rear independent air conditioner | YES |
| Rear air outlet | YES |
| Temperature zone control | YES |
| Car air purifier | YES |
| In-car PM2.5 filter | YES |
| Negative ion generator | Option |
| In-car fragrance device | Option |
| Smart hardware | |
| Assisted driving chip | Nvidia Drive Orin |
| The total computing power of the chip | 1016 TOPS |
| Number of cameras | 11 |
| Ultrasonic radar quantity | 12 |
| Number of mmWave radars | 5 |
| Number of Lidars | 1 |
| Featured configuration | |
| Brembo four spark plug money brake calipers | YES |
| 4D Intelligent Body Control | YES |
| Transparent chassis | YES |
| 21-inch carbon fiber alloy wheels | Option |
| Guard mode | YES |
| AR/VR panoramic immersion experience | YES |

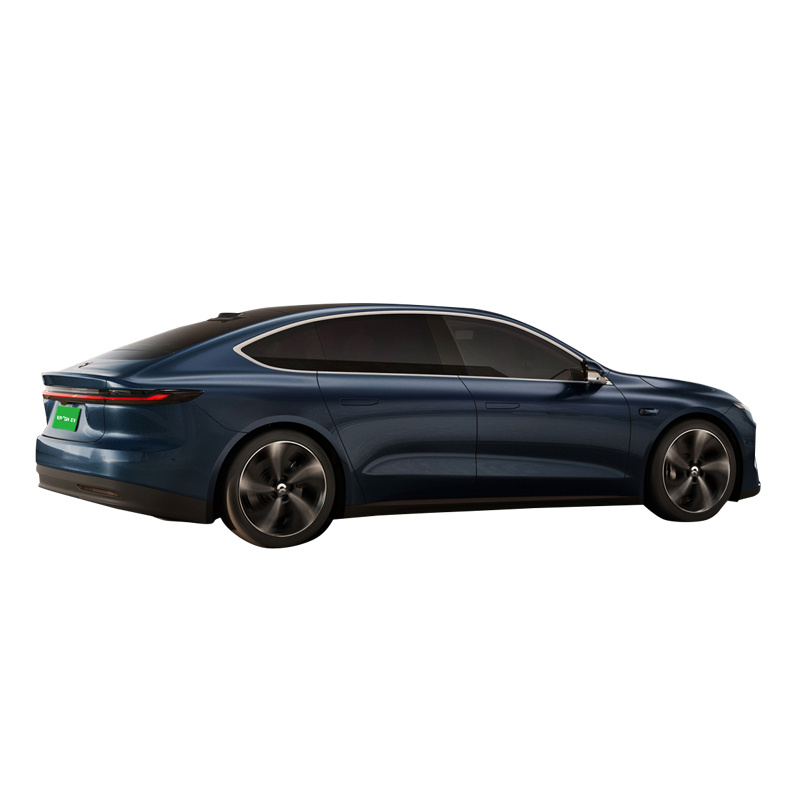

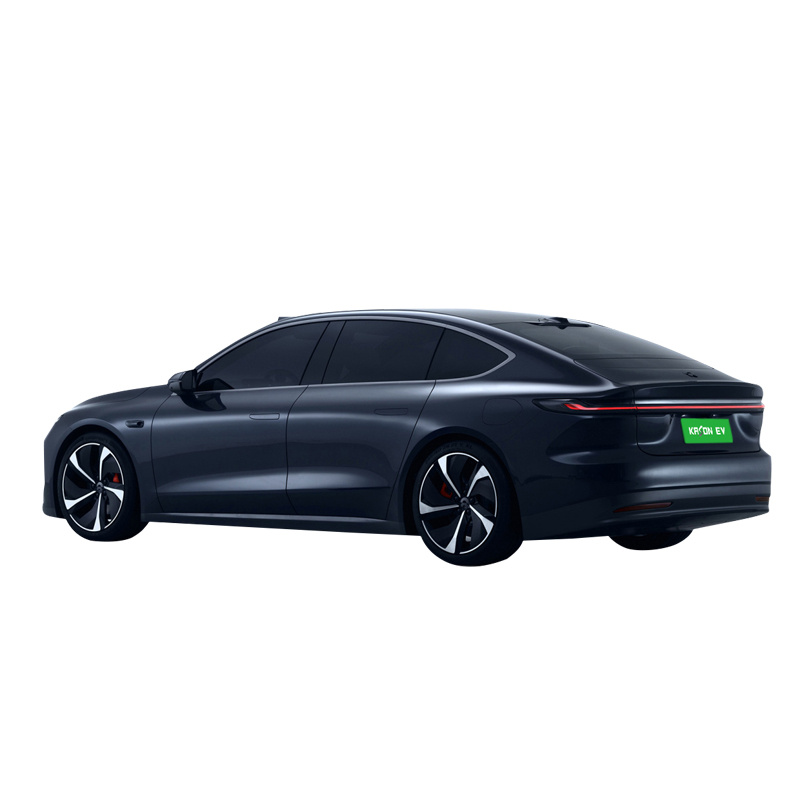

Appearance
