Product Information

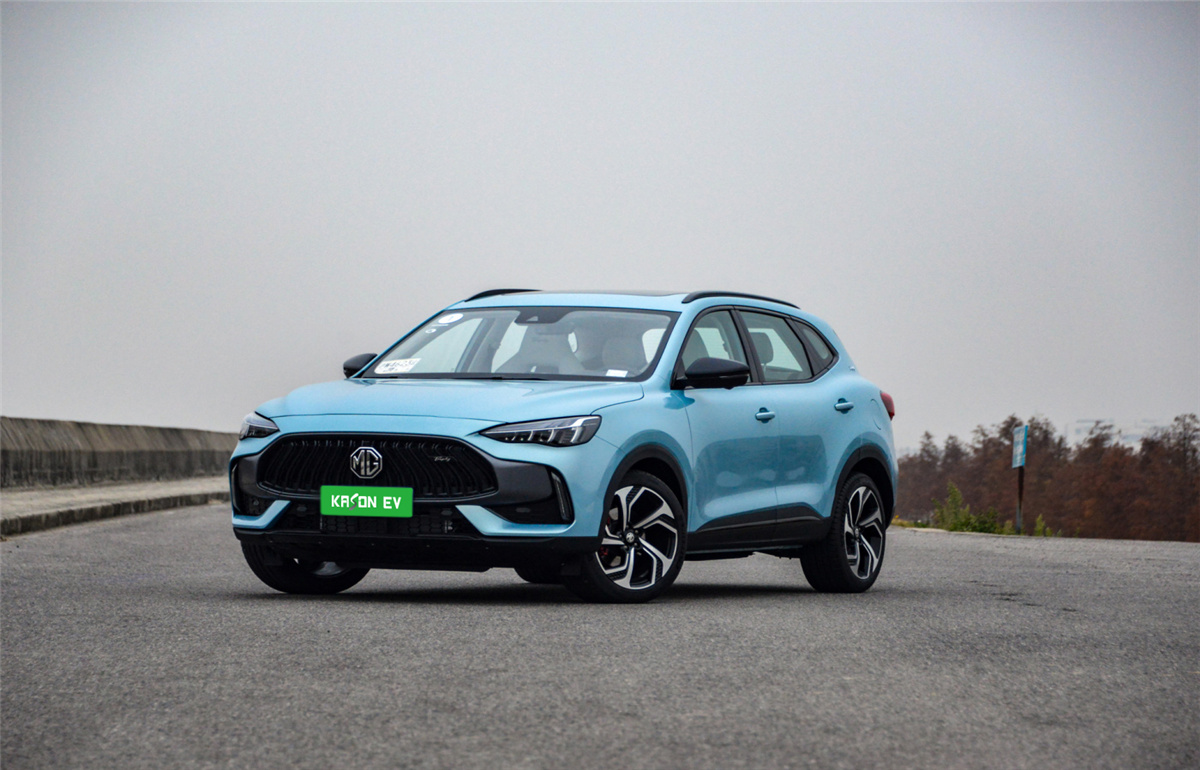

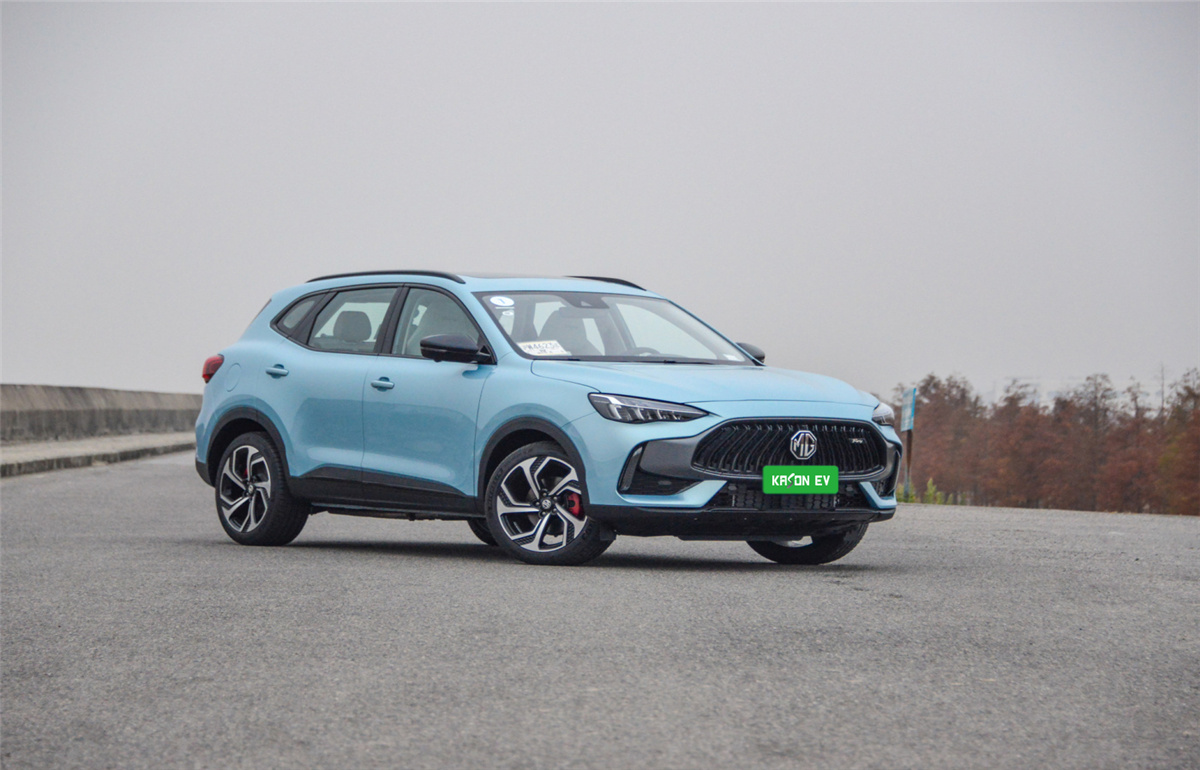

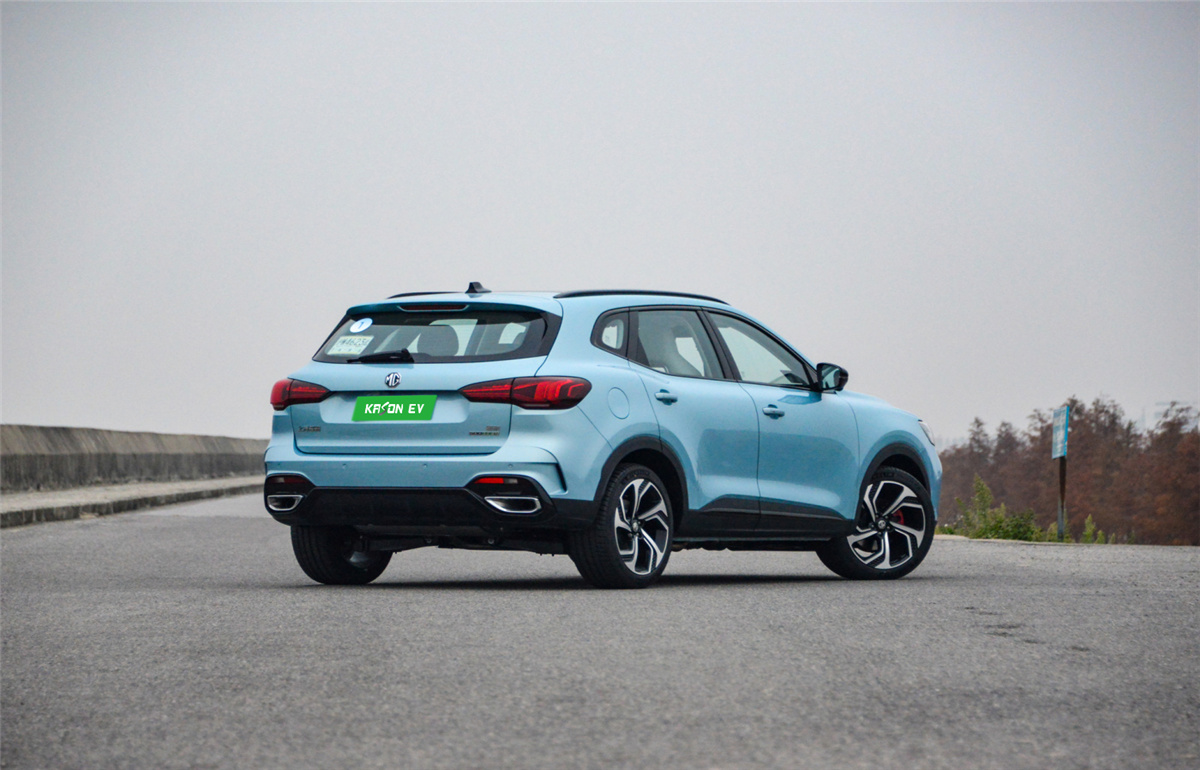

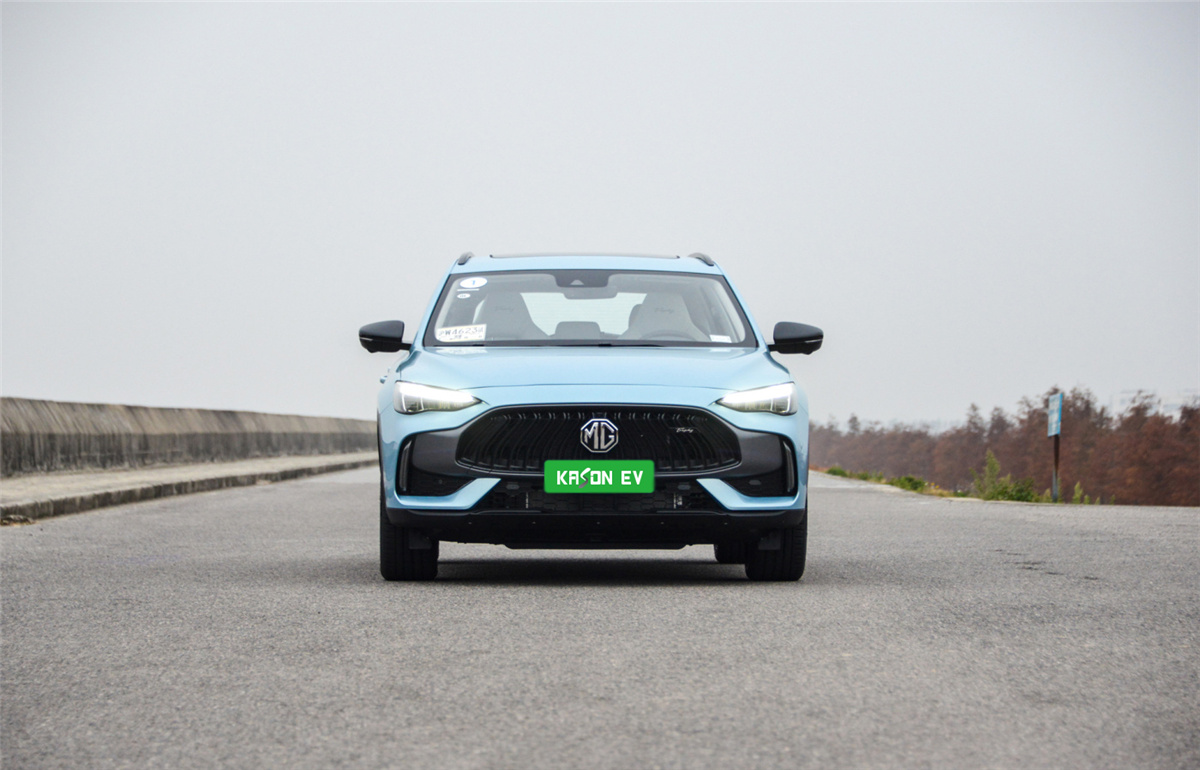

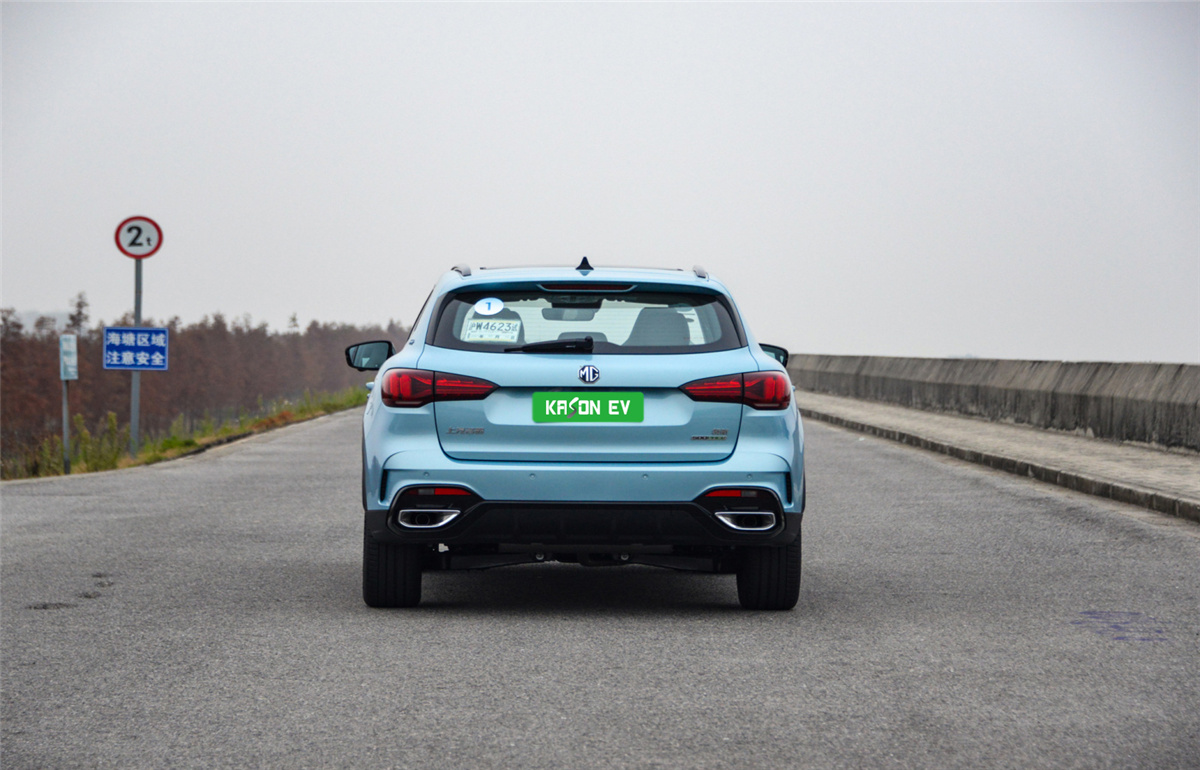

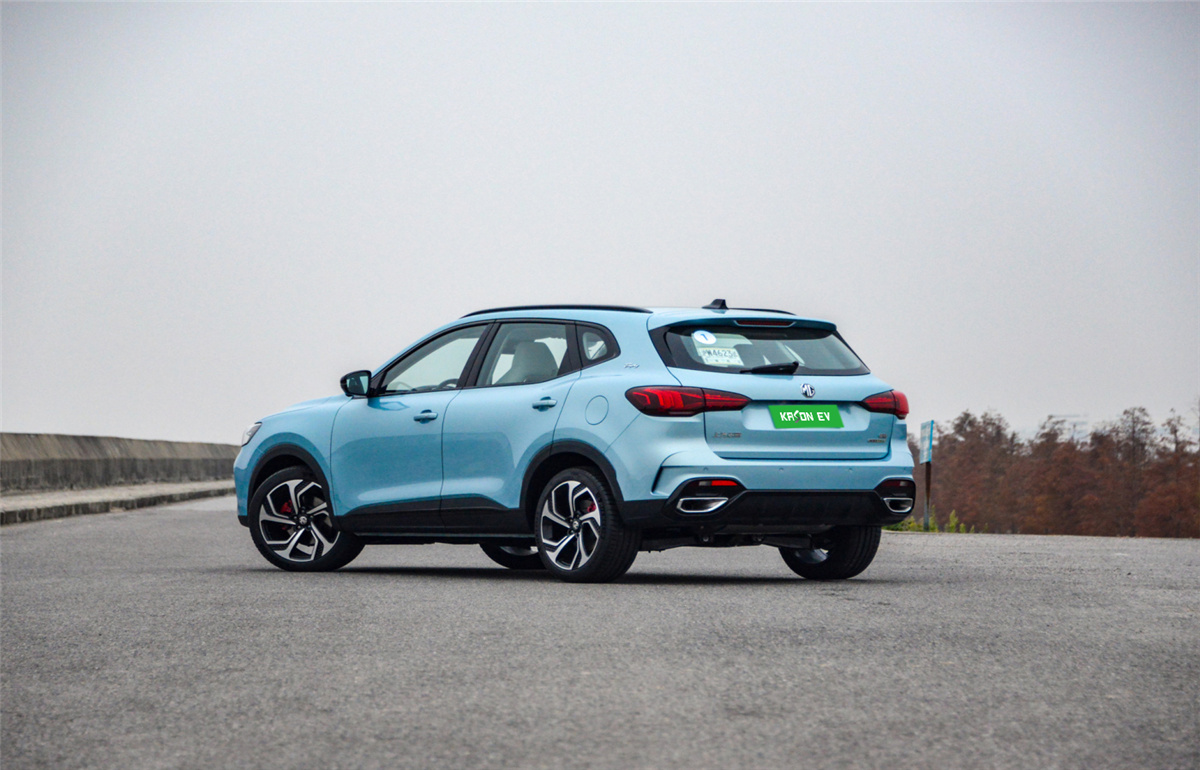

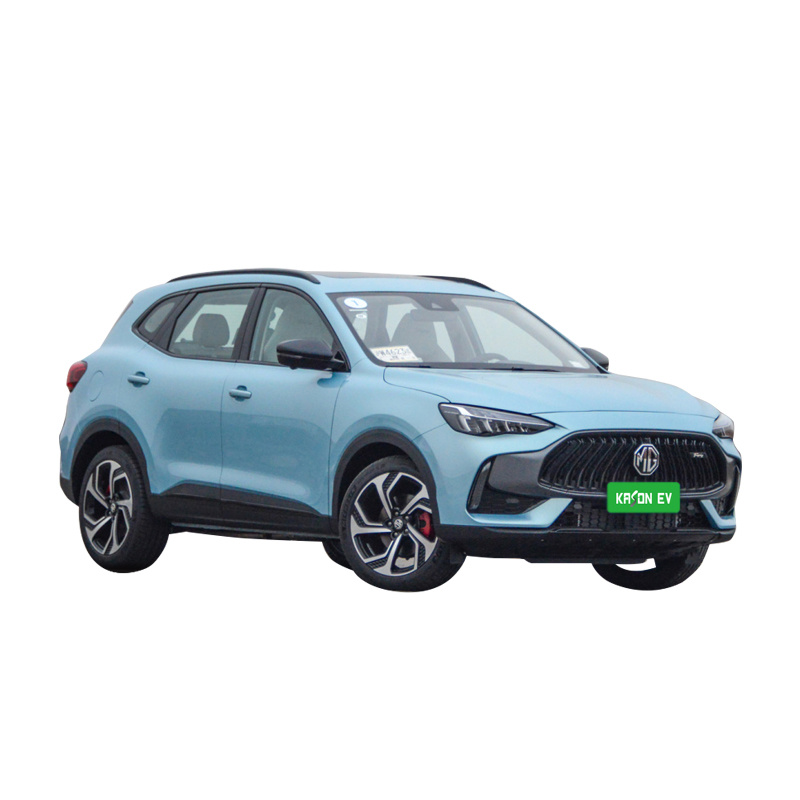

In terms of appearance, MG Pilot has made a lot of changes in details, which makes the vehicle look more dynamic and personalized. As always, the front face adopts the big mouth type front grille. The big "MG" logo is in the middle and the LED headlights are at the top. LED headlights and LED daytime running lights are standard. The design at the front is very radical, which is also in line with the aesthetics of today's young consumers. As a compact SUV, MG Pilot has a body size of 4610/1876/1685mm in length, width and height, and a wheelbase of 2720mm.

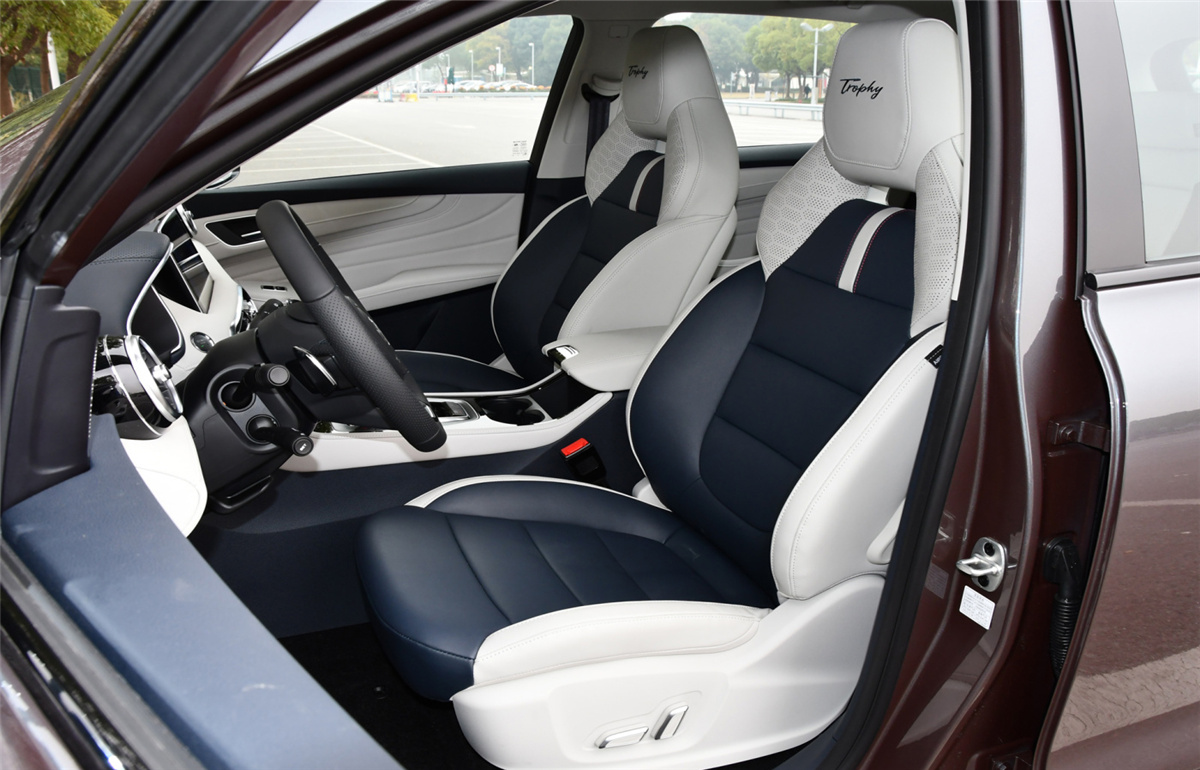

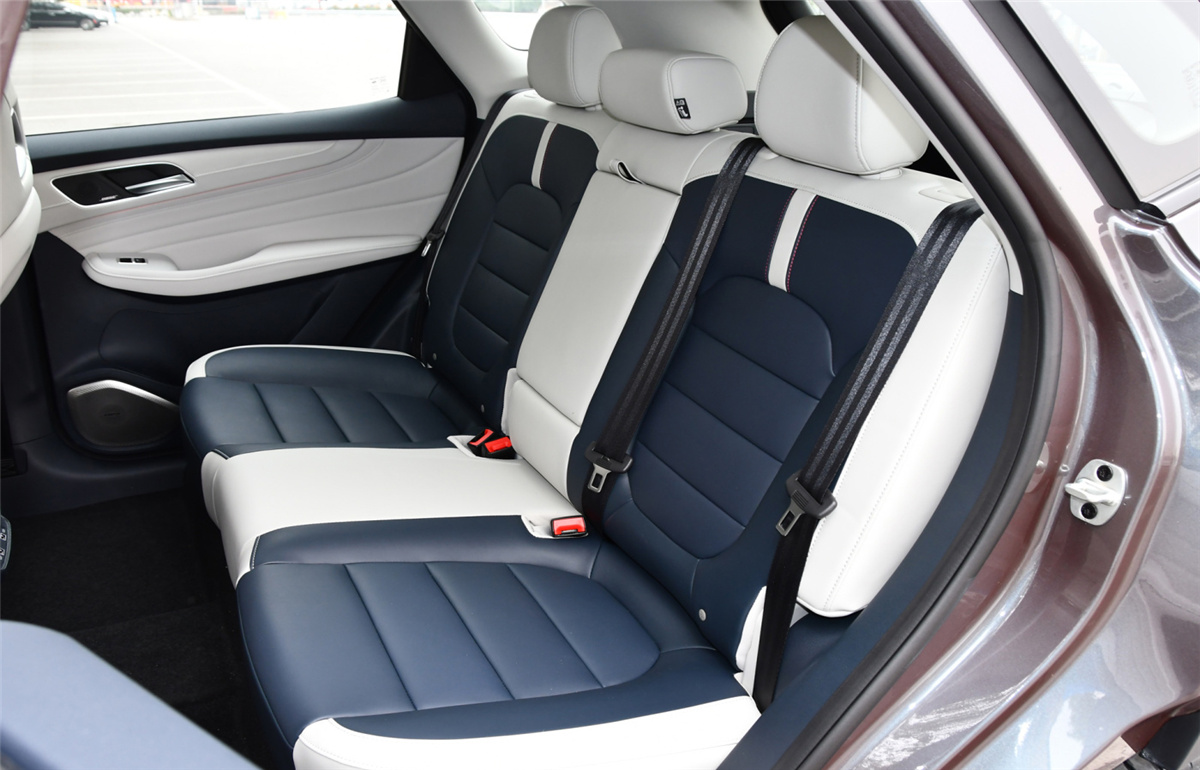

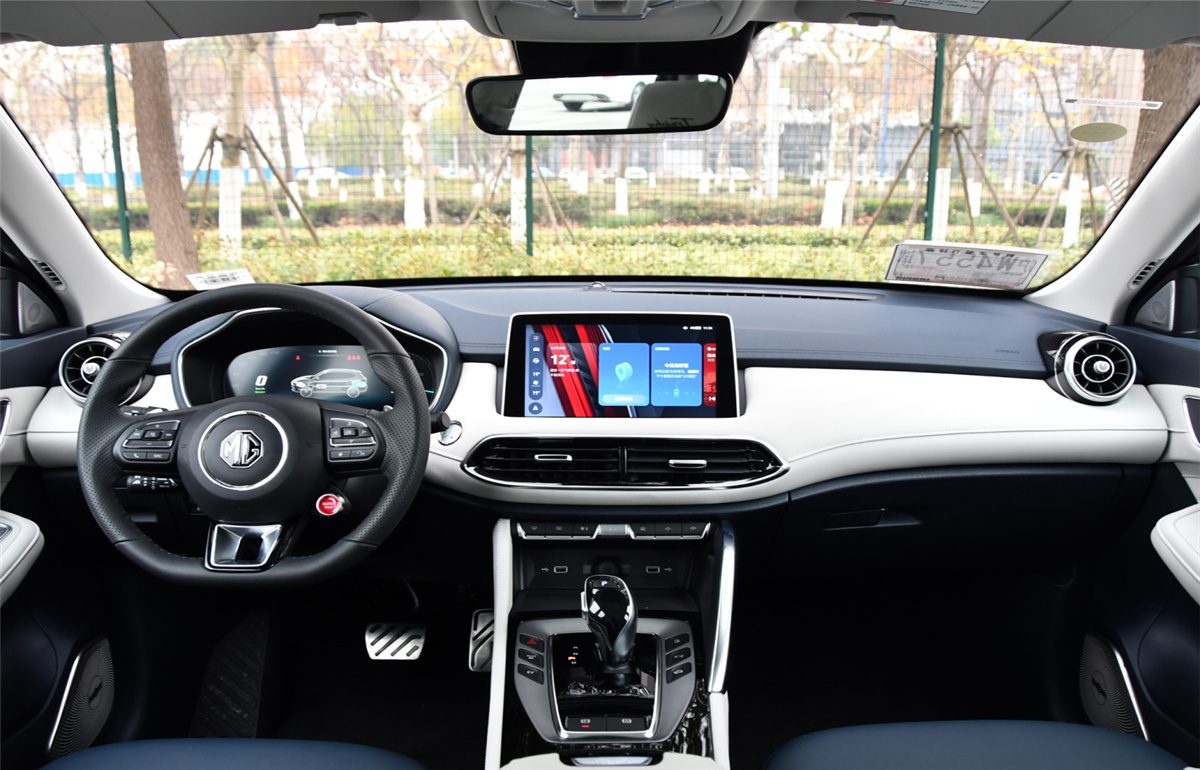

In the interior of MG Pilot , the white and sea blue color match makes people's eyes shine. Although MG Pilot's interior design color match does make people's eyes shine. It seems that the right color combination can double the effect. This way, the color scheme not only looks comfortable, but also has a nice texture.
In terms of power, MG Pilot has a choice of 1.5T turbocharged and 2.0t turbocharged engines. It has maximum horsepower of 173PS and 231PS, and peak torque of 275N·m and 370N·m, respectively. There are 6 speed manual, 7 speed wet dual clutch and 6 speed wet dual clutch transmissions to match.
Product Specifications
Brand | Morris Garages |
Model | Pilot New Energy |
Version | 021 Ran Series 1.5T Hybrid Deluxe Edition |
Basic parameters | |
Car model | Compact SUV |
Type of Energy | Plug-in hybrid |
Time to Market | Jan.2021 |
NEDC pure electric cruising range (KM) | 75 |
Slow charging time[h] | 5.0 |
Maximum power (KW) | 214 |
Maximum torque [Nm] | 480 |
Engine | 1.5T 169PS L4 |
Gearbox | AMT(Combination of 10 gears) |
Length*width*height (mm) | 4610*1876*1685 |
Body structure | 5-door 5-seat SUV |
NEDC Comprehensive fuel consumption (L/100km) | 1.3 |
Car body | |
Longth(mm) | 4610 |
Width(mm) | 1876 |
Higth(mm) | 1685 |
Wheel base(mm) | 2720 |
Body structure | SUV |
Number of doors | 5 |
Number of seats | 5 |
Oil tank capacity(L) | 37 |

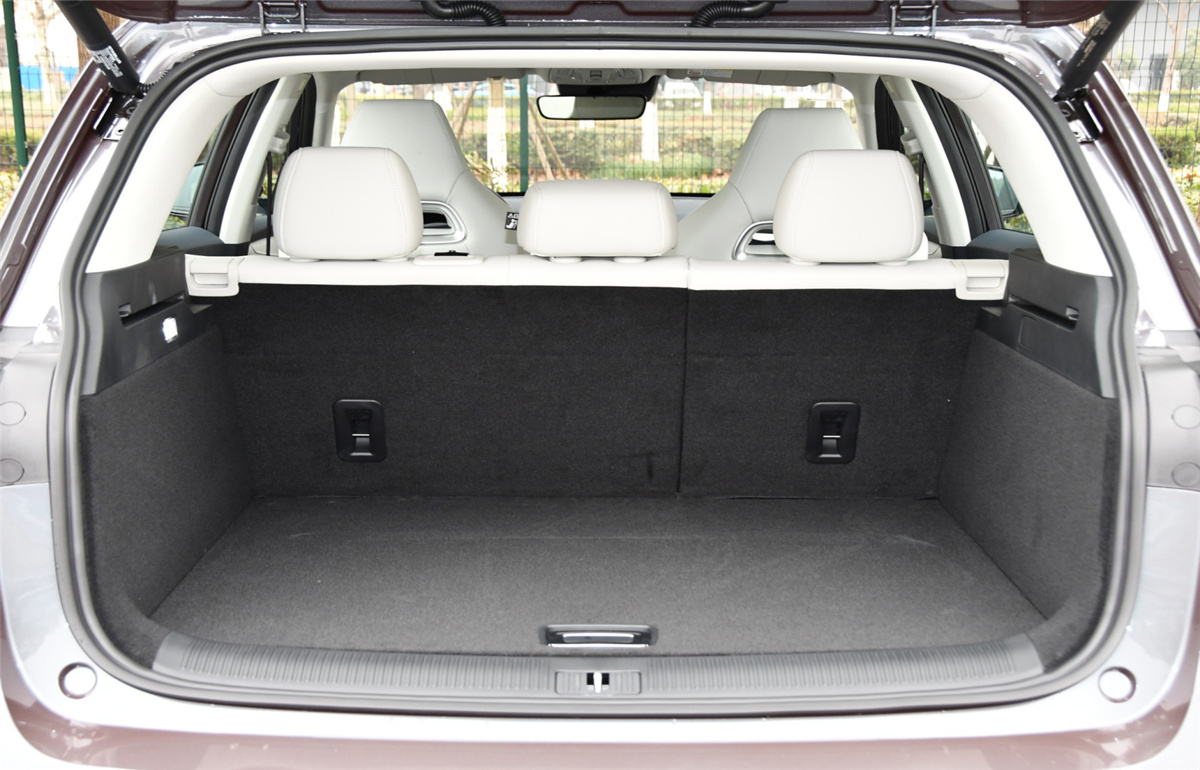

Trunk volume (L) | 463-1287 |
Mass (kg) | 1775 |
Engine | |
Engine Model | 15E4E |
Displacement(mL) | 1490 |
Displacement(L) | 1.5 |
Intake form | Turbo supercharging |
Engine layout | Engine transverse |
Cylinder arrangement | L |
Number of cylinders (pcs) | 4 |
Number of valves per cylinder (pcs) | 4 |
Air Supply | DOHC |
Maximum horsepower (PS) | 169 |
Maximum power (KW) | 124 |
Maximum torque(N-m) | 250 |
Maximum Net Power (kW) | 119 |
Fuel form | Plug-in hybrid |
Fuel label | 92# |
Oil supply method | Direct injection |
Cylinder head material | Aluminum alloy |
Cylinder material | Aluminum alloy |
Environmental standards | VI |
Electric motor | |
Motor type | Permanent magnet synchronization |
System integrated power (kW) | 214 |
Overall system torque [Nm] | 480 |
Number of drive motors | Single motor |
Motor placement | Prepended |
Battery Type | Ternary lithium battery |
NEDC pure electric cruising range (KM) | 75 |
Battery Power(kwh) | 16.6 |
Gearbox | |
Number of gears | 10 |
Transmission type | Mechanical Automatic Transmission (AMT) |
Short name | AMT(Combination of 10 gears) |
Chassis Steer | |
Form of drive | FF |
Type of front suspension | McPherson independent suspension |
Type of rear suspension | Multi-link independent suspension |
Boost type | Electric assist |
Car body structure | Load bearing |
Wheel braking | |
Type of front brake | Ventilated Disc |
Type of rear brake | Disc |
Type of parking brake | Electric brake |
Front Tire Specifications | 235/50 R18 |
Rear tire specifications | 235/50 R18 |
Cab Safety Information | |
Primary driver airbag | YES |
Co-pilot airbag | YES |
Front side airbag | YES |
Tire pressure monitoring function | Tire pressure display |
Seat belt not fastened reminder | Driver's seat |
ISOFIX Child seat connector | YES |
ABS anti-lock | YES |
Brake force distribution (EBD/CBC, etc.) | YES |
Brake Assist (EBA/BAS/BA, etc.) | YES |
Traction Control (ASR/TCS/TRC, etc.) | YES |
Body Stability Control (ESC/ESP/DSC, etc.) | YES |
Assist/Control configuration | |
Rear parking radar | YES |
Driving assistance video | 360 degree panoramic image |
Cruise system | Cruise control |
Driving mode switching | Sport/Economy/Standard Comfort |
Automatic parking | YES |
Hill assist | YES |
Steep descent | YES |
External / Anti-Theft Configuration | |
Sunroof type | Openable panoramic sunroof |
Rim material | Aluminum alloy |
Roof rack | YES |
Engine electronic immobilizer | YES |
Interior central lock | YES |
Key type | Remote control key |
Keyless start system | YES |
Keyless entry function | Front row |
Remote start function | YES |
Internal configuration | |

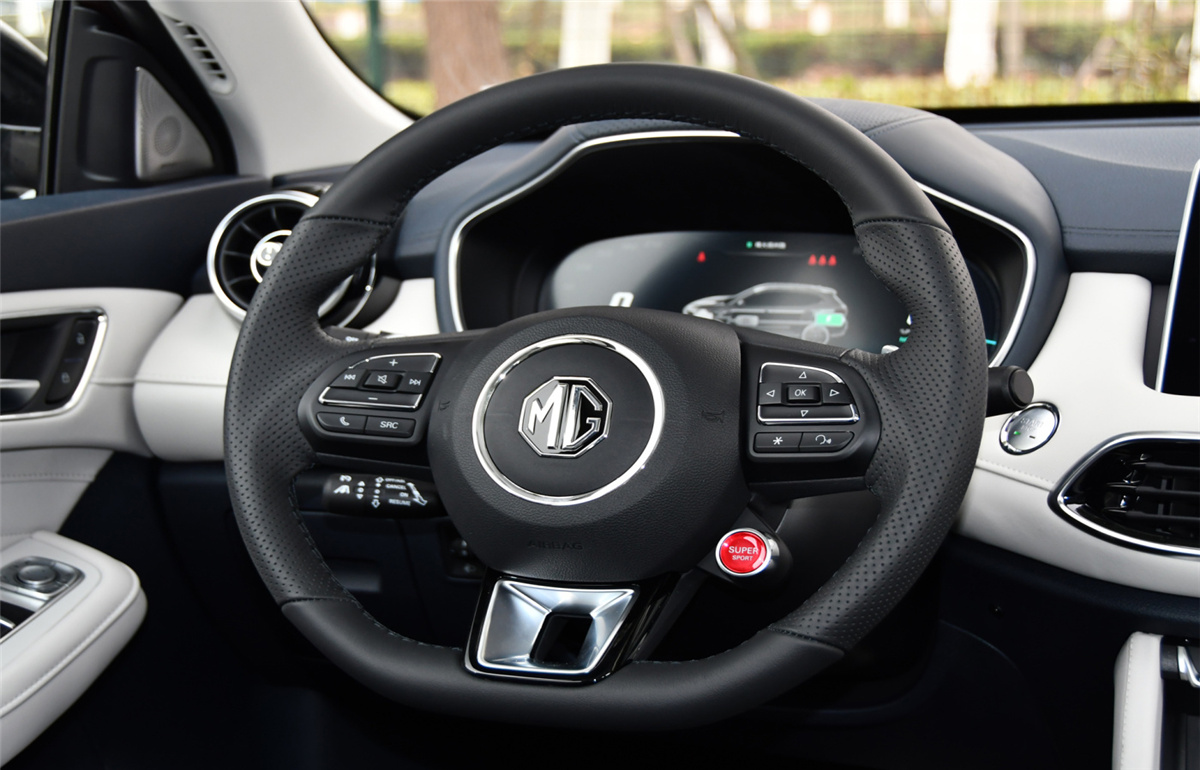

Steering wheel material | Genuine Leather |
Steering wheel position adjustment | Manual up and down + front and rear adjustment |
Multifunction steering wheel | YES |
Trip computer display screen | Color |
Full LCD Dashboard | YES |
LCD meter size (inch) | 12.3 |
Seat configuration | |
Seat materials | Imitation leather |
Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way),lumbar support(2-way) |
Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
Main/assistant seat electric adjustment | Main Seat |

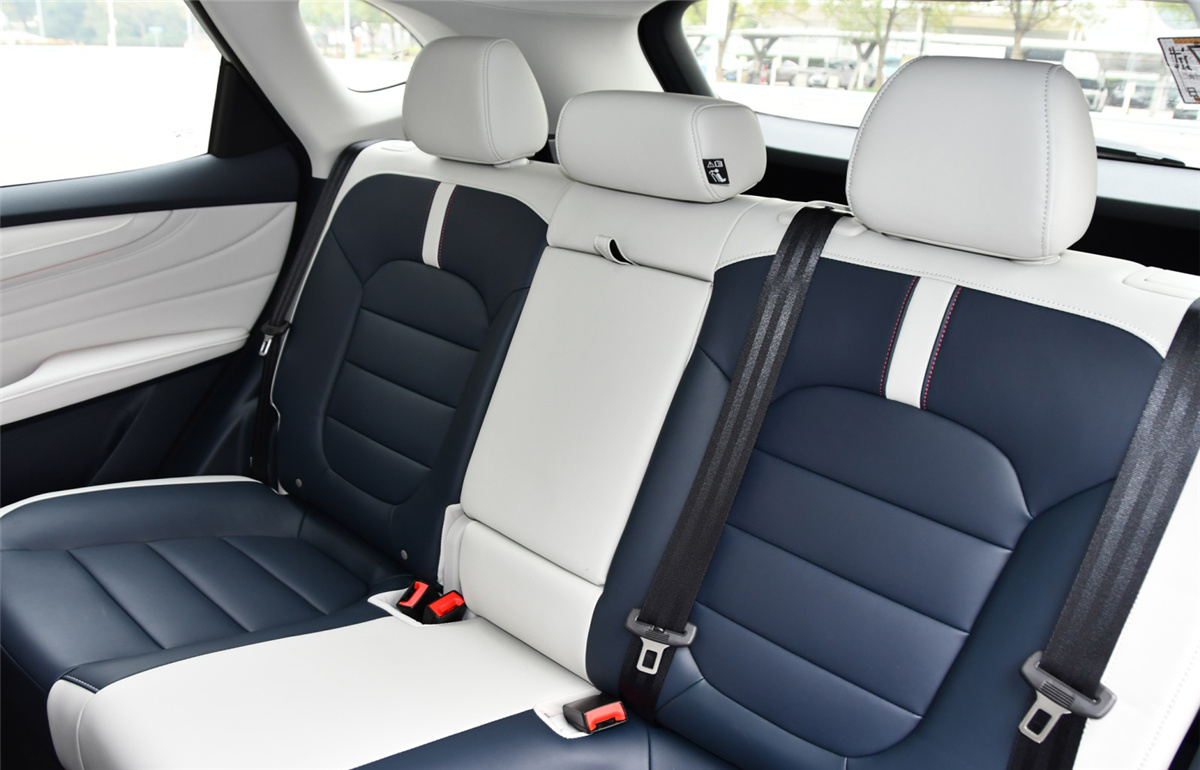

Second row seat adjustment | Backrest adjustment |
Rear seats folded down | Proportion down |
Rear cup holder | YES |

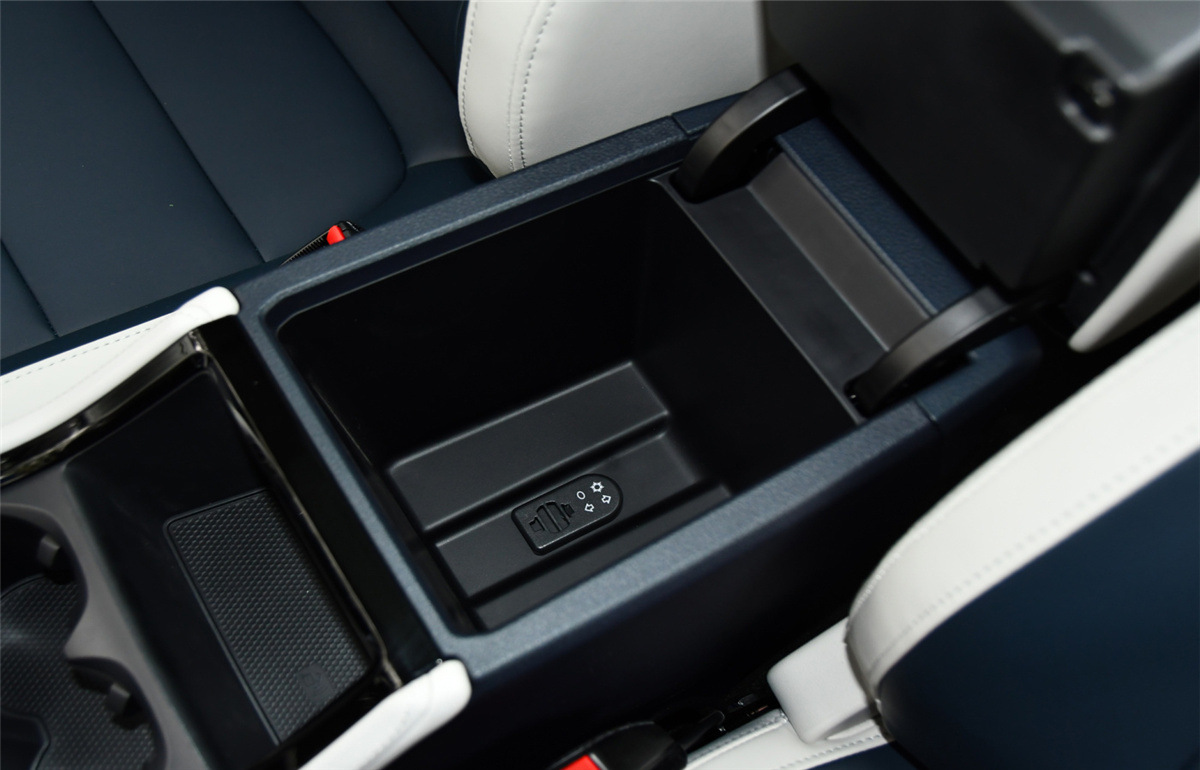

Front/rear center armrest | Front/Rear |
Multimedia configuration | |

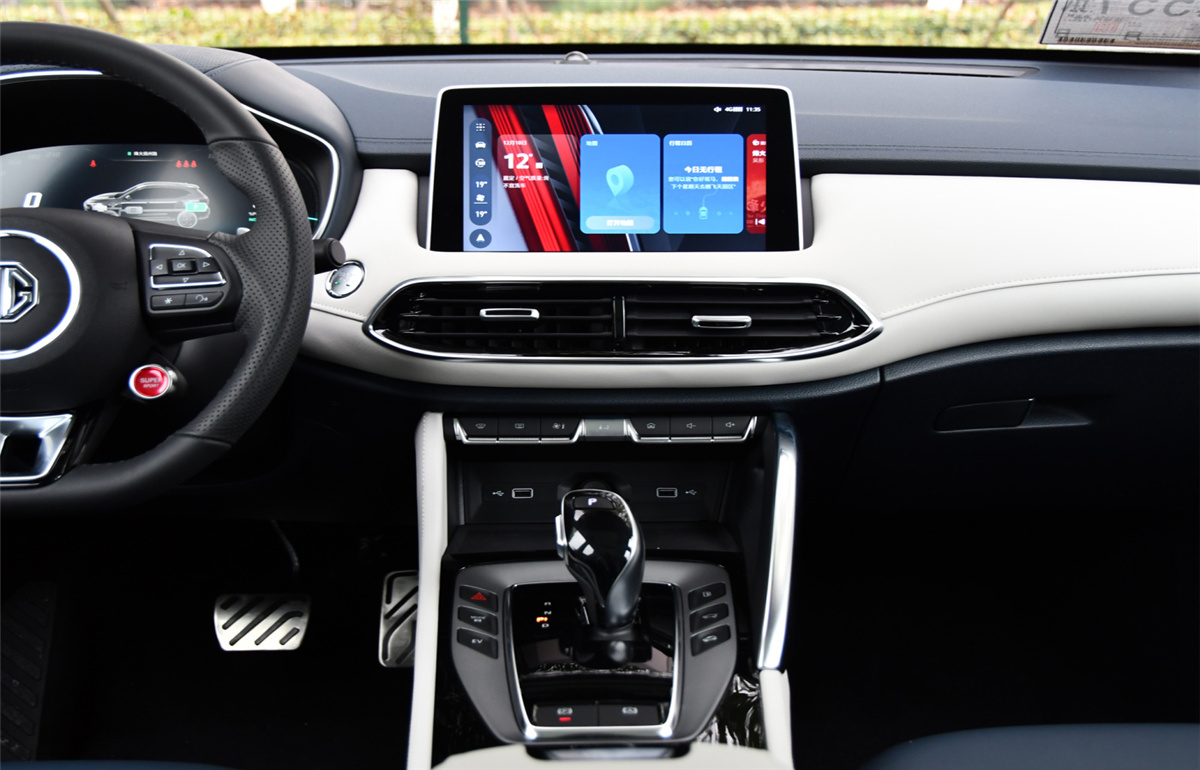

Central control color screen | Touch LCD |
Central control screen size (inch) | 10.1 |
Satellite navigation system | YES |
Navigation traffic information display | YES |
Bluetooth/Car Phone | YES |
Voice recognition control system | Multimedia system, navigation, telephone, air conditioning, sunroof |
Internet of Vehicles | YES |
OTA upgrade | YES |
Multimedia/charging interface | USB |
Number of USB/Type-c ports | 2 in front/2 in rear |
Number of speakers (pcs) | 8 |
Lighting configuration | |
Low beam light source | LED |
High beam light source | LED |
LED daytime running lights | YES |
Automatic headlights | YES |
Turn assist light | YES |
Headlight height adjustable | YES |
Headlights turn off | YES |
Glass/Rearview mirror | |
Front power windows | YES |
Rear power windows | YES |
Window one-button lift function | Full car |
Window anti-pinch function | YES |
Post audition feature | Electric adjustment, electric folding, rearview mirror heating,automatic folding after locking the car |
Inside rearview mirror function | Manual anti-dazzle |

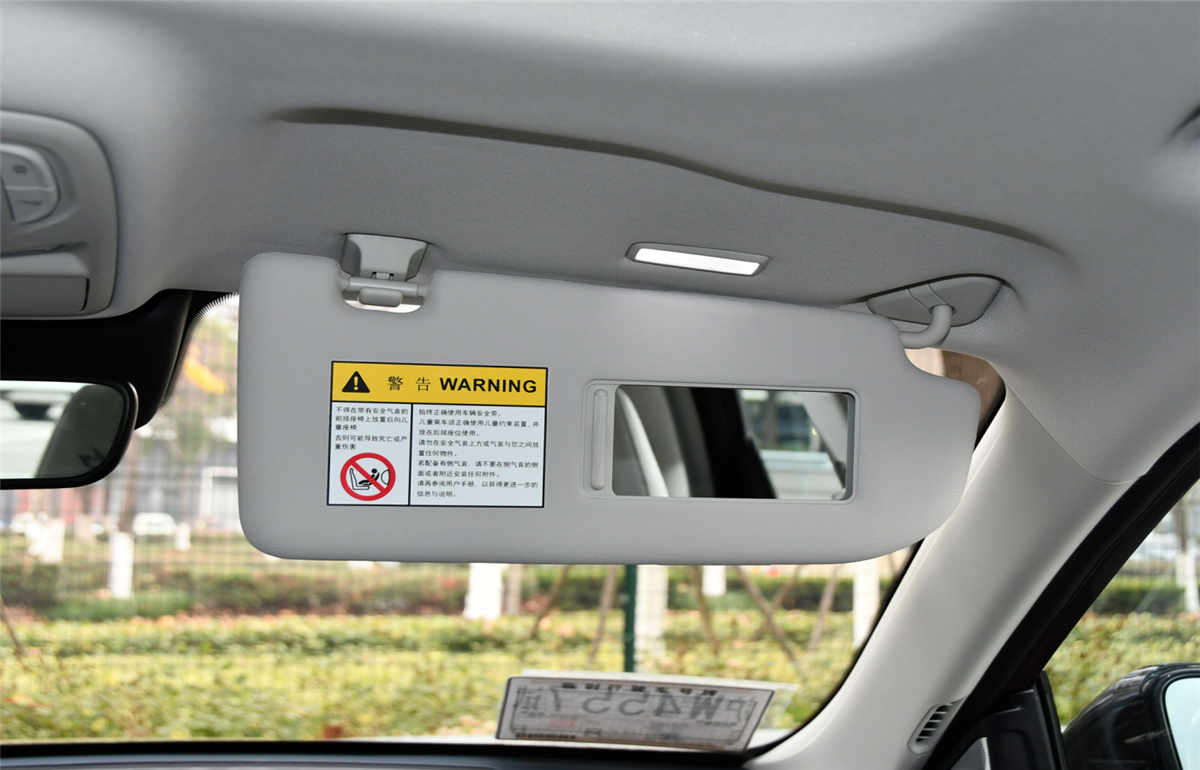

Interior vanity mirror | Driver's seat+light Co-pilot+light |
Rear wiper | YES |
Air conditioner/refrigerator | |
Air conditioner temperature control method | Automatic air conditioner |
Rear air outlet | YES |
Temperature zone control | YES |
In-car PM2.5 filter | YES |
