Product Information

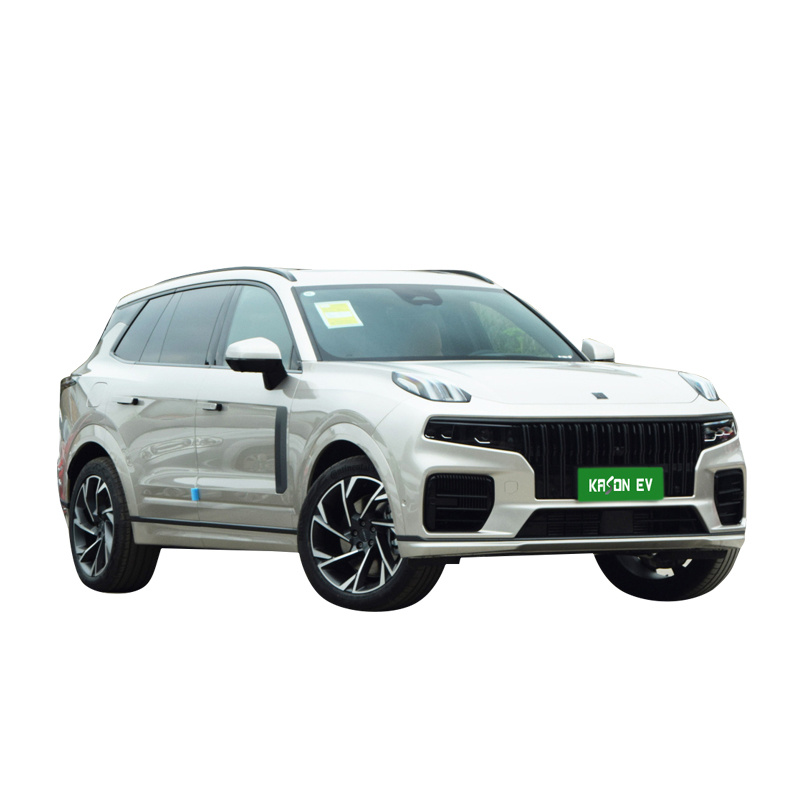

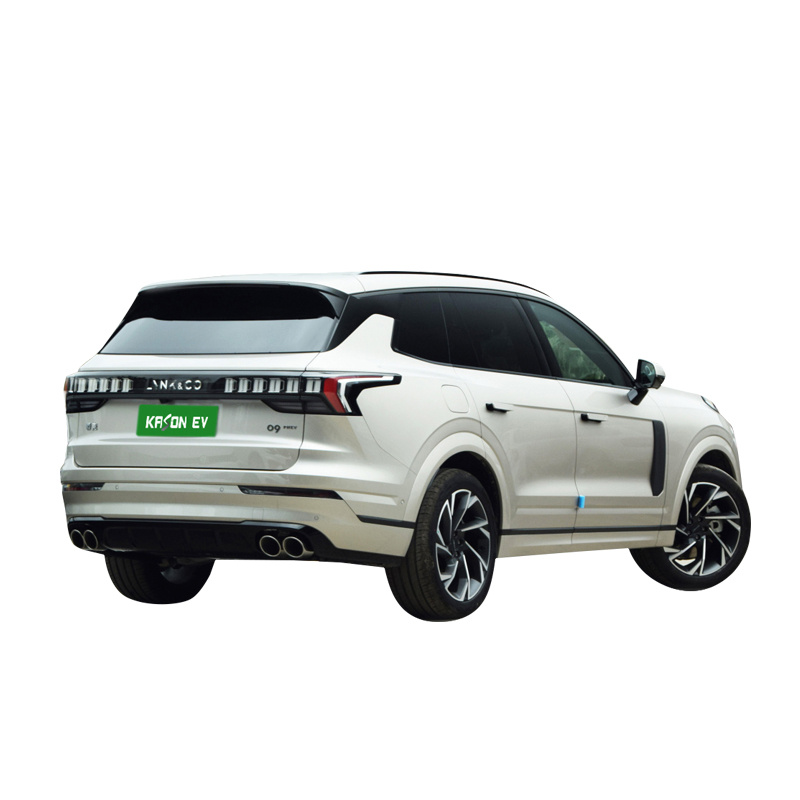

In terms of exterior design, LYNK&CO 09 adopts a new design language, its front air intake grille is a straight waterfall design, and the size is larger, the air field is more full. Compared with other models of LYNK&CO, the big light group of the new car has little change. It adopts split headlight and Northern Light LED daytime driving, which has high recognition. The side of the car retains the LYNK&CO nameplate element, the hidden door handle is integrated with the waist line, and the car is equipped with a floating roof, which also looks more grand. In terms of body size, LYNK&CO 09 is 5042/1977/1780mm in length, width and height, and 2984mm in wheelbase. It is available in six and seven seat layouts. The rear of the car uses the design of the European wing crystal taillight, with the exhaust of the two sides, it looks more fashionable and modern.
Interior, LYNK&CO 09 adopts the concept of luxury yacht cabin, cloud schema intelligent control 6 screens are divided into 12+6 inch intelligent central control screen, 12.8 inch W-HUD display, 12.3 inch LCD instrument and 2 1.4-inch LCD knob screen, which has a sense of technology and luxury.
Amenity includes Monaco NAPPA seats, aviation headrests, BOSE speakers and a fragrance system. It is worth mentioning that the LYNK&CO 09 offers a luxury upgrade package and LCP driver assistance Premium package, air suspension and active grille as options to further enrich the vehicle configuration. In addition, LYNK&CO 09 also offers space silver grille and two different wheel hubs for users to choose from.
Product Specifications
| Brand | LYNK&CO |
| Model | ’09 |
| Version | 2021 2.0T PHEV Pro 6-seater |
| Basic parameters | |
| Car model | Medium and large SUV |
| Type of Energy | Plug-in hybrid |
| Time to Market | Oct.2021 |
| NEDC pure electric cruising range (KM) | 80 |
| Maximum power (KW) | 317 |
| Maximum torque [Nm] | 659 |
| Electric Motor(Ps) | 177 |
| Engine | 2.0T 254PS L4 |
| Gearbox | 8-speed AMT |
| Length*width*height (mm) | 5042*1977*1780 |
| Body structure | 5-door 6-seat SUV |
| Top Speed (KM/H) | 230 |
| Official 0-100km/h acceleration (s) | 5.6 |
| WLTC Comprehensive fuel consumption (L/100km) | 2.8 |
| Car body | |
| Longth(mm) | 5042 |
| Width(mm) | 1977 |
| Higth(mm) | 1782 |
| Wheel base(mm) | 2984 |
| Front track (mm) | 1680 |
| Rear track (mm) | 1684 |
| Minimum ground clearance (mm) | 190 |
| Body structure | SUV |
| Number of doors | 5 |
| Number of seats | 6 |
| Oil tank capacity(L) | 50 |
| Mass (kg) | 2320 |
| Engine | |
| Displacement(mL) | 1969 |
| Displacement(L) | 2 |
| Intake form | Turbo supercharging |
| Engine layout | Engine transverse |
| Cylinder arrangement | L |
| Number of cylinders (pcs) | 4 |
| Number of valves per cylinder (pcs) | 4 |
| Compression ratio | 10.8 |
| Air Supply | DOHC |
| Maximum horsepower (PS) | 254 |
| Maximum power (KW) | 187 |
| Maximum power speed (rpm) | 5500 |
| Maximum torque(N-m) | 350 |
| Maximum torque speed (rpm) | 1800-4800 |
| Fuel form | Plug-in hybrid |
| Fuel label | 95# |
| Oil supply method | Direct injection |
| Cylinder head material | Aluminum alloy |
| Cylinder material | Aluminum alloy |
| Environmental standards | VI |
| Electric motor | |
| Motor type | Permanent magnet synchronization |
| Total motor power (kw) | 130 |
| Total motor torque [Nm] | 309 |
| System integrated power (kW) | 317 |
| Overall system torque [Nm] | 659 |
| Number of drive motors | Single motor |
| Motor placement | Rear |
| Battery Type | Ternary lithium battery |
| NEDC pure electric cruising range (KM) | 80 |
| CLTC pure electric cruising range (KM) | 60 |
| Battery Power(kwh) | 18.83 |
| Gearbox | |
| Number of gears | 8 |
| Transmission type | Automatic manual transmission (AT) |
| Short name | 8-speed AMT |
| Chassis Steer | |
| Form of drive | Front four-wheel drive |
| Four-wheel drive | Electric four-wheel drive |
| Type of front suspension | Double wishbone independent suspension |
| Type of rear suspension | Multi-link independent suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Ventilated Disc |
| Type of parking brake | Electric brake |
| Front Tire Specifications | 275/45 R20 |
| Rear tire specifications | 275/45 R20 |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Front side airbag | YES |
| Front head airbag (curtain) | YES |
| Rear head airbag (curtain) | YES |
| Tire pressure monitoring function | Tire pressure display |
| Seat belt not fastened reminder | Front row Second row |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES |
| Lane Departure Warning System | YES |
| Lane Keeping Assist | YES |
| Road traffic sign recognition | YES |
| Active Braking/Active Safety System | YES |
| Assist/Control configuration | |
| Front parking radar | YES |
| Rear parking radar | YES |
| Driving assistance video | Car side blind spot image 360 degree panoramic image |
| Cruise system | Full speed adaptive cruise |
| Driving mode switching | Sport/Economy/Standard Comfort/Off-Road |
| Automatic parking | YES |
| Hill assist | YES |
| Steep descent | YES |
| External / Anti-Theft Configuration | |
| Sunroof type | Openable panoramic sunroof |
| Rim material | Aluminum alloy |
| Electric trunk | YES |
| Induction trunk | YES |
| Electric trunk position memory | YES |
| Roof rack | YES |
| Engine electronic immobilizer | YES |
| Interior central lock | YES |
| Key type | Remote control key Bluetooth key NFC/RFID key |
| Keyless start system | YES |
| Keyless entry function | Front row |
| Hide electric door handle | YES |
| Remote start function | YES |
| Internal configuration | |
| Steering wheel material | Genuine Leather |
| Steering wheel position adjustment | Manual up and down + front and rear adjustment |
| Trip computer display screen | Color |
| Full LCD Dashboard | YES |
| LCD meter size (inch) | 12.3 |
| Mobile phone wireless charging function | Front row |
| Seat configuration | |
| Seat materials | Genuine Leather |
| Sports style seat | YES |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Main/assistant seat electric adjustment | YES |
| Second row seat adjustment | Front and rear adjustment, backrest adjustment |
| Electric rear seat adjustment | YES |
| Second row individual seats | YES |
| Seat layout | 2.-2-2 |
| Rear seats folded down | Proportion down |
| Rear cup holder | YES |
| Front/rear center armrest | Front/Rear |
| Multimedia configuration | |
| Central control color screen | Touch LCD |
| Central control screen size (inch) | 6 12 |
| Satellite navigation system | YES |
| Navigation traffic information display | YES |
| Roadside assistance call | YES |
| Bluetooth/Car Phone | YES |
| Voice recognition control system | Multimedia system, navigation, telephone, air conditioning, sunroof |
| Internet of Vehicles | YES |
| OTA upgrade | YES |
| Multimedia/charging interface | USB Type-C |
| Number of USB/Type-c ports | 3 in front/3 in rear |
| Luggage compartment 12V power interface | YES |
| Number of speakers (pcs) | 10 |
| Lighting configuration | |
| Low beam light source | LED |
| High beam light source | LED |
| Lighting Features | Matrix |
| LED daytime running lights | YES |
| Adaptive far and near light | YES |
| Automatic headlights | YES |
| Turn headlights | YES |
| Headlight rain and fog mode | YES |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| Touch reading light | YES |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Window one-button lift function | Full car |
| Window anti-pinch function | YES |
| Multilayer soundproof glass | Front row |
| Post audition feature | Electric adjustment, electric folding, rearview mirror heating,automatic folding after locking the car |
| Inside rearview mirror function | Electric anti-dazzle |
| Interior vanity mirror | Driver's seat+light Co-pilot+light |
| Rear wiper | YES |
| Sensor wiper function | Rain sensor |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Automatic air conditioner |
| Rear air outlet | YES |
| Temperature zone control | YES |
| Featured configuration | |
| 180° transparent chassis system | YES |
