Product Information

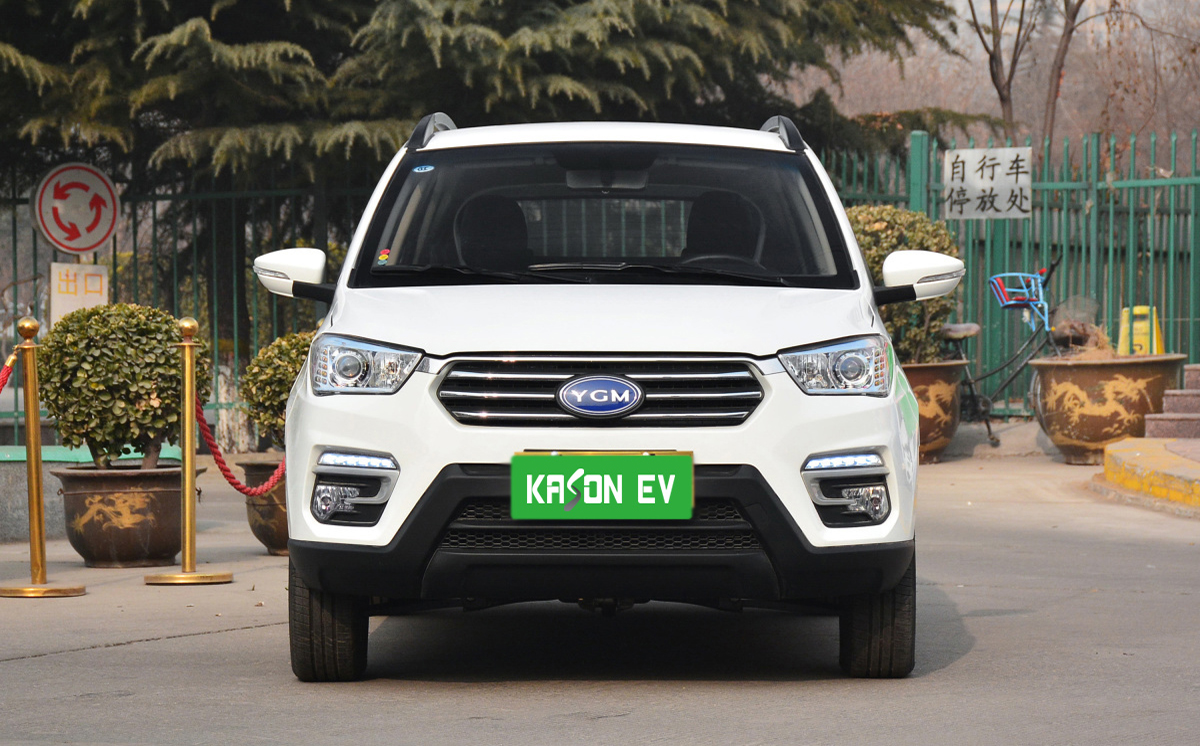

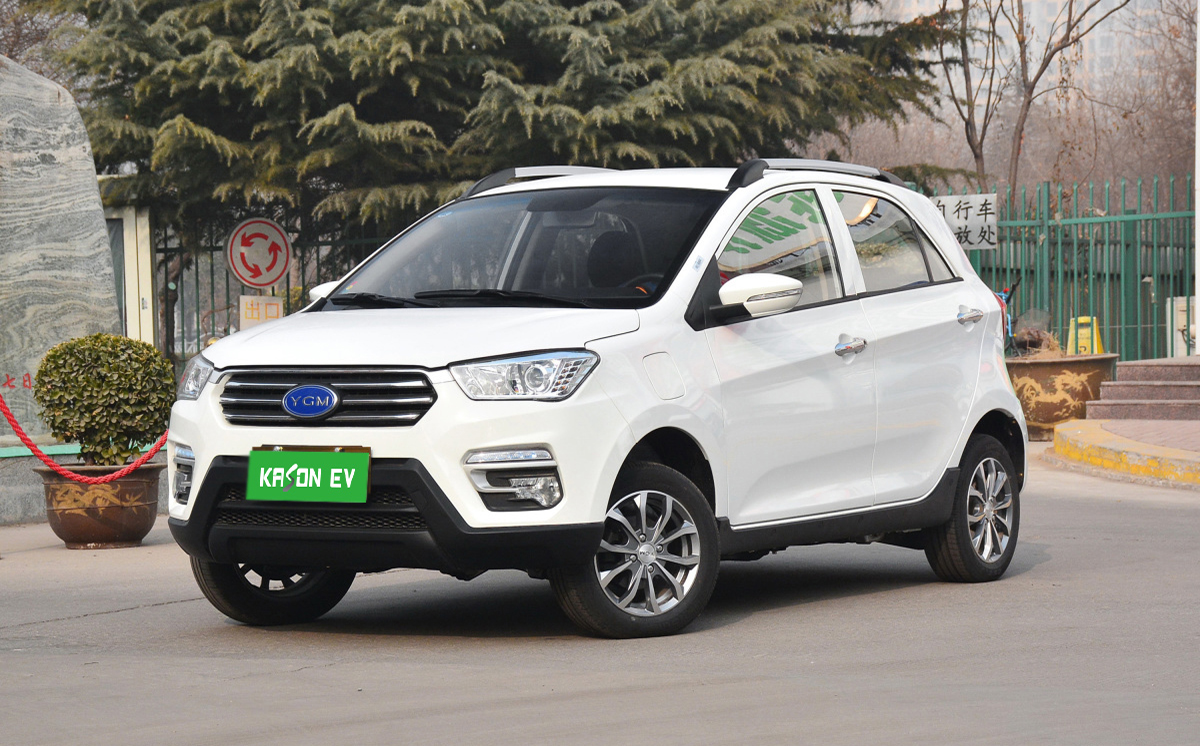

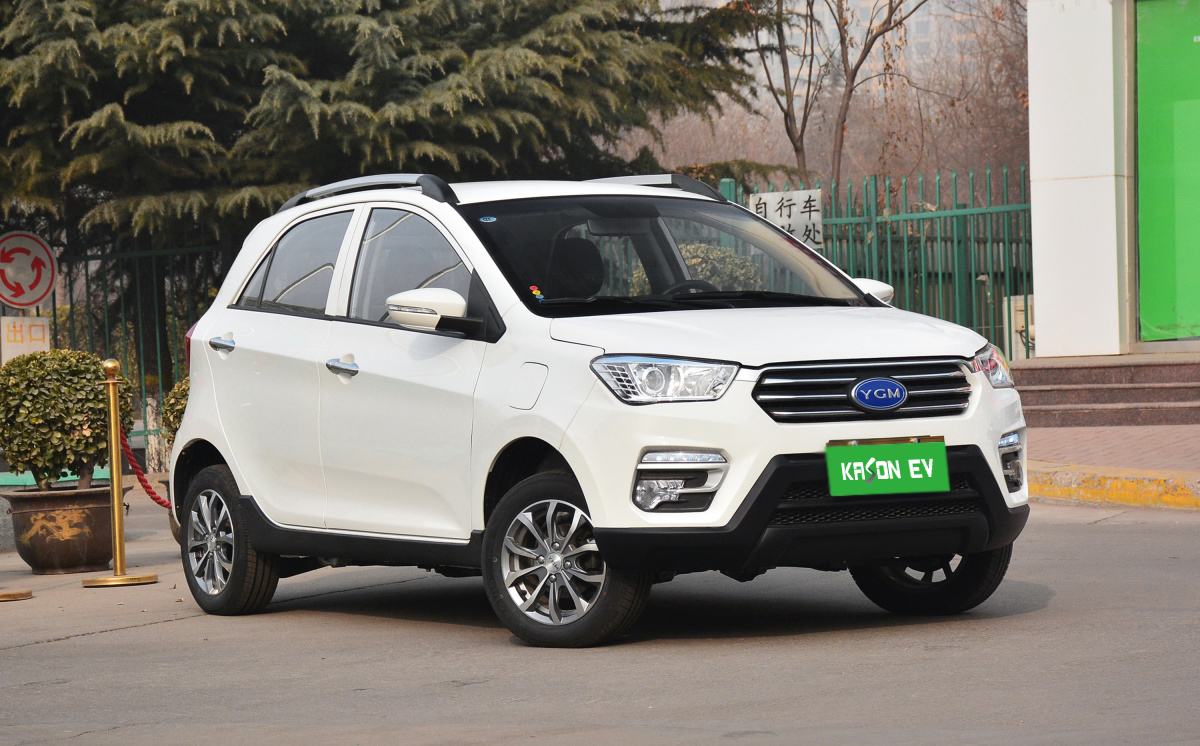

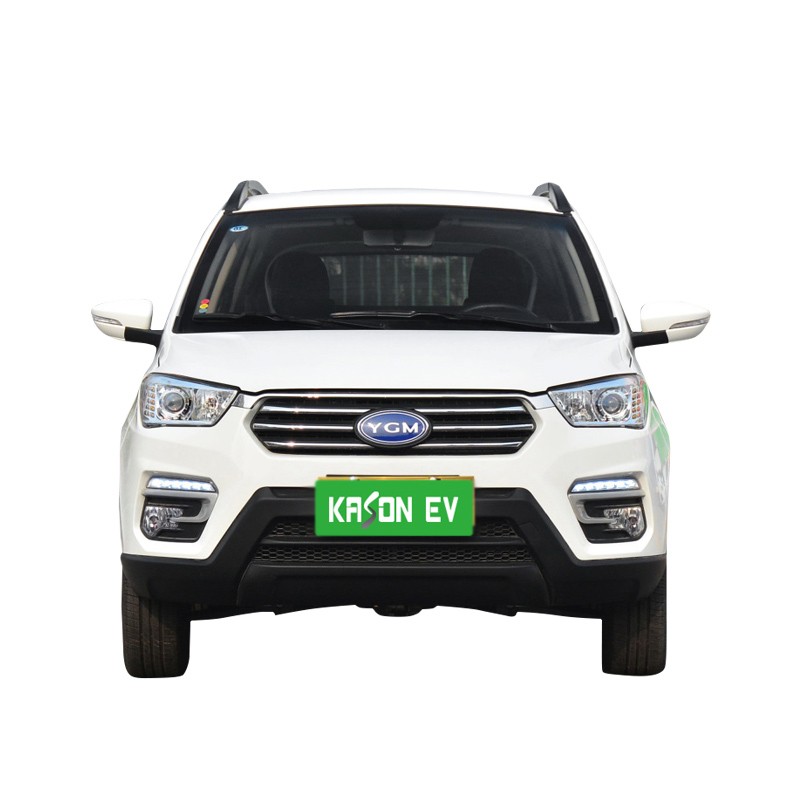

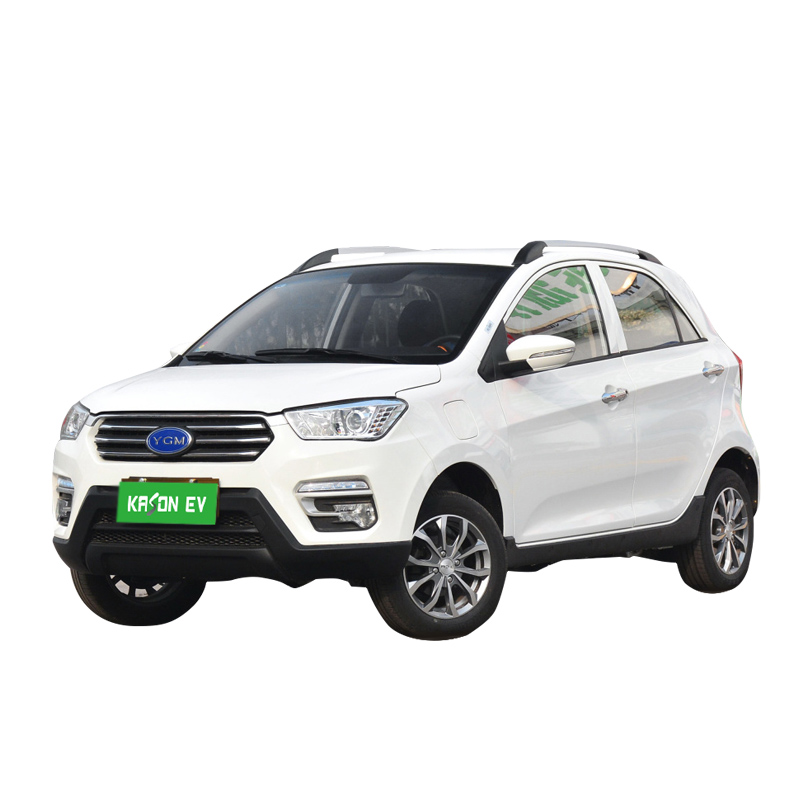

E xing on the appearance of the electric design, relatively stocky, heavy face design slam the door before the modelling of flowery, contracted through intake grille type front face and easy do not break vogue again feeling, at the bottom of the intake grille is another using more traditional grid, the modelling of the black face in front of the pure white is particularly striking, irregular on both sides of the front headlight on collocation, to tell the truth, E line pure electric front face in the norm, there is no fault to pick. Positioned in A00 class pure electric vehicle, the body length, width and height are respectively 3675/1655/1570mm, wheelbase 2385mm.

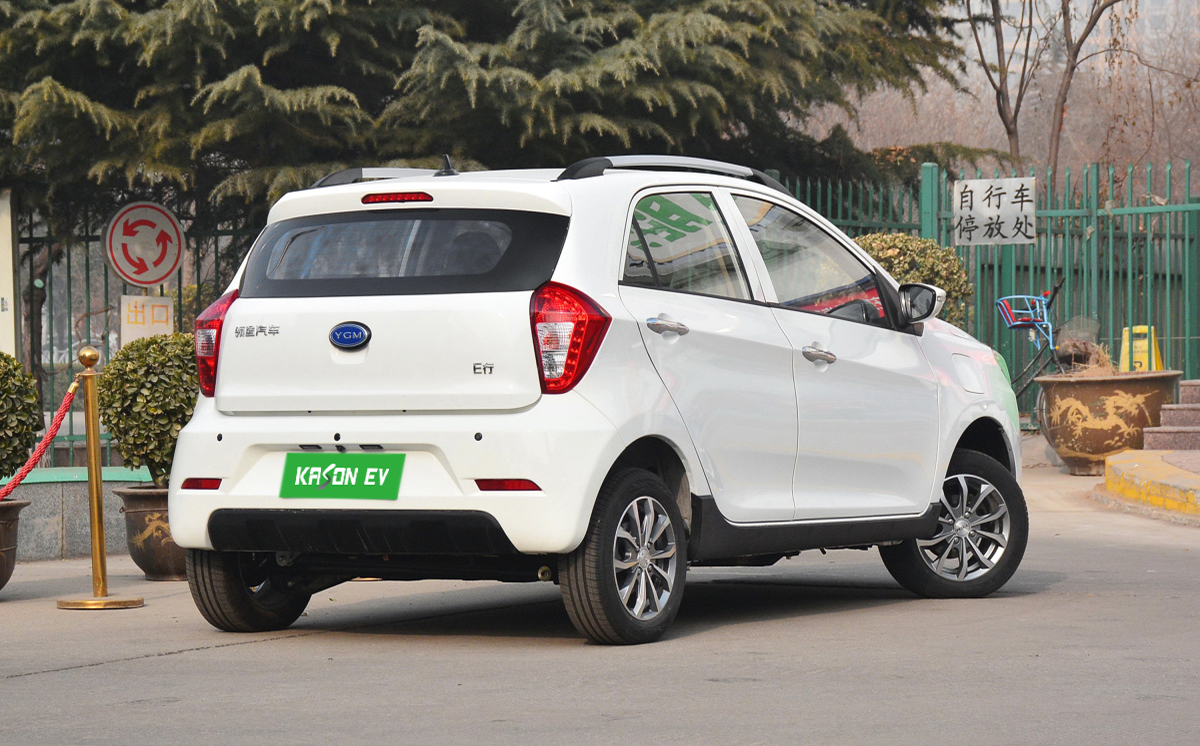

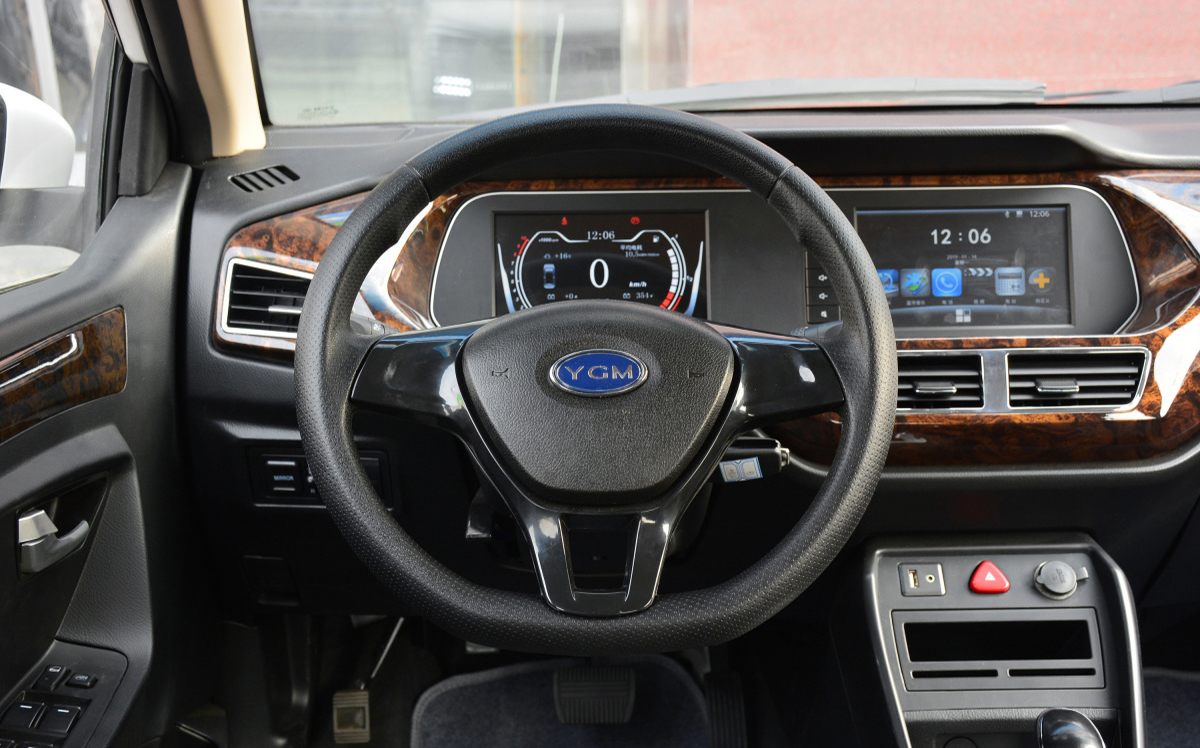

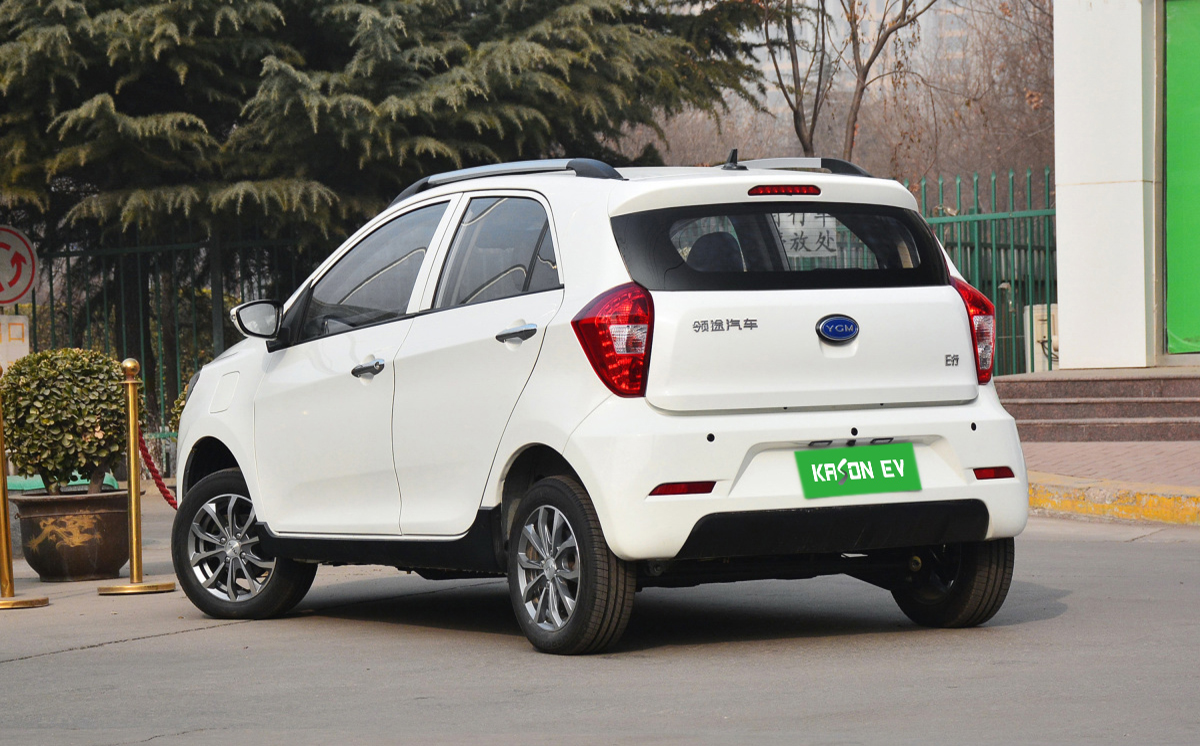

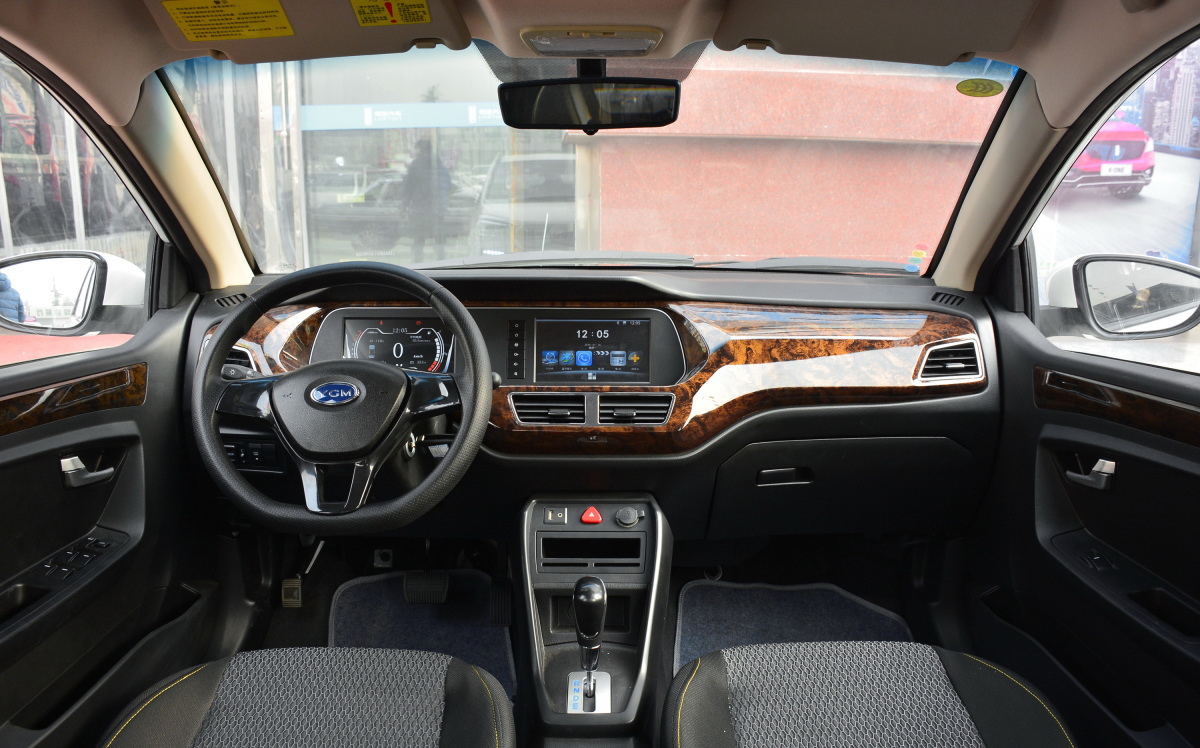

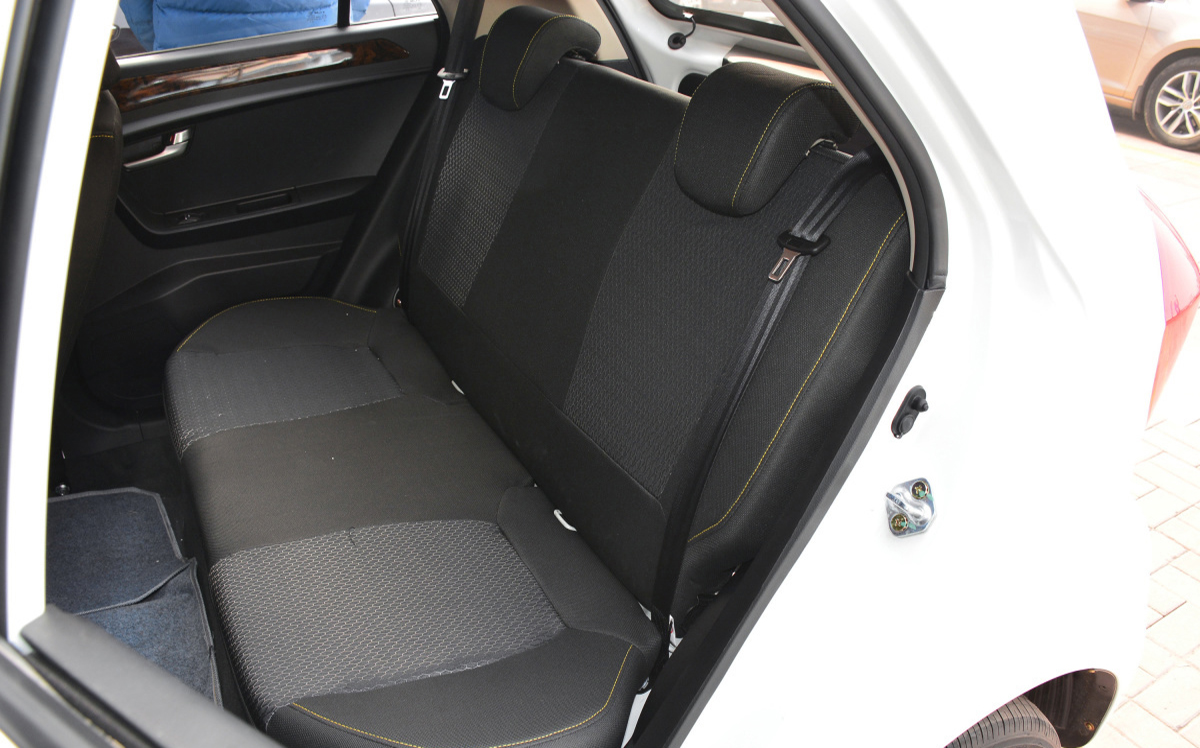

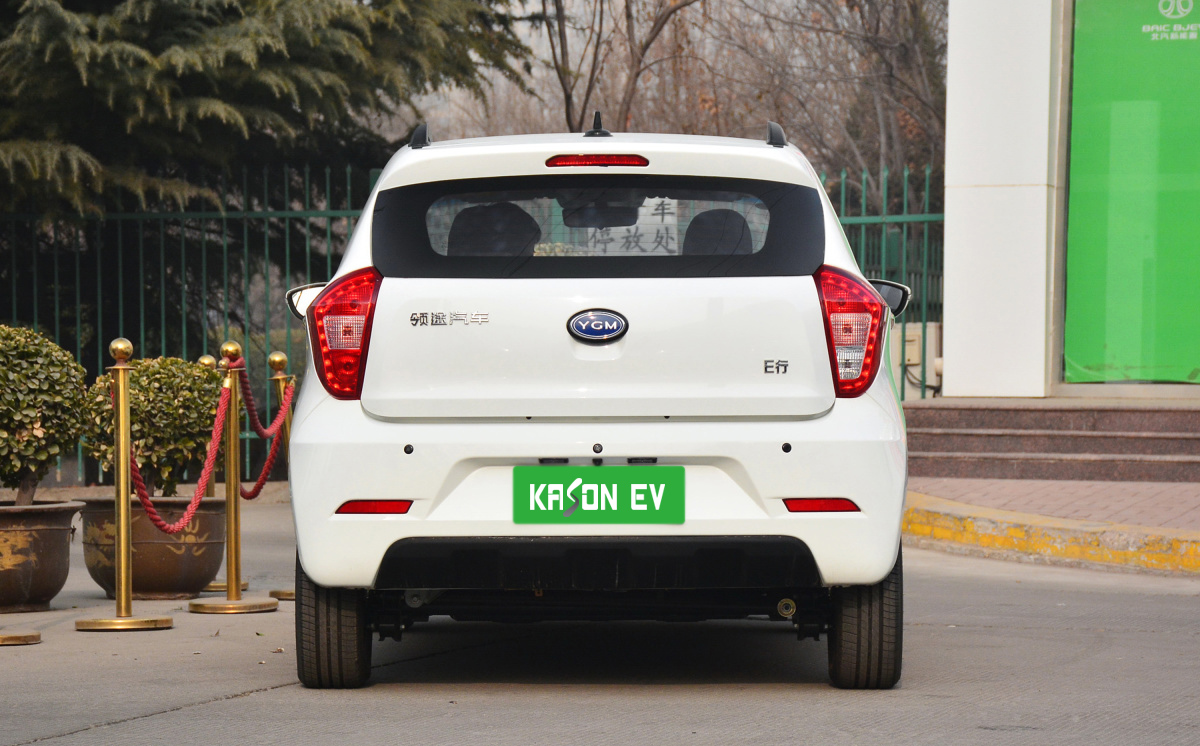

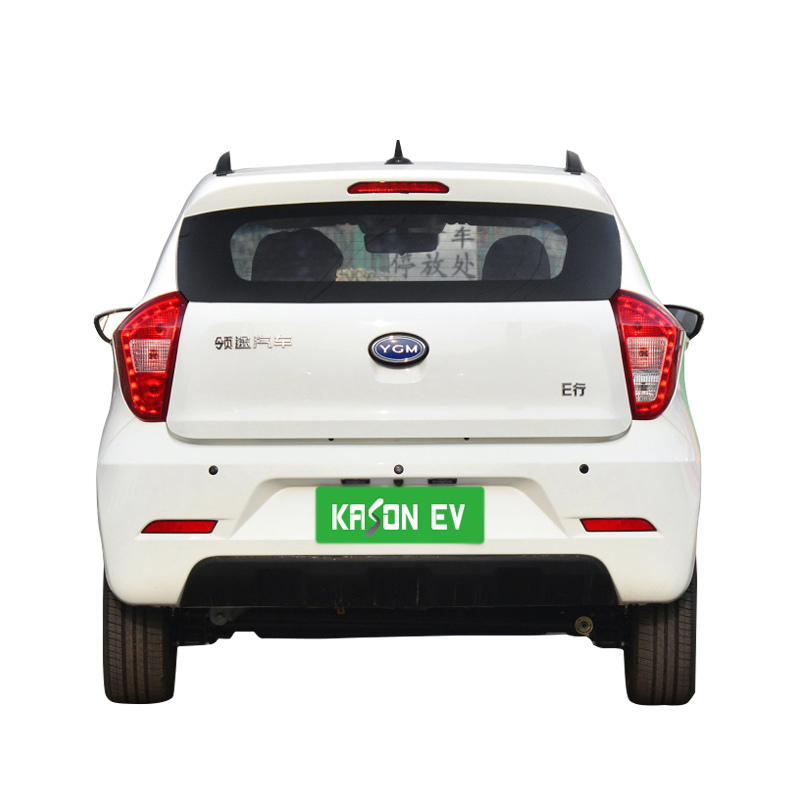

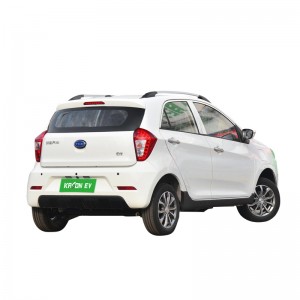

The interior layout is relatively traditional, black and wood grain color design and the addition of the bottom steering wheel make the interior full of stable and introverted atmosphere. In addition, the rear seat support of THE E xing is inverted as a whole, which greatly improves its loading capacity and eliminates consumers' concerns about the small interior space of the A00 class car. Tail design is relatively special, after the headlights present a three-dimensional feeling, very lovely. The same thick tail contour echoes the front face.

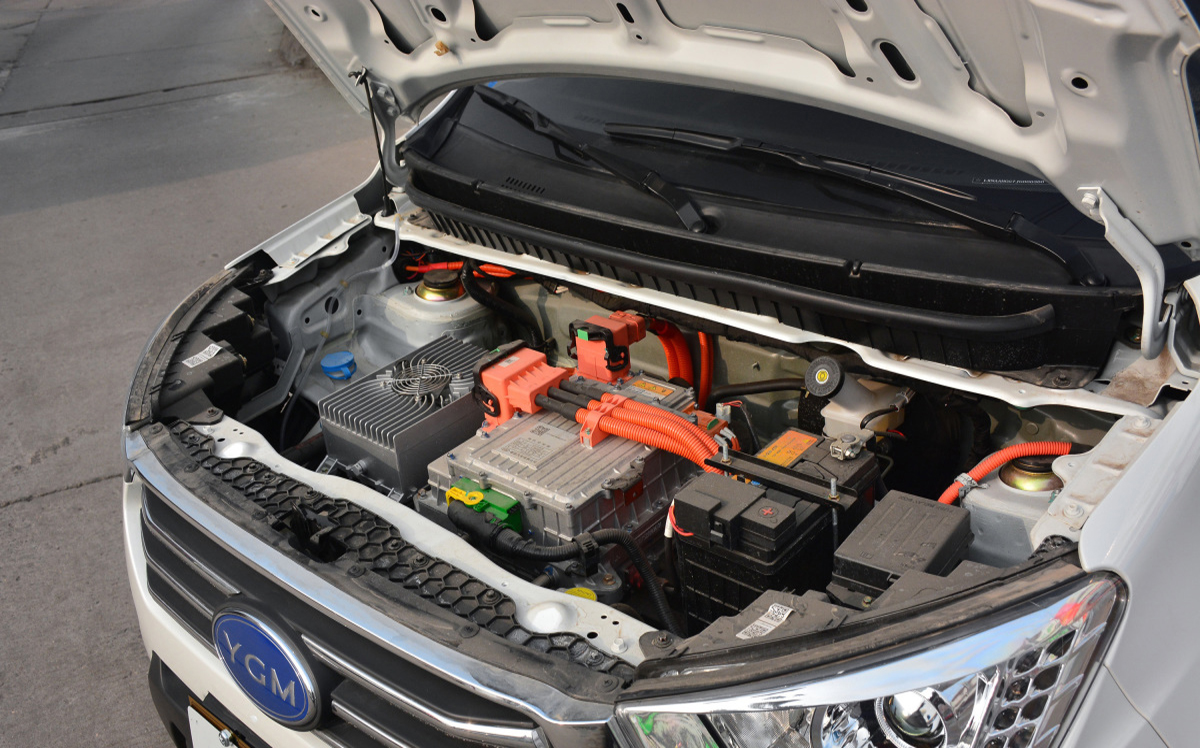

In terms of power, it is equipped with a maximum power of 42kW, maximum torque of 140N·m permanent magnet synchronous motor, 0-50km/h acceleration takes only 6 seconds, the top speed can reach 105km/h. Although the leader E line is small, it is quite capable of running, with a comprehensive range of 300 kilometers and a constant speed range of 360 kilometers.
Product Specifications
Brand | LINKTOUR |
Model | E XING |
Version | 2018 Comfort Edition |
Basic parameters | |
Car model | Minicar |
Type of Energy | Pure electric |
Time to market | June.2018 |
NEDC pure electric cruising range (KM) | 300 |
Fast charging time[h] | 1 |
Fast charge capacity [%] | 80 |
Slow charging time[h] | 12 |
Maximum power (KW) | 42 |
Maximum torque [Nm] | 150 |
Motor horsepower [Ps] | 57 |
Length*width*height (mm) | 3675*1655*1570 |
Body structure | 5-door 4-seat hatchback |
Top Speed (KM/H) | 105 |
Car body | |
Longth(mm) | 3675 |
Width(mm) | 1655 |
Higth(mm) | 1570 |
Wheel base(mm) | 2385 |
Front track (mm) | 1432 |
Rear track (mm) | 1422 |
Minimum ground clearance (mm) | 130 |
Body structure | hatchback |
Number of doors | 5 |
Number of seats | 4 |
Mass (kg) | 1145 |
Electric motor | |
Motor type | Permanent magnet synchronization |
Total motor power (kw) | 42 |
Total motor torque [Nm] | 150 |
Front motor maximum power (kW) | 42 |
Front motor maximum torque (Nm) | 150 |
Number of drive motors | Single motor |
Motor placement | Prepended |
Battery Type | Ternary lithium battery |
NEDC pure electric cruising range (KM) | 300 |
Battery Power(kwh) | 36.79 |
Gearbox | |
Number of gears | 1 |
Transmission type | Fixed gear ratio gearbox |
Short name | Electric vehicle single speed gearbox |
Chassis Steer | |
Form of drive | FF |
Type of front suspension | McPherson independent suspension |
Type of rear suspension | Trailing arm non-independent suspension |
Boost type | Electric assist |
Car body structure | Load bearing |
Wheel braking | |
Type of front brake | Ventilated Disc |
Type of rear brake | Disc |
Type of parking brake | Foot brake |
Front Tire Specifications | 175/60 R14 |
Rear tire specifications | 175/60 R14 |
Cab Safety Information | |
Seat belt not fastened reminder | Front row |
ISOFIX Child seat connector | YES |
ABS anti-lock | YES |
Assist/Control configuration | |
Front parking radar | ~ |
Rear parking radar | YES |
Driving assistance video | Reverse image |
Hill assist | YES |
External / Anti-Theft Configuration | |
Rim material | Aluminum alloy |
Roof rack | YES |
Interior central lock | YES |
Key type | Remote key |
Battery preheating | YES |
Internal configuration | |
Steering wheel material | Plastic |
Steering wheel position adjustment | Manual up and down |
Trip computer display screen | Color |
Full LCD Dashboard | YES |
Seat configuration | |
Seat materials | Fabric |
Driver's seat adjustment | Front and rear adjustment, backrest adjustment |
Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
Rear seats folded down | whole down |
Multimedia configuration | |
Central control color screen | Touch LCD |
Central control screen size (inch) | 8 |
Satellite navigation system | YES |
Bluetooth/Car Phone | YES |
Multimedia/charging interface | USB |
Number of USB/Type-c ports | 1 in front |
Number of speakers (pcs) | 4 |
Lighting configuration | |
Low beam light source | Halogen |
High beam light source | Halogen |
LED daytime running lights | YES |
Front fog lights | Halogen |
Headlight height adjustable | YES |
Headlights turn off | YES |
Glass/Rearview mirror | |

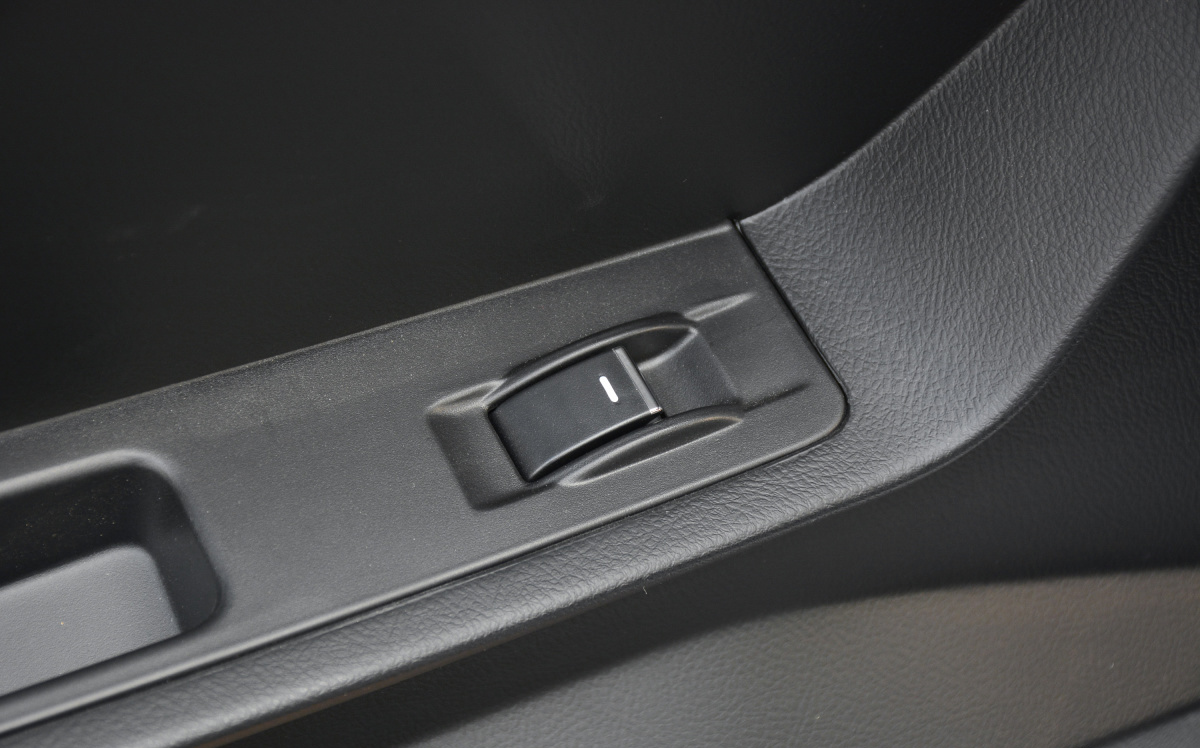

Front power windows | YES |
Rear power windows | YES |
Post audition feature | Electric adjustment |
Inside rearview mirror function | Manual anti-dazzle |
Interior vanity mirror | Co-pilot |
Rear wiper | YES |
Air conditioner/refrigerator | |
Air conditioner temperature control method | Manual air conditioner |
