Li Auto L9 Brings Top-Line Luxury and Intelligence to Full-Size SUV With NVIDIA DRIVE Orin

Short Description:

Appearance design: Li Auto L9 adopts a simple and streamlined design with distinctive electrification features. It is simpler than Ideal ONE.

Interior design: The interior design of the Li Auto L9 focuses on a luxurious and comfortable experience. It is equipped with a large-sized central control screen and a full LCD instrument panel, creating a technological atmosphere. The seats are made of high-grade leather and support rear seat heating and ventilation functions.

Functional configuration: Li Auto L9 has a number of intelligent configurations, including autonomous driving technology, intelligent interconnection, voice control, etc. Among them, autonomous driving technology is at the leading level in the industry, improving the safety and convenience of driving.

Technical features: Li Auto L9 adopts advanced battery technology, with long cruising range and fast charging speed. Its intelligent electric power system provides strong power and excellent performance.

Performance parameters: Li Auto L9’s 0-100km/h acceleration time is 5.3 seconds, and its CLTC cruising range can reach 1,315km. The vehicle adopts a front double-wishbone and rear five-link suspension, equipped with air springs and CDC shock absorbers. These configurations jointly enhance the driving experience.

Technological innovation: Li Auto L9 uses Micron Technology’s automotive-grade high-performance LPDDR5 DRAM memory and UFS 3.1 products based on 3D TLC NAND technology, which shows that it also adopts high-quality standards in electronic components.


Product Detail

Product Tags

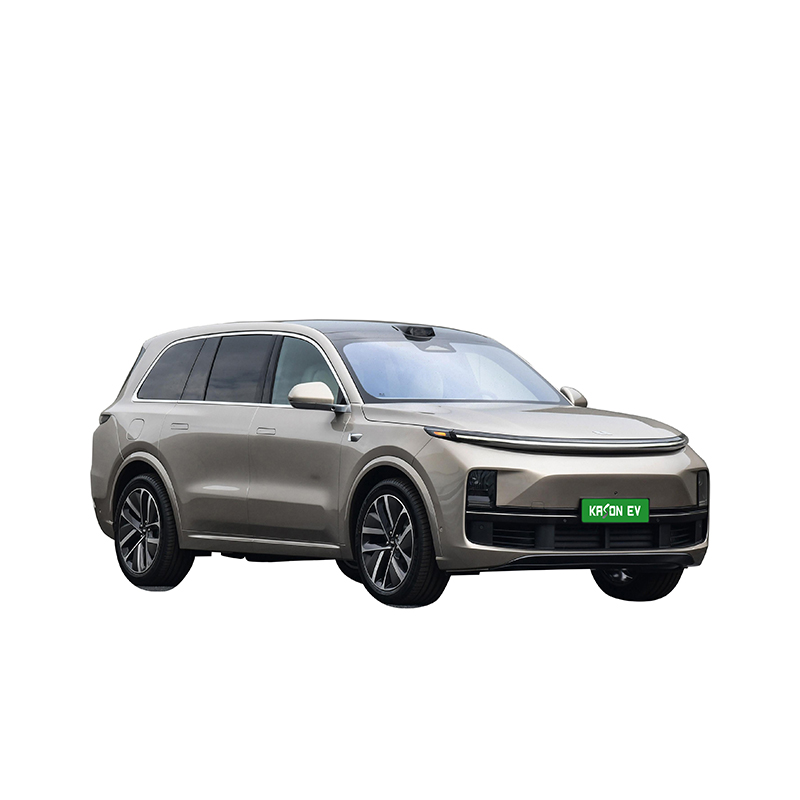

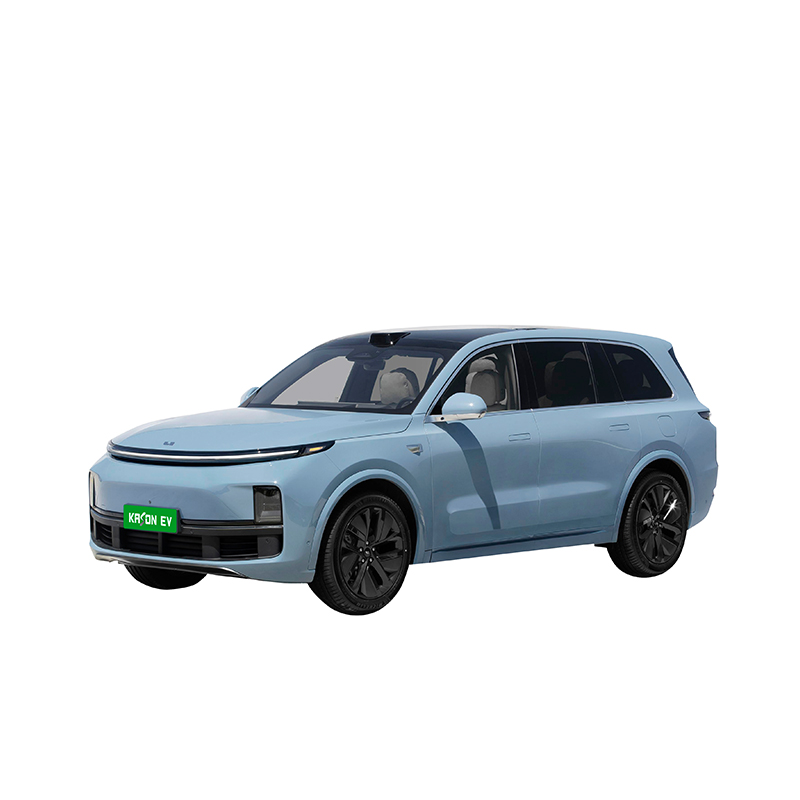

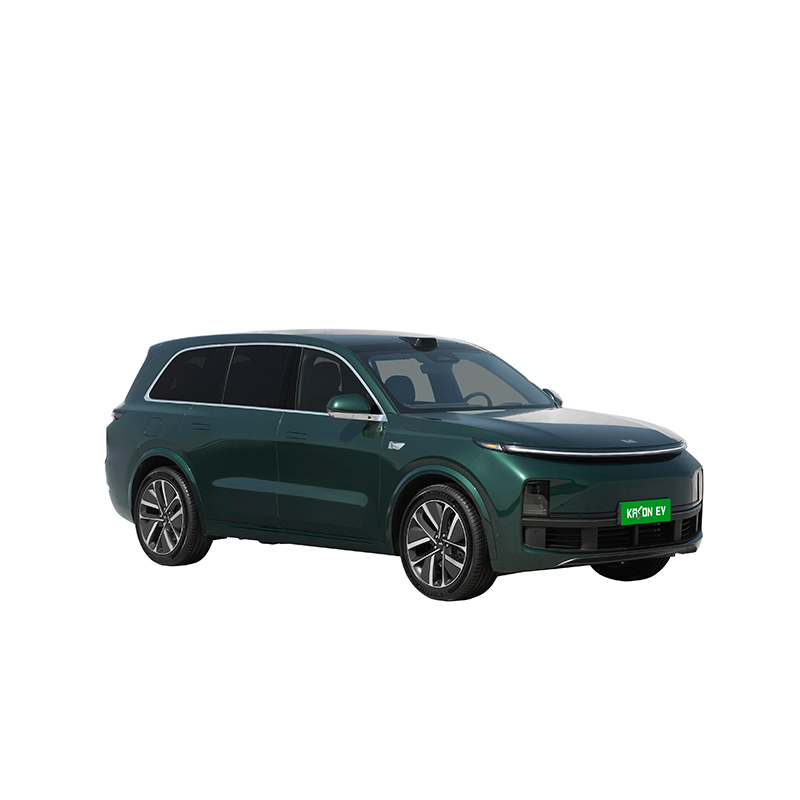

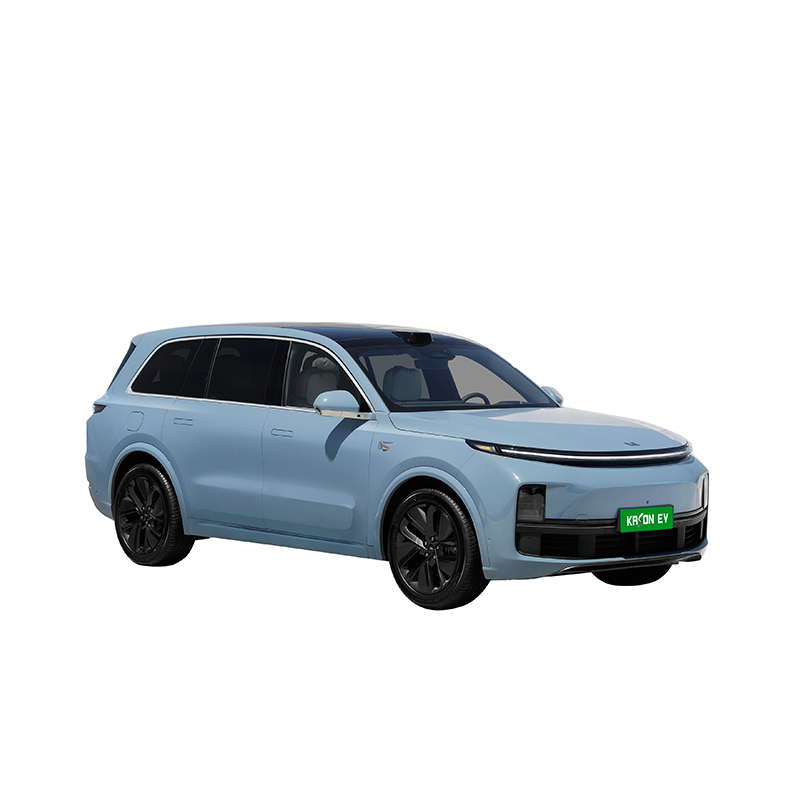

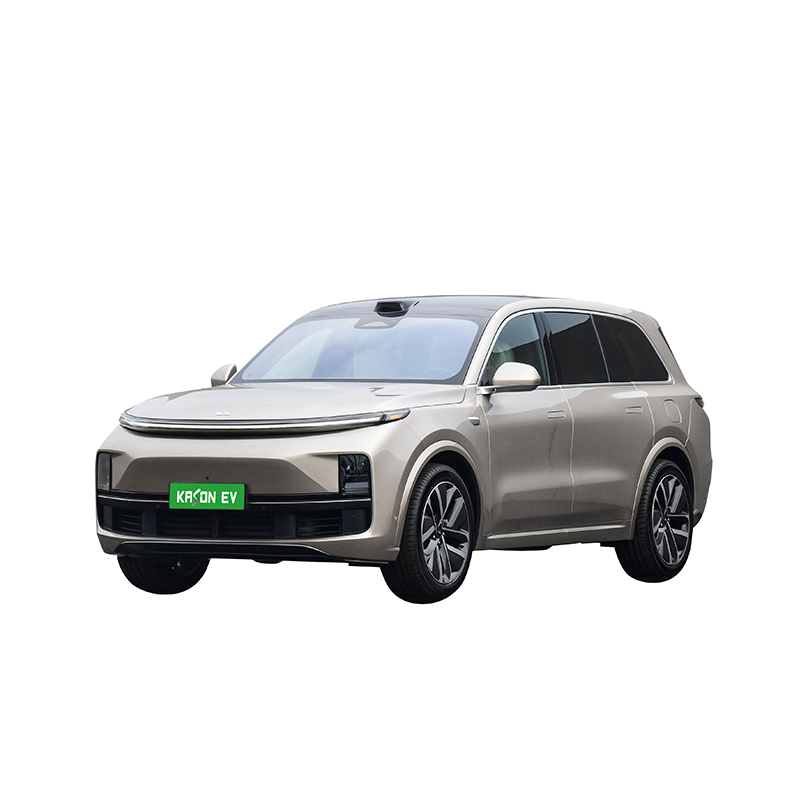

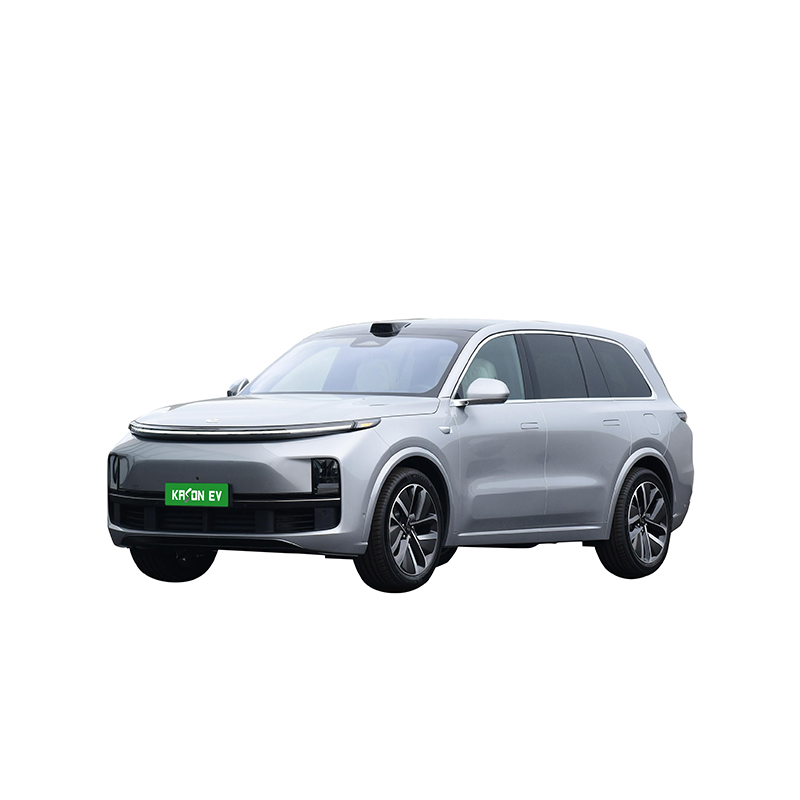

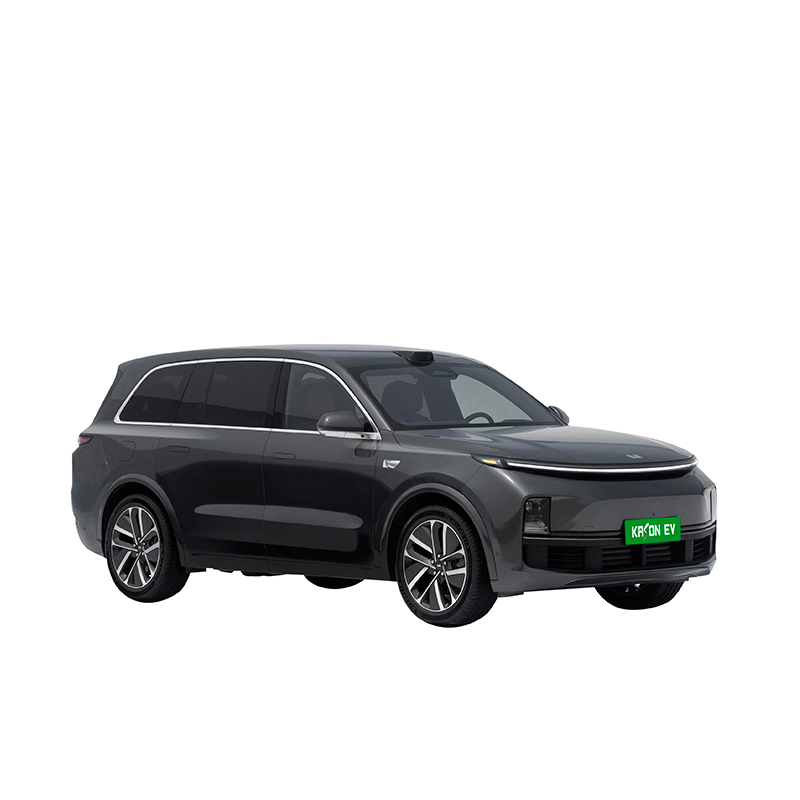

Li Auto L9 is a global smart flagship SUV officially released by Li Auto Company on June 21, 2022. It aims to create a high-quality smart electric vehicle for families. The Li Auto L9 is deeply loved by the public for its high-end and luxurious market positioning, innovative smart technology and excellent appearance design.

Brand Li Auto Li Auto
Model L9 L9
Version Pro Max
Basic parameters
Car model Large SUV Large SUV
Type of Energy Extended range Extended range
Time to Market Aug.2023 June.2022
WLTC pure electric cruising range (KM) 175 175
CLTC pure electric cruising range (KM) 215 215
Maximum power (KW) 330 330
Engine Extended range 154hp Extended range 154hp
Motor horsepower [Ps] 449 449
Length*width*height (mm) 5218*1998*1800 5218*1998*1800
Body structure 5-door 6-seat SUV 5-door 6-seat SUV
Top Speed (KM/H) 180 180
Official 0-100km/h acceleration (s) 5.3 5.3
Mass (kg) 2520 2520
Maximum full load mass(kg) 3120 3120
Engine
Engine model L2E15M L2E15M
Displacement (ml) 1496 1496
Displacement(L) 1.5 1.5
Intake form turbocharging turbocharging
Engine layout L L
Maximum horsepower (Ps) 154 154
Maximum power(kW) 113 113
Electric motor
Motor type Permanent magnet/synchronous Permanent magnet/synchronous
Total motor power (kw) 330 330
Total motor power (PS) 449 449
Total motor torque [Nm] 620 620
Front motor maximum power (kW) 130 130
Front motor maximum torque (Nm) 220 220
Rear motor maximum power (kW) 200 200
Rear motor maximum torque (Nm) 400 400
Number of drive motors Double motor Single motor
Motor placement Prepended+Rear Prepended+Rear
Battery Type Ternary lithium battery Ternary lithium battery
Battery brand Ningde era Ningde era
Battery cooling method Liquid cooling Liquid cooling
WLTC pure electric cruising range (KM) 175 175
CLTC pure electric cruising range (KM) 215 215
Battery Power(kwh) 42.6 42.6
Gearbox
Number of gears 1 1
Transmission type Fixed Ratio Transmission Fixed Ratio Transmission
Short name Electric vehicle single speed gearbox Electric vehicle single speed gearbox
Chassis Steer
Form of drive Dual-motor four-wheel drive Rear-engine rear-drive
Four-wheel drive Electric four-wheel drive Electric four-wheel drive
Type of front suspension Double wishbone independent suspension Double wishbone independent suspension
Type of rear suspension Five-link independent suspension Five-link independent suspension
Boost type Electric assist Electric assist
Car body structure Load bearing Load bearing
Wheel braking
Type of front brake Ventilated Disc Ventilated Disc
Type of rear brake Ventilated Disc Ventilated Disc
Type of parking brake Electric brake Electric brake
Front Tire Specifications 265/45 R21 265/45 R21
Rear tire specifications 265/45 R21 265/45 R21
Passive Safety
Main/passenger seat airbag Main●/Sub● Main●/Sub●
Front/rear side airbags Front●/Rear● Front●/Rear●
Front/rear head airbags (curtain airbags) Front●/Rear● Front●/Rear●
Tire pressure monitoring function ●Tire pressure display ●Tire pressure display
Seat belt not fastened reminder ●Full car ●Full car
ISOFIX child seat connector
ABS anti-lock
Brake force distribution (EBD/CBC, etc.)
Brake Assist (EBA/BAS/BA, etc.)
Traction Control (ASR/TCS/TRC, etc.)
Body Stability Control (ESC/ESP/DSC, etc.)
