Product Information
Power battery system accounts for half of the cost of electric logistics vehicle, and its choice directly determines the quality of electric light vehicle.

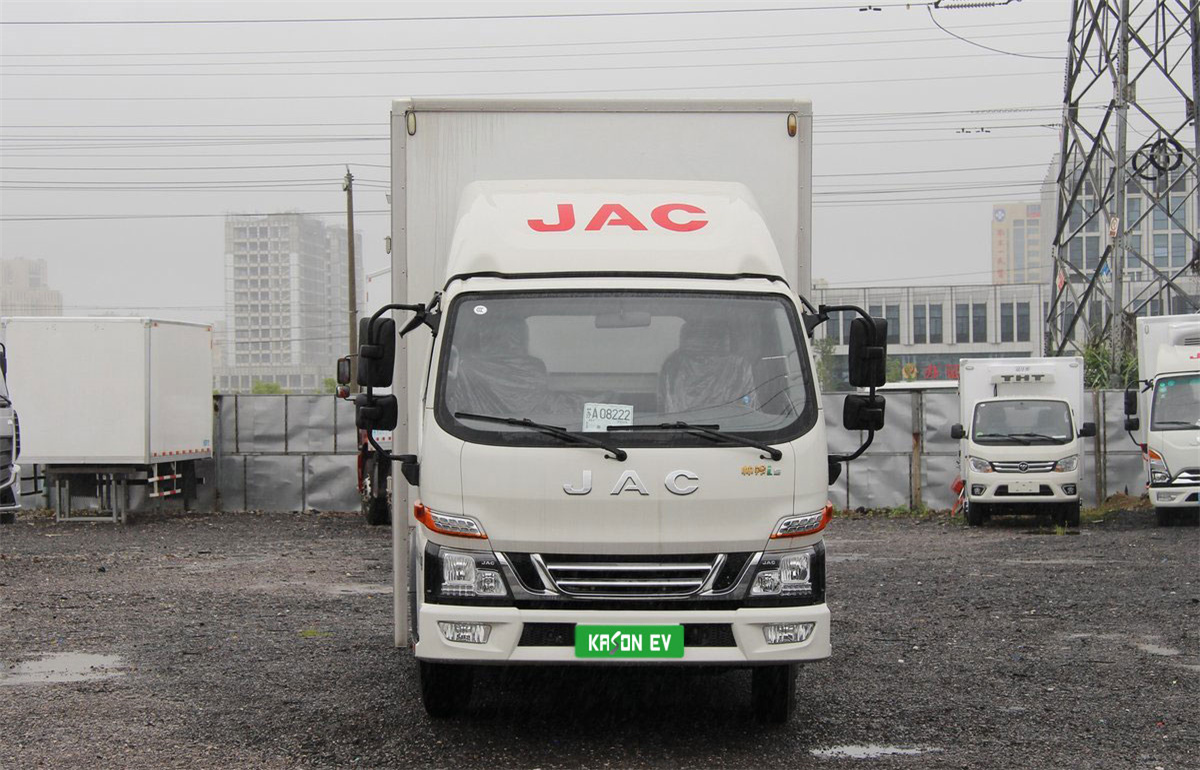

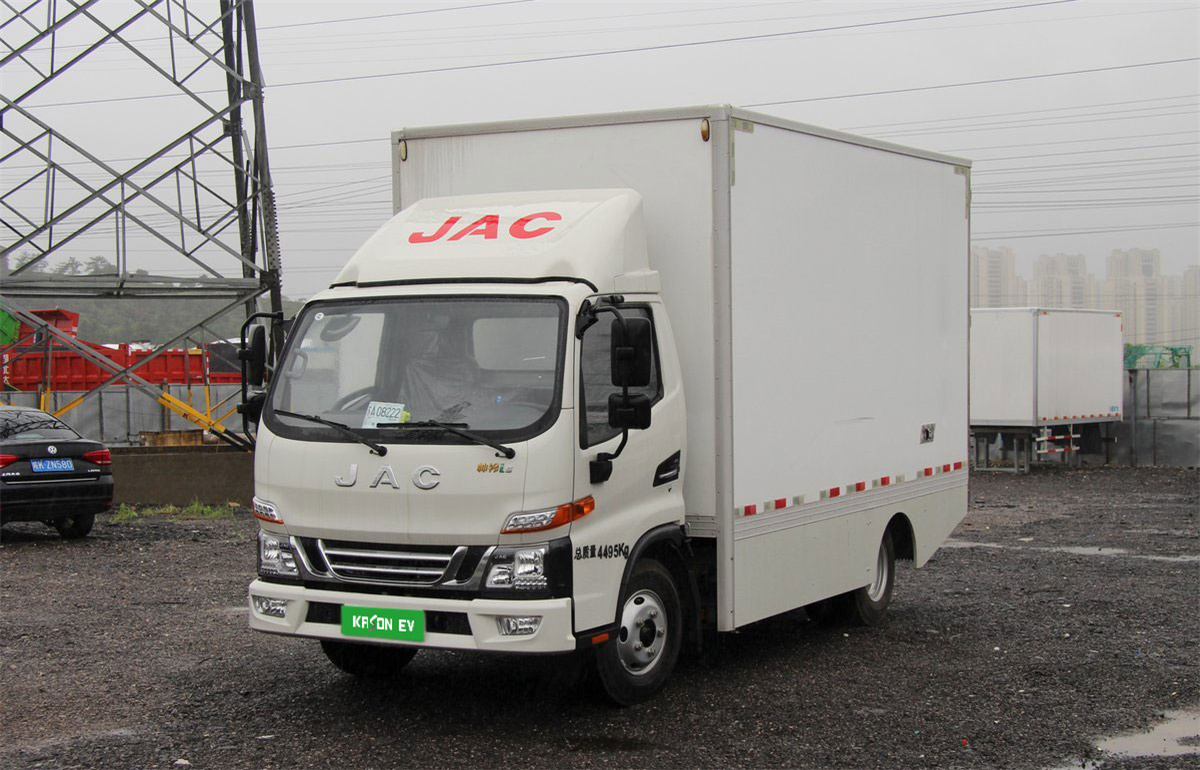

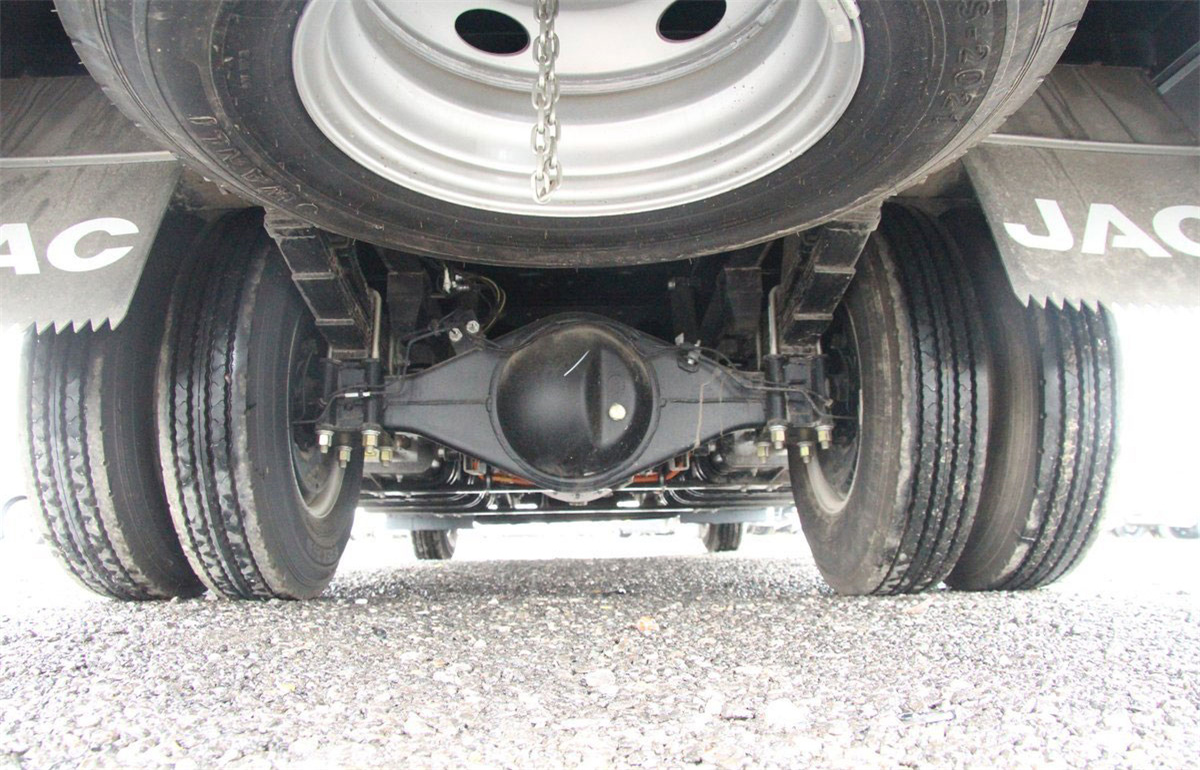

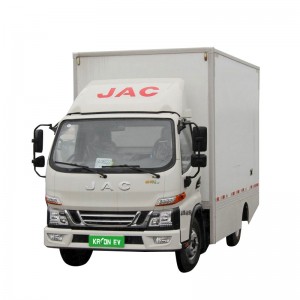

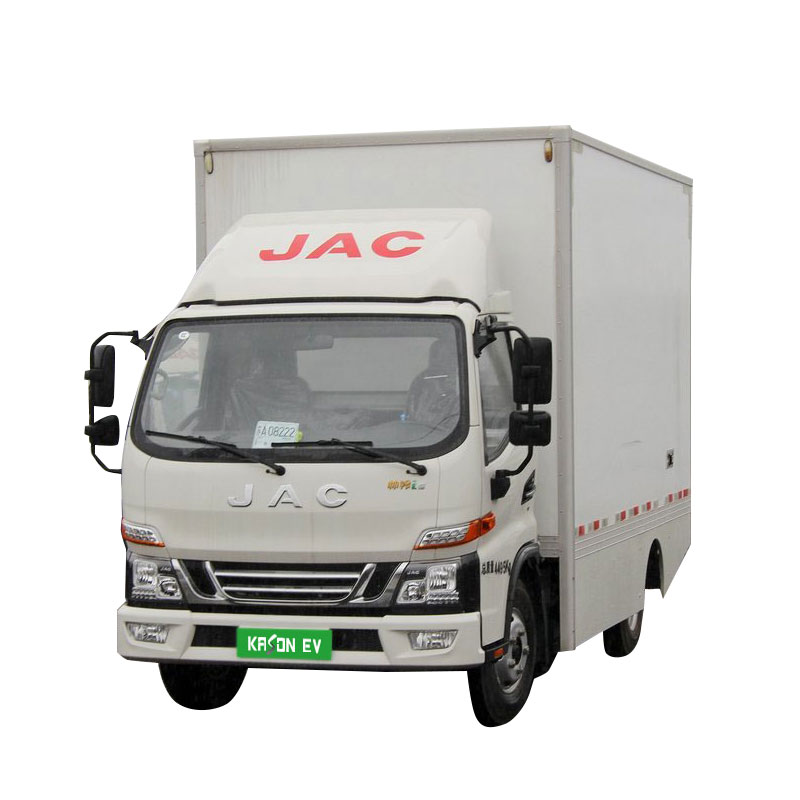

Jac Shuailing I5 pure electric light truck adopts three-level safety protection, which greatly promotes the sensory quality of the vehicle. At the same time, the vehicle is equipped with pneumatic brake system, rear axle with a series of high value configuration, to meet the diverse needs of users to lay a good foundation, braking more intelligent and safer.

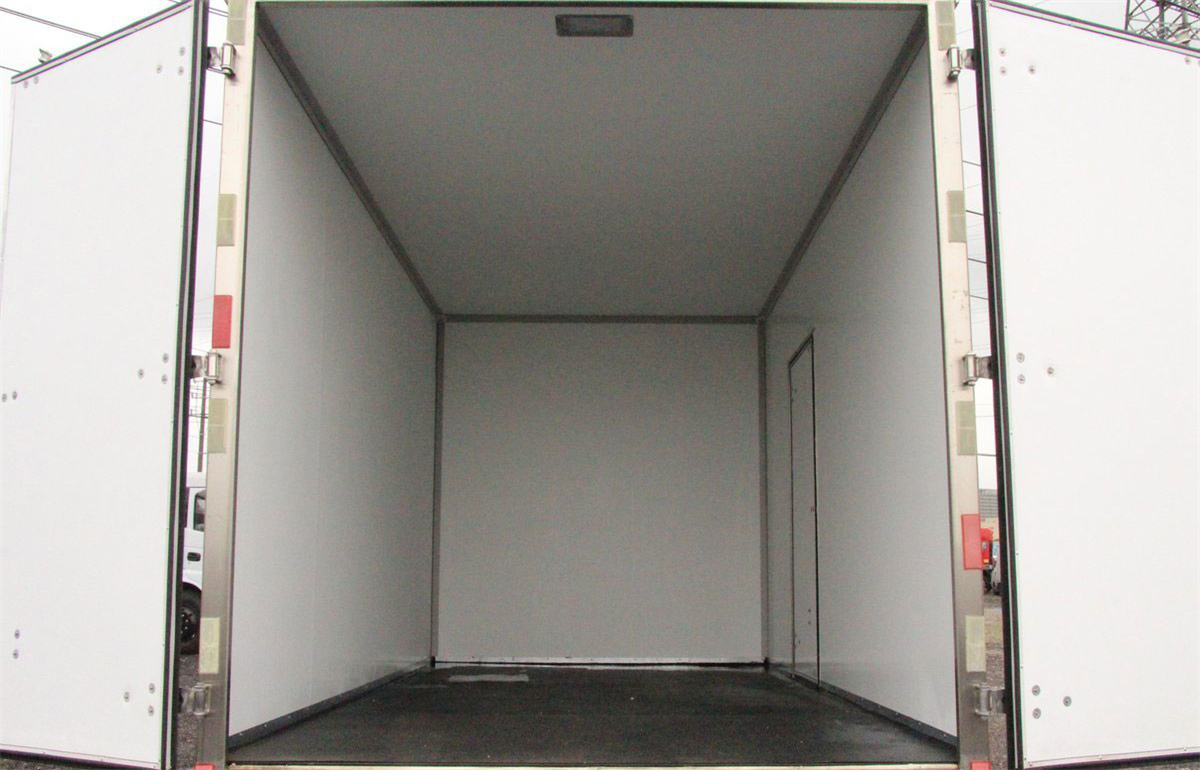

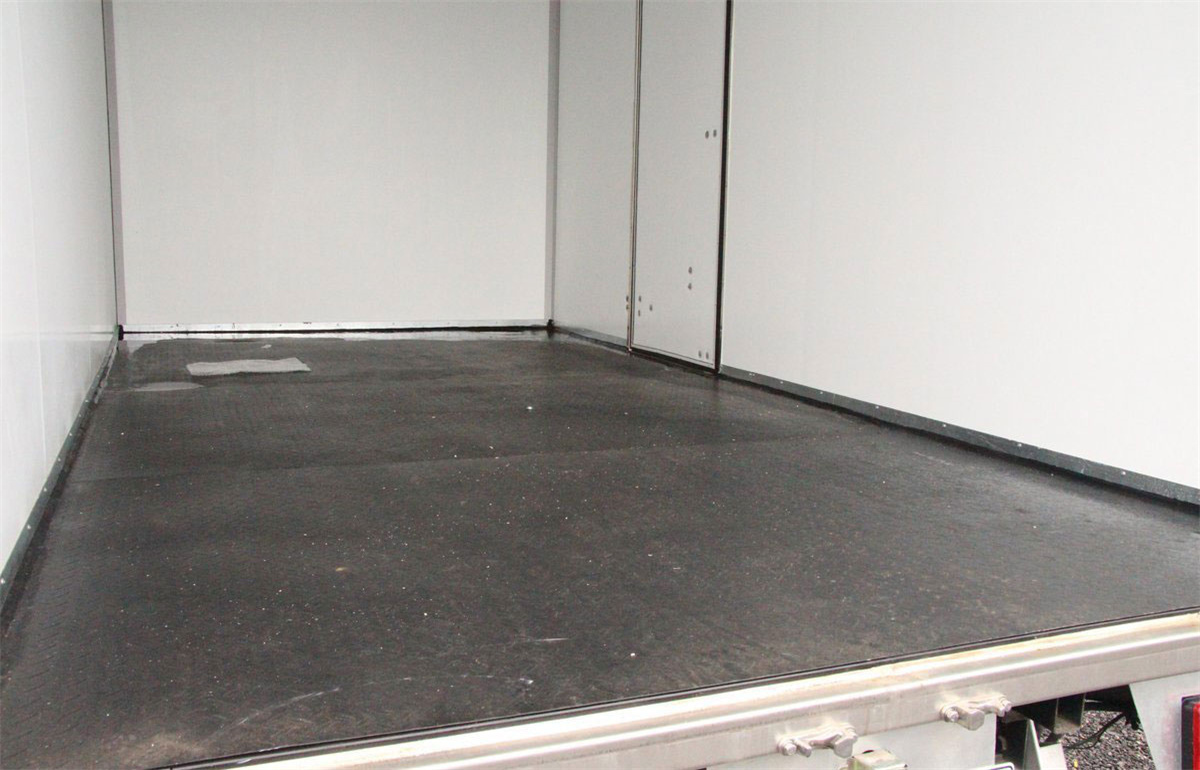

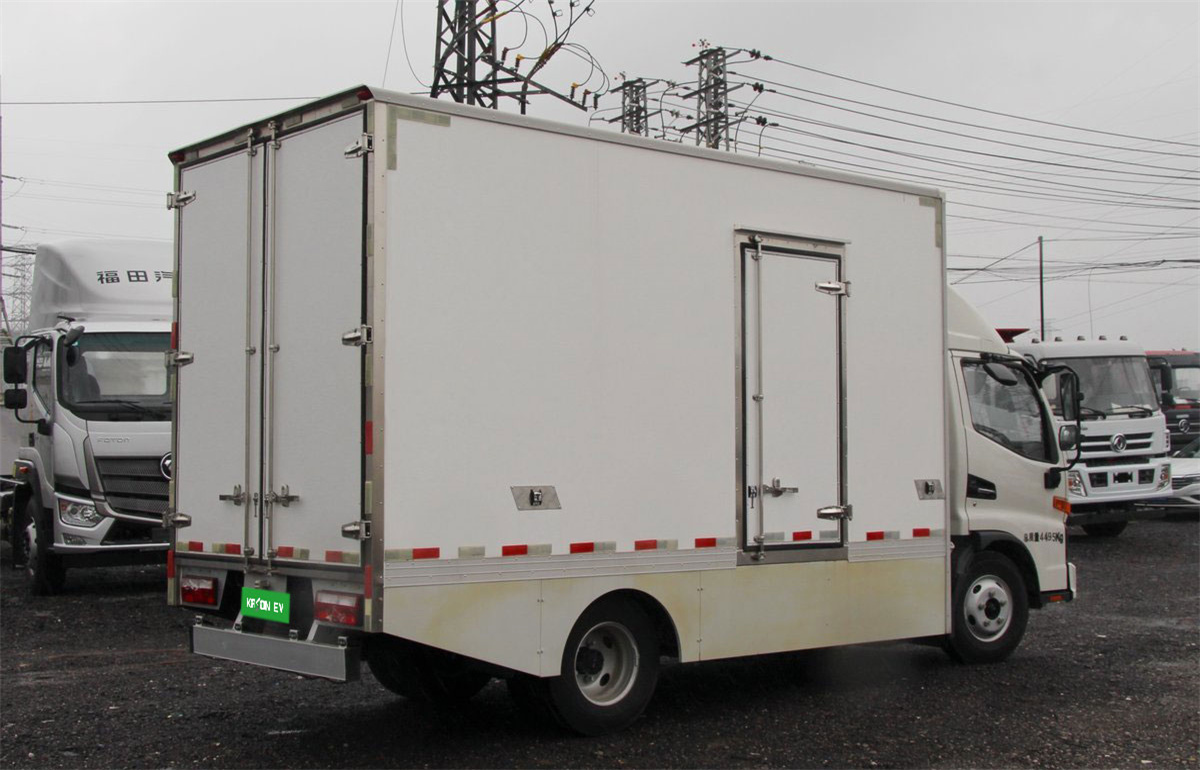

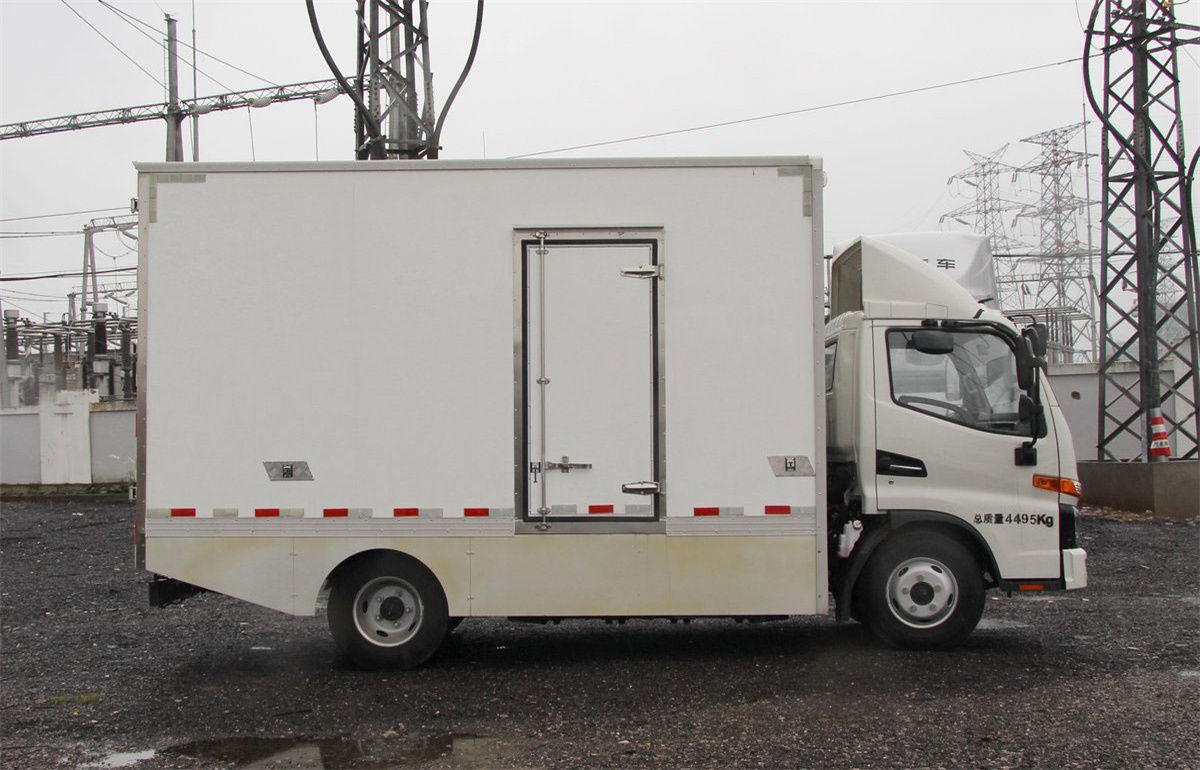

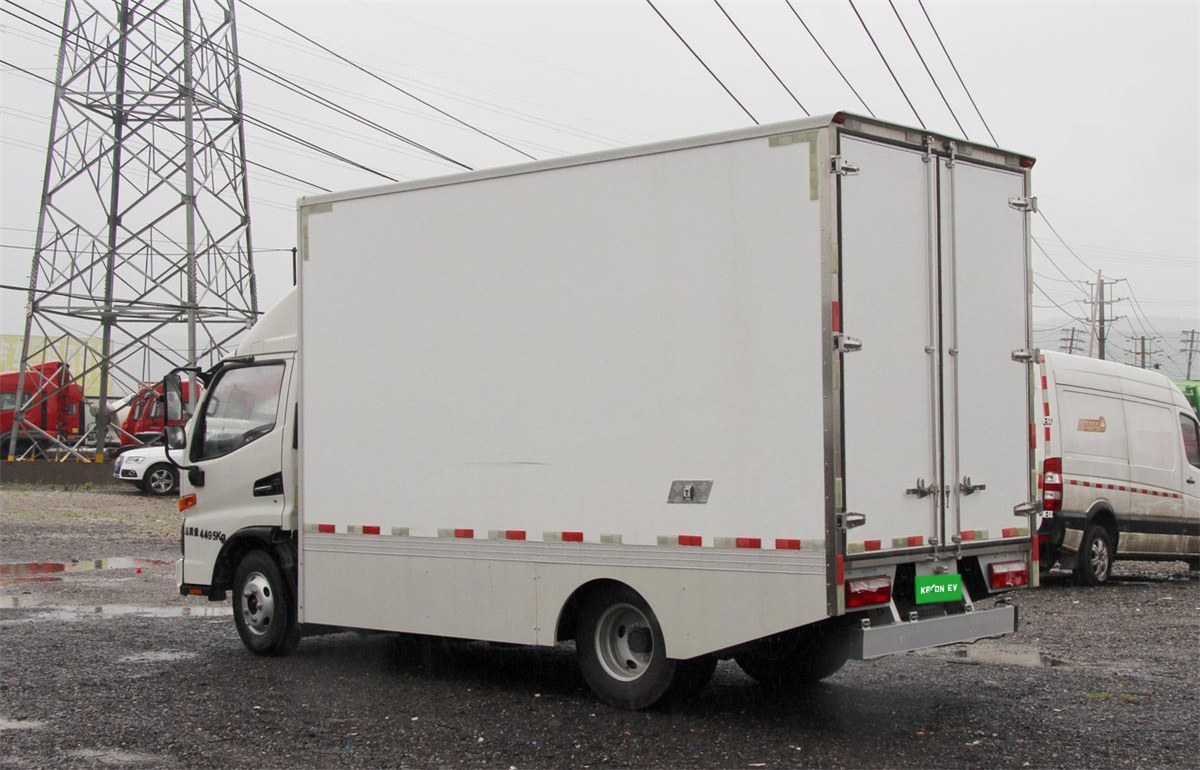

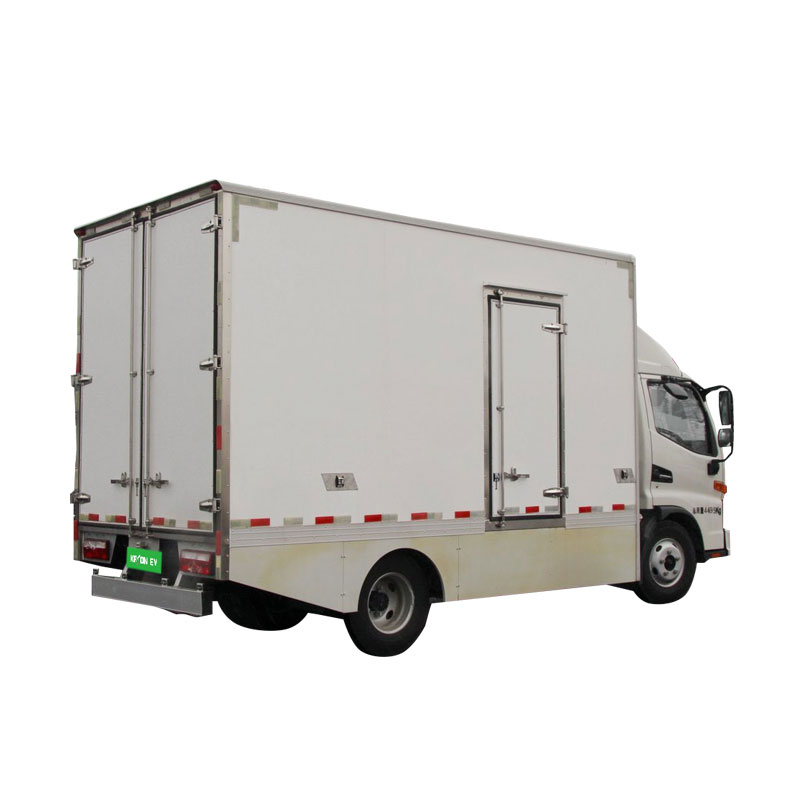

As the city logistics car, pull much, must have "big mind". JAC Shuailing I5 pure electric light truck, wheelbase 3308, box size 4150*2060*2200mm, volume 18.8m³. Just look at these data already know, it is much "generous" in the end, you are afraid that your goods can not be loaded? And the use of lightweight cargo car, can meet the driver's higher load demand.
Timeliness has become the life of the segmented logistics transportation market, and even the standard to measure the basic skills of a car. Behind the efficiency is a powerful power chain.
In terms of power, the rated power of the permanent magnet synchronous motor used by Shuailing I5 pure electric light truck is 75KW, and the peak power is 120KW. The daily standard load starts without too much pressure.

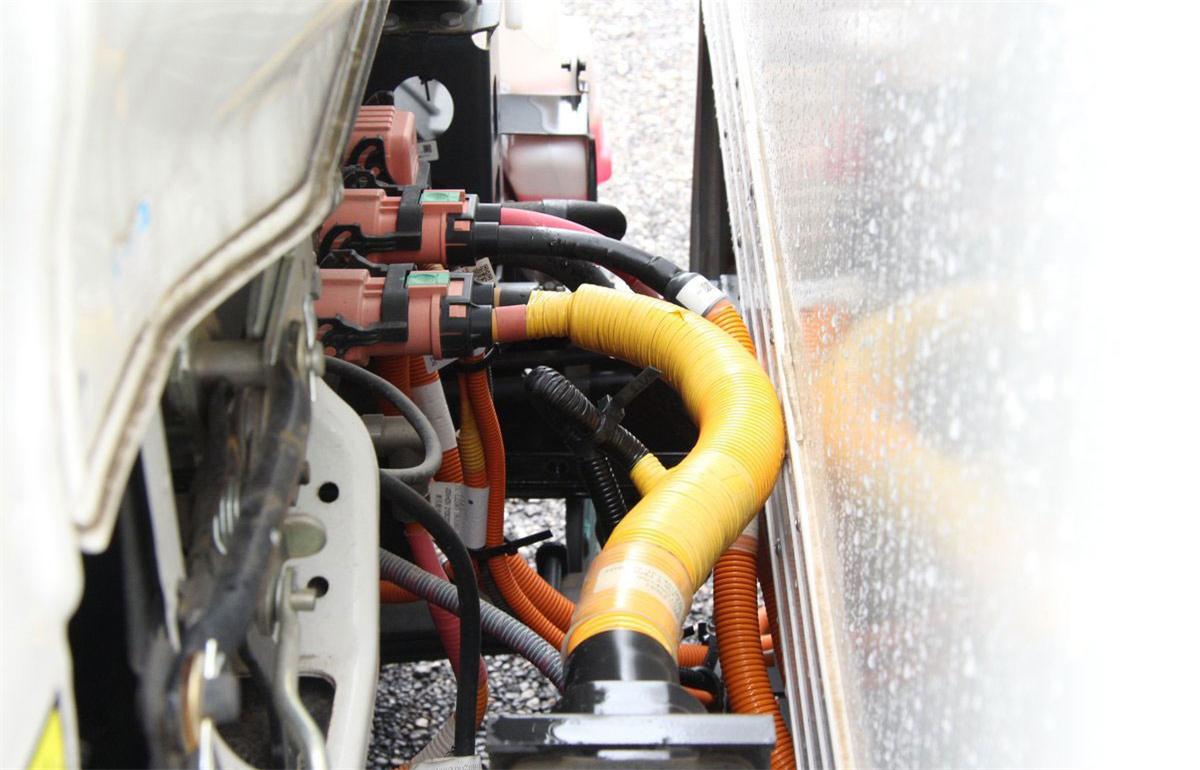

As the battery problem most concerned by users of pure electric light truck, The power battery system of Shuailing I5 pure electric light truck chooses the most widely used lithium iron phosphate battery, which has the advantages of longer life and longer range. Not only the power battery is of high quality, but also the key high-voltage wiring harness and connectors of electric vehicles are suppliers of international spare parts resource system with guaranteed quality.
Product Specifications
Brand | JAC |
Model | SHUAILING i5 |
Version | 4.5T 4.15(HFC5045XXYEV6)103.42kWh |
Basic Information | |
Announcement model: | HFC5045XXYEV6 |
Types of: | Van |
Wheelbase: | 3308mm |
Body length: | 5.995 meters |
Body width: | 2.17/2.12/2.015/1.96meters |
Body height: | 3.24/2.8 meters |
Total mass: | 4.495 tons |
Rated load: | 1.18 tons |
Vehicle weight: | 3.12 tons |
Maximum speed: | 90km/h |
Factory standard battery life: | 470km |
Tonnage class: | light truck |
Origin: | Heifei, Anhui |
Motor | |
Motor brand: | Shanghai Auto |
Motor model: | TZ368XSD16 |
Motor type: | Permanent Magnet Synchronous Drive Motor |
Peak power: | 120kW |
Peak Torque: | 1000N m |
Cargo box parameters | |
Cargo box form: | Van |
Cargo Length: | 4.15 meters |
Cargo width: | 2.06/1.9 meters |
Cargo height: | 2.2/1.8 meters |

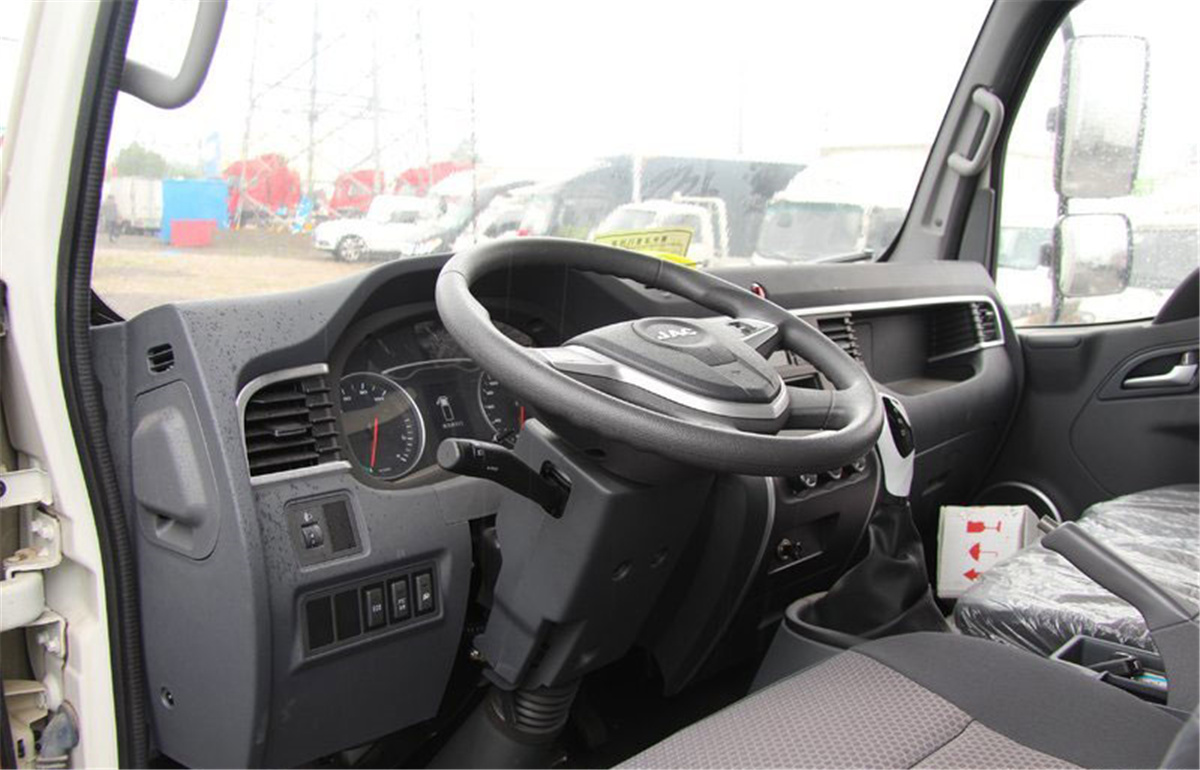

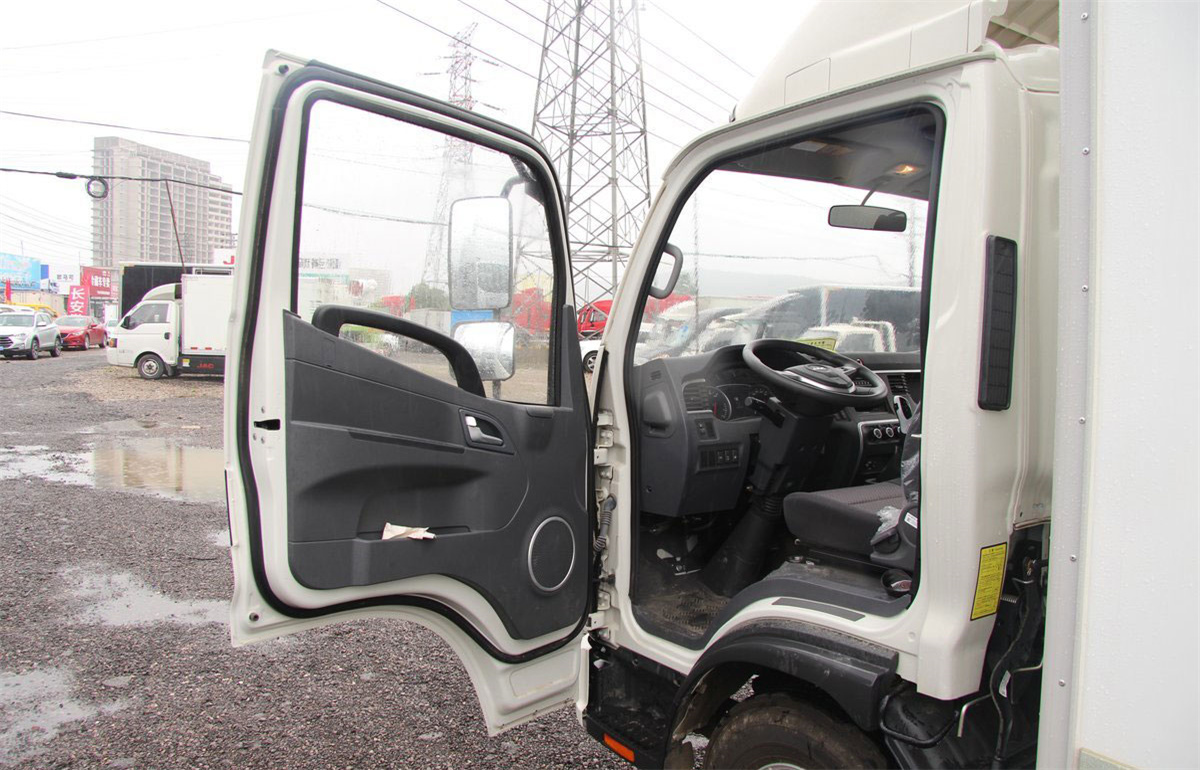

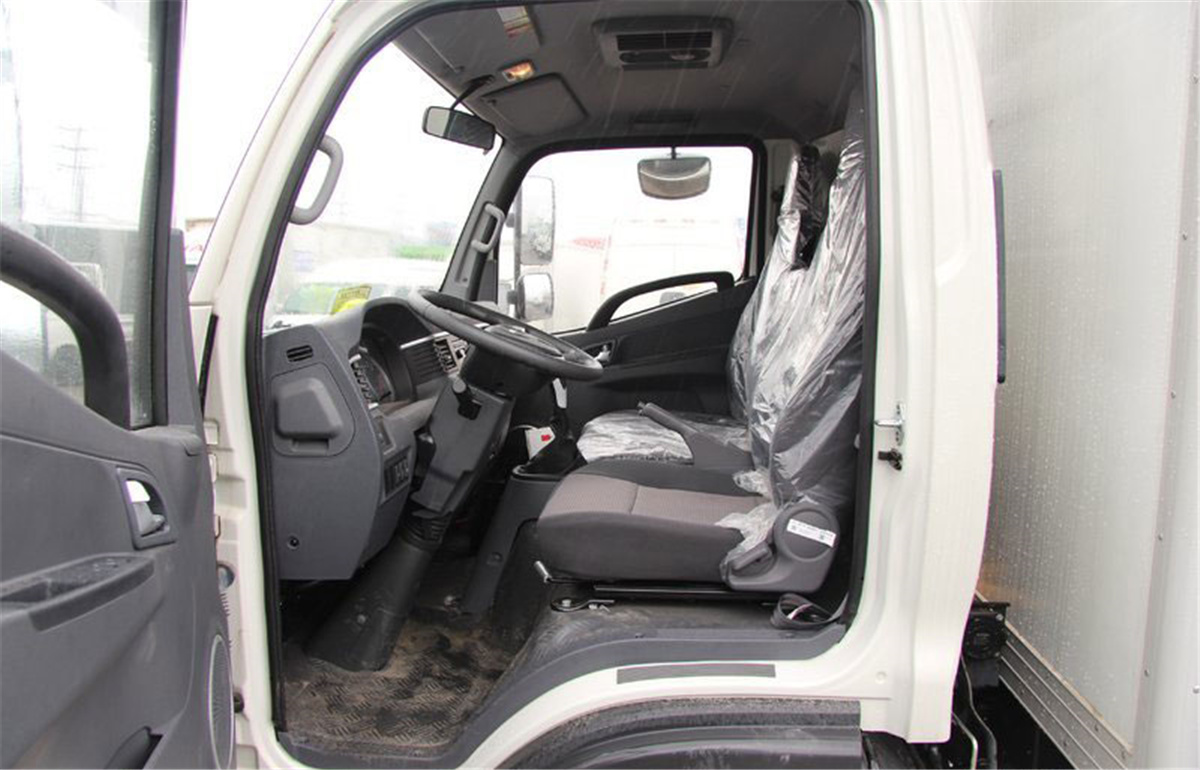

Cab parameters | |
Cab: | |
Number of passengers allowed: | 3 people |
Seat row: | Single row |

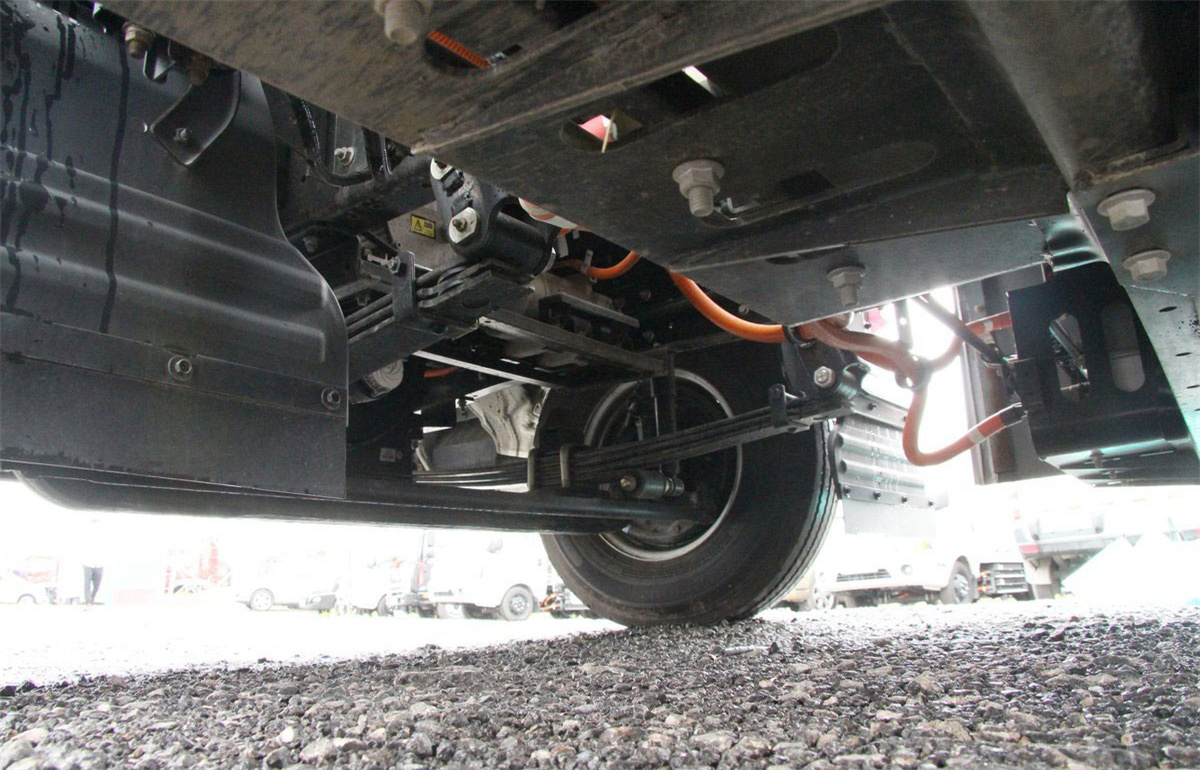

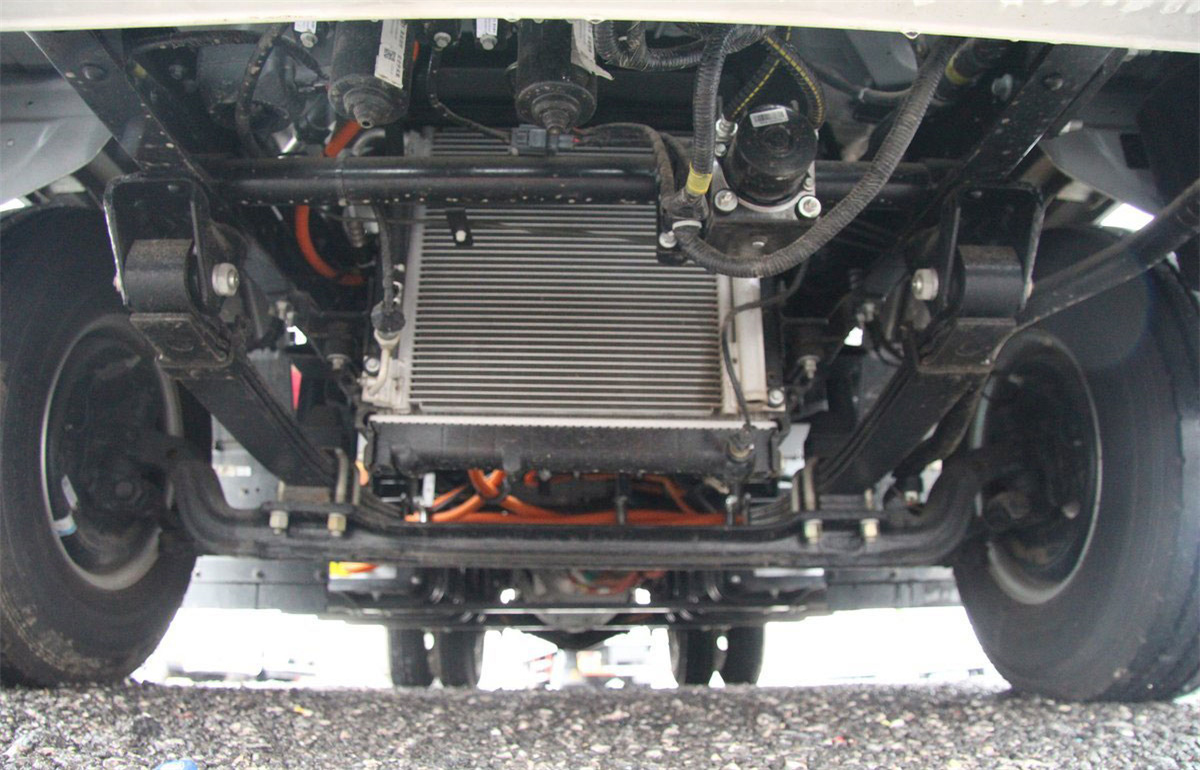

Chassis parameters | |
Front axle allowable load: | 1905kg |
Rear axle allowable load: | 2590kg |
Tire | |
Tire specifications: | 7.00R16 8PR |
Number of tires: | 6 |
Battery | |
Battery brand: | Hefei Guoxuan Hi-Tech |
Battery model | 512V202Ah160S1P |
Battery Type | Lithium iron phosphate power battery |
Battery capacity | 103.42kWh |
Energy Density | 136.24Wh/kg |

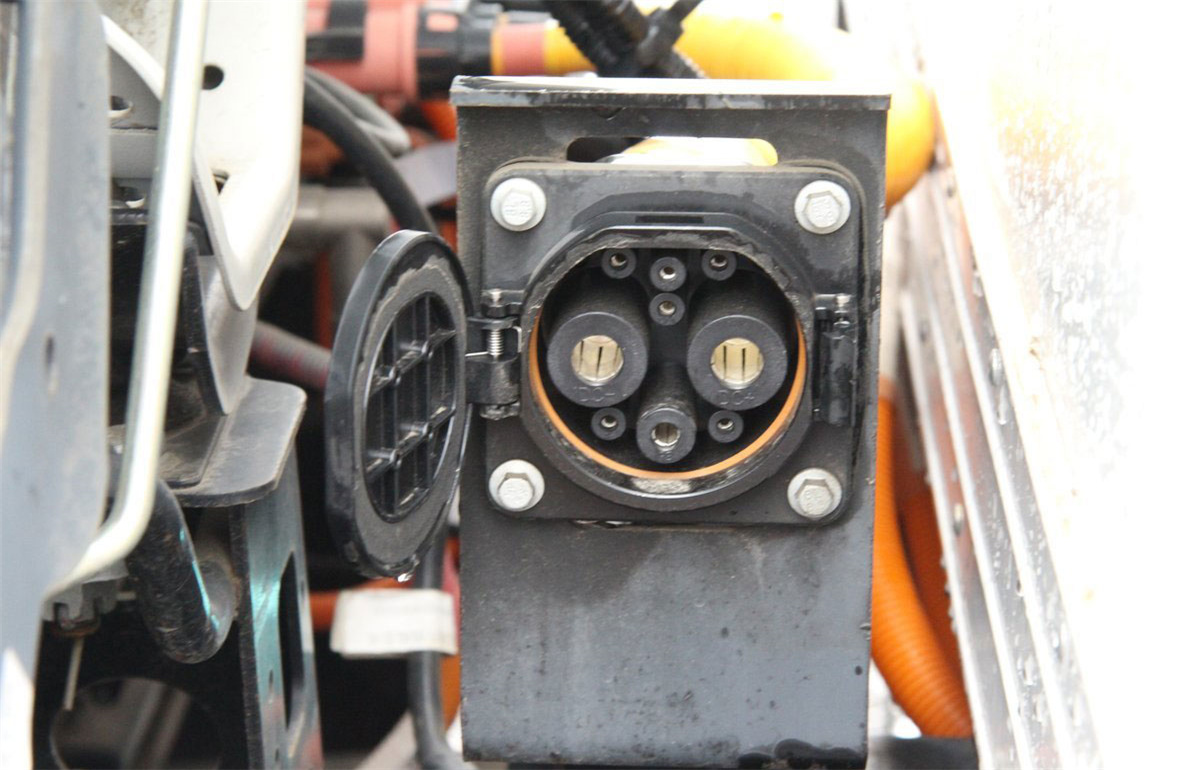

Charging method | Fast charge |
Electronic control system brand: | Suntech |
