Henrey Tiger FEV 4-seat new energy multi-functional mini electric vehicle

Short Description:

The car is equipped with reversing radar, reversing image, main and front passenger airbags, tire pressure monitoring, ABS+EBD and other configurations, as well as sports and economic driving modes. It is worth mentioning that Henrey Tiger FEV maximum trunk volume can be expanded to 681L.


Product Detail

Product Tags

Product Information

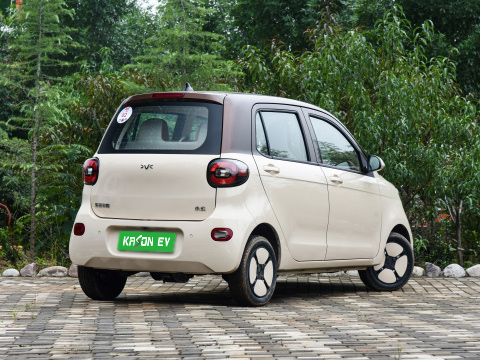

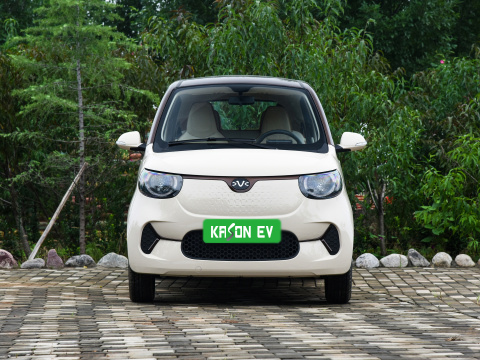

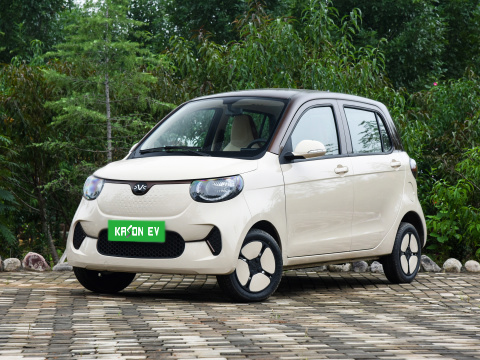

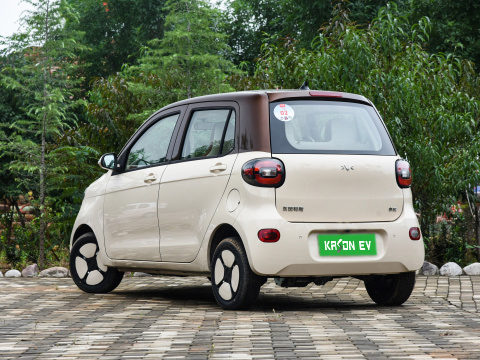

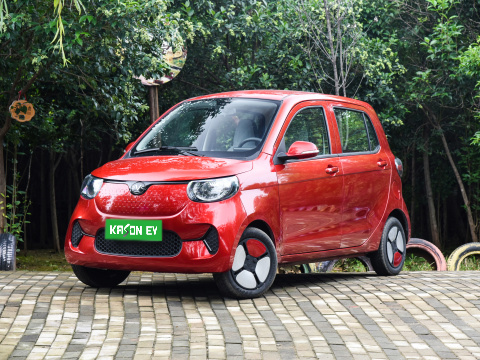

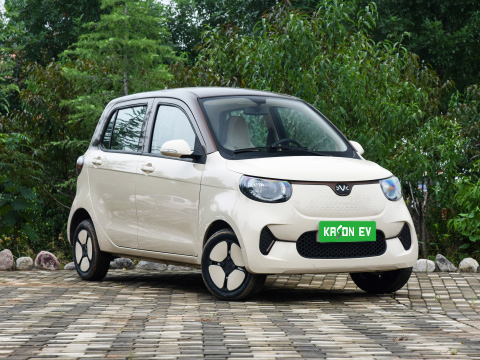

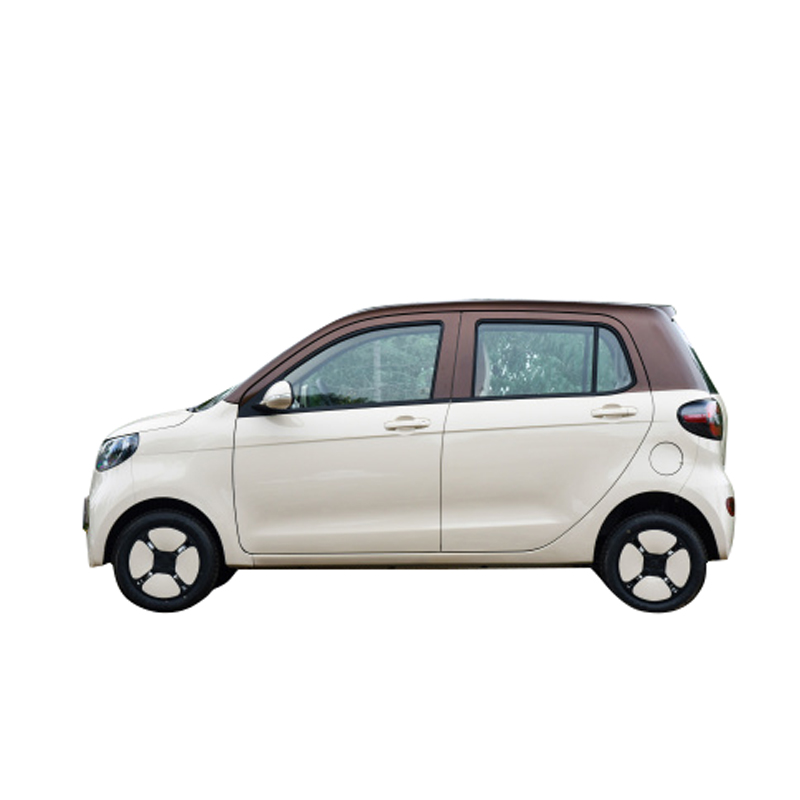

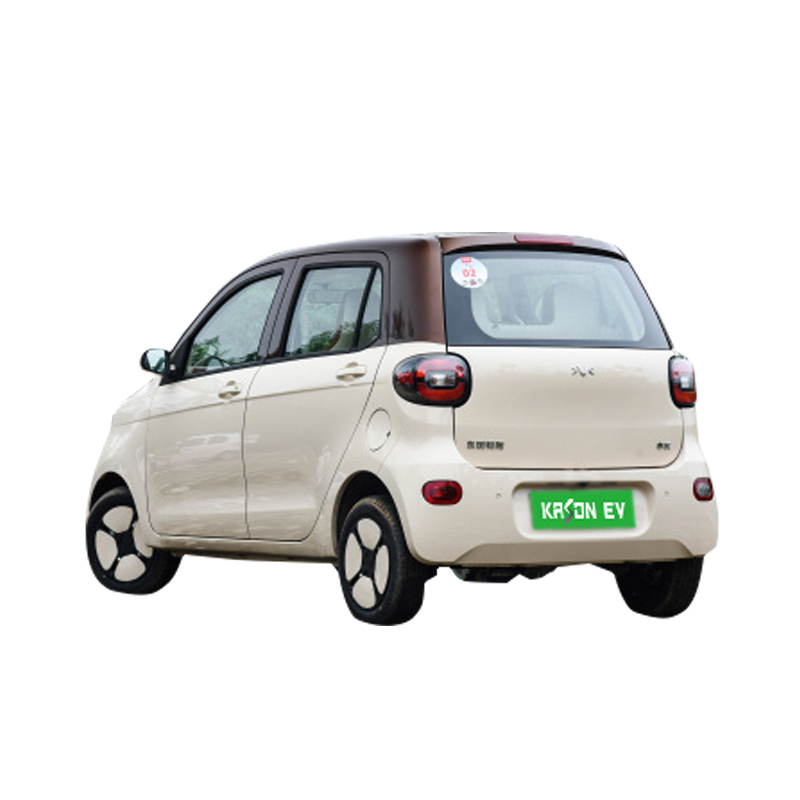

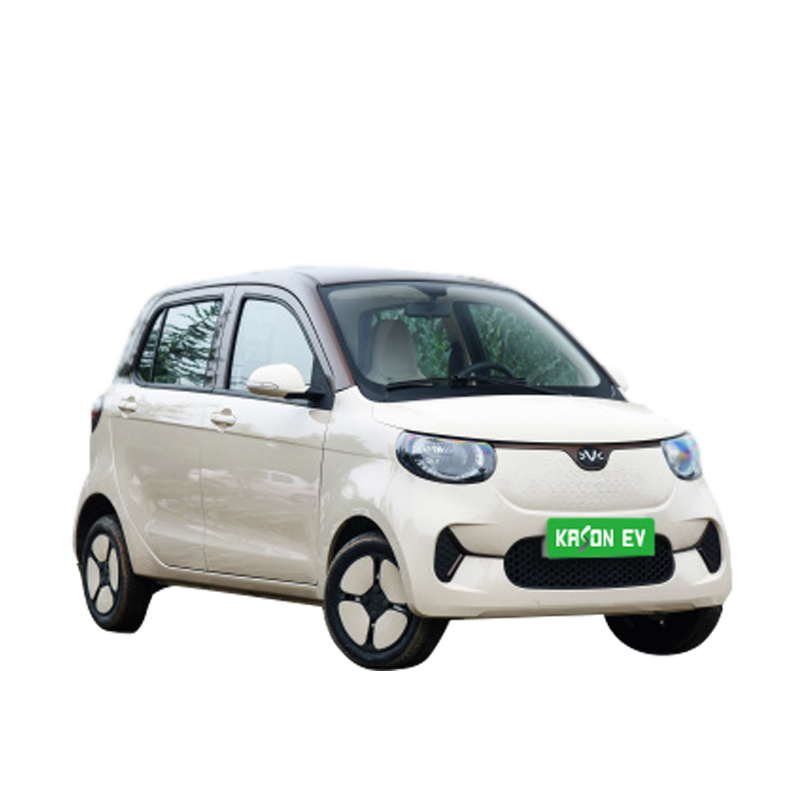

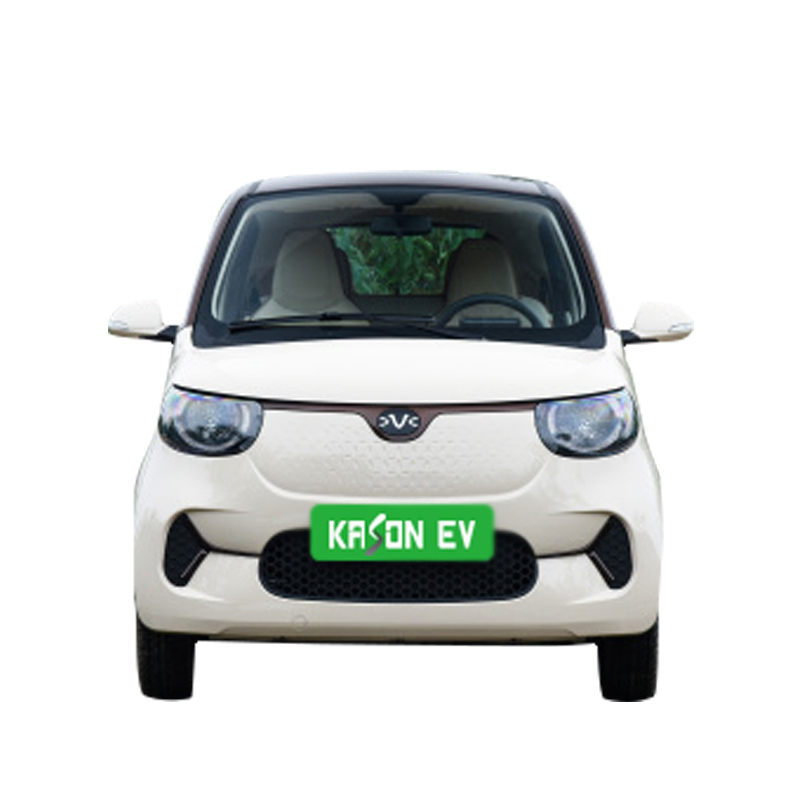

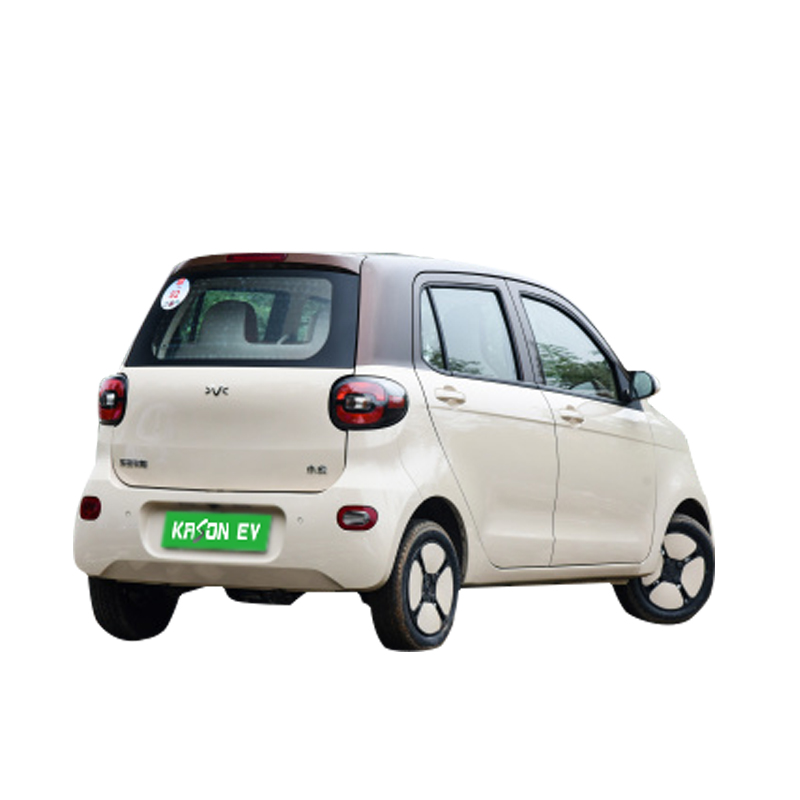

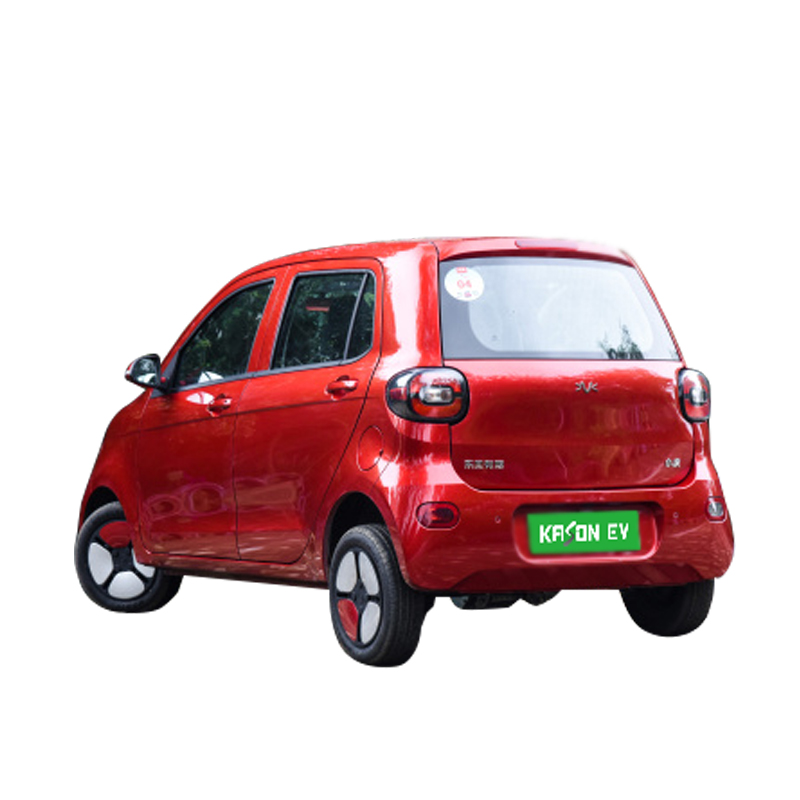

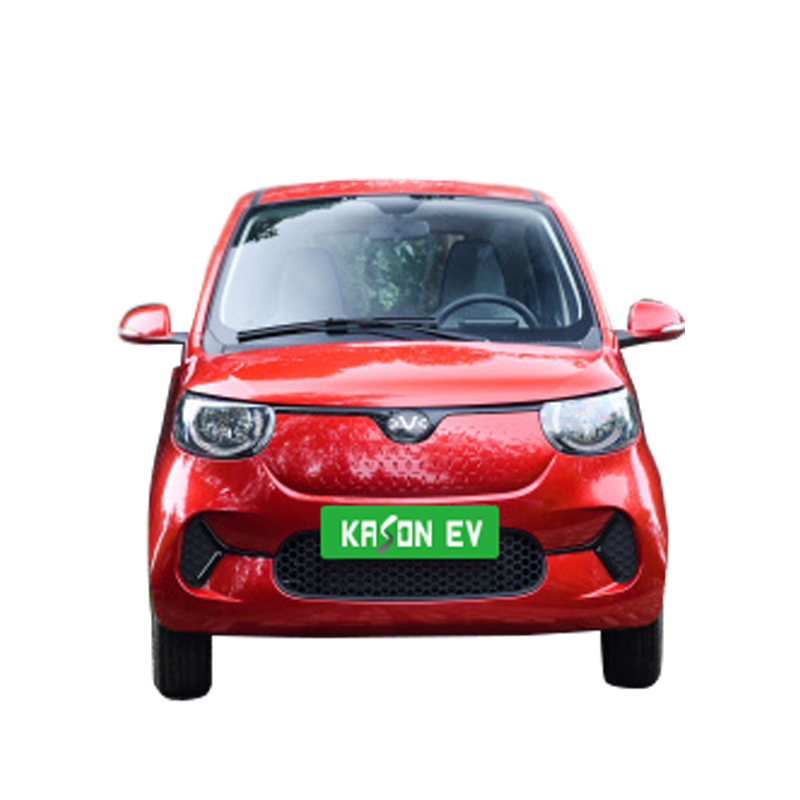

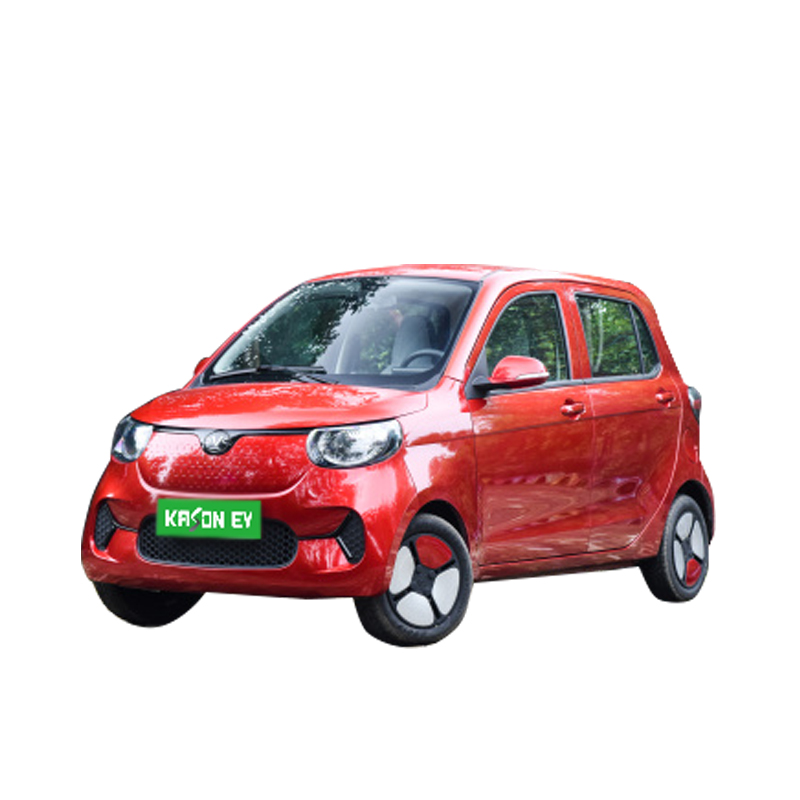

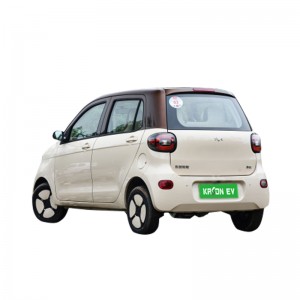

In terms of appearance, Henrey Xiaohu FEV modeling is a round and lovely route, the front face with a closed grille design, oval headlights with the curve design of the front, has a good visual effect. In addition, the new car also uses a two-color body design to further enhance the fashion sense. The rear design is simple, the overall visual center of gravity is on the high side, and the blackened oval taillights echo the headlights. In terms of body size, the length, width and height of the five-door four-seat version are 3380/1499/1610mm and the wheelbase is 2440mm.

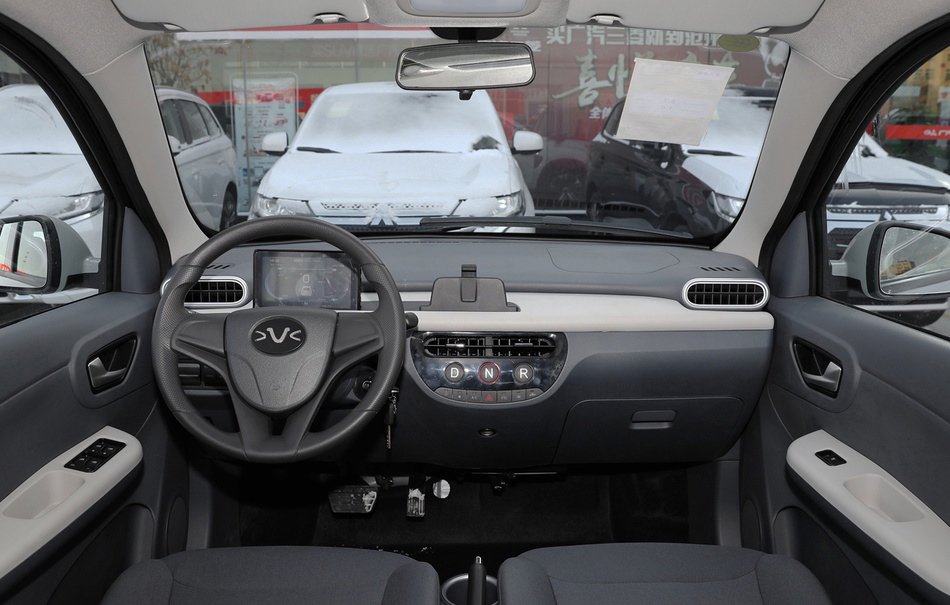

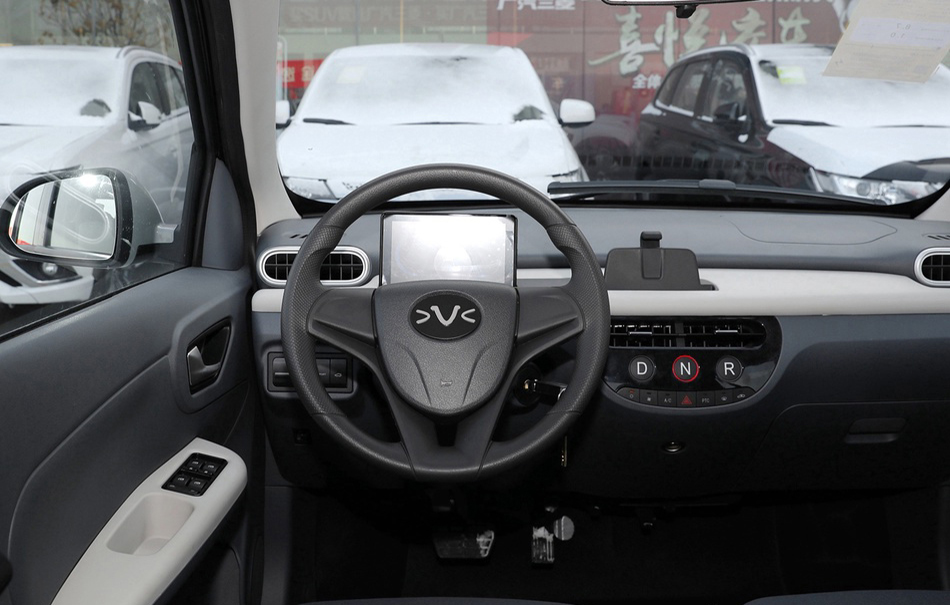

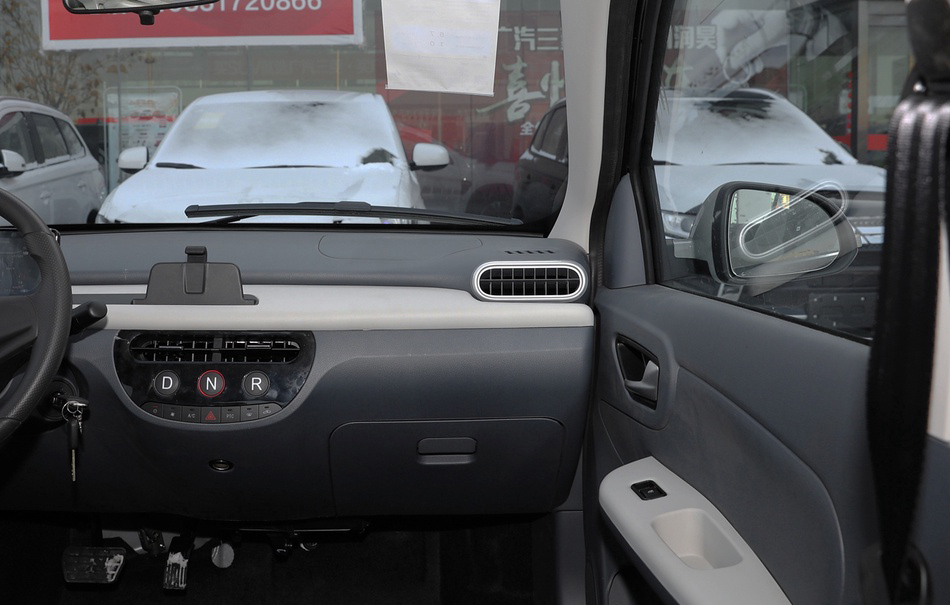

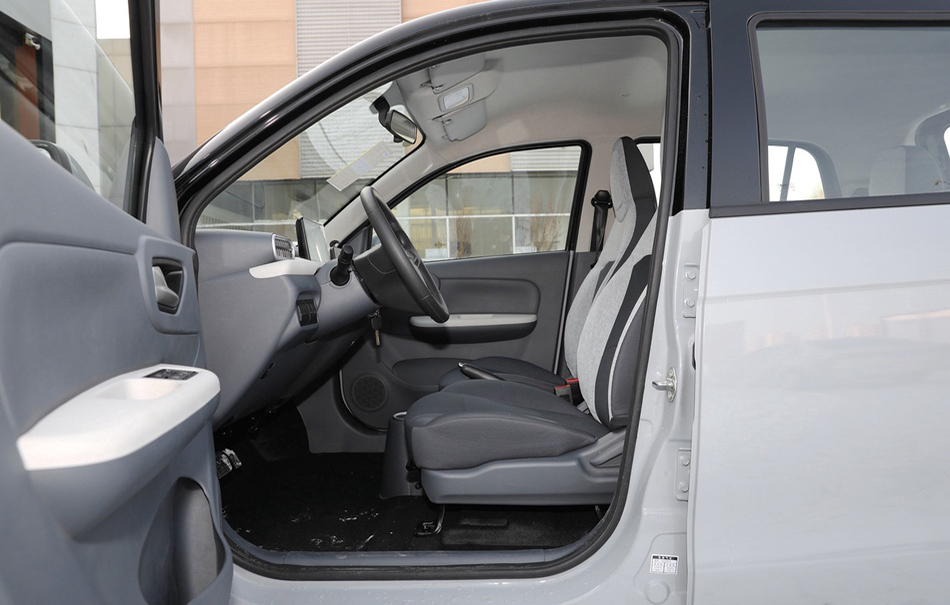

In terms of interior decoration, the new car adopts a dual-screen design with a full LCD instrument panel and a central control multimedia display screen, and a three-spoke multi-functional steering wheel. Interestingly, the push-button electronic shift mechanism is integrated into the center of the console, which is easy to see. The central control console of the vehicle is full of layers, and the color matching is young and fashionable, which makes it very lively.

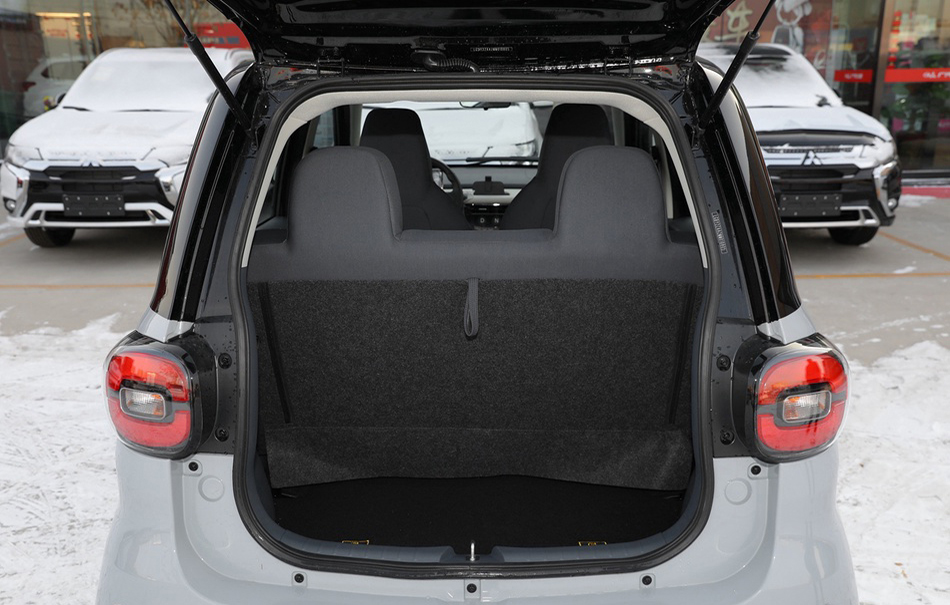

In terms of configuration, this new car is equipped with reversing radar, reversing image, main and passenger airbags, tire pressure monitoring, ABS+EBD and other configurations, as well as sports and economic driving modes. It is worth mentioning that Henrey Tiger FEV maximum trunk volume can be expanded to 681L.

In terms of power, Henrey Hongrui Xiaohu FEV three-door two-seat version is equipped with a driving motor with a maximum power of 30 kW, carrying capacity of 11.8kWh ternary lithium battery pack, NEDC range of 170 km; The five-door, four-seat version is equipped with a driving motor with a maximum power of 34 kW. It also comes with an 11.8kwh ternary lithium battery pack with a range of 160 km.

Product Specifications

Brand HENREY
Model LITTLE TIGER FEV
Version      2021 FOR-Four
Basic Parameters
Car model Minicar
Type of Energy Pure electric
Time to market Dec,2021
NEDC pure electric cruising range (KM) 160
Maximum power (KW) 34
Maximum torque [Nm] 102
Motor horsepower [Ps] 46
Length*width*height (mm) 3380*1499*1610
Body structure 5-door 4-seat hatchback
Top Speed (KM/H) 100
Car body
Longth(mm) 3380
Width(mm) 1499
Higth(mm) 1610
Wheel base(mm) 2440
Front track (mm) 1310
Rear track (mm) 1310
Minimum ground clearance (mm) 150
Body structure hatchback
Number of doors 5
Number of seats 4
Mass (kg) 765
Electric motor
Motor type Permanent magnet synchronization
Total motor power (kw) 34
Total motor torque [Nm] 102
Rear motor maximum power (kW) 34
Rear motor maximum torque (Nm) 102
Drive mode Pure electric
Number of drive motors Single motor
Motor placement Rear
Battery Type Ternary lithium battery
NEDC pure electric cruising range (KM) 160
Battery Power(kwh) 11.8
Gearbox
Number of gears 1
Transmission type Fixed gear ratio gearbox
Short name Electric vehicle single speed gearbox
Chassis Steer
Form of drive Rear-engine Rear-drive
Type of front suspension McPherson independent suspension
Type of rear suspension Five-link non-independent suspension
Boost type Electric assist
Car body structure Load bearing
Wheel braking
Type of front brake  Disc
Type of rear brake Drum
Type of parking brake Hand brake
Front Tire Specifications 155/65 R13
Rear tire specifications 155/65 R13
Cab Safety Information
Tire pressure monitoring function Tire pressure display
Seat belt not fastened reminder Driver's seat
ISOFIX Child seat connector YES
ABS anti-lock YES
Brake force distribution (EBD/CBC, etc.) YES
Assist/Control configuration
Rear parking radar YES
Driving assistance video Reverse image
Driving mode switching Sport/Economy
Hill assist YES
External / Anti-Theft Configuration
Rim material Steel
Interior central lock YES
Key type Remote control key
Battery preheating YES
Internal configuration
Steering wheel material Plastic
Trip computer display screen Color
Full LCD Dashboard YES
LCD meter size (inch) 7

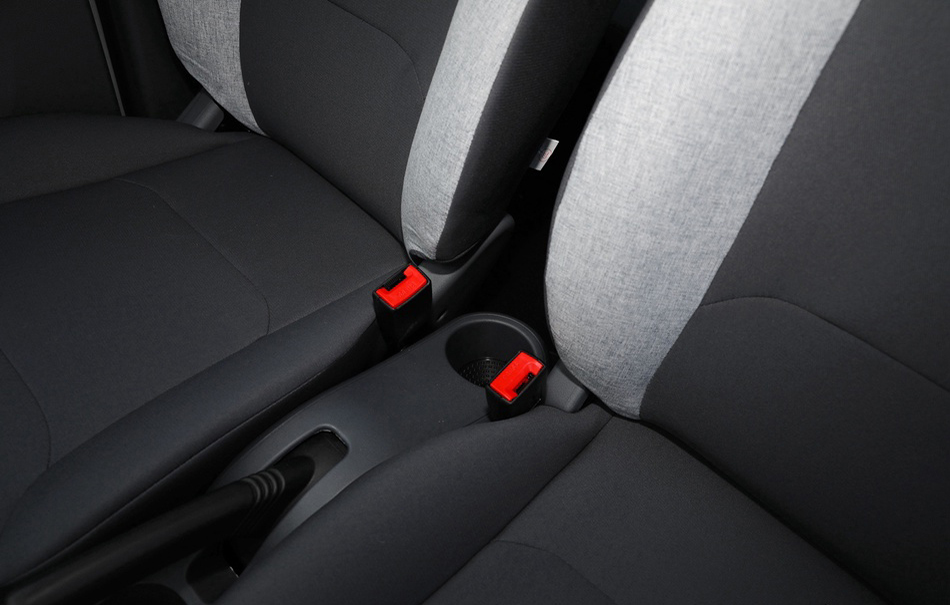

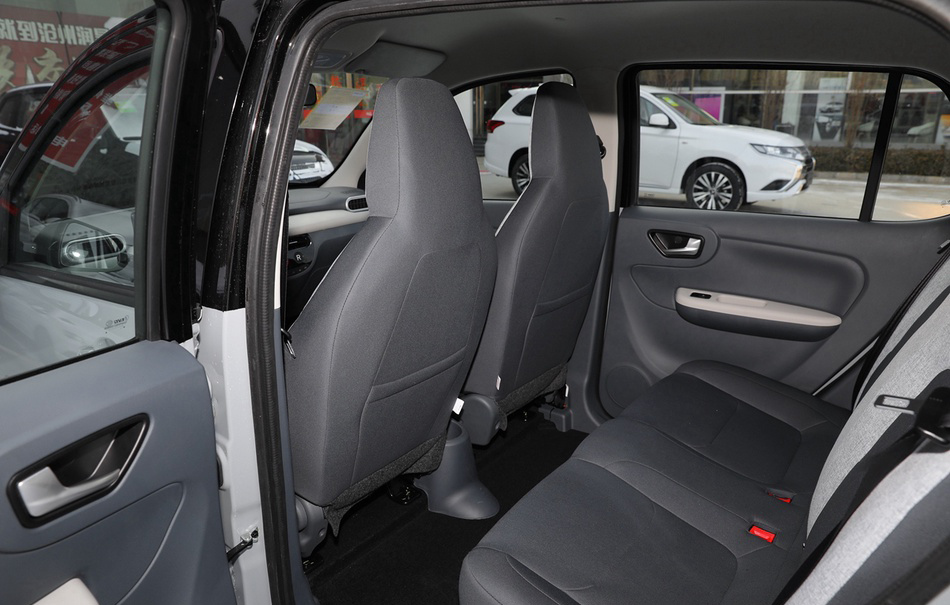

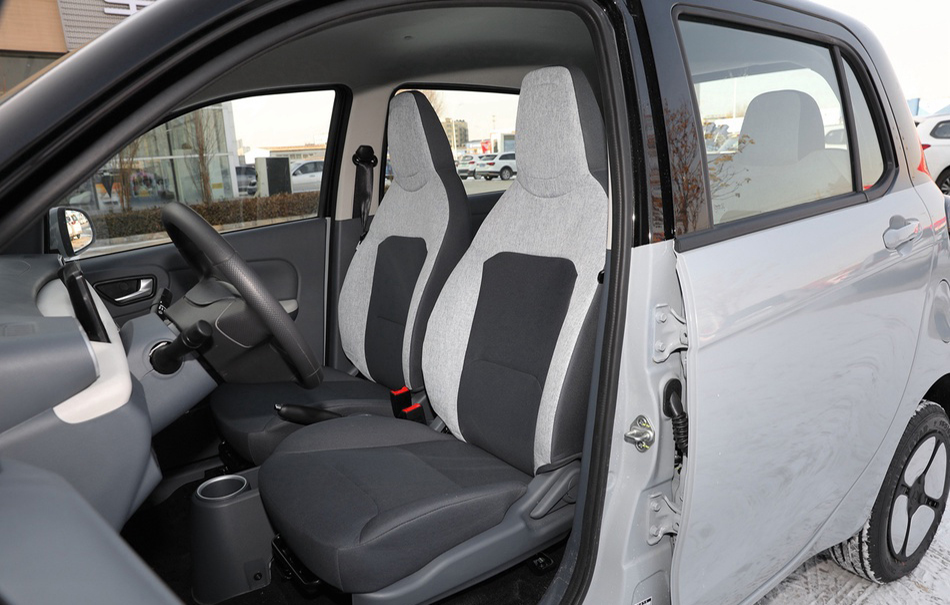

Seat configuration
Seat materials Fabric
Driver's seat adjustment Front and rear adjustment, backrest adjustment
Co-pilot  seat adjustment Front and rear adjustment, backrest adjustment
Rear seats folded down Whole down
Rear cup holder YES
Multimedia configuration
Bluetooth/Car Phone YES
Multimedia/charging interface USB
Number of USB/Type-c ports 1 in front
Number of speakers (pcs) 2
Lighting configuration
Low beam light source Halogen
High beam light source Halogen
Headlight height adjustable YES
Glass/Rearview mirror
Front power windows YES
Rear power windows YES
Interior vanity mirror Driver's seat
Air conditioner/refrigerator
Air conditioner temperature control method Manual air conditioner

Appearance
