product information

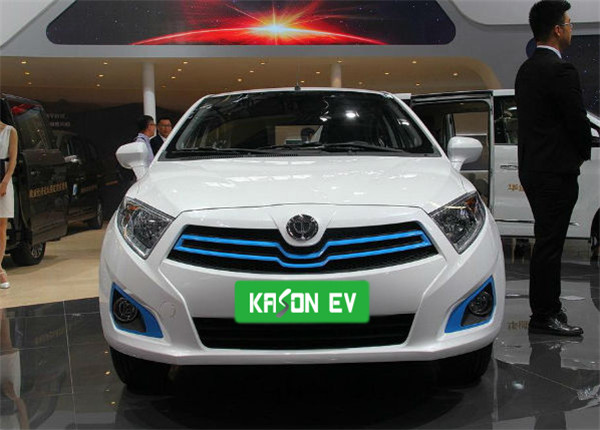

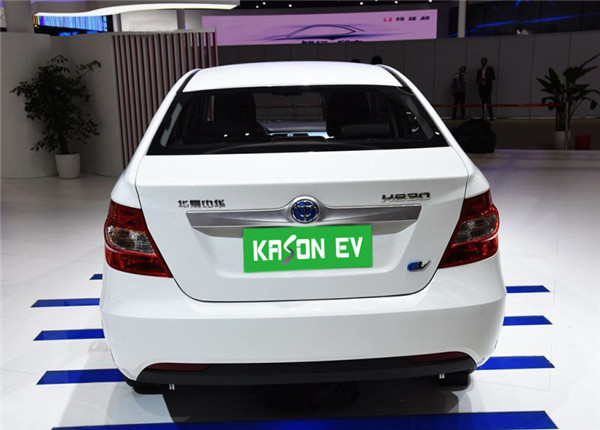

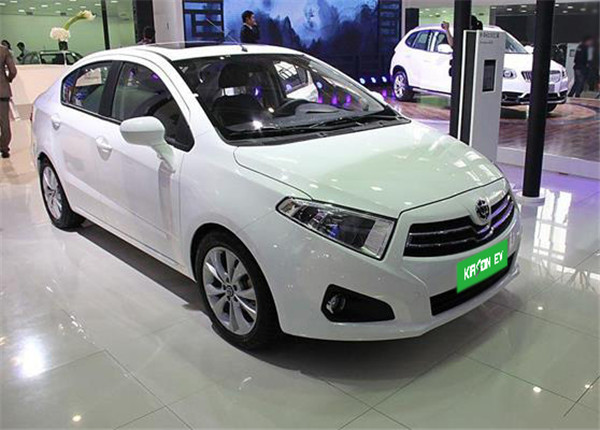

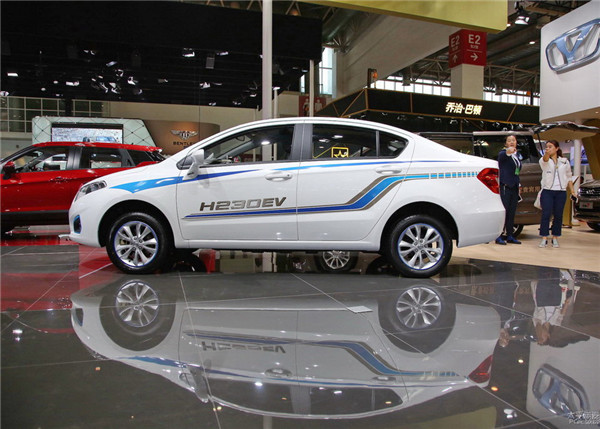

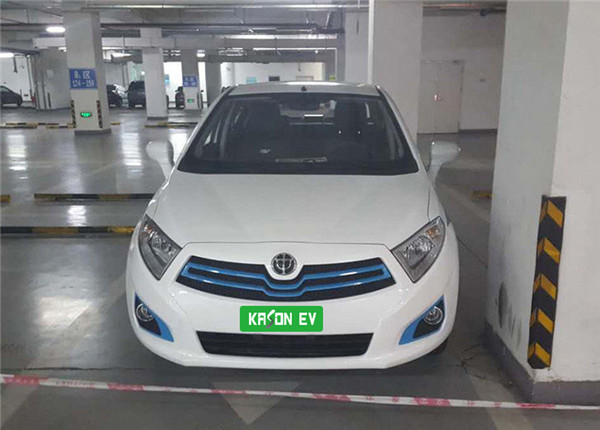

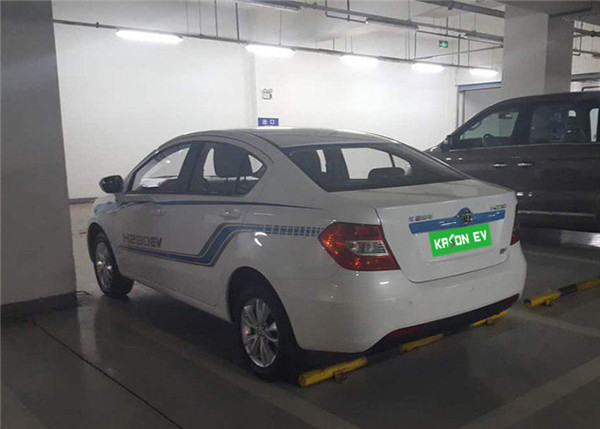

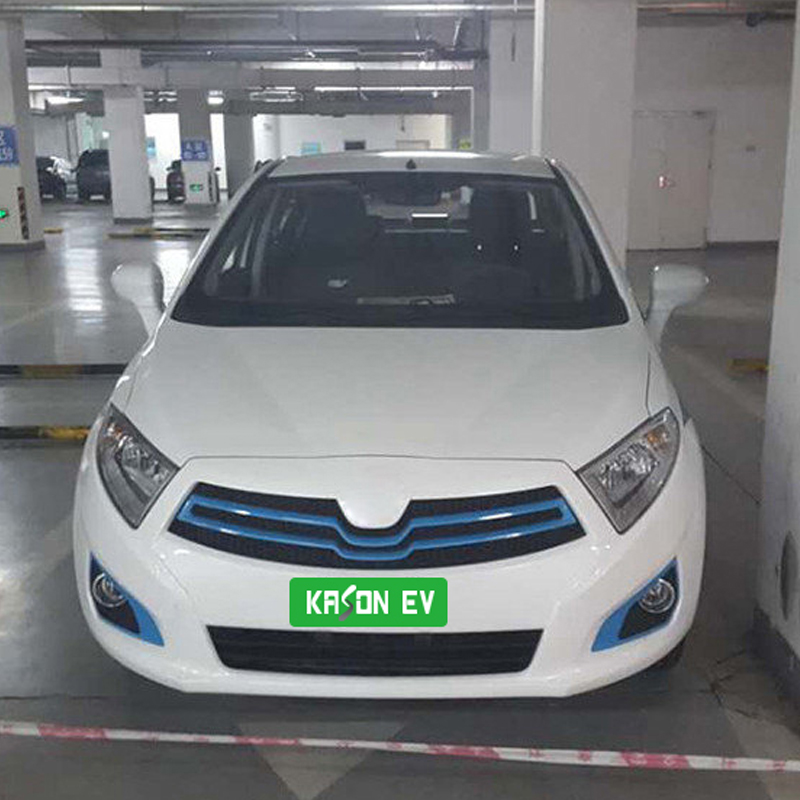

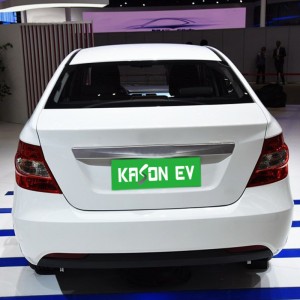

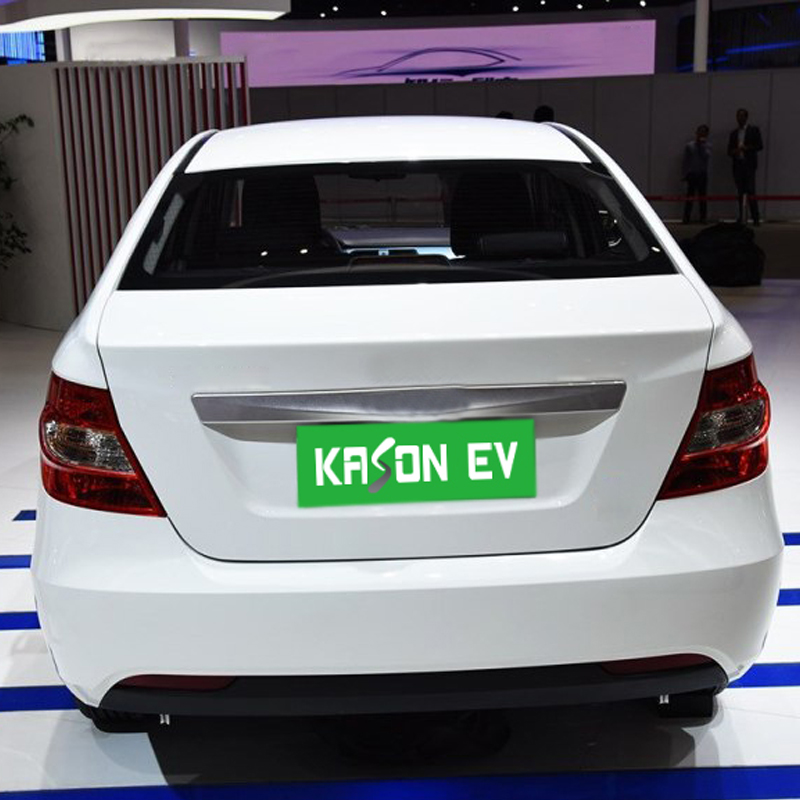

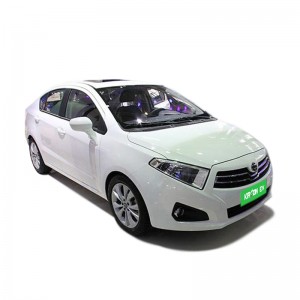

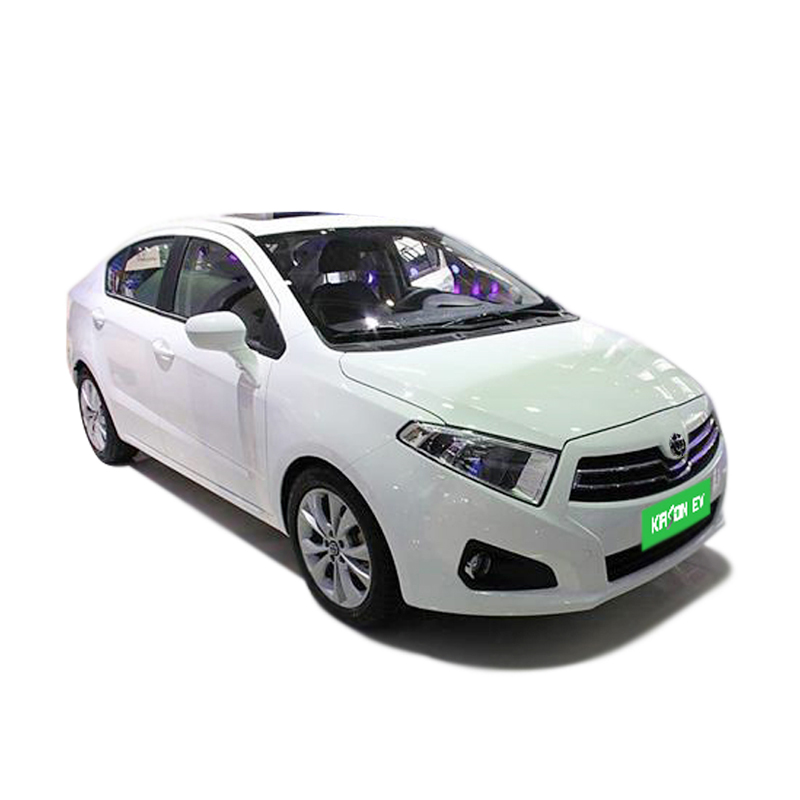

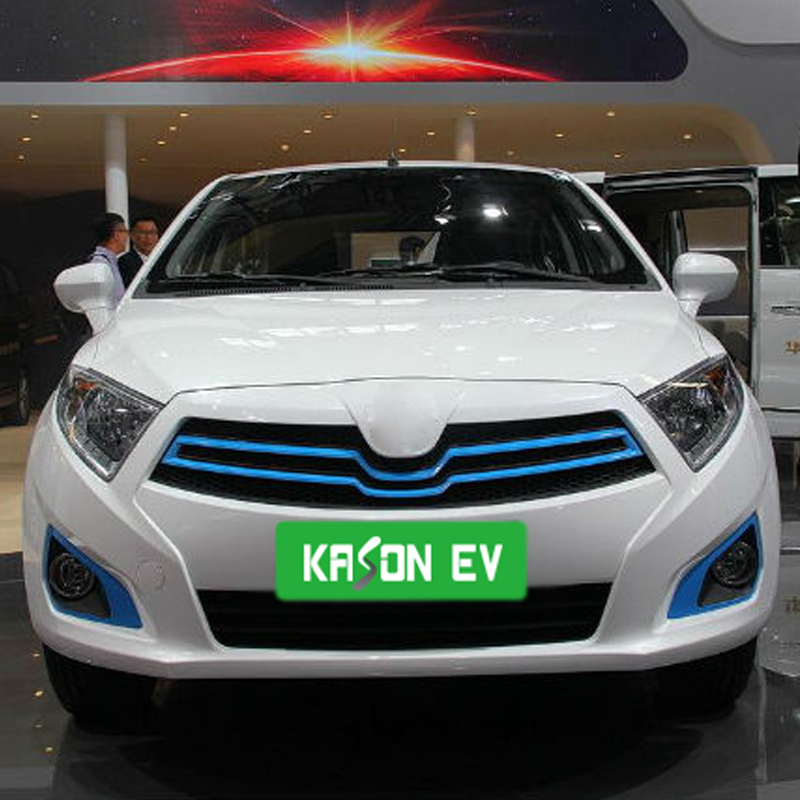

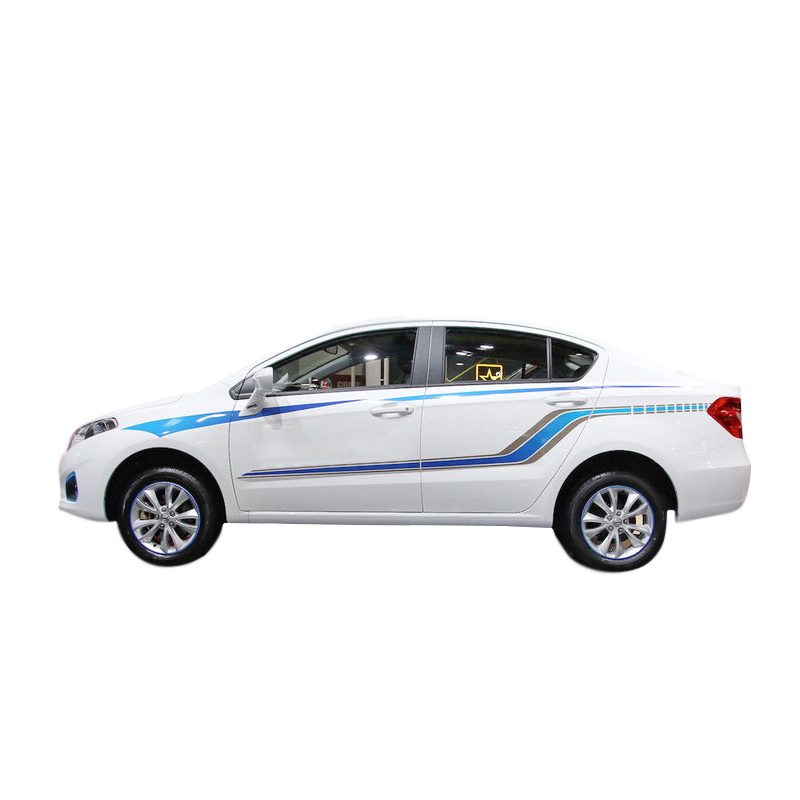

The appearance of the Chinese H230EV pure electric version is basically the same as that of the conventional power version. Blue trim is used in the front air intake grille and license plate frame of the new car. In addition, blue ribbon is affixed to the body of the new car, and EV logo is affixed to the bottom right corner of the rear to show the identity of the electric car.

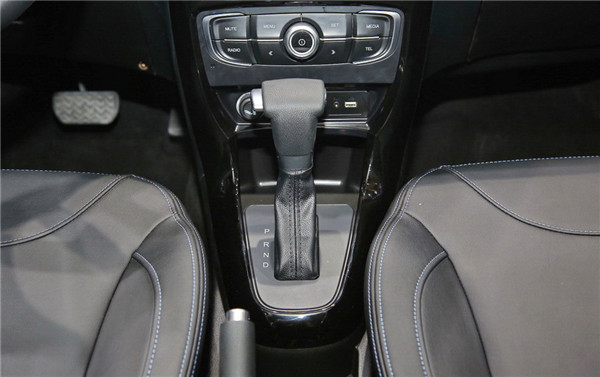

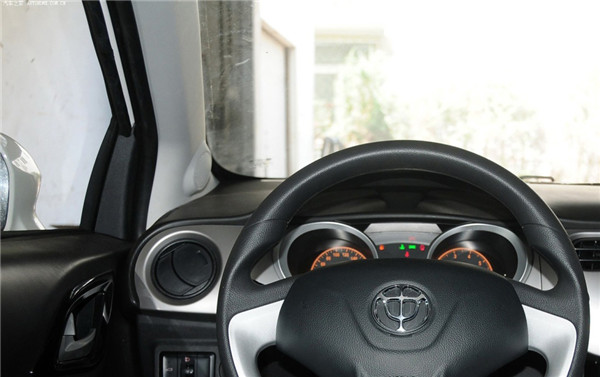

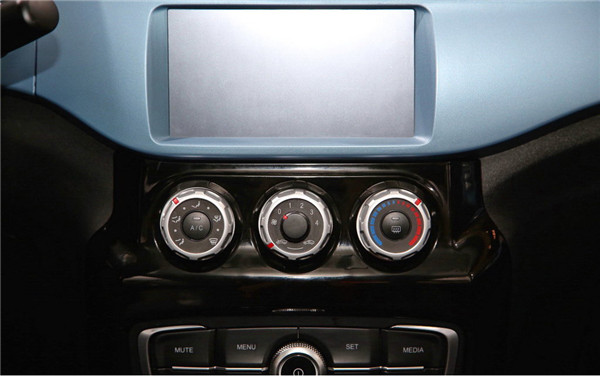

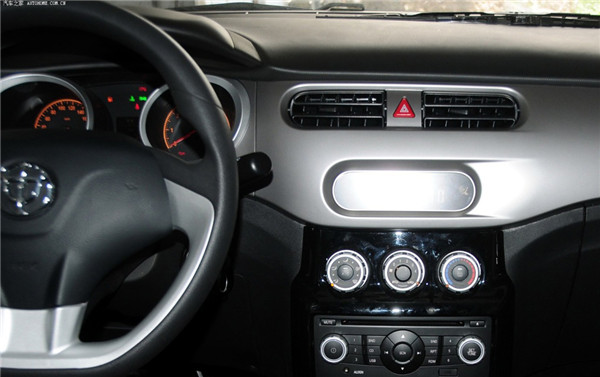

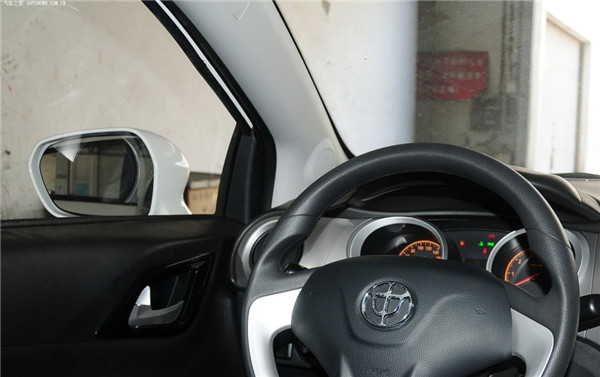

The Chinese H230EV pure electric version adopts black interior color matching, and uses blue decoration in the center console and steering wheel. The new car adopts a newly designed instrument, with blue light belt on both sides of the dial, showing an excellent effect. In addition, the car is equipped with a large LCD screen, which can display information such as the vehicle's driving status.

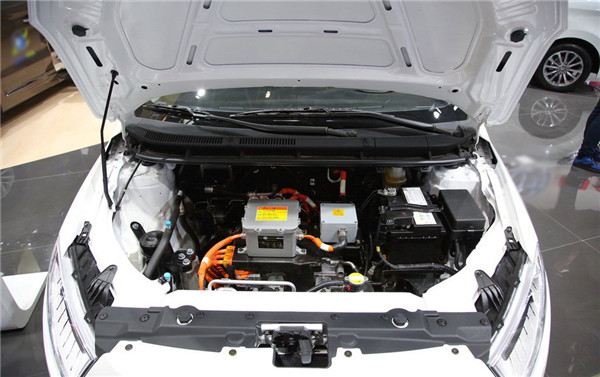

In terms of power, the electric motor of the H230EV has a maximum power of 95 HP (70kW), a peak torque of 218N·m, and a top speed of 135km/h. In terms of battery, the car is equipped with a 24kwh ternary lithium-ion battery pack and has a range of 150km. The new car uses ternary lithium-ion batteries with a maximum capacity of 24kWh. In terms of performance, the Chinese H230 EV has a maximum range of 200km and a top speed of 135km/h. In terms of charging time, the comfortable charging time is 7 hours; The luxury model takes 3.5 hours to charge.
Product Specifications
| Brand | CMC |
| Model | H230EV |
| Basic parameters | |
| Car model | Small size car |
| Type of Energy | Pure electric |
| On-board computer display | Color |
| On-board computer display（inch） | 7 |
| NEDC pure electric cruising range (KM) | 158 |
| Electric Motor [Ps] | 95 |
| Gearbox | Electric vehicle single speed gearbox |
| Length, width and height (mm) | 4390*1703*1497 |
| Number of seats | 5 |
| Body structure | 3 compartment |
| Top Speed (KM/H) | 135 |
| Official 0-100km/h acceleration (s) | 11.6 |
| Wheel base(mm) | 2570 |
| Mass (kg) | 1340 |
| Electric motor | |
| Motor type | Permanent magnet synchronization |
| Motor maximum horsepower (PS) | 95 |
| Total motor power (kw) | 70 |
| Total motor torque [Nm] | 218 |
| Front motor maximum power (kW) | 70 |
| Type | Ternary lithium battery |
| Battery capacity(kwh) | 24 |
| Electricity consumption[kWh/100km] | 13.2 |
| Drive mode | Pure electric |
| Number of drive motors | Single motor |
| Motor placement | Front |
| Chassis Steer | |
| Form of drive | Front drive |
| Type of front suspension | Double cross-arm independent suspension |
| Type of rear suspension | Leaf spring dependent suspension |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Drum type |
| Type of parking brake | Hand brake |
| Front Tire Specifications | 185/60 R15 |
| Rear tire specifications | 185/60 R15 |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Front side airbag | YES |
| Front head airbag (curtain) | YES |
| Rear head airbag (curtain) | YES |
| ISOFIX Child seat connector | YES |
