Product Information
Geely Xingyue is equipped with 2.0TD, MHEV and PHEV power versions, which are divided into two-drive and four-drive. The new car has a 2.0td engine with a maximum power of 238 horsepower (175kW). The plug-in hybrid version will carry a plug-in hybrid system consisting of a 1.5TD engine, electric motor and battery. The MHEV mild hybrid is equipped with a 48V light hybrid system on top of the 1.5TD.
Xingyue adopts the design concept of "dynamic moment", on the basis of "time racing aesthetics", draws inspiration from life and nature, freeze the most dynamic moment, and integrates dynamic and changeable visual characteristics in static state. Xingyue is a sport SUV that achieves the ultimate balance, balancing the back modeling and use space, balancing the movement control and ride comfort. Auspicious Xingyue has a total of 7 colors, respectively Zeus white, knight black, glacier silver, thunder gray, Hera red, Sea King blue, star gold.

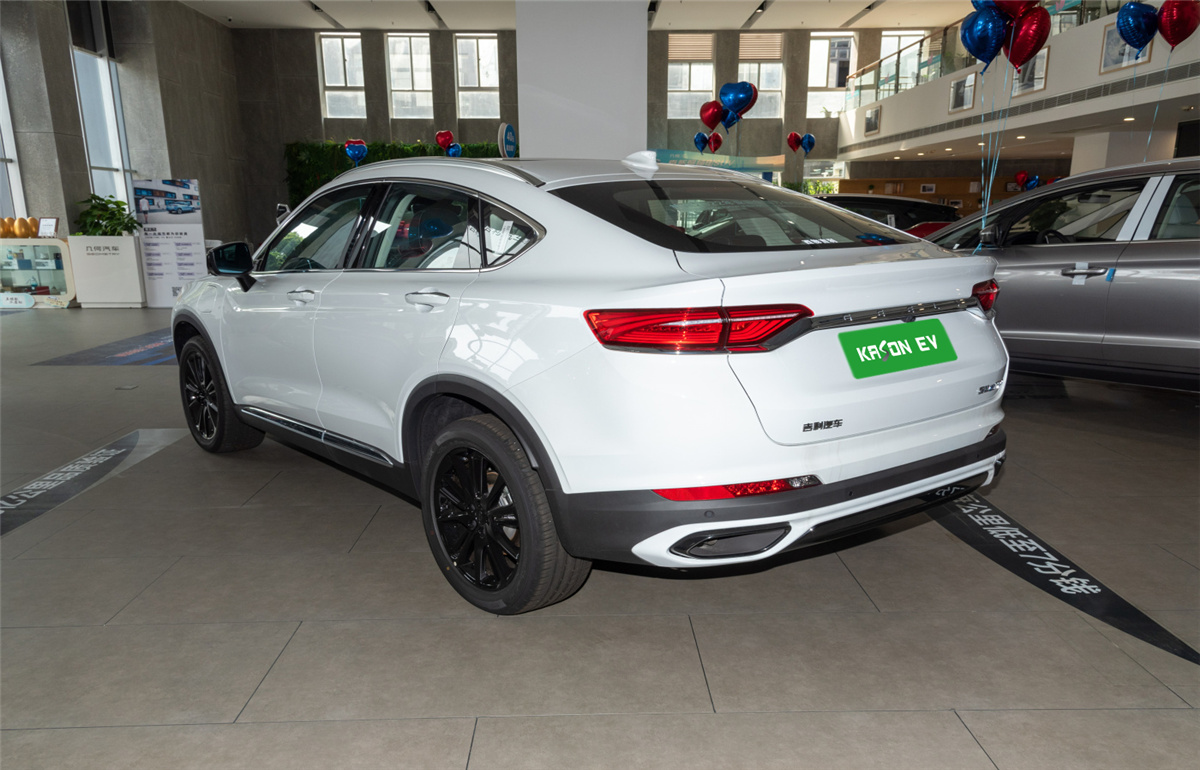

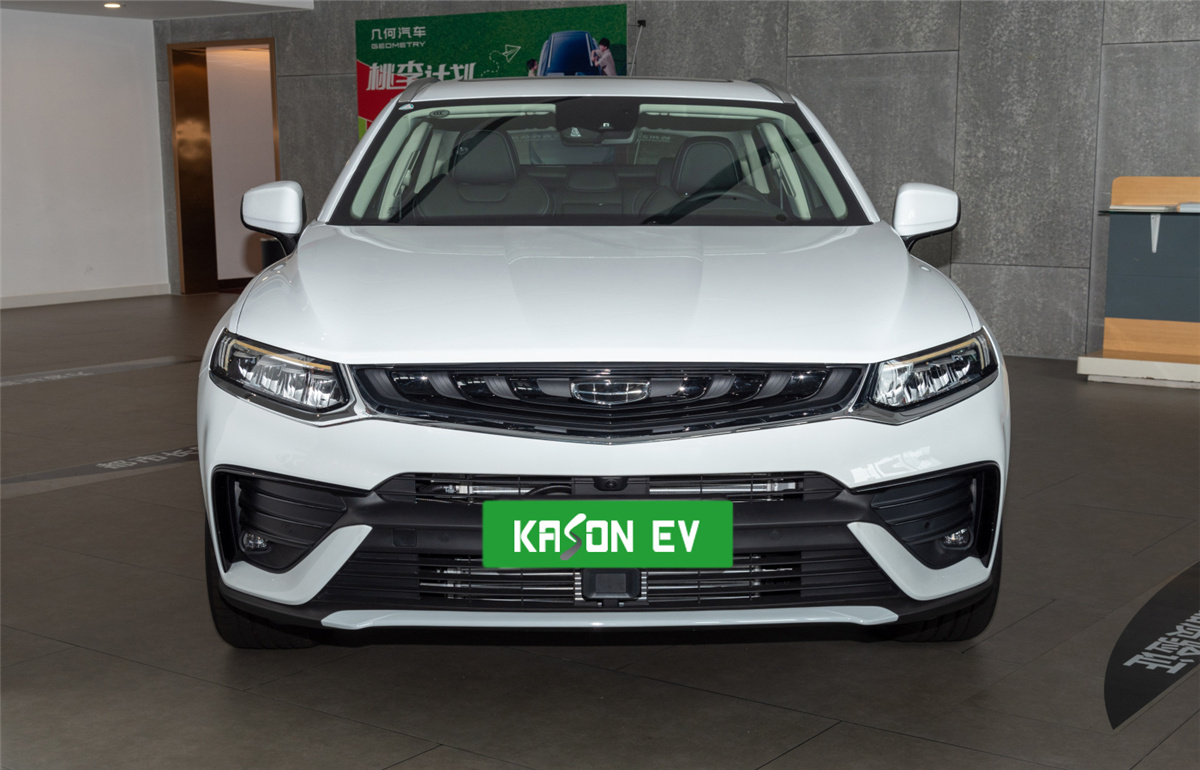

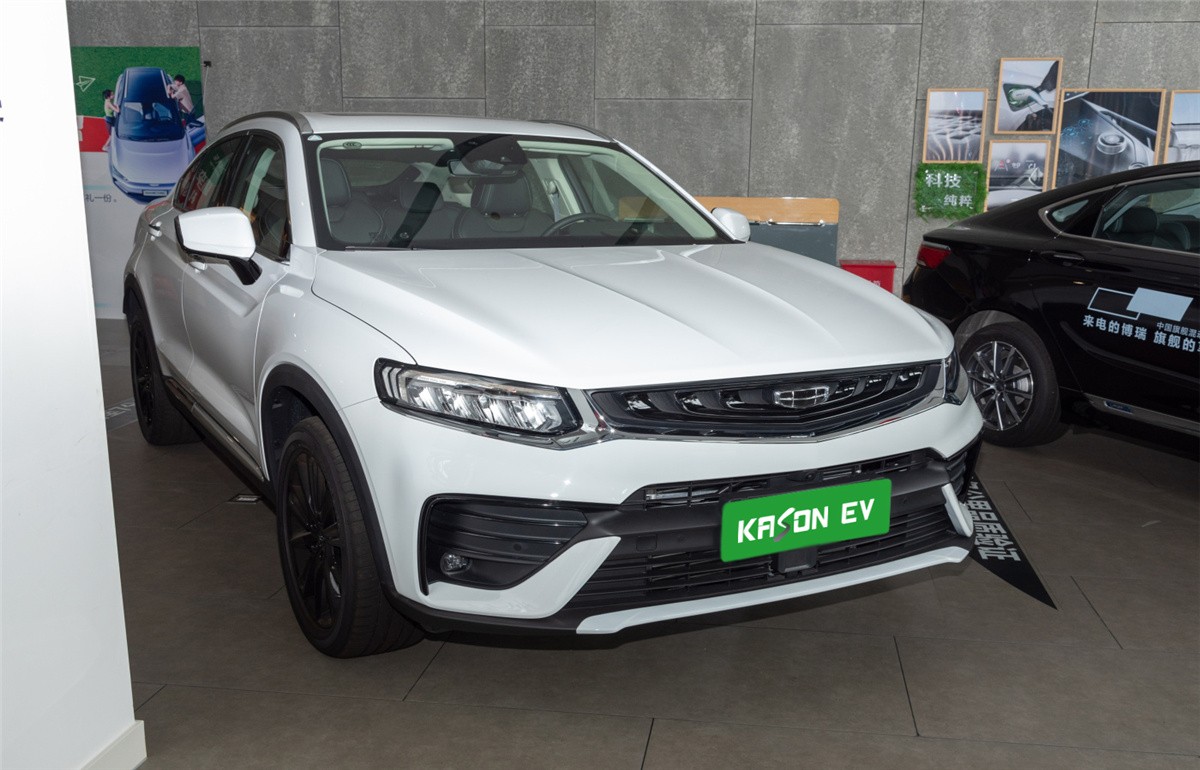

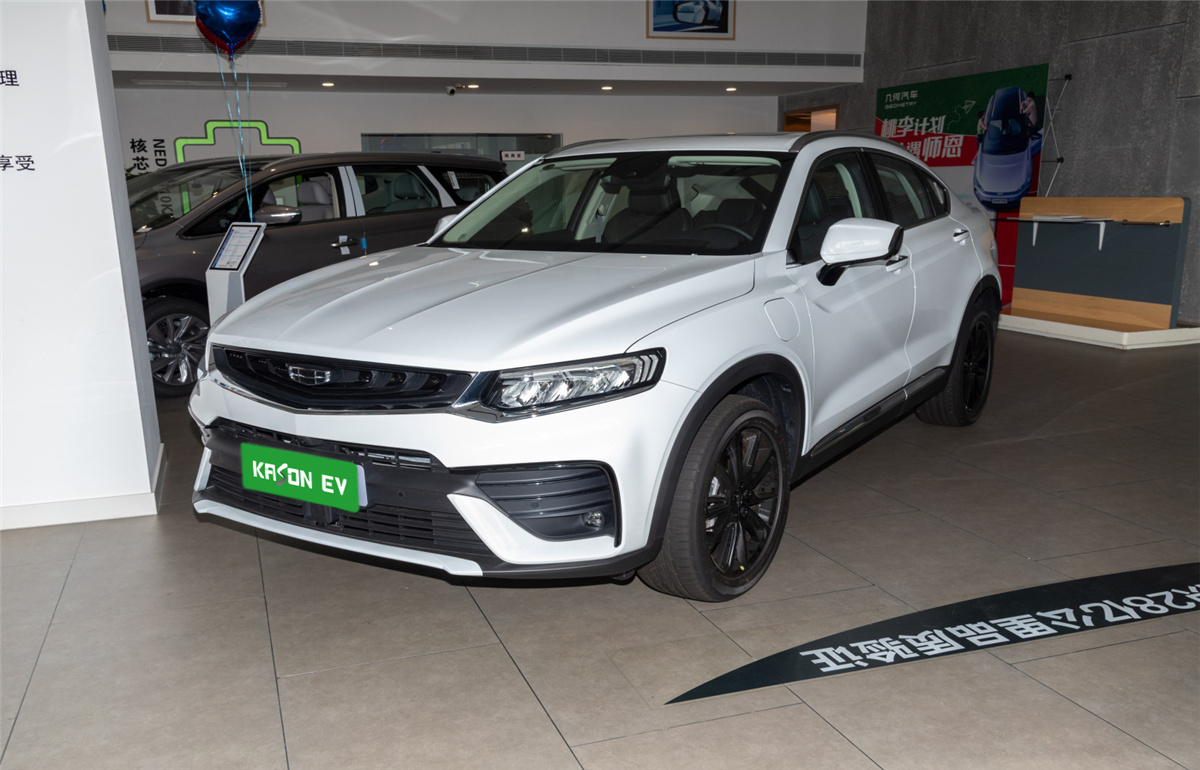

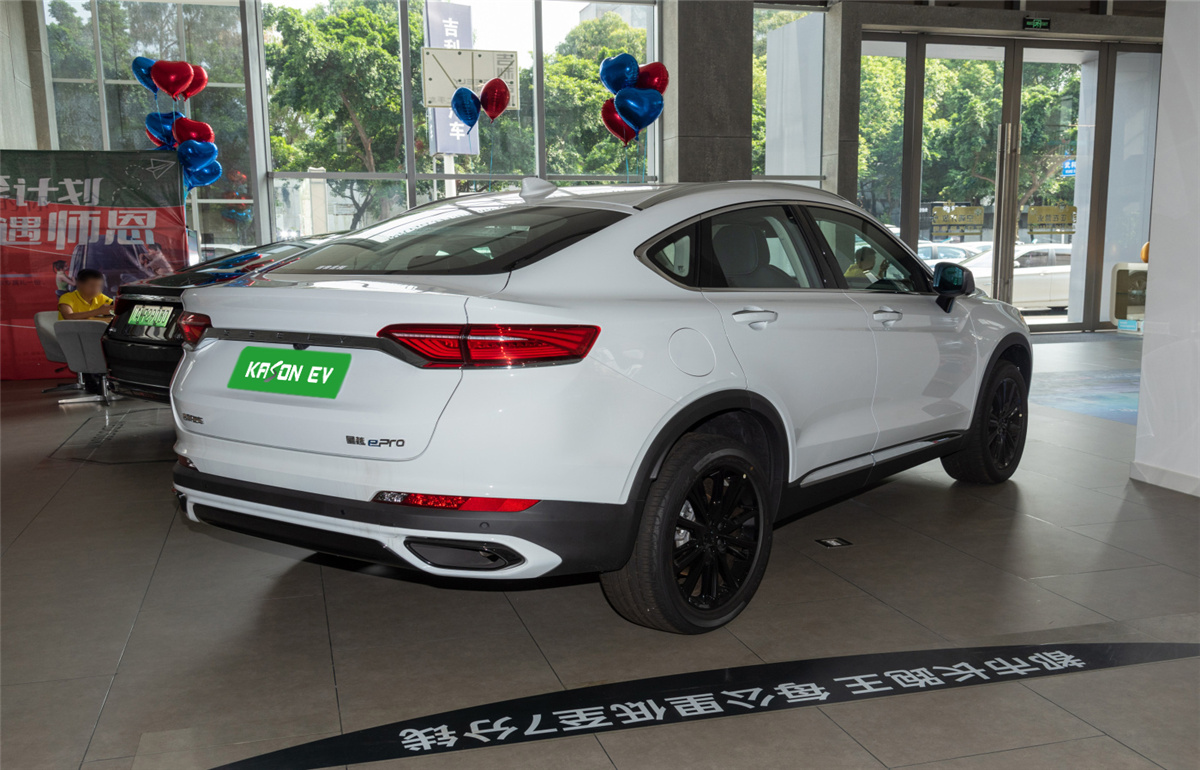

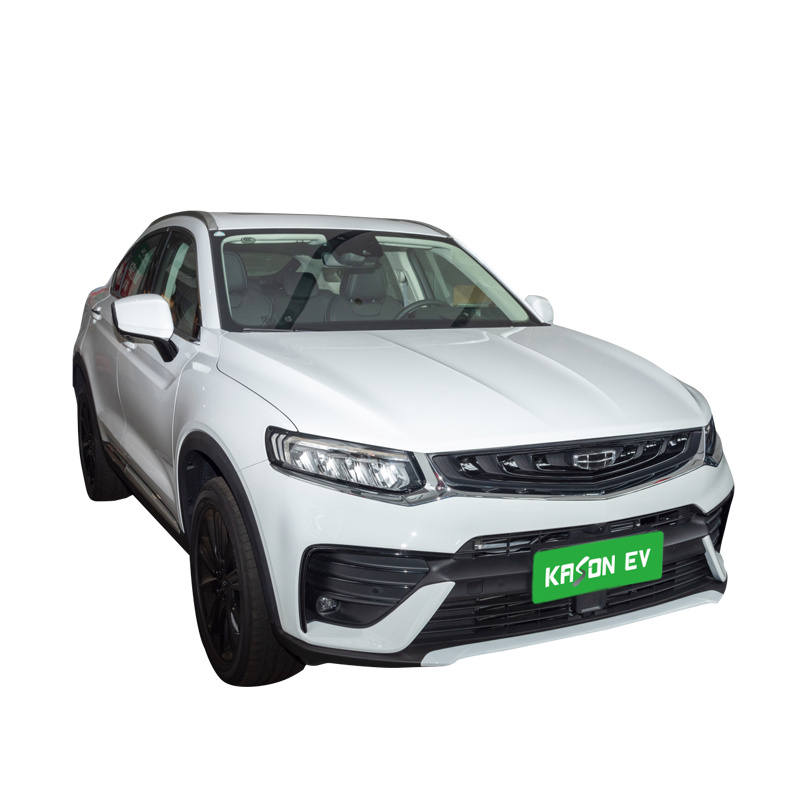

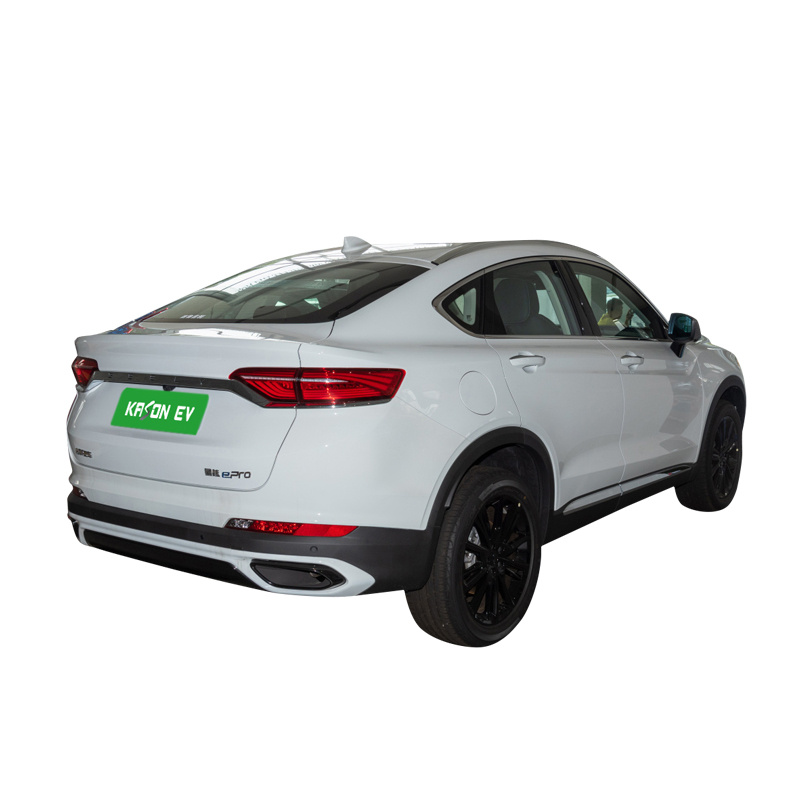

Using the latest Geely LOGO, the body design is Coupe style, the grille is rippled with the latest design, the chrome trim Outlines the hard front face, and the front surround uses large area of black components. The side of the body, the sliding back design is its most important feature, the wind resistance coefficient is 0.325. The body is decorated with chrome elements.

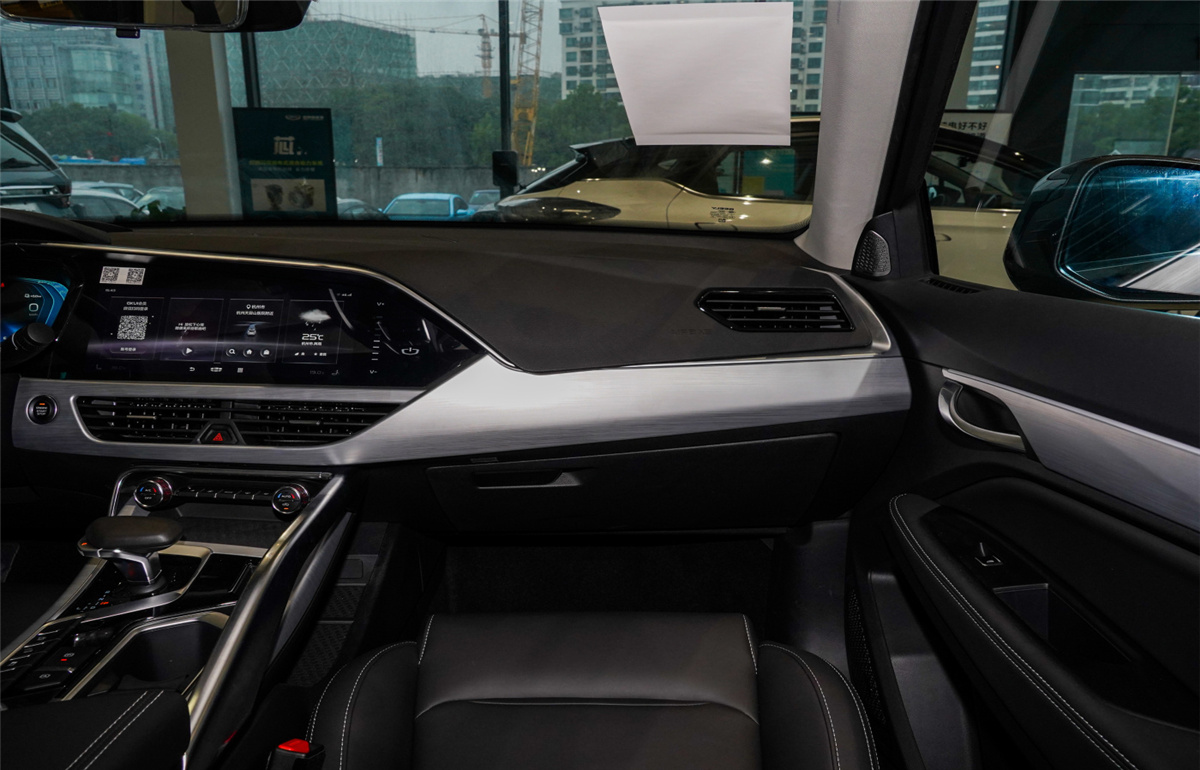

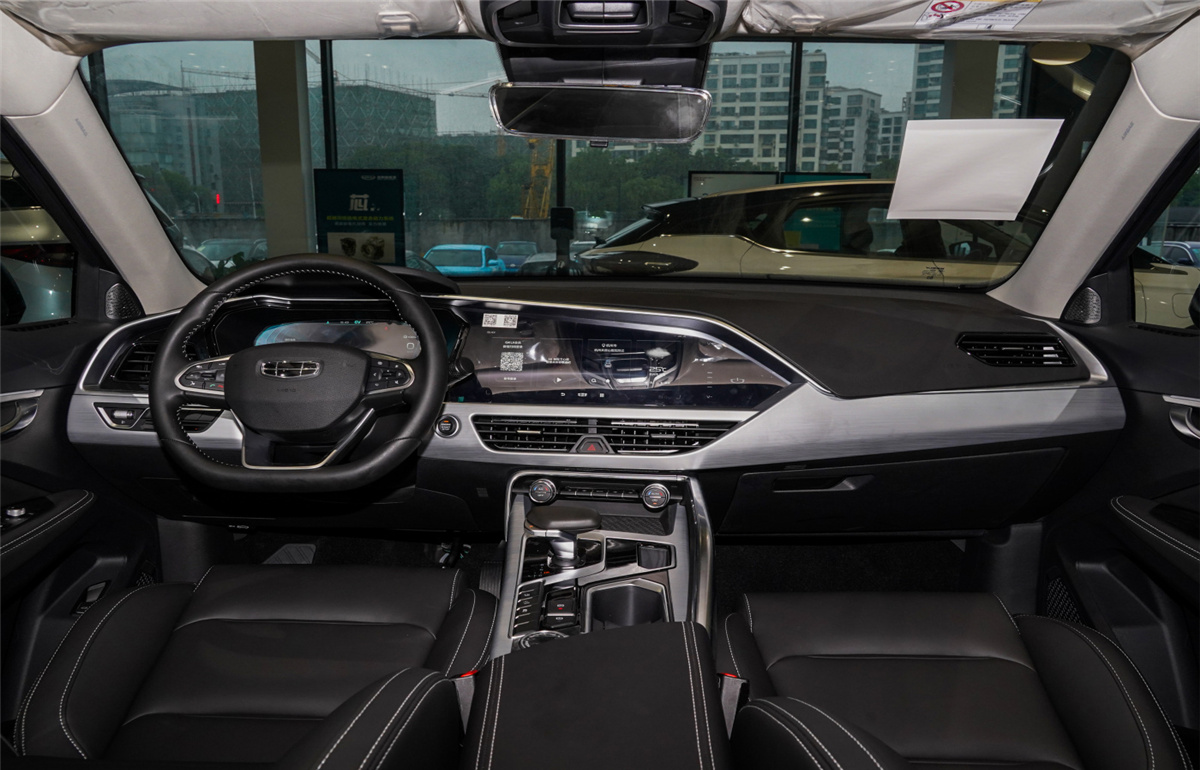

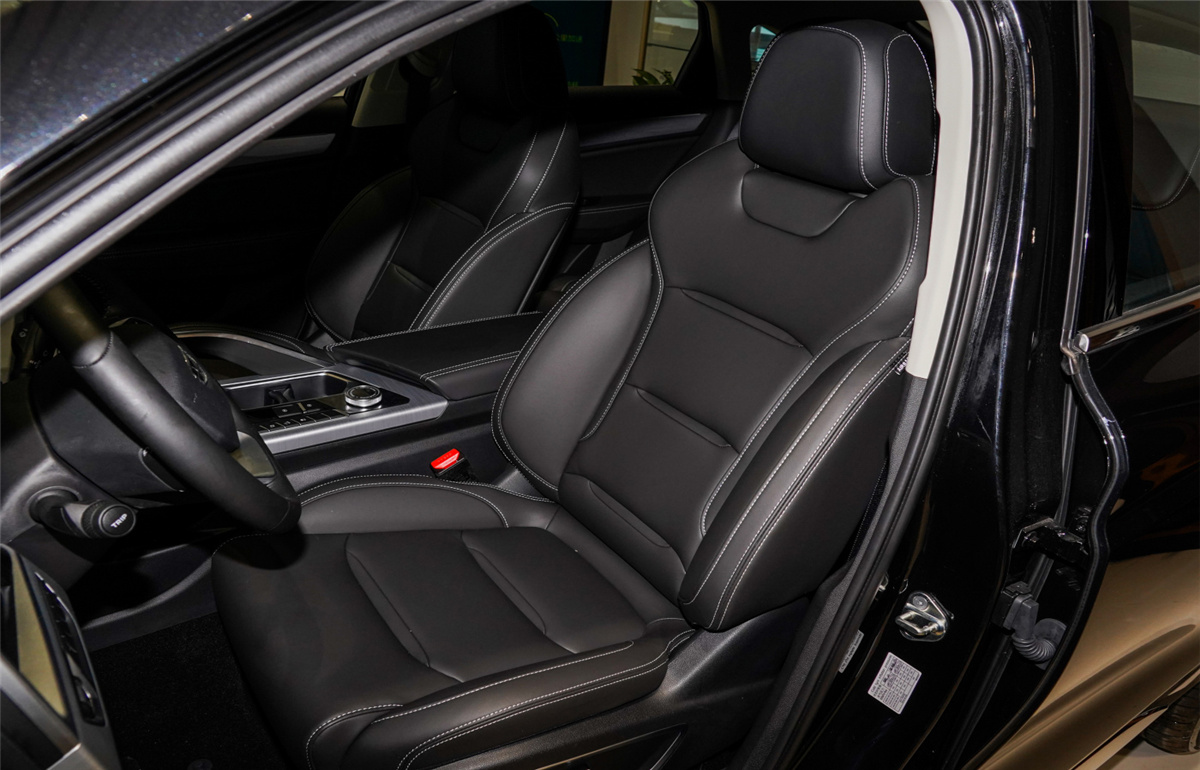

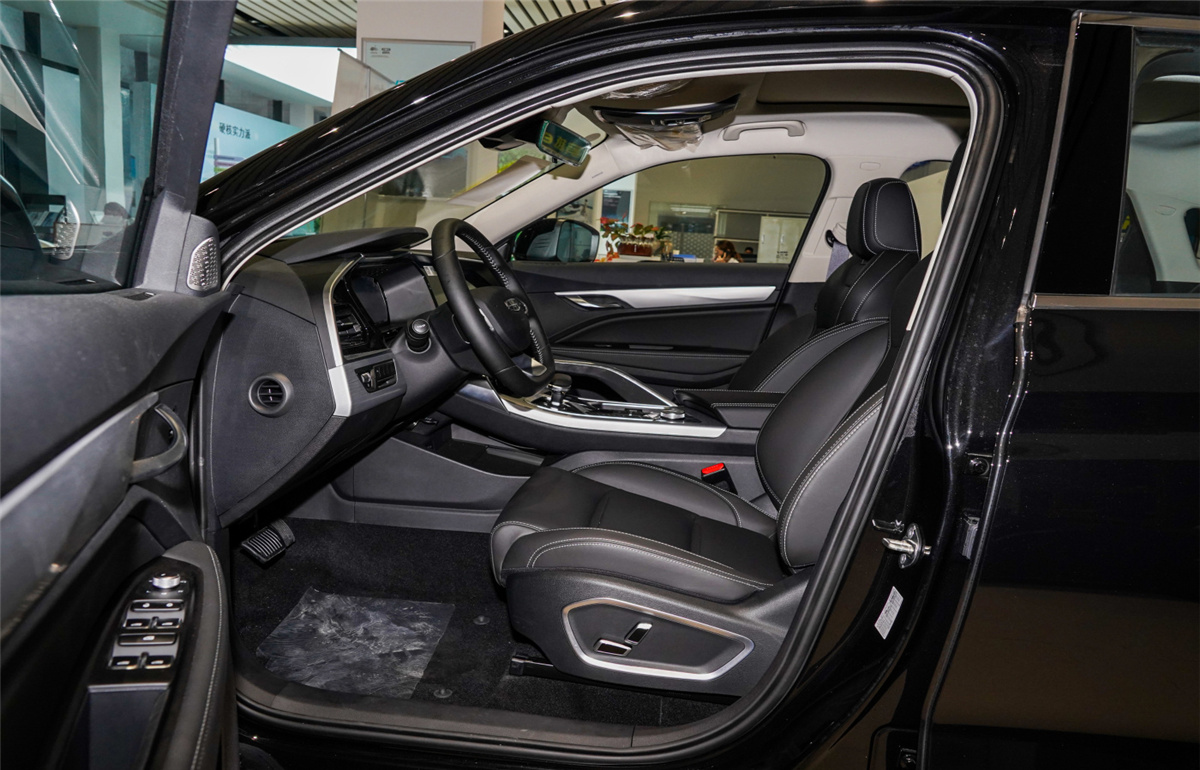

Interior color: black and brown, black and red, all black, all black suede; It has a flat-bottomed multi-function steering wheel, a large irregular screen connected to the dashboard, a center console with brushed metal, a driver-centric sports cockpit, and handrails on the left side of the co-pilot. The leaping satellite orbit sub-instrument platform innovatively adopts the design method of bleeding on the co-pilot side, breaks the parallel relationship between the instrument platform and the bright strip, breaks through the traditional and conventional modeling effect through the design method of scattered and stacked, and sets up the distinctive product gene.
Valeo matrix headlights, luxury Bose audio, Paris fragrance system, sports suede memory seats, car FACE ID and other ultra grade product configuration.
Geely Xingyue is equipped with a series of intelligent safety configurations, including ICC intelligent piloting, APA fully automatic intelligent parking, AEB City pre-collision safety, LKA lane keeping system and so on. At the same time, it is equipped with Bosch 9.3 generation ESP system. The body is closely equipped with 22 industry top sensors, and intelligent driving reaches L2 level.
Product Specifications
Brand | GEELY |
Model | XINGYUE |
Version | 2021 ePro Star Ranger pure electric battery life of 56KM |
Basic parameters | |
Car model | Compact SUV |
Type of Energy | Plug-in hybrid |
Time to Market | Nov.2020 |
NEDC pure electric cruising range (KM) | 56 |
Slow charging time[h] | 1.5 |
Maximum power (KW) | 190 |
Maximum torque [Nm] | 415 |
Motor horsepower [Ps] | 82 |
Engine | 1.5T 177PS L3 |
Gearbox | 7-speed wet dual clutch |
Length*width*height (mm) | 4605*1878*1643 |
Body structure | 5-door 5-seat SUV Crossover |
Top Speed (KM/H) | 195 |
Car body | |
Longth(mm) | 4605 |
Width(mm) | 1878 |
Higth(mm) | 1643 |
Wheel base(mm) | 2700 |
Front track (mm) | 1600 |
Rear track (mm) | 1600 |
Minimum ground clearance (mm) | 171 |
Body structure | SUV Crossover |
Number of doors | 5 |
Number of seats | 5 |
Oil tank capacity(L) | 45 |

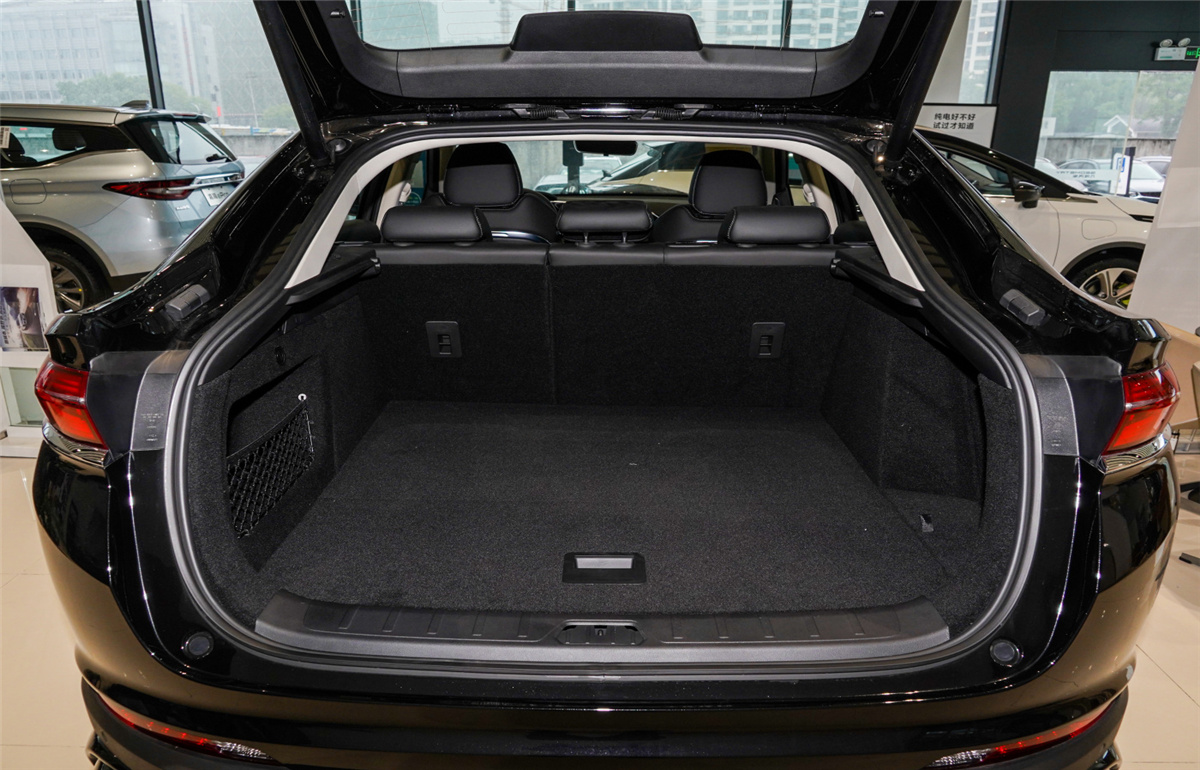

Trunk volume (L) | 326 |
Mass (kg) | 1810 |
Engine | |
Engine Model | JLH-3G15TD |
Displacement(mL) | 1477 |
Displacement(L) | 1.5 |
Intake form | Turbo supercharging |
Engine layout | Engine transverse |
Cylinder arrangement | L |
Number of cylinders (pcs) | 3 |
Number of valves per cylinder (pcs) | 4 |
Compression ratio | 10.5 |
Air Supply | DOHC |
Maximum horsepower (PS) | 177 |
Maximum power (KW) | 130 |
Maximum power speed (rpm) | 5500 |
Maximum torque(N-m) | 255 |
Maximum torque speed (rpm) | 1500-4000 |
Maximum Net Power (kW) | 130 |
Fuel form | Plug-in hybrid |
Fuel label | 92# |
Oil supply method | Direct injection |
Cylinder head material | Aluminum alloy |
Cylinder material | Aluminum alloy |
Environmental standards | VI |
Electric motor | |
Total motor power (kw) | 60 |
System integrated power (kW) | 190 |
Overall system torque [Nm] | 415 |
Front motor maximum power (kW) | 60 |
Number of drive motors | Single motor |
Motor placement | Prepended |
Battery Type | Ternary lithium battery |
NEDC pure electric cruising range (KM) | 56 |
Gearbox | |
Number of gears | 7-speed wet dual clutch |
Transmission type | Wet Dual Clutch Transmission (DCT) |
Short name | 7-speed wet dual clutch |
Chassis Steer | |
Form of drive | FF |
Type of front suspension | McPherson independent suspension |
Type of rear suspension | Multi-link independent suspension |
Boost type | Electric assist |
Car body structure | Load bearing |
Wheel braking | |
Type of front brake | Ventilated Disc |
Type of rear brake | Disc |
Type of parking brake | Electric brake |
Front Tire Specifications | 235/55 R18 |
Rear tire specifications | 235/55 R18 |
Spare tire size | Not full size |
Cab Safety Information | |
Primary driver airbag | YES |
Co-pilot airbag | YES |
Front side airbag | YES |
Tire pressure monitoring function | Tire pressure display |
Seat belt not fastened reminder | Full car |
ISOFIX Child seat connector | YES |
ABS anti-lock | YES |
Brake force distribution (EBD/CBC, etc.) | YES |
Brake Assist (EBA/BAS/BA, etc.) | YES |
Traction Control (ASR/TCS/TRC, etc.) | YES |
Body Stability Control (ESC/ESP/DSC, etc.) | YES |
Assist/Control configuration | |
Rear parking radar | YES |
Driving assistance video | 360 degree panoramic image |
Cruise system | Cruise control |
Driving mode switching | Sport/Economy/Standard Comfort |
Automatic parking | YES |
Hill assist | YES |
Steep descent | YES |
External / Anti-Theft Configuration | |
Sunroof type | Openable panoramic sunroof |
Rim material | Aluminum alloy |
Roof rack | YES |
Engine electronic immobilizer | YES |
Interior central lock | YES |
Key type | Remote control key |
Keyless start system | YES |
Keyless entry function | Front row |
Remote start function | YES |
Battery preheating | YES |
Internal configuration | |
Steering wheel material | Genuine Leather |
Steering wheel position adjustment | Manual up and down + front and rear adjustment |
Multifunction steering wheel | YES |
Trip computer display screen | Color |
Full LCD Dashboard | YES |
LCD meter size (inch) | 12.3 |
Seat configuration | |
Seat materials | Imitation leather |
Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
Main/assistant seat electric adjustment | Main seat |

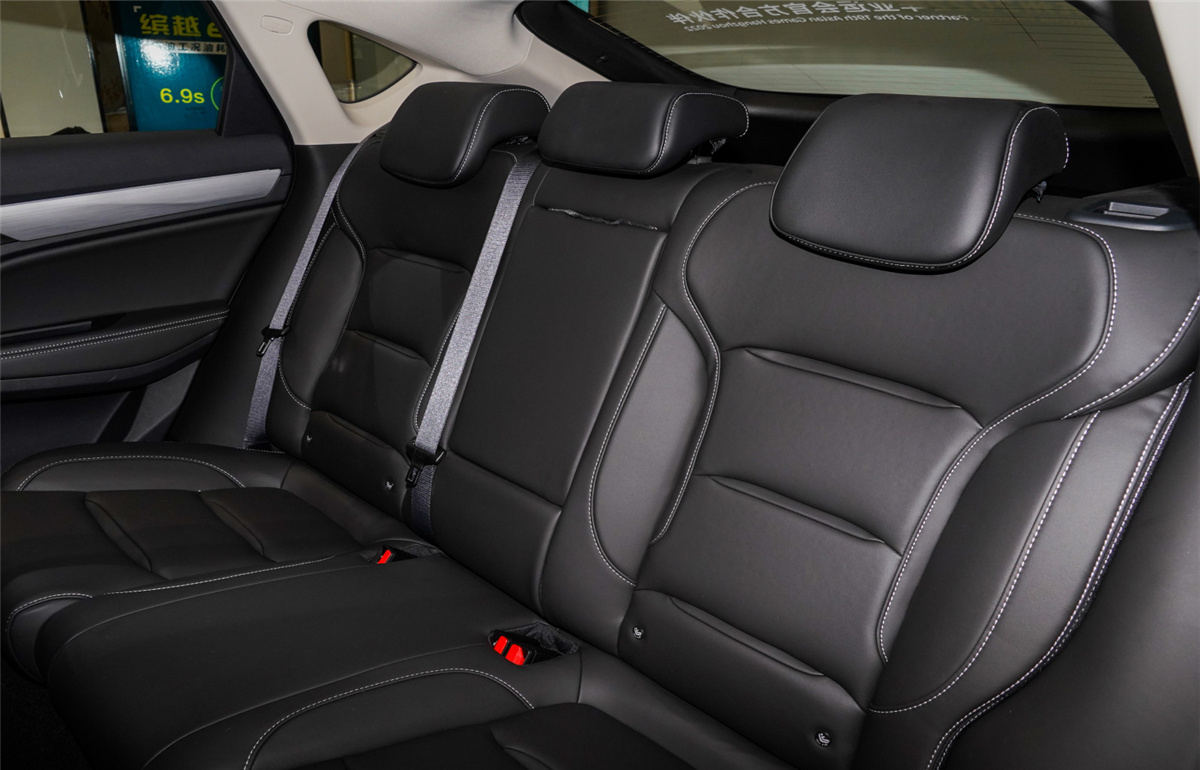

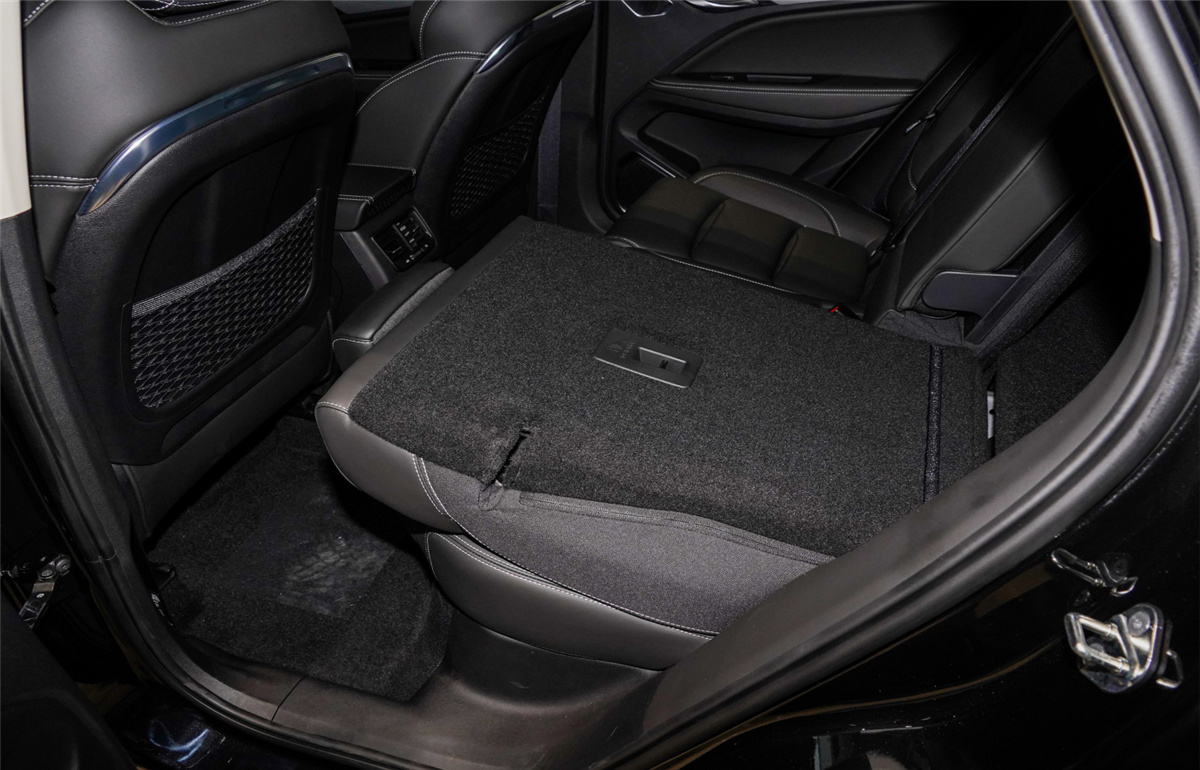

Rear seats folded down | Proportion down |
Rear cup holder | YES |
Front/rear center armrest | Front/Rear |
Multimedia configuration | |
Central control color screen | Touch OLED |
Central control screen size (inch) | 12.3 |
Satellite navigation system | YES |
Navigation traffic information display | YES |
Roadside assistance call | YES |
Bluetooth/Car Phone | YES |
Voice recognition control system | Multimedia system, navigation, telephone, air conditioning, sunroof |
Internet of Vehicles | YES |
Multimedia/charging interface | USB SD |
Number of USB/Type-c ports | 2 in front/2 in rear |
Luggage compartment 12V power interface | YES |
Number of speakers (pcs) | 8 |
Lighting configuration | |
Low beam light source | LED |
High beam light source | LED |
LED daytime running lights | YES |
Automatic headlights | YES |
Turn assist light | YES |
Headlight height adjustable | YES |
Headlights turn off | YES |
Touch reading light | YES |
Glass/Rearview mirror | |
Front power windows | YES |
Rear power windows | YES |
Window one-button lift function | Full car |
Window anti-pinch function | YES |
Post audition feature | Electric adjustment,rearview mirror heating |
Inside rearview mirror function | Manual anti-dazzle |
Interior vanity mirror | Driver's seat Co-pilot |
Sensor wiper function | Rain sensor |
Air conditioner/refrigerator | |
Air conditioner temperature control method | Automatic air conditioner |
Rear air outlet | YES |
Temperature zone control | YES |
