Product Information
Battery: The lithium iron phosphate battery produced by Beijing Guoneng Battery Technology Co., Ltd. has a capacity of 92.2kW /H and an energy density of 122.9Wh/kg. Fast charging takes only 2 hours to fully charge, and the operating range can reach 330 kilometers.
Motor: Permanent magnet synchronous motor produced by Suzhou Lvkong Transmission Control Co., LTD., rated power 60KW, peak power 120KW, torque 500N.m. The advantages of this motor are small size, light weight, strong hauling and climbing ability, reliable operation, high efficiency, even heat dissipation, good cooling effect.

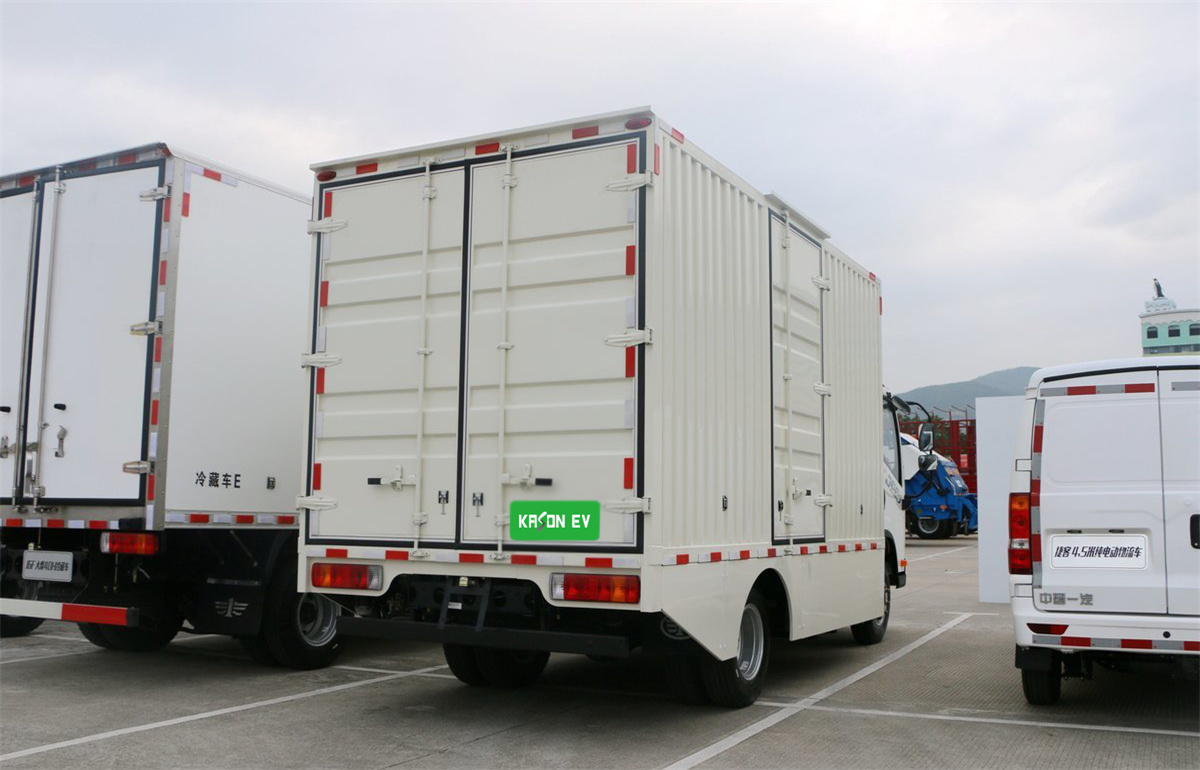

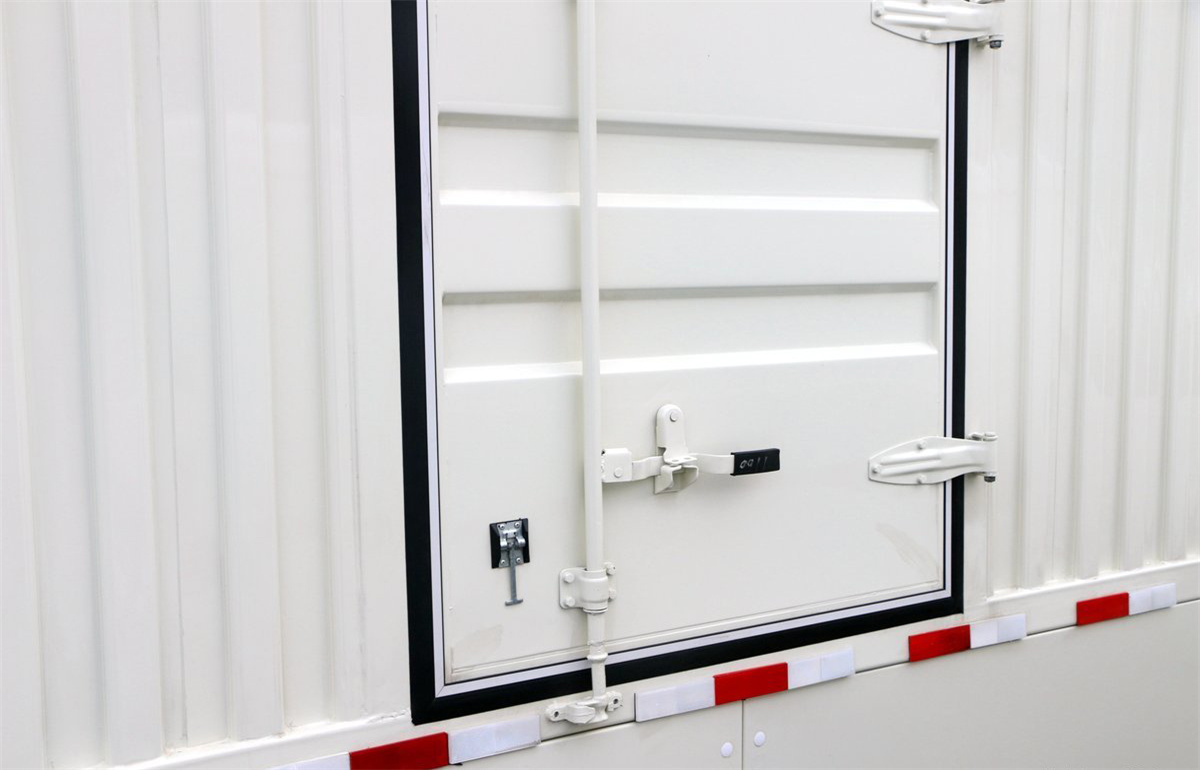

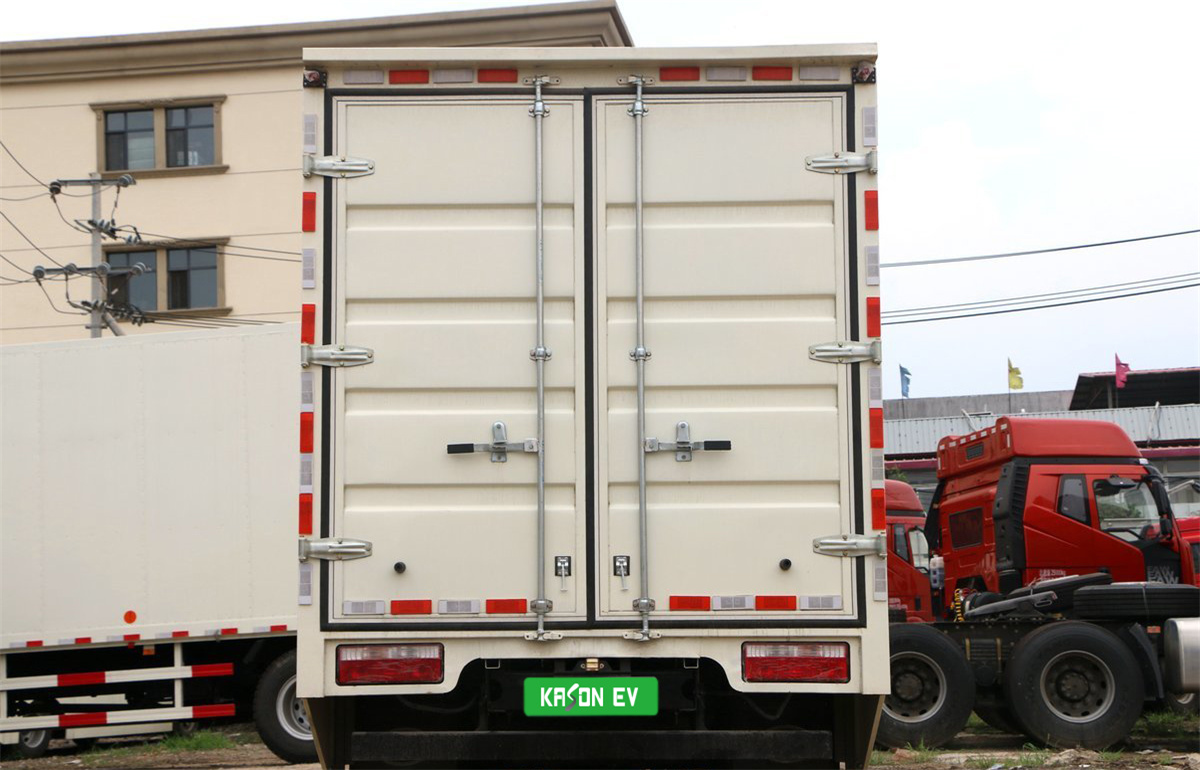

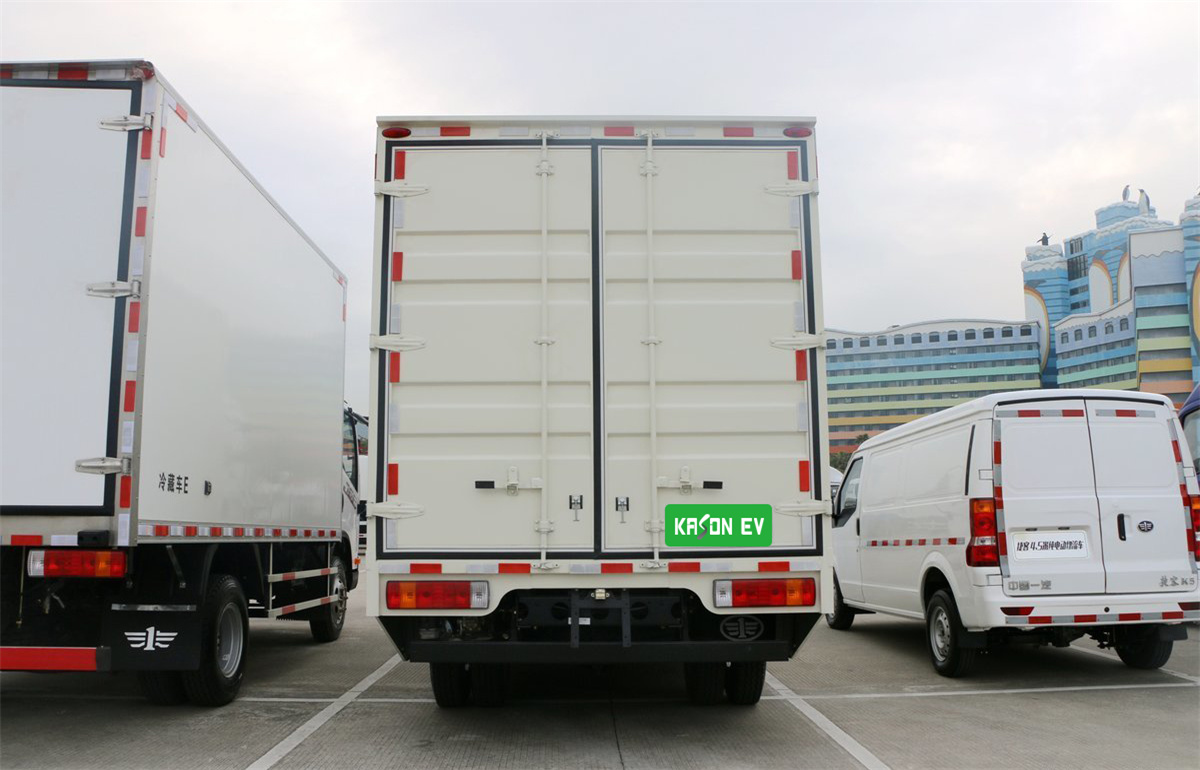

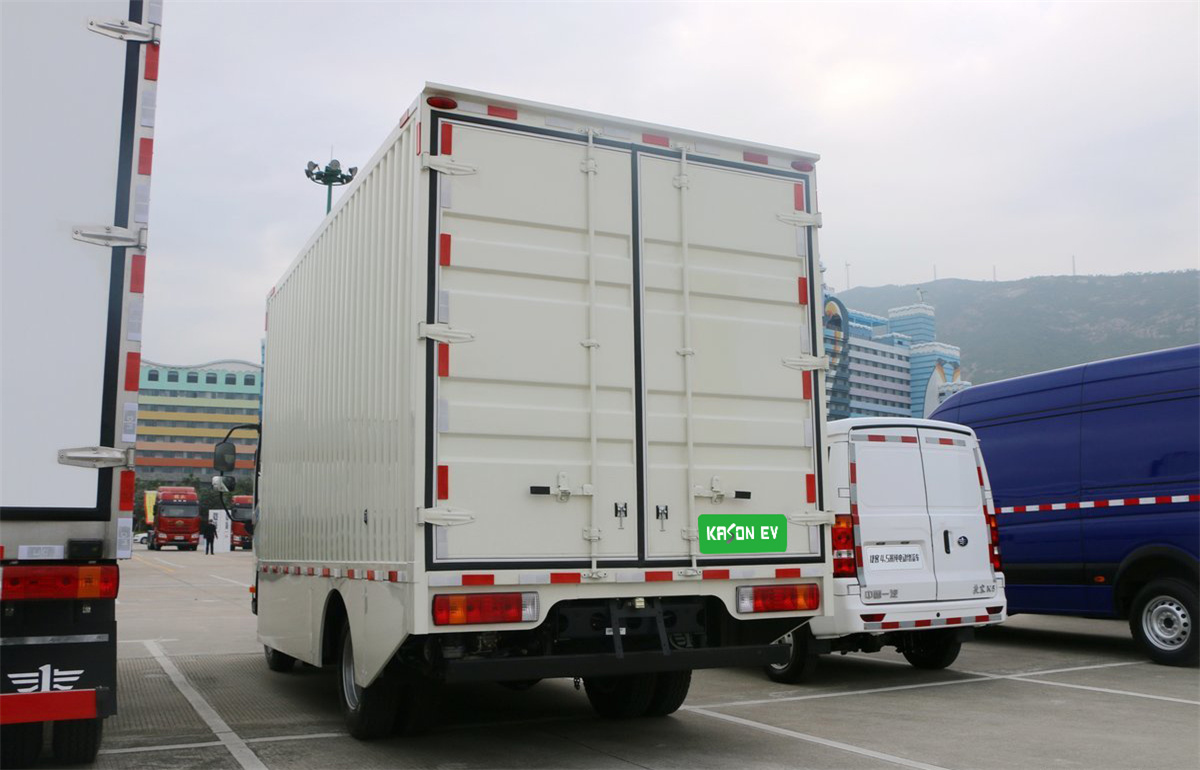

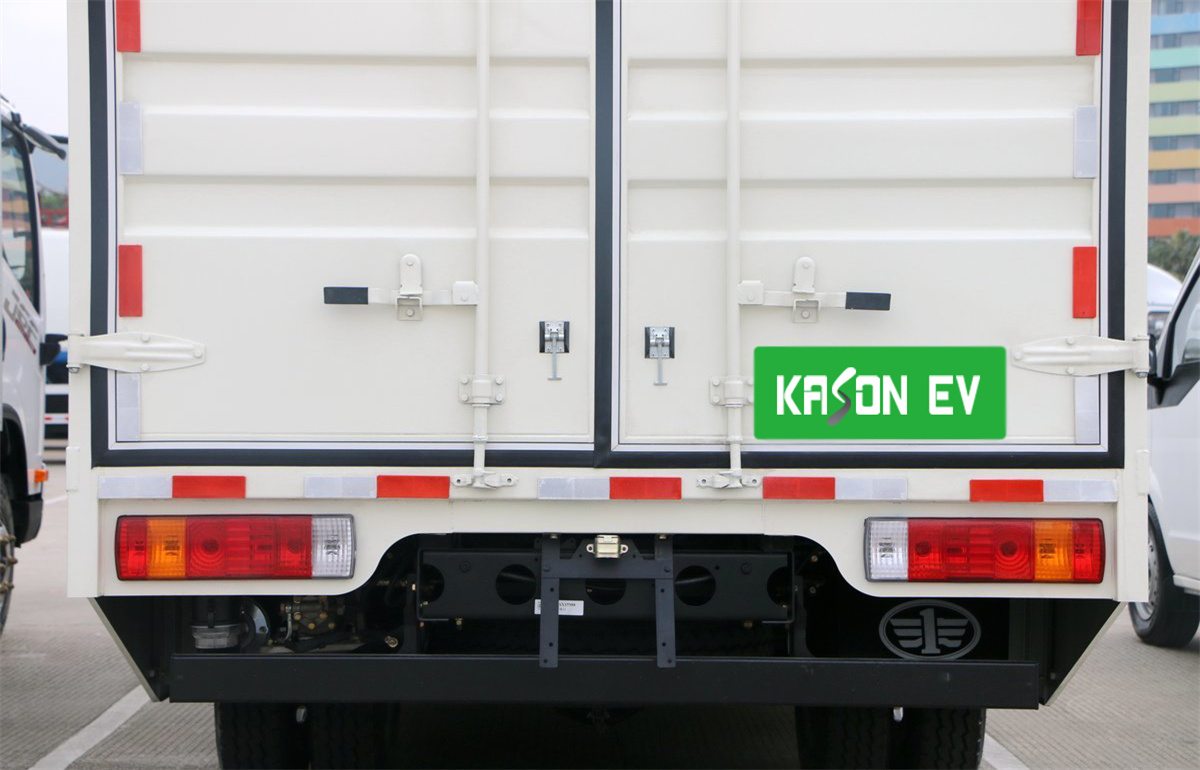

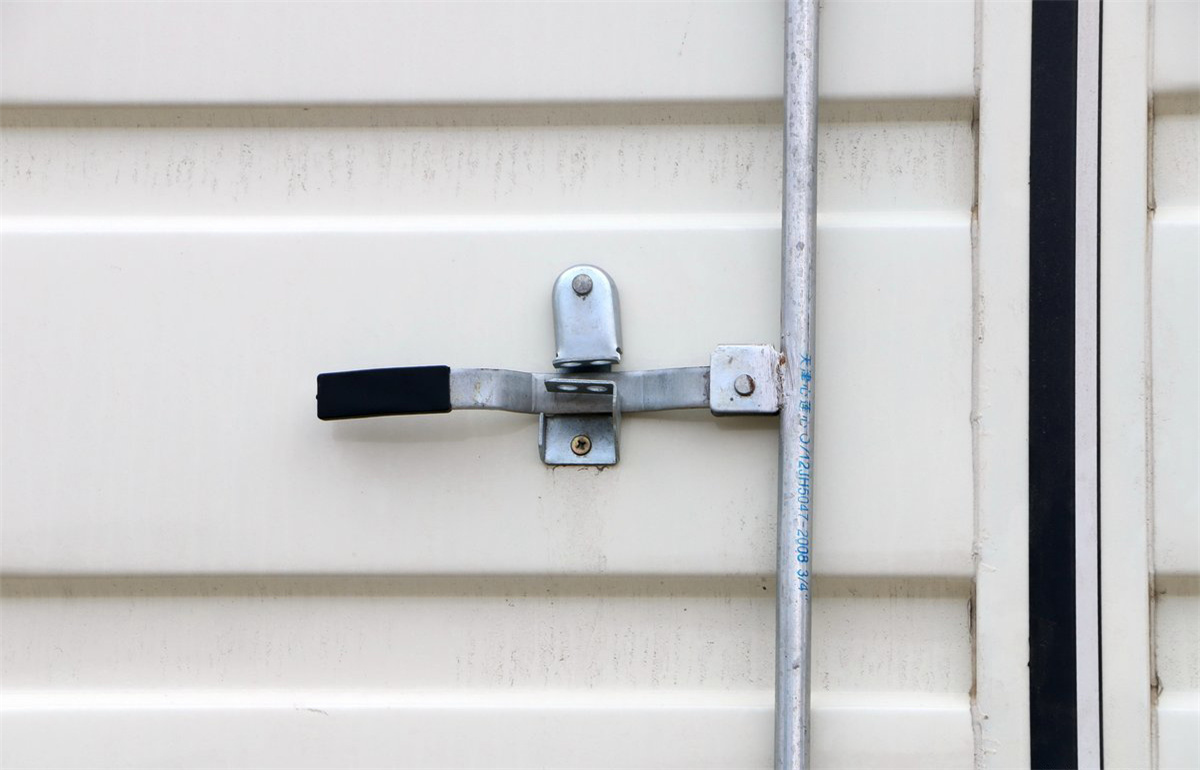

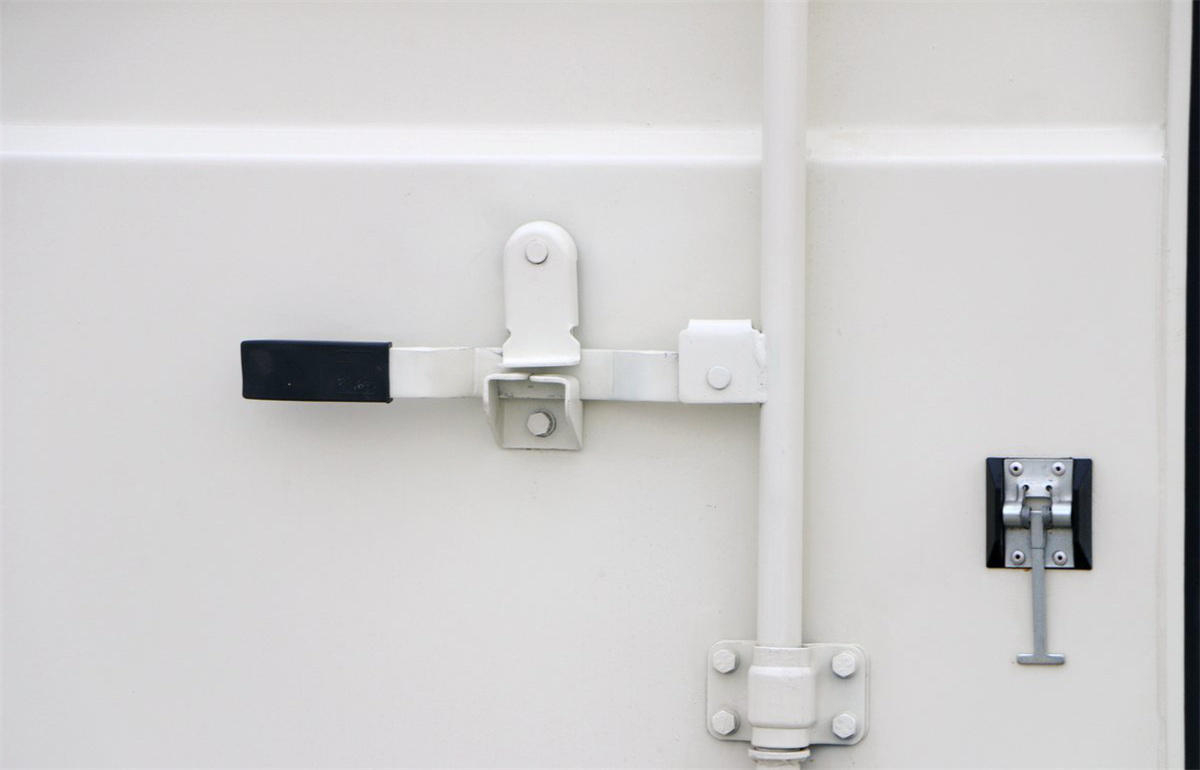

Cargo compartment size: 4.2*2.1*2.1M, cargo space reached 18.5 cubic, can hold 2 pallets side by side, load 1.3 tons. The tail door adopts the traditional double-open type, and the side door is also double-open. The size reaches 2 meters, which is more convenient for loading and unloading. The bottom plate of the carriage is metal anti-skid, which has a stronger bearing capacity and is not easy to damage.

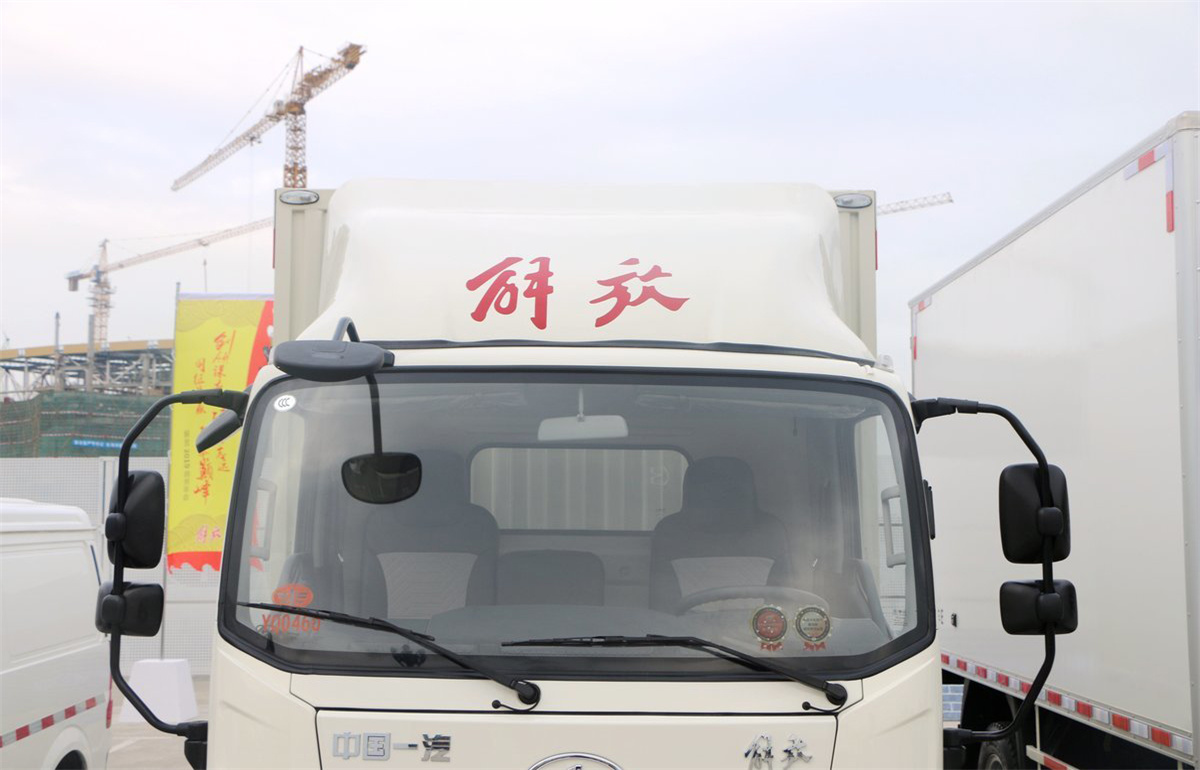

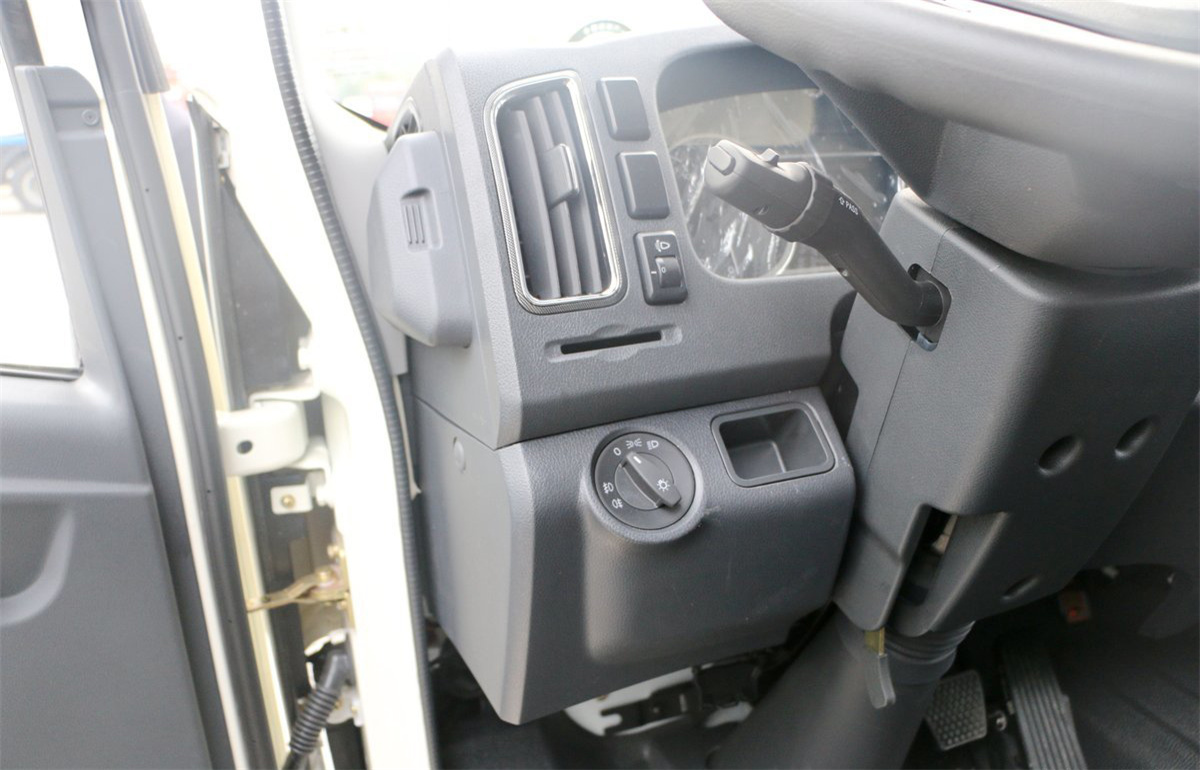

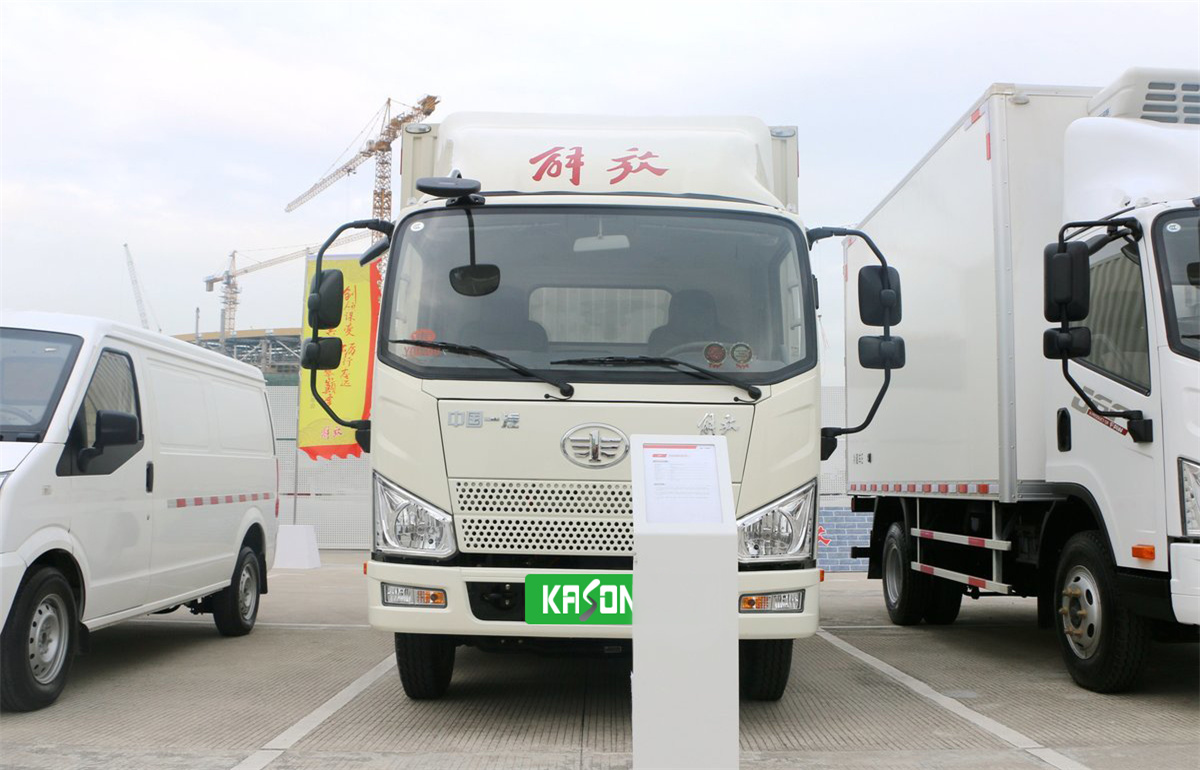

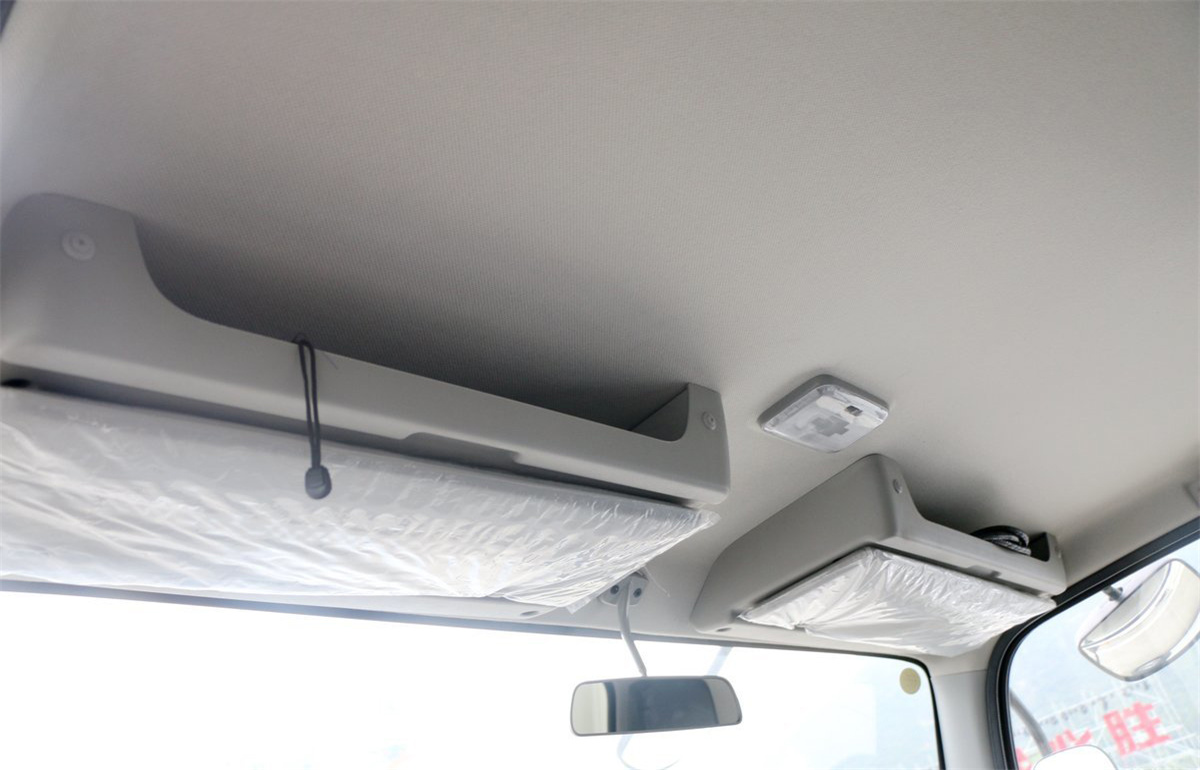

Cab: J6F adopts a wide body cab, which is much more comfortable than the narrow body, and also increases the movement space of the legs, and can accommodate 3 people, which is very practical for some logistics companies that need stevedovers to follow the car to pull bulk cargo.
Product Specifications
| Brand | FAW JIEFANG |
| Model | J6F(CA5040XXYP40LBEVA83) |
| Version | 4.21m 82.43kWh |
| Basic Information | |
| Announcement model: | CA5040XXYP40LBEVA83 |
| Types of: | Van |
| Wheelbase: | 3300mm |
| Body length: | 5.998 meters |
| Body width: | 2.25 meters |
| Body height: | 3.11 meters |
| Total mass: | 4.495 tons |
| Rated load: | 1.305 tons |
| Vehicle weight: | 2.995 tons |
| Maximum speed: | 90km/h |
| Factory standard battery life: | 310km |
| Tonnage class: | light truck |
| Origin: | Qingdao, Shandong |
| Motor | |
| Motor brand: | Jingjin Electric |
| Motor model: | TZ290XSA05 |
| Motor type: | Permanent Magnet Synchronous Motor |
| Maximum horsepower: | 190 hp |
| Peak power: | 140kW |
| Peak Torque: | 1000N m |
| Cargo box parameters | |
| Cargo box form: | Van |
| Cargo Length: | 4.21 meters |
| Cargo width: | 2.1 meters |
| Cargo height: | 2.1 meters |
| Cab parameters | |
| Number of passengers allowed: | 3 people |
| Seat row: | Single row |

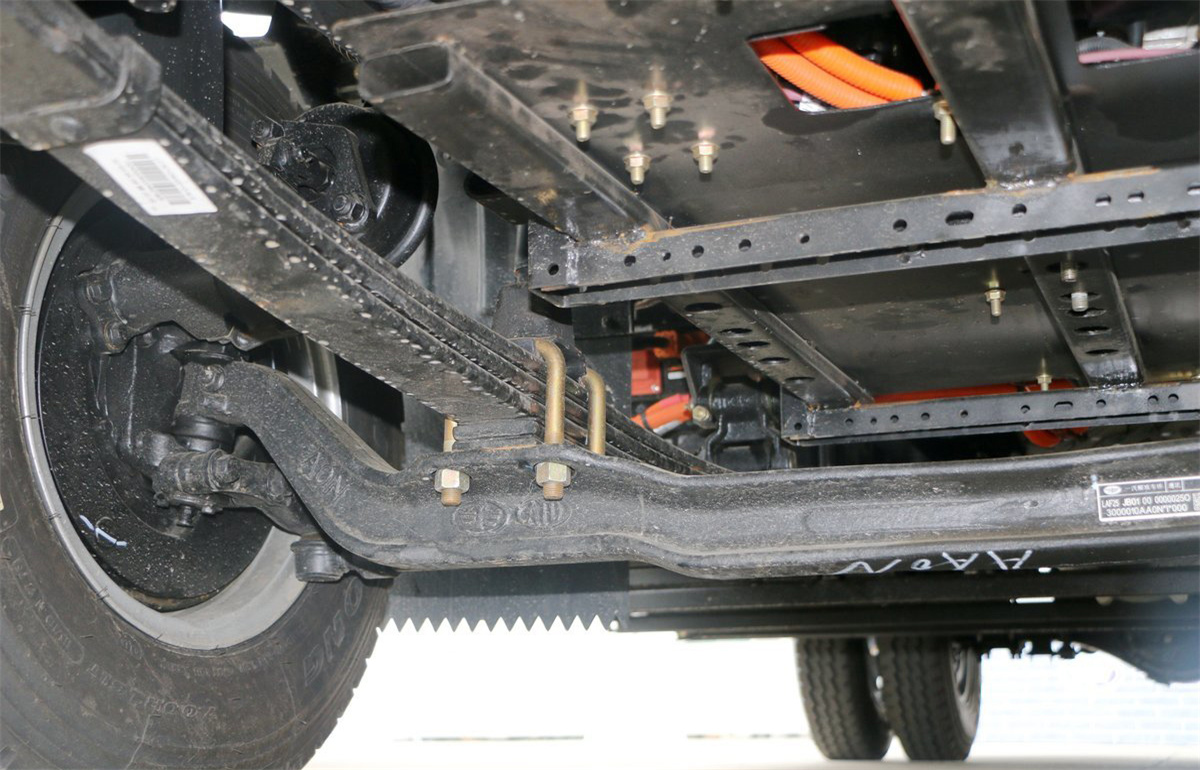

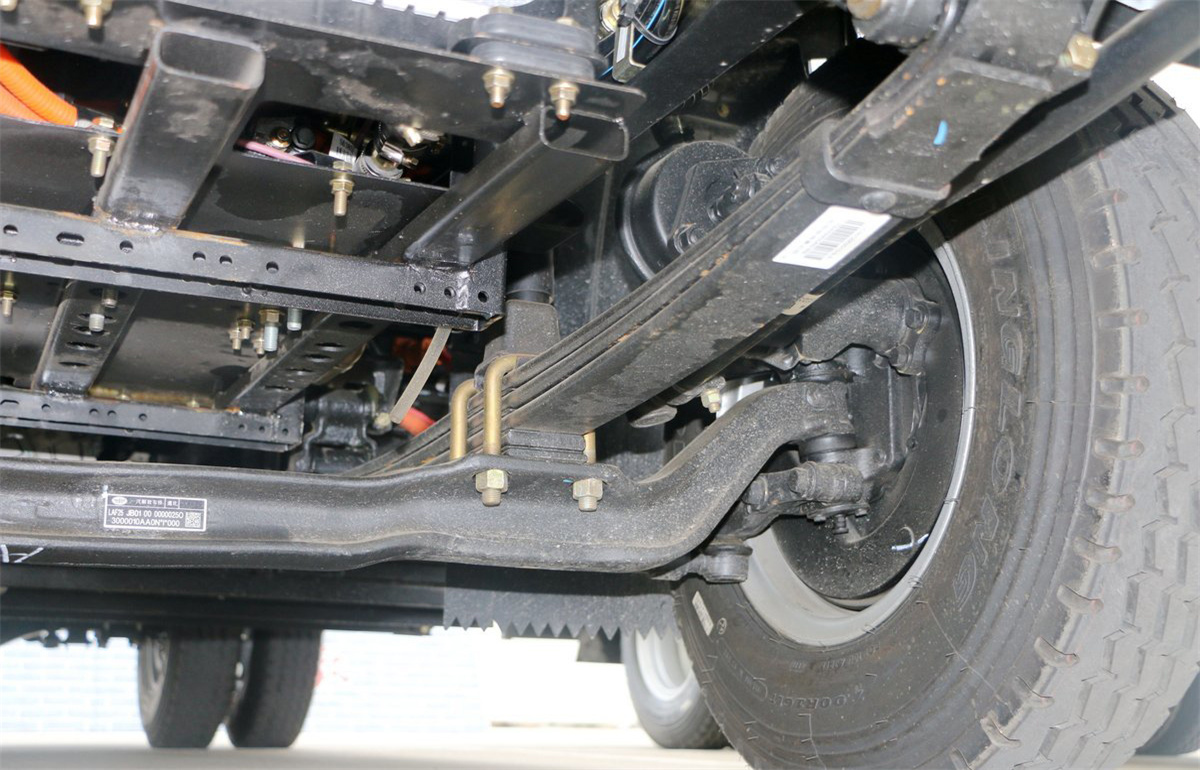

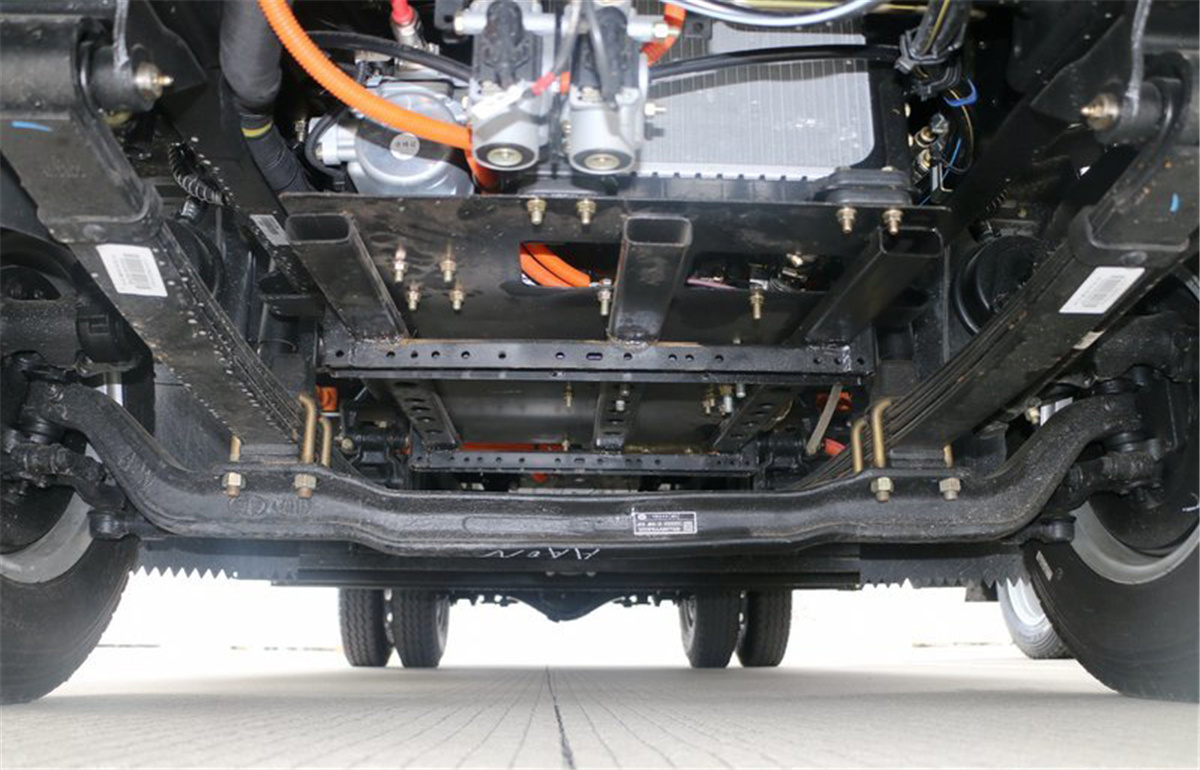

| Chassis parameters | |
| Front axle allowable load: | 1950kg |
| Description of rear axle: | 295 rear axle |
| Rear axle allowable load: | 2545kg |

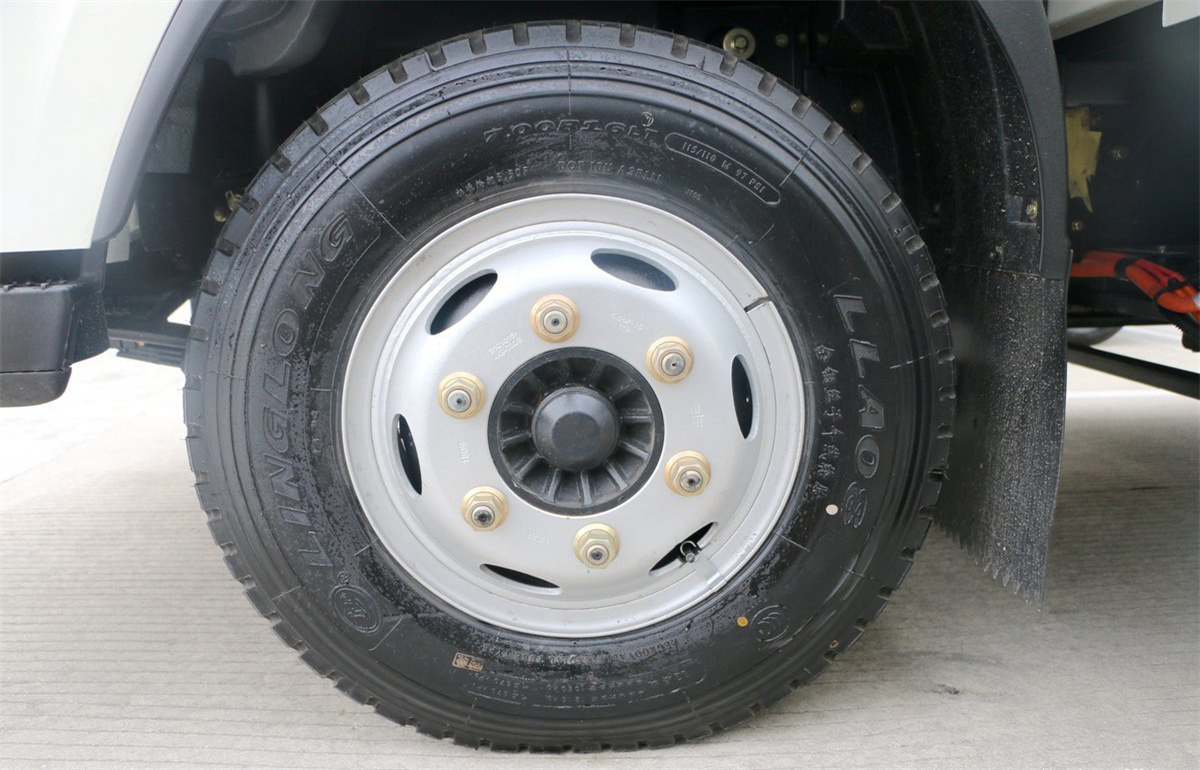

| Tire | |

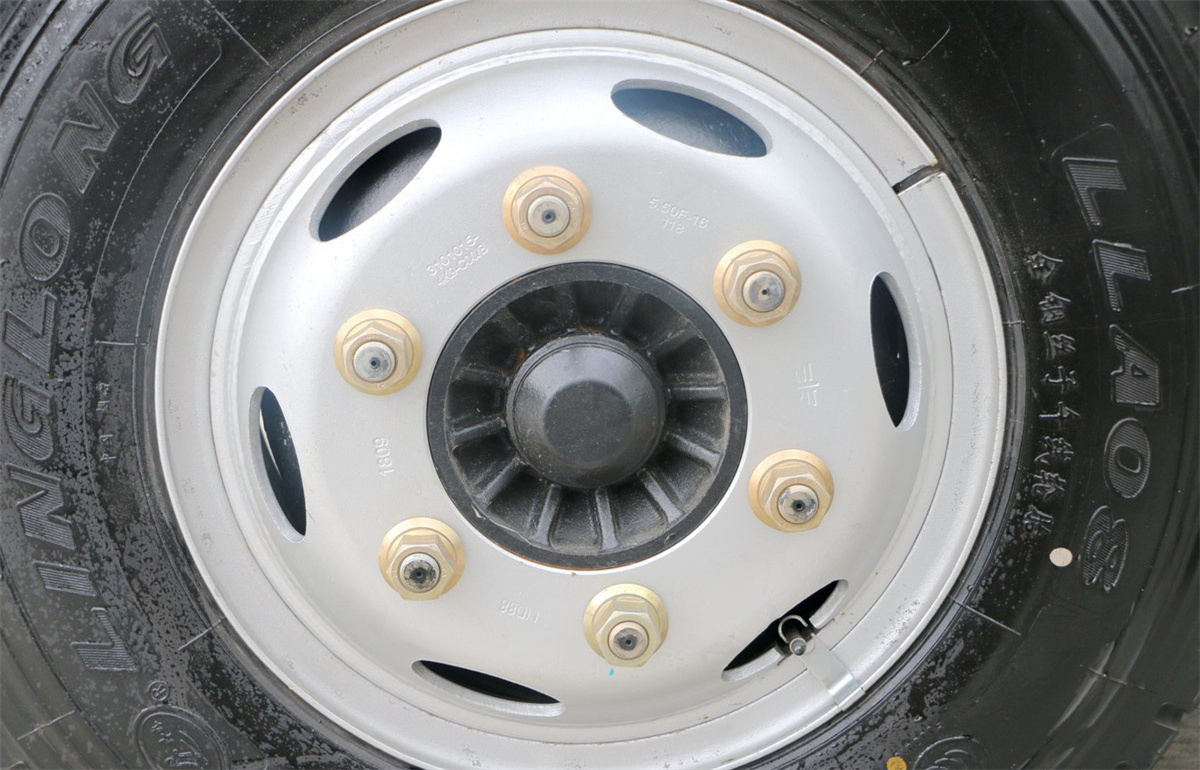

| Tire specifications: | 7.00R16 8PR |
| Number of tires: | 6 |
| Battery | |
| Battery brand: | Ningde era |
| Battery model | DAL0H2 |
| Battery Type | LiFePO4 battery |
| Battery capacity | 82.43kWH |
| Energy Density | 121.3Wh/kg |

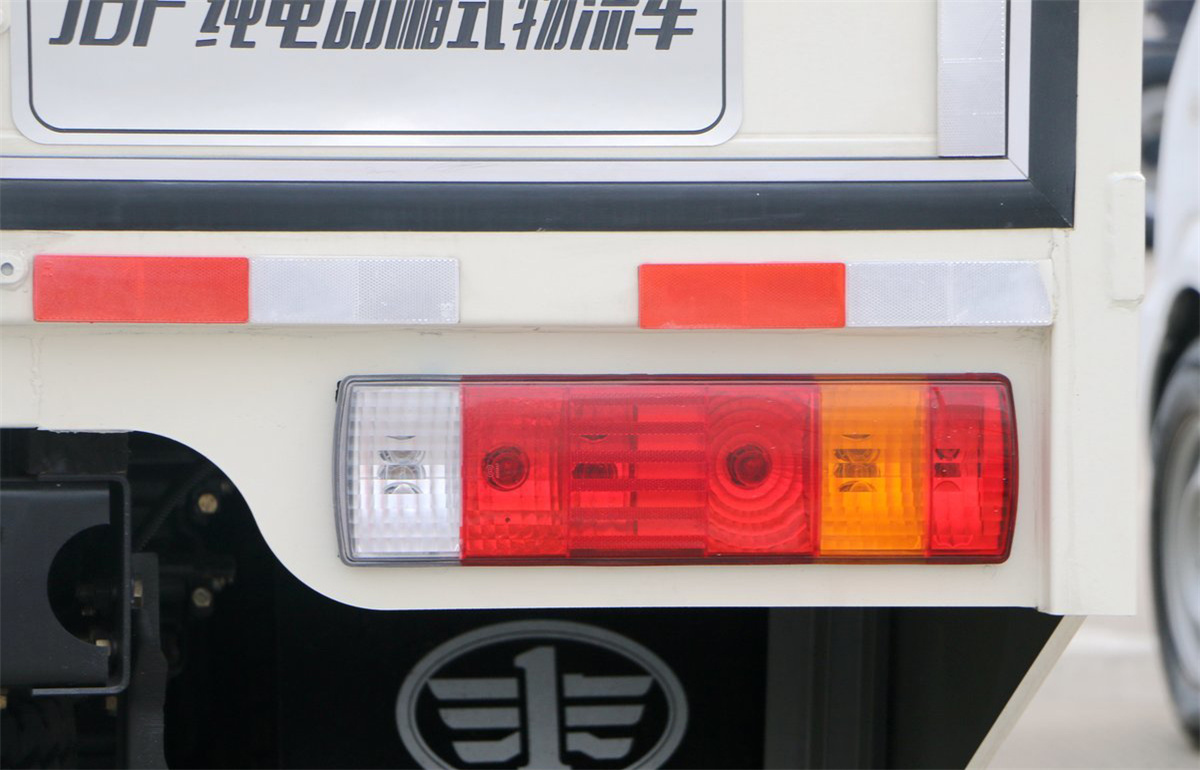

| Daytime running lights | YES |

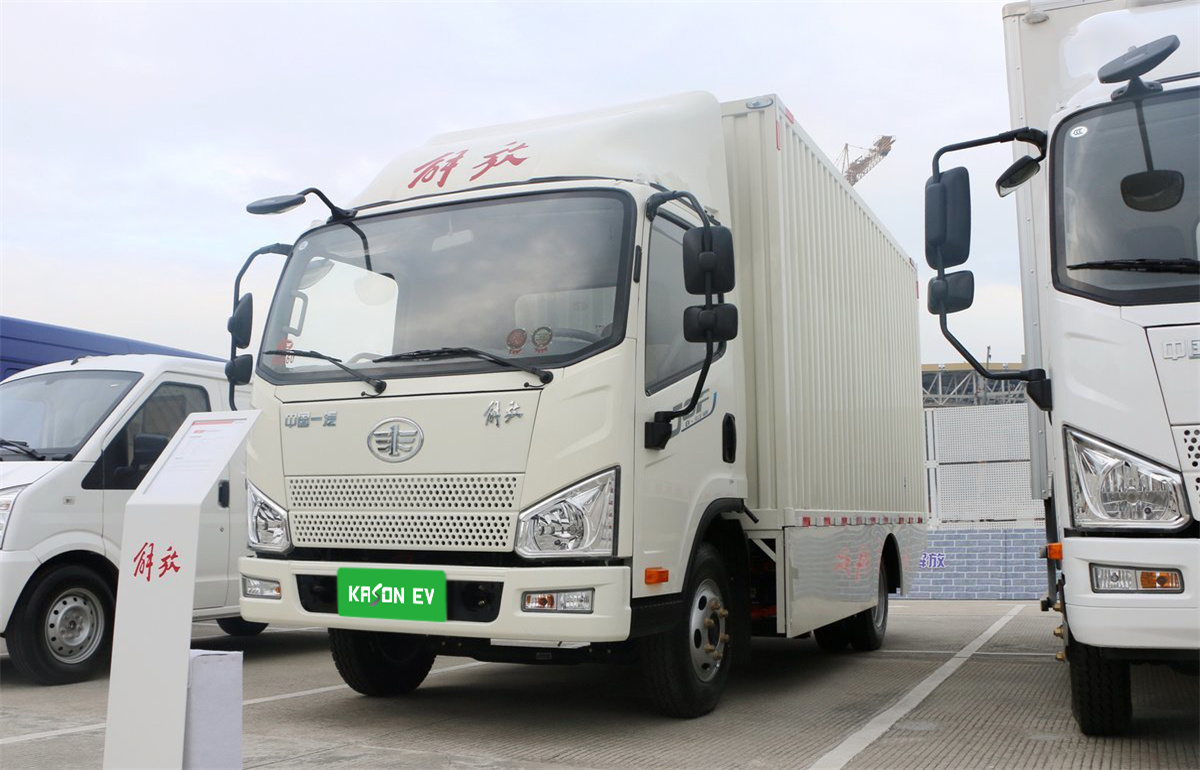

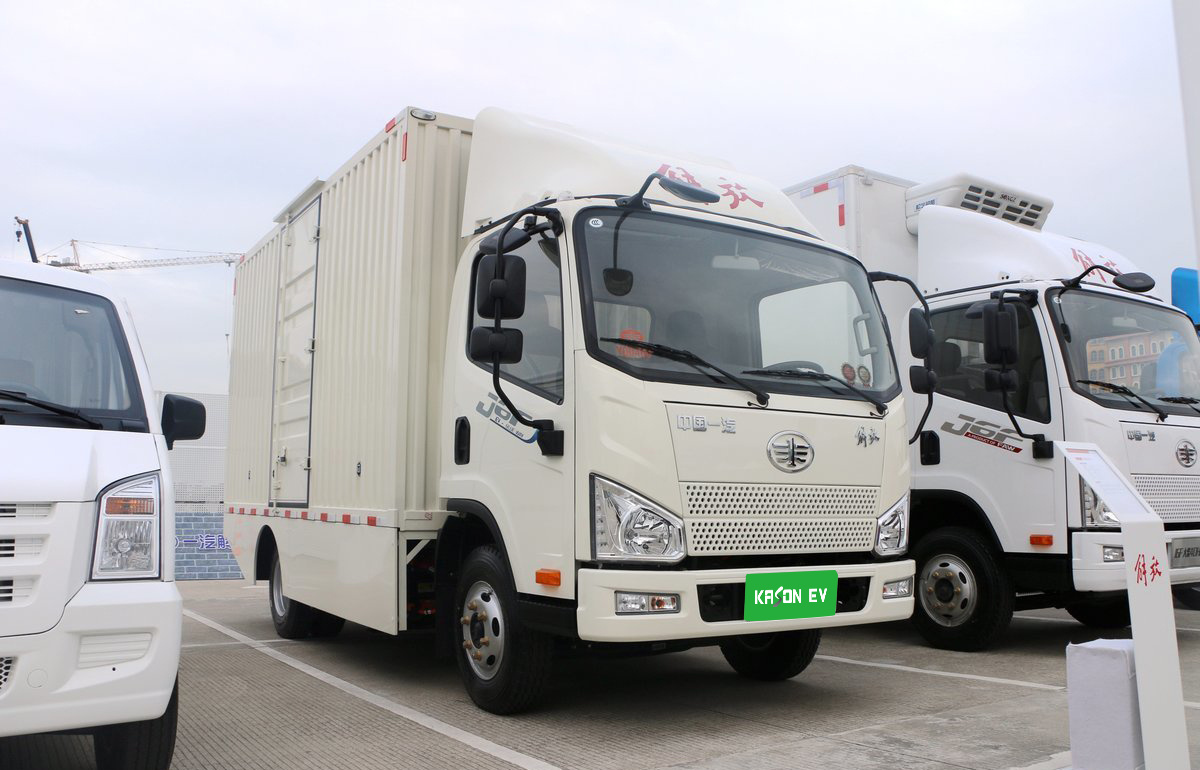

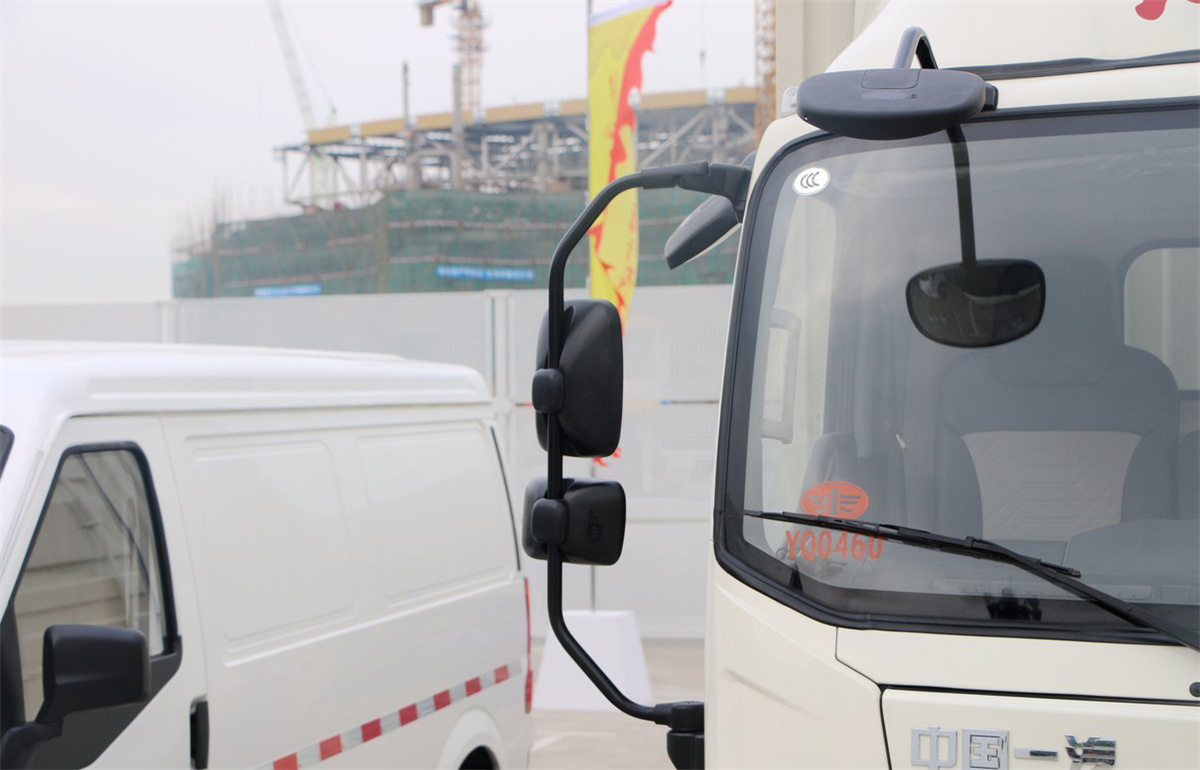

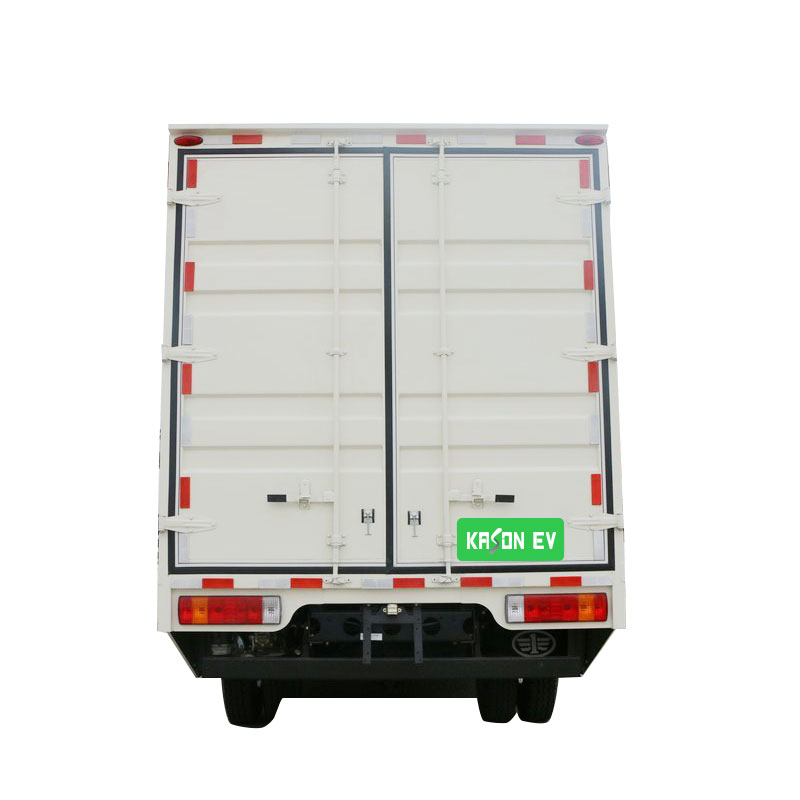

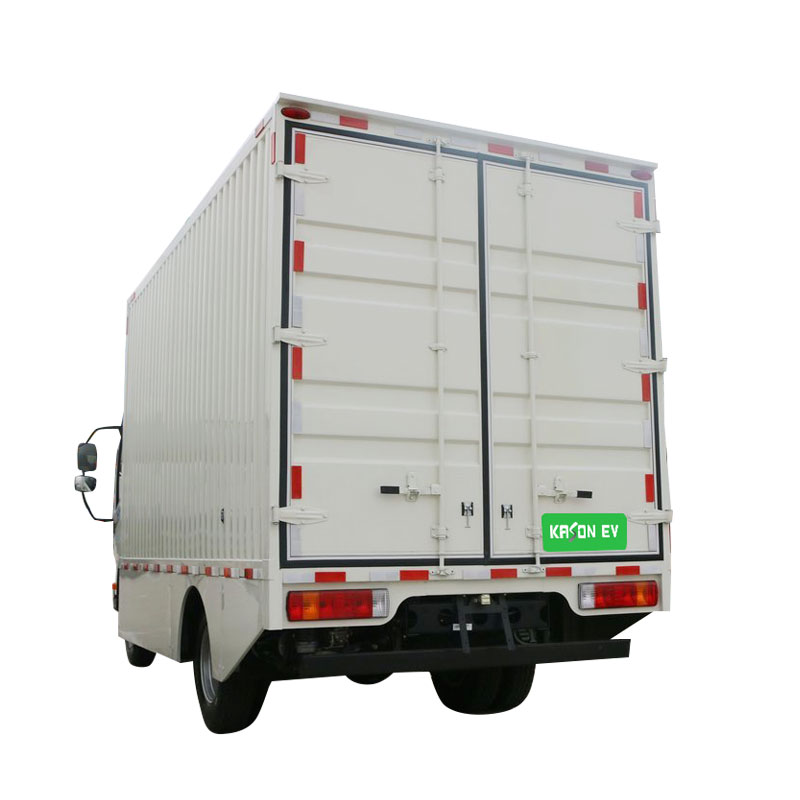

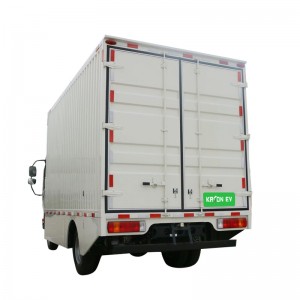

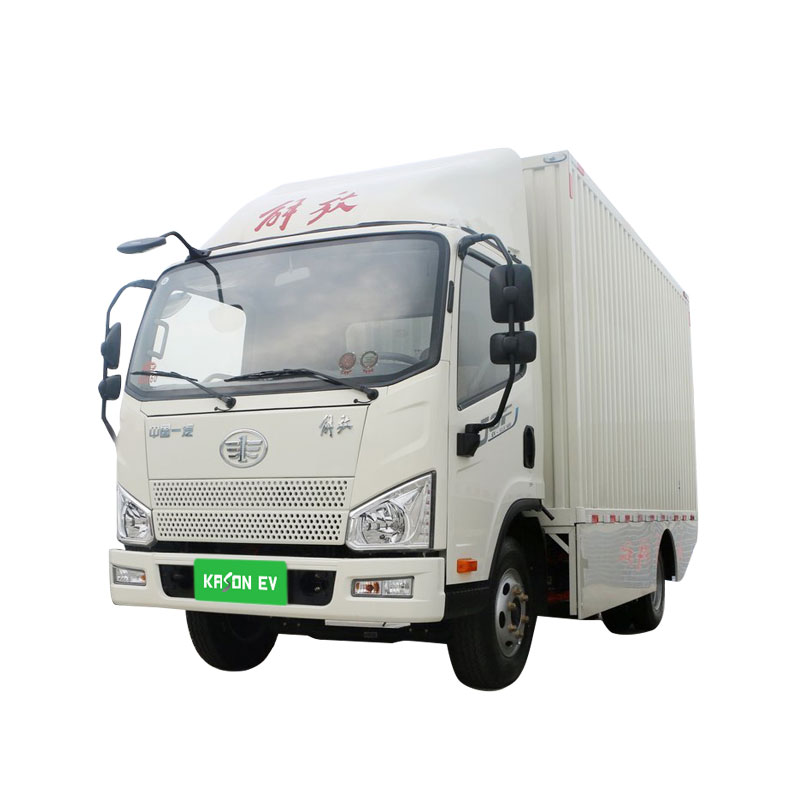

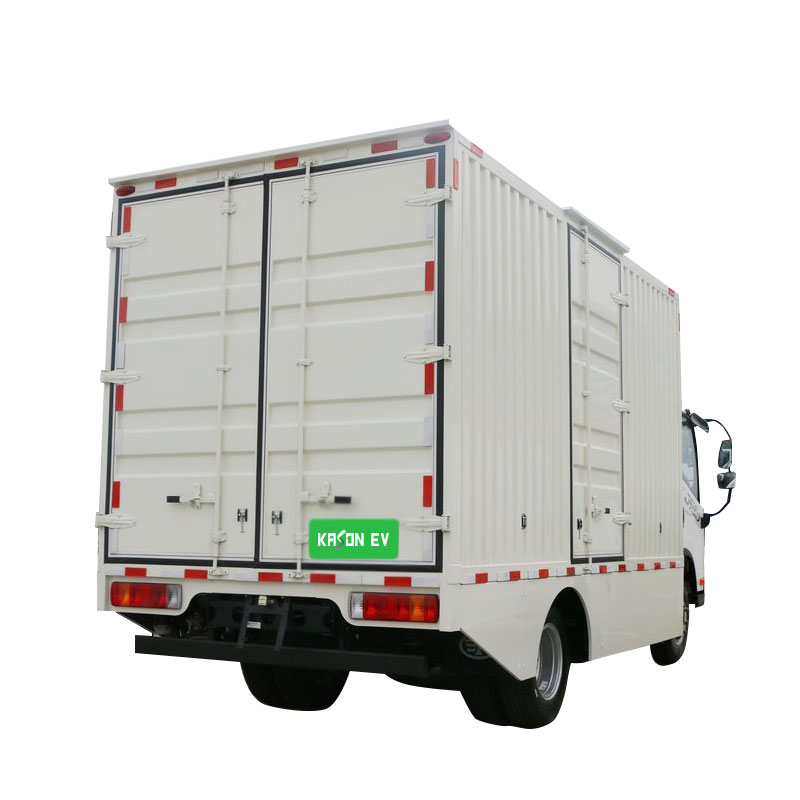

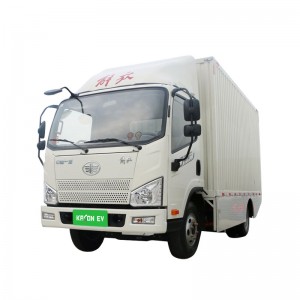

Appearance
Product Details
