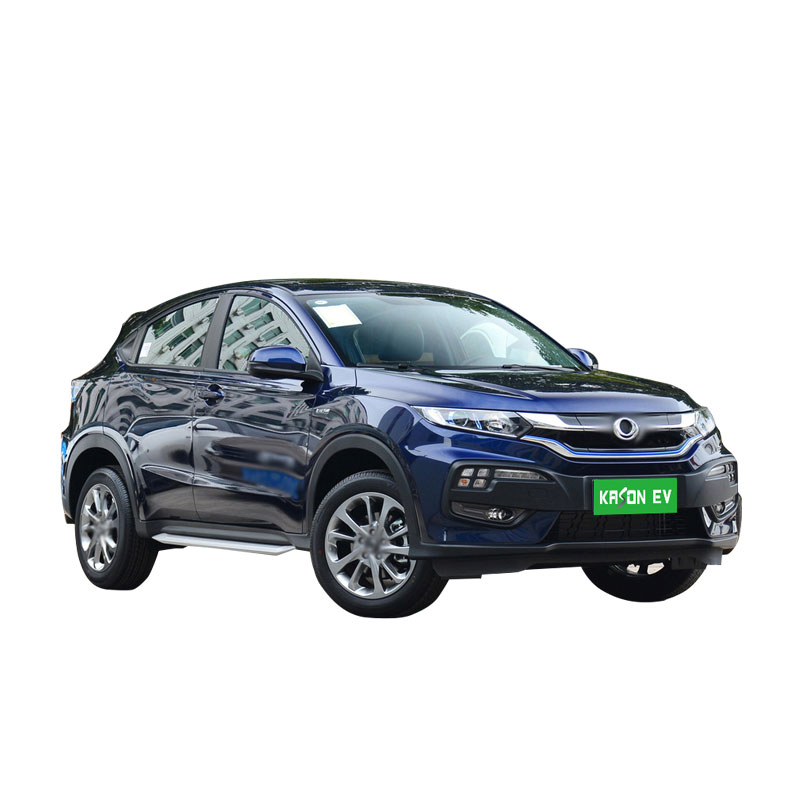

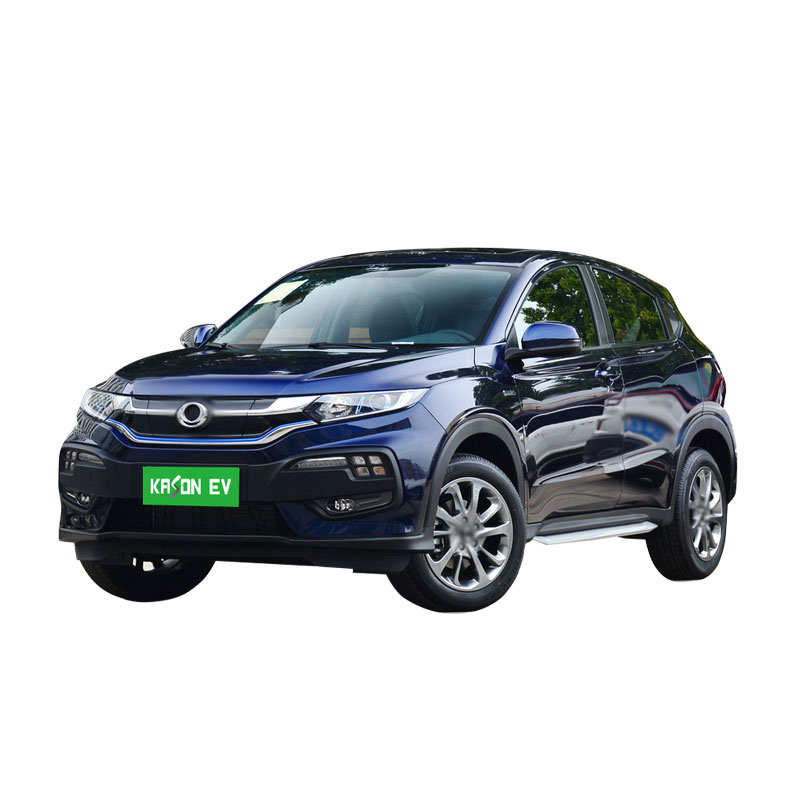

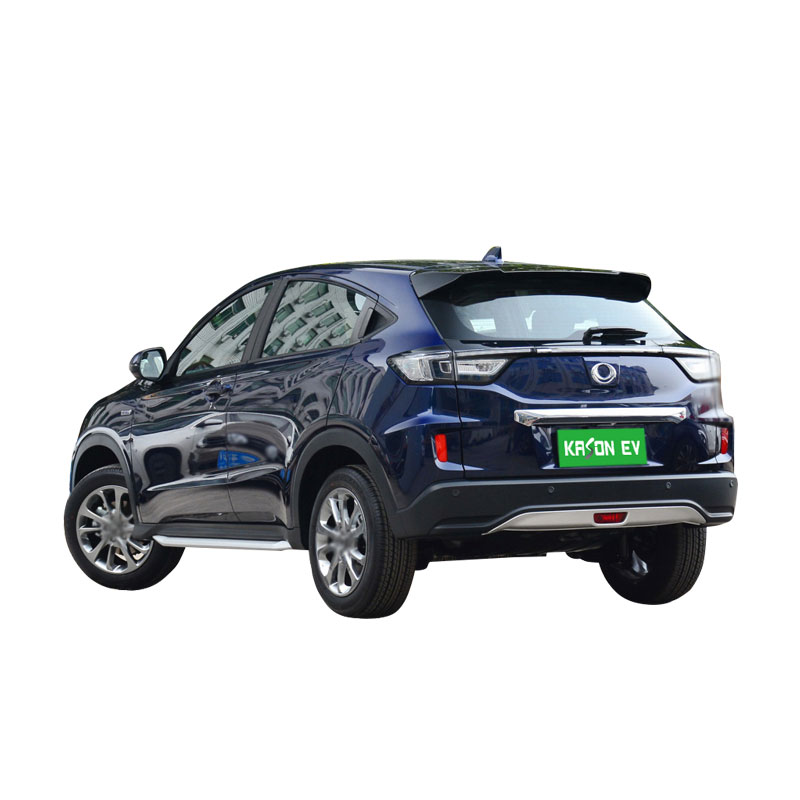

Dongfeng Honda X-NV new energy pure electric vehicle

Short Description:

X-nv is the first pure electric vehicle jointly developed by Dongfeng Honda and Honda Technology research (China) Co., LTD., which perfectly continues Honda’s consistent power and control advantages. Equipped with a permanent magnet synchronous motor, maximum power of 120 kW, peak torque of 280 N·m.


Product Detail

Product Tags

Product Information

X-nv is the first pure electric vehicle jointly developed by Dongfeng Honda and Honda Technology research (China) Co., LTD., which perfectly continues Honda's consistent power and control advantages. Equipped with a permanent magnet synchronous motor, the maximum power of 120 kW, peak torque of 280 N·m, officially announced 0 ~ 50 km/h acceleration 4 s, and in the national Electric Vehicle Laboratory of Beijing Institute of Technology measured 0 ~ 50 km/h acceleration time is 3.38 s, known as "electric beads", comparable to the small gun civic.

On some expressways and in urban overtaking, the X-NV's power performance is no less impressive. Even in N mode (Normal standard mode) it is still neat. Switching from driving mode to S (SPORT) makes the start lighter and overtaking easier on fast roads. Plus B+N (standard + strong recovery mode) and B+S (Sport + strong recovery mode), X-NV has a total of 4 "driving modes", bringing different driving experience to users.

In addition, in the previous authoritative test of national electric vehicles conducted by Beijing Institute of Technology, X-NV passed the pile around test, elk test, 100km acceleration and deceleration test with excellent results, and was no better than fuel vehicles in terms of driving texture and handling.

Power battery is a very important component in pure electric vehicle, its state is directly related to the safety of vehicle and occupant. The battery temperature is too low, will affect the battery activity, resulting in battery life attenuation; High battery temperature may cause security risks.

Therefore, Dongfeng Honda considers battery safety very carefully. X-nv battery and motor adopt independent water cooling and heat management system. In the vehicle thermal management system, through precise control of heating PTC and three-way valve, flexible switching of heating and cooling functions is realized. In terms of test verification, the dynamic performance of the product is ensured in extremely cold weather and high temperature environment.

X-nv also adopts ACE advanced compatible body structure, a large number of high-strength steel matching airbags, air curtains, always protect people. In addition, VSA body stability control, HSA ramp assistance and TPMS tire pressure monitoring and other cutting-edge technologies, forming a comprehensive intelligent driving assistance system, to give people the desired sense of security. At the same time, the car is rich in green environmental material and the car air filter, effectively clean the car air.

Product Specifications

Specification Sheet
Brand Dongfeng
Model Honda
Version M-NV
Basic parameters
Car model Small SUV
Type of Energy Pure electric
NEDC pure electric cruising range (KM) 465
 Fast charging time[h] 0.5
Fast charge capacity [%] 80
Slow charging time[h] 10.0
Motor horsepower [Ps] 163
Length*width*height (mm) 4280*1772*1625
Body structure 5-door 5-seat Suv
Top Speed (KM/H) 140
Car body
Longth(mm) 4280
Width(mm) 1772
Higth(mm) 1625
Wheel base(mm) 2610
Front track (mm) 1535
Rear track (mm) 1540
Body structure SUV
Number of doors 5
Number of seats 5
Electric motor
Motor type Permanent magnet synchronization
Total motor power (kw) 120
Total motor torque [Nm] 280
Front motor maximum power (kW) 120
Front motor maximum torque (Nm) 280
Motor placement Prepended
Battery Type Ternary lithium battery
Battery Power(kwh) 61.3
Electricity consumption per 100 kilometers (kWh/100km) 14
Gearbox
Number of gears 1
Transmission type Fixed gear ratio gearbox
Short name Electric vehicle single speed gearbox
Chassis Steer
Form of drive FF
Type of front suspension McPherson independent suspension
Type of rear suspension Torsion beam dependent suspension
Boost type Electric assist
Car body structure Load bearing
Wheel braking
Type of front brake Ventilated Disc
Type of rear brake  Disc
Type of parking brake Electronic brake
Front Tire Specifications  215/55 R17
Rear tire specifications 215/55 R17
Spare tire size Not full size
Cab Safety Information
Primary driver airbag YES
Co-pilot airbag YES
Front side airbag YES
Front head airbag (curtain) ~/YES
Tire pressure monitoring function Tire pressure alarm
Seat belt not fastened reminder Front row
ISOFIX Child seat connector YES
ABS anti-lock YES
Brake force distribution (EBD/CBC, etc.) YES
Brake Assist (EBA/BAS/BA, etc.) YES
Traction Control (ASR/TCS/TRC, etc.) YES
Body Stability Control (ESC/ESP/DSC, etc.) YES
Assist/Control configuration
Rear parking radar YES
Driving assistance video Reverse image
Cruise system ~/Cruise control
Driving mode switching Sports
Automatic parking YES
Hill assist YES
External / Anti-Theft Configuration

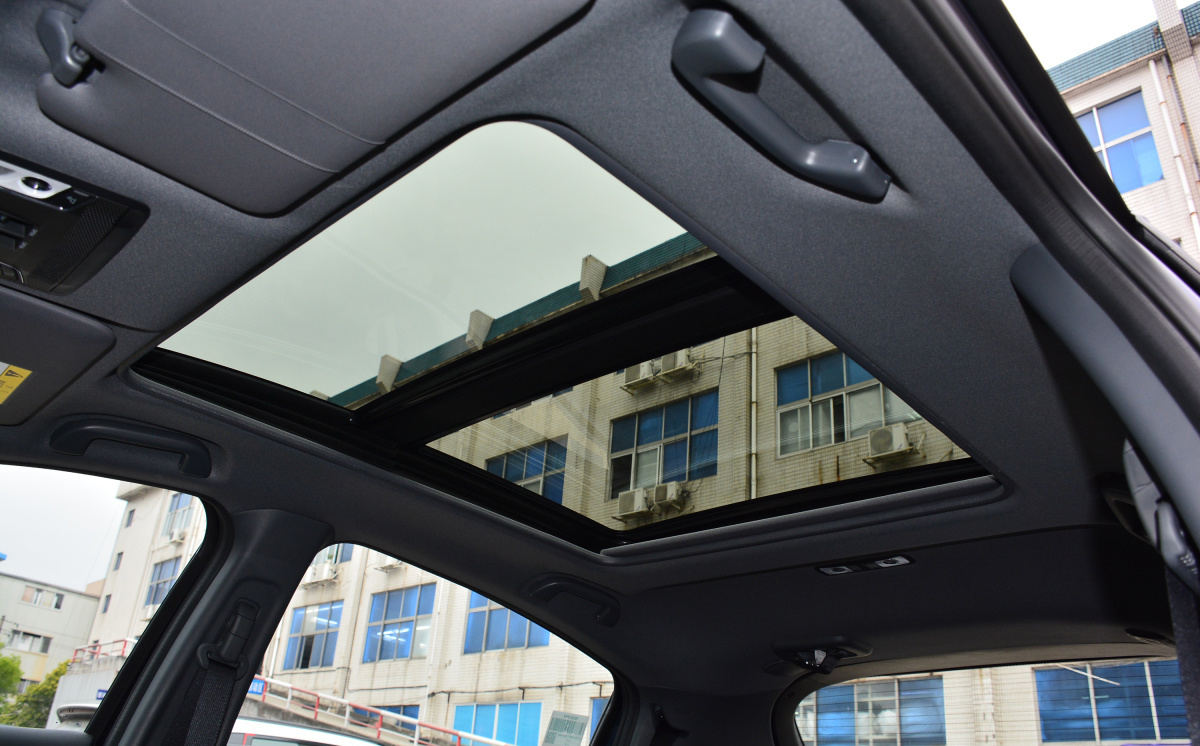

Sunroof type ~/Openable panoramic sunroof
Rim material Aluminum alloy
Interior central lock YES
Key type Remote key
Keyless entry function Front

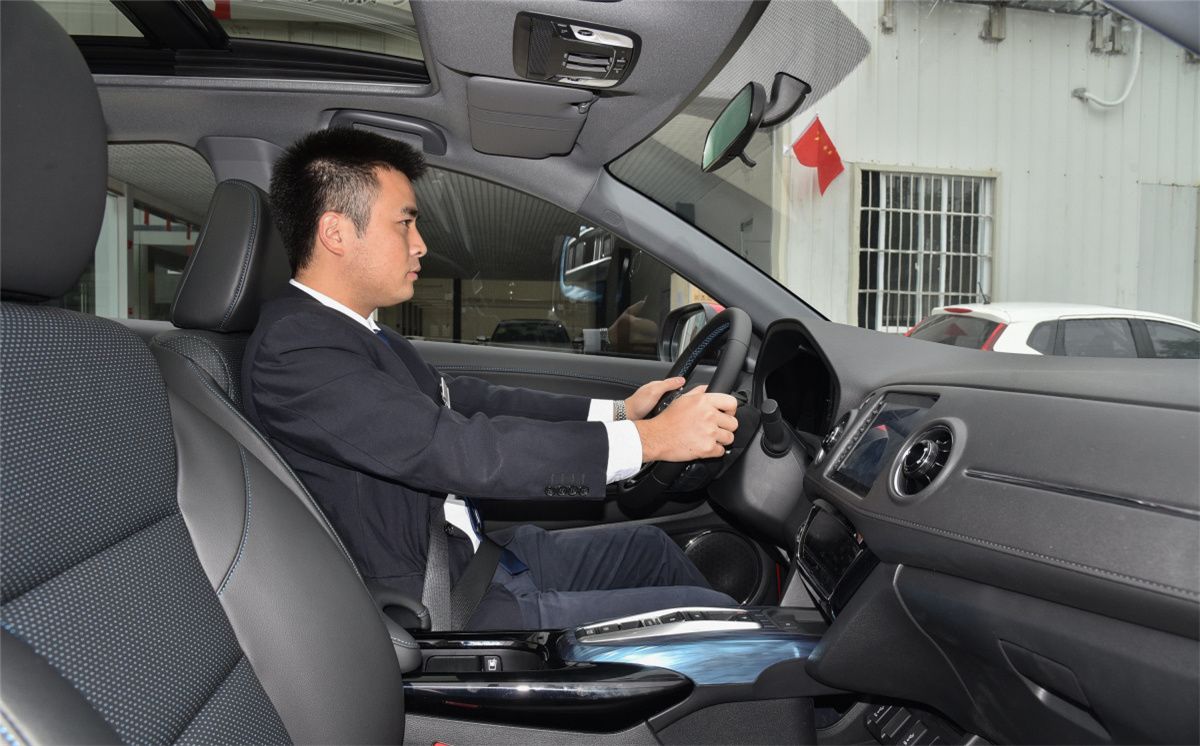

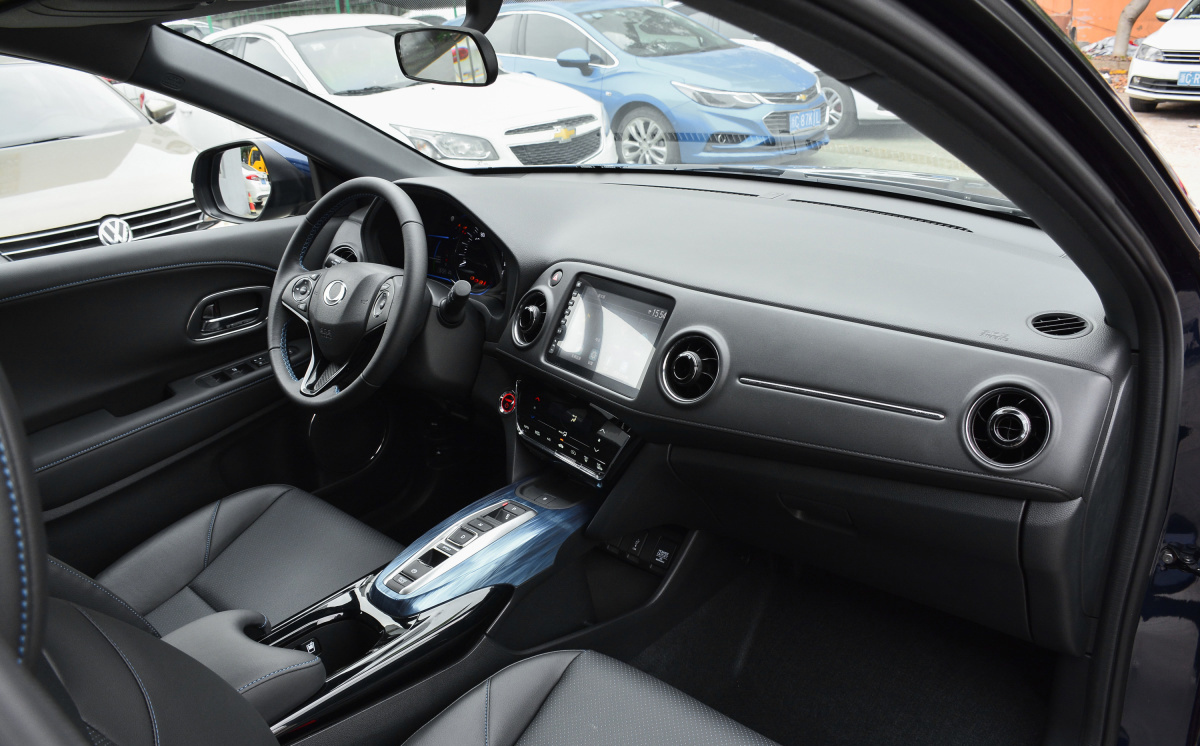

Internal configuration
Steering wheel material Plastic/Corium
Steering wheel position adjustment Manual up and down + front and rear adjustment
Multifunction steering wheel YES

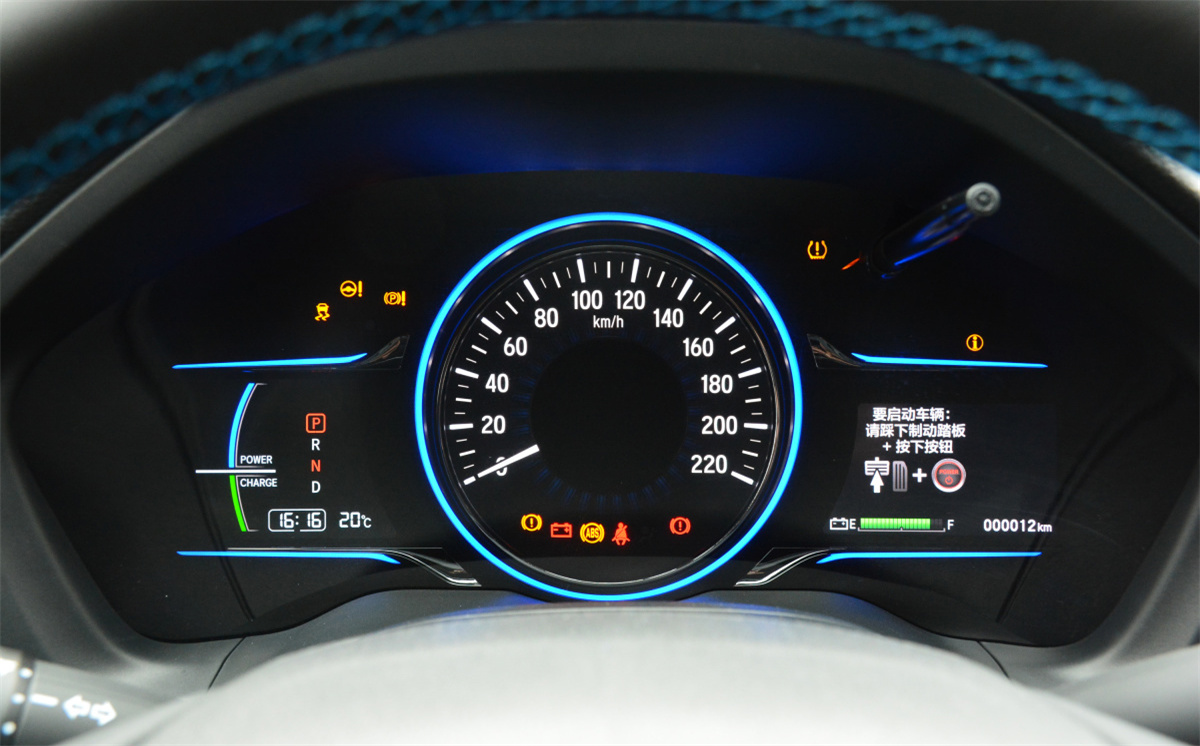

Trip computer display screen Color

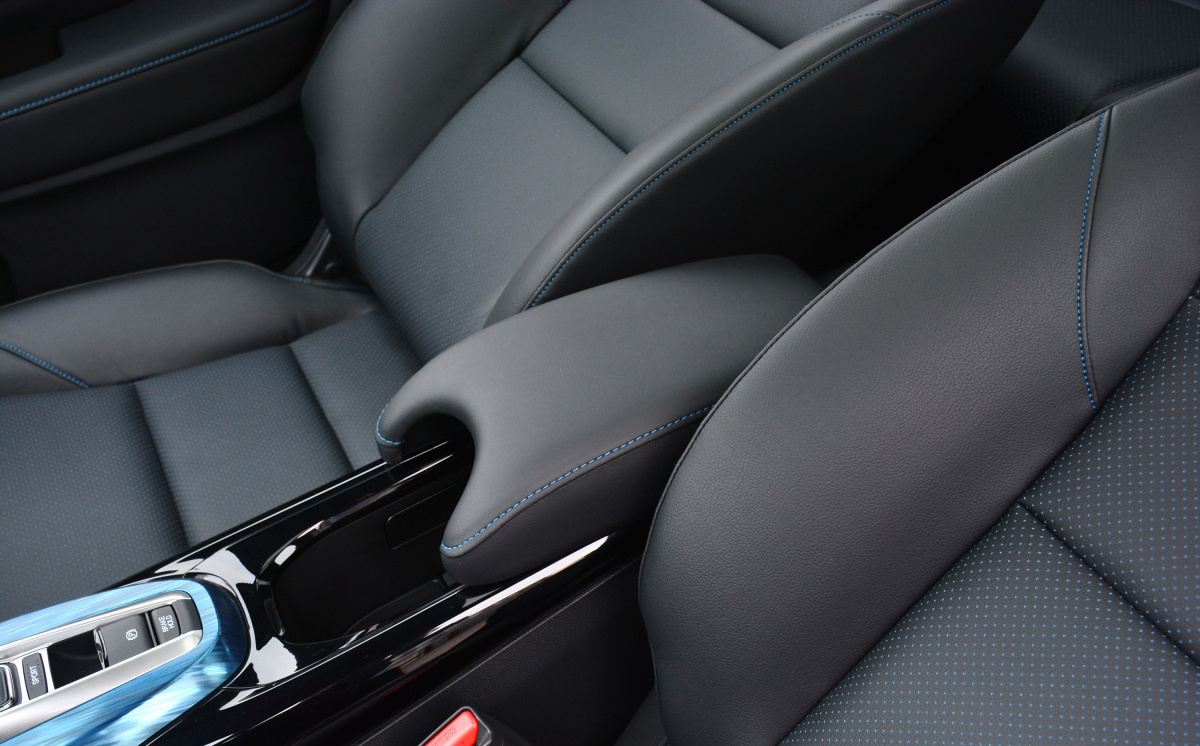

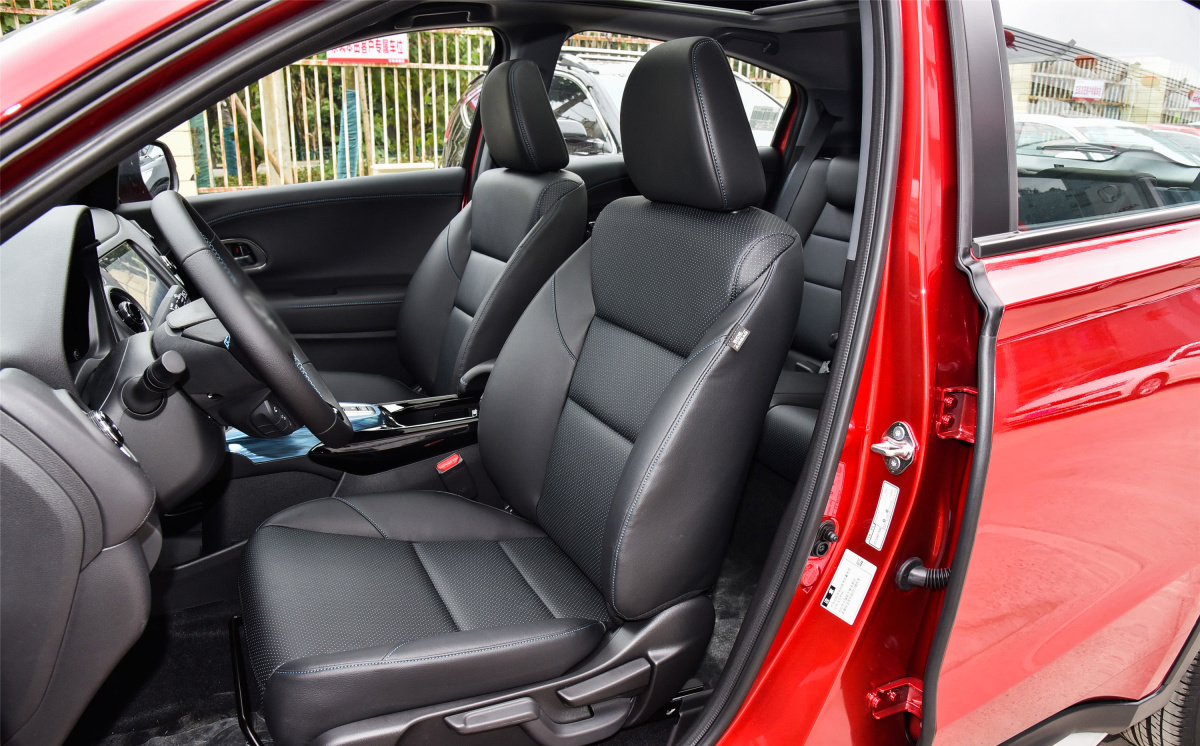

Seat configuration
Seat materials Leather,fabric mix/Iimitation leather
Driver's seat adjustment Front and rear adjustment, backrest adjustment, height adjustment (2-way)
Co-pilot  seat adjustment Front and rear adjustment, backrest adjustment
Rear seats folded down Proportion down
Rear cup holder Second row
Front/rear center armrest Front/rear
Multimedia configuration

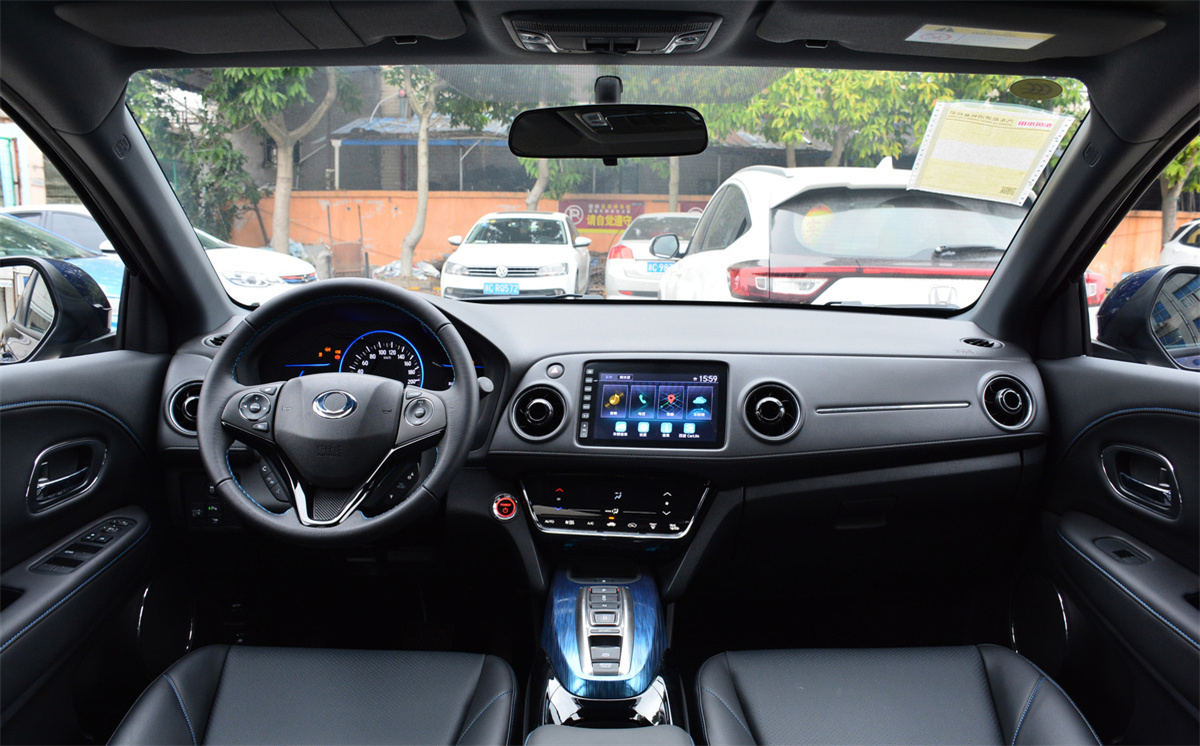

Central control color screen Touch LCD
Central control screen size (inch) 8
Satellite navigation system YES
Navigation traffic information display YES
Bluetooth/Car Phone YES
Mobile phone interconnection/mapping                                                                              Support CarLife
Multimedia/charging interface USB
Number of USB/Type-c ports 2 in front
Luggage compartment 12V power interface YES
Number of speakers (pcs) 4/6.
Lighting configuration
Low beam light source Halogen
High beam light source Halogen
Front fog lights Halogen
Headlight height adjustable YES
Headlights turn off YES
Glass/Rearview mirror

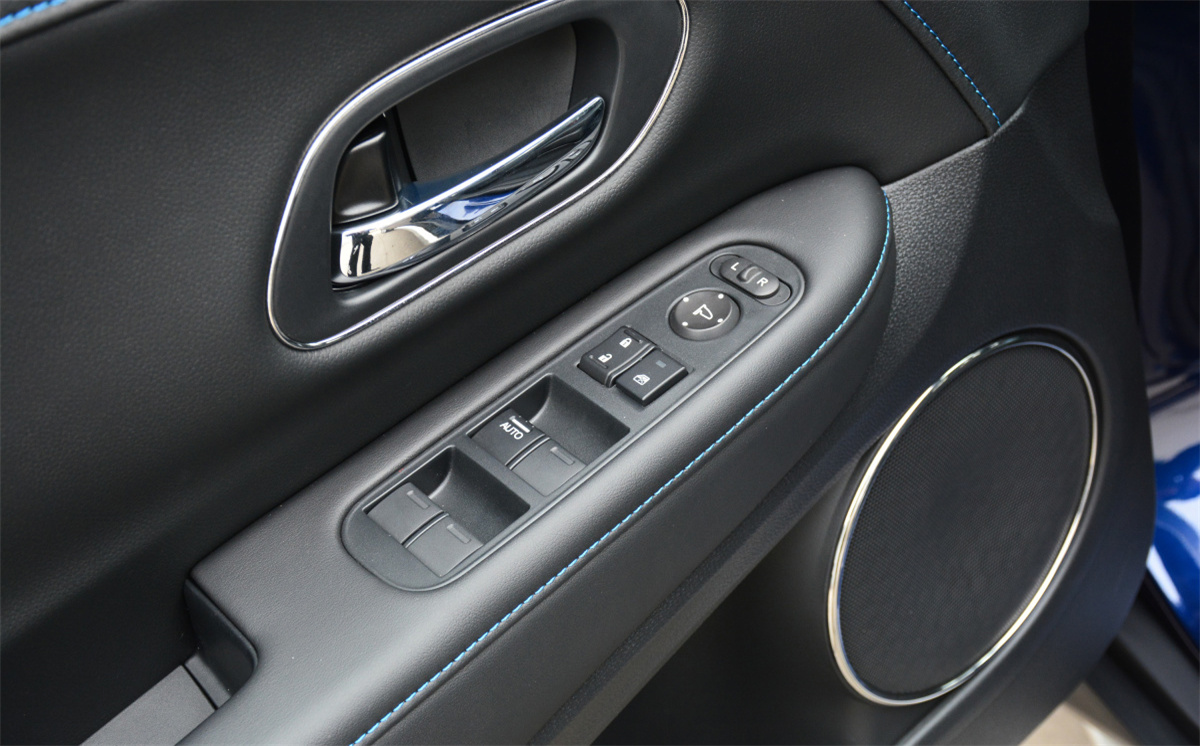

Front power windows YES
Rear power windows YES
Window one-button lift function Driver seat
Post audition feature Electric adjustment/Electric adjustment, heated mirrors
Inside rearview mirror function Manual anti-dazzle
Interior vanity mirror Driver's seat,Co-pilot/Driver's seat+flashlight,Co-pilot+flashlight
Rear wiper YES
Air conditioner/refrigerator
First row air conditioner Single-zone automatic air conditioning

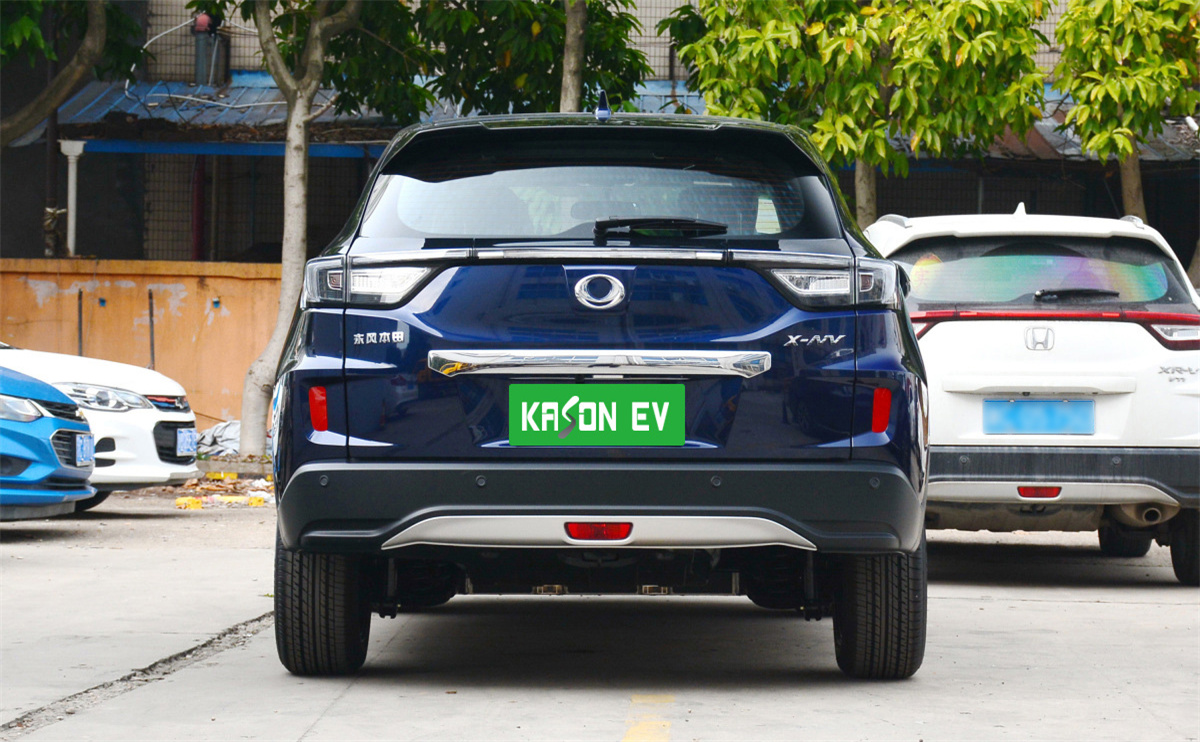

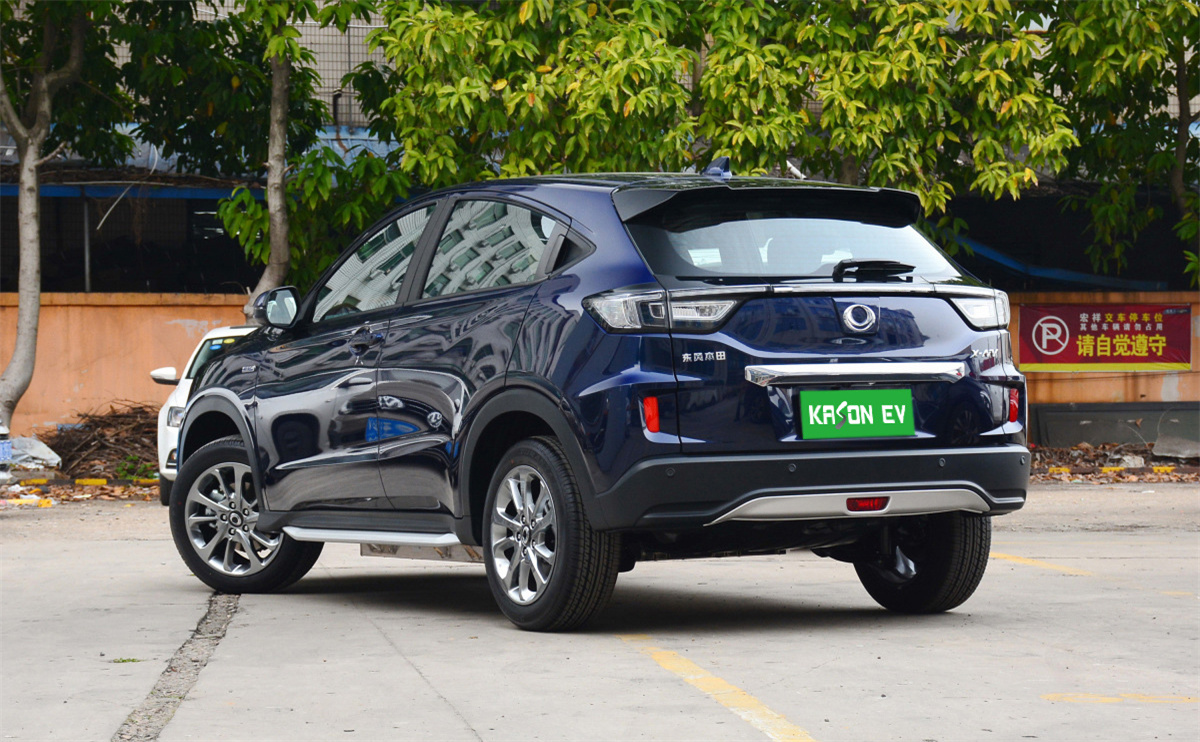

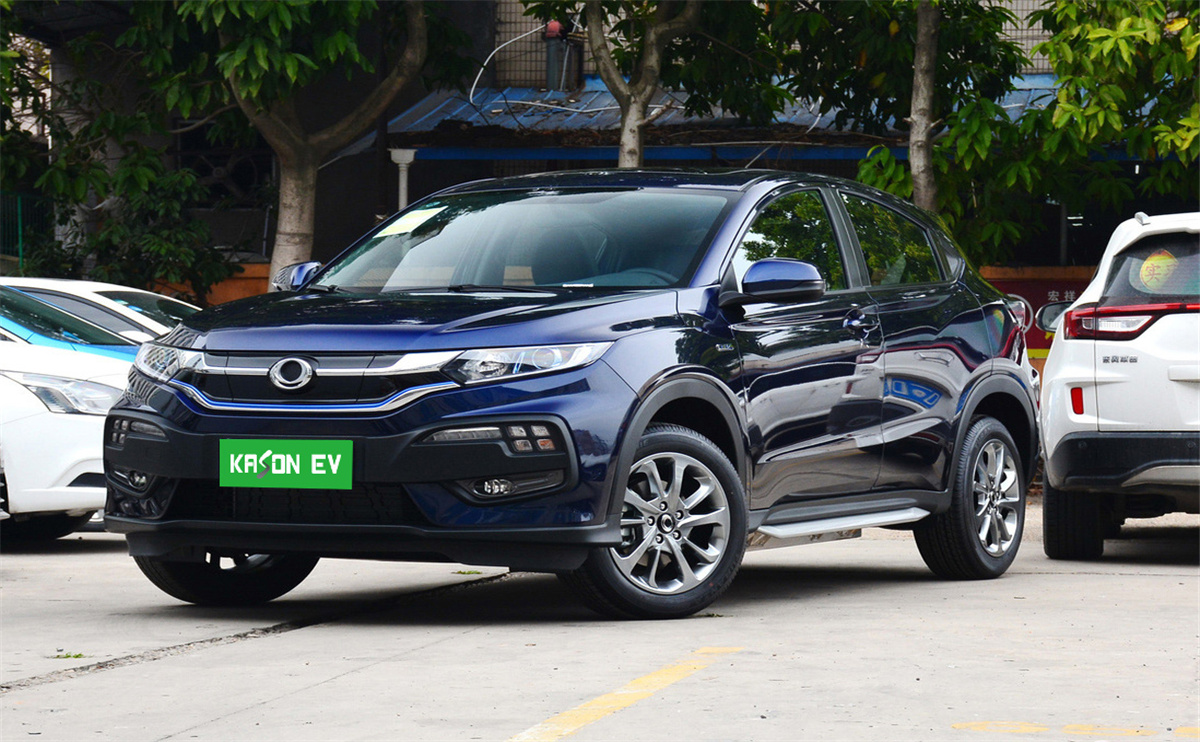

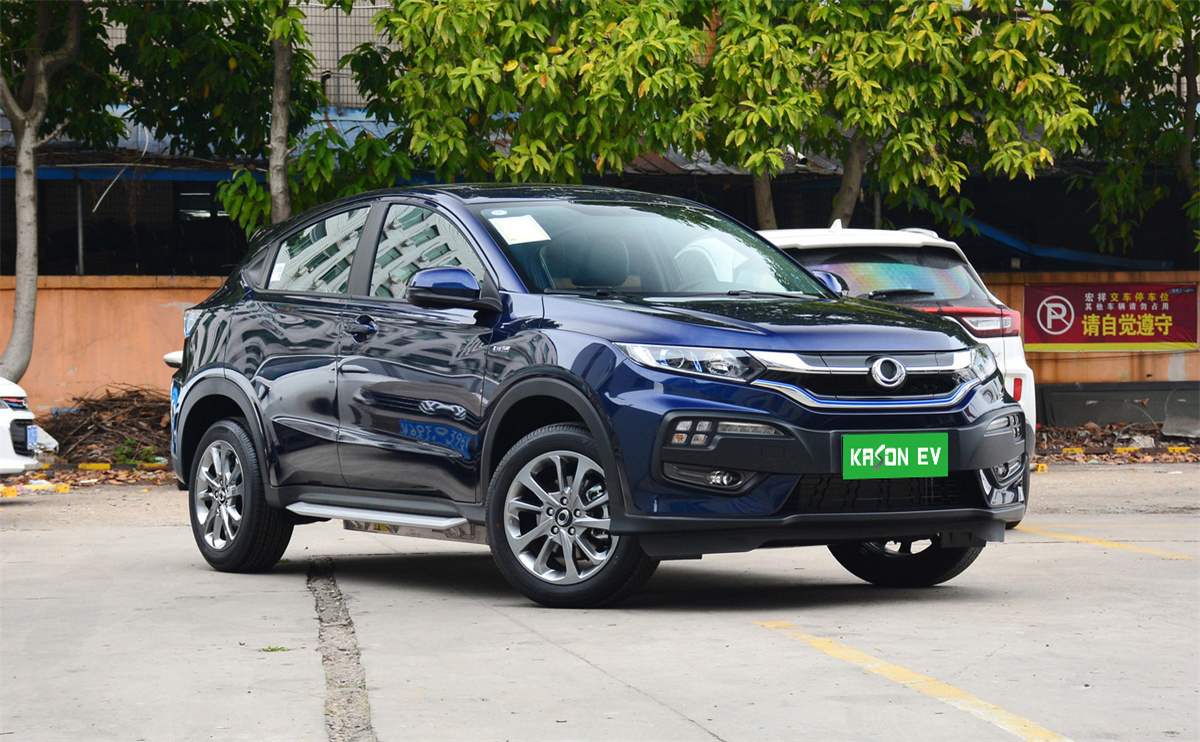

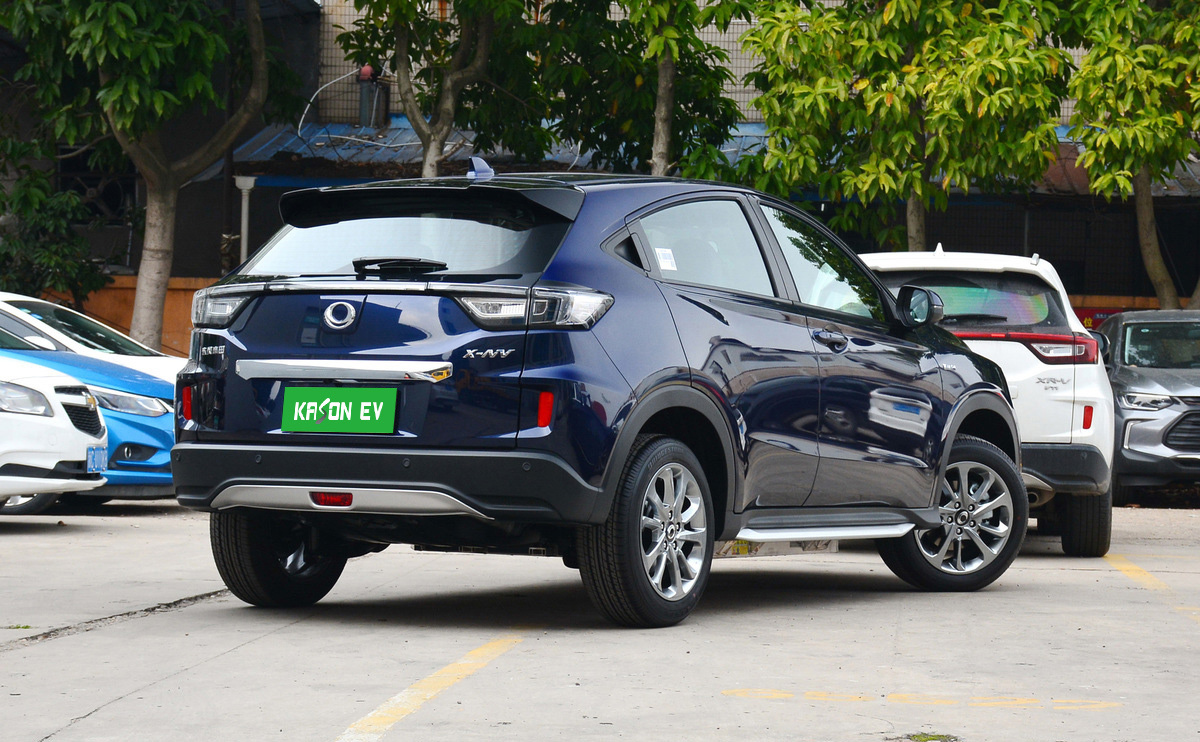

Appearance
