Byd Han new energy high speed car

Short Description:

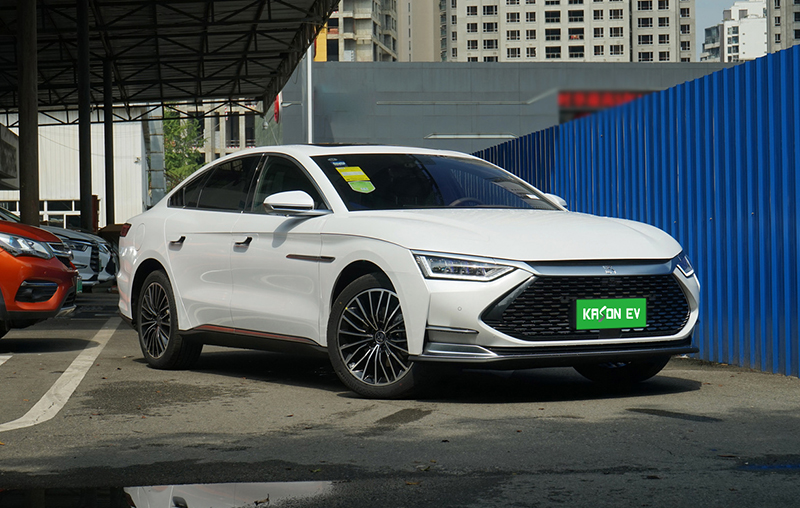

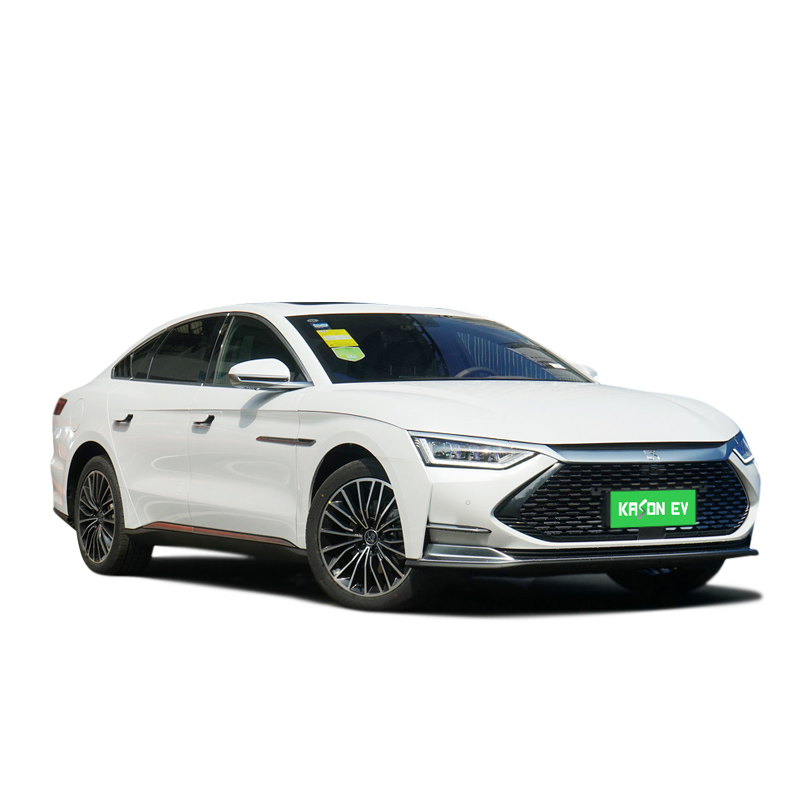

In details, the new car has optimized the front bumper, the size of the forward air port has become larger, and the two sides have also been changed into black trim decoration, plus the uplifted lines above the engine cover, the vehicle feels full of combat. The side shape of the car body is sharp, the double waist line design with a hidden door handle design.


Product Detail

Product Tags

product information

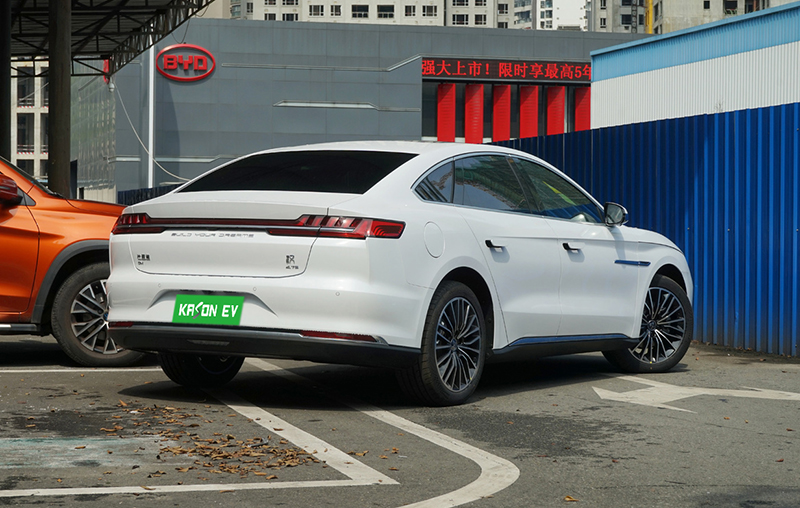

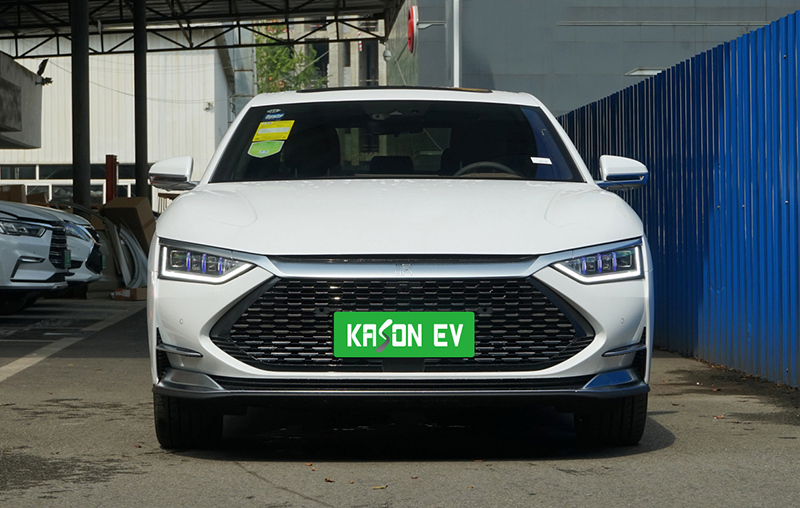

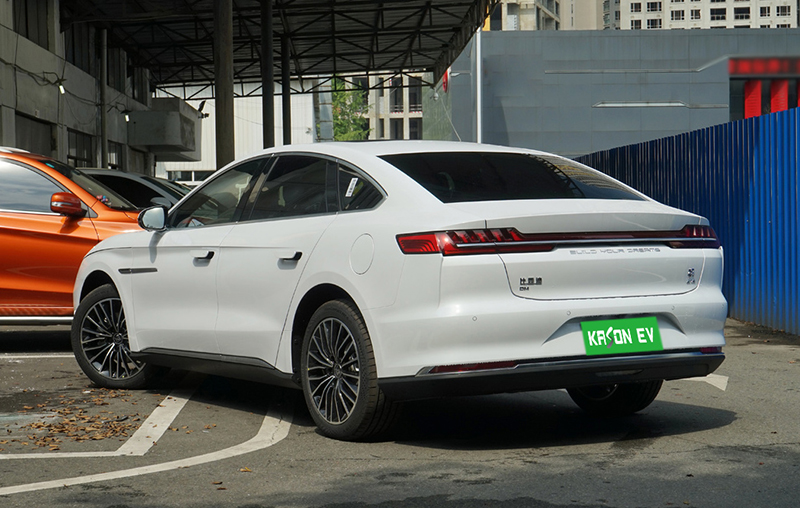

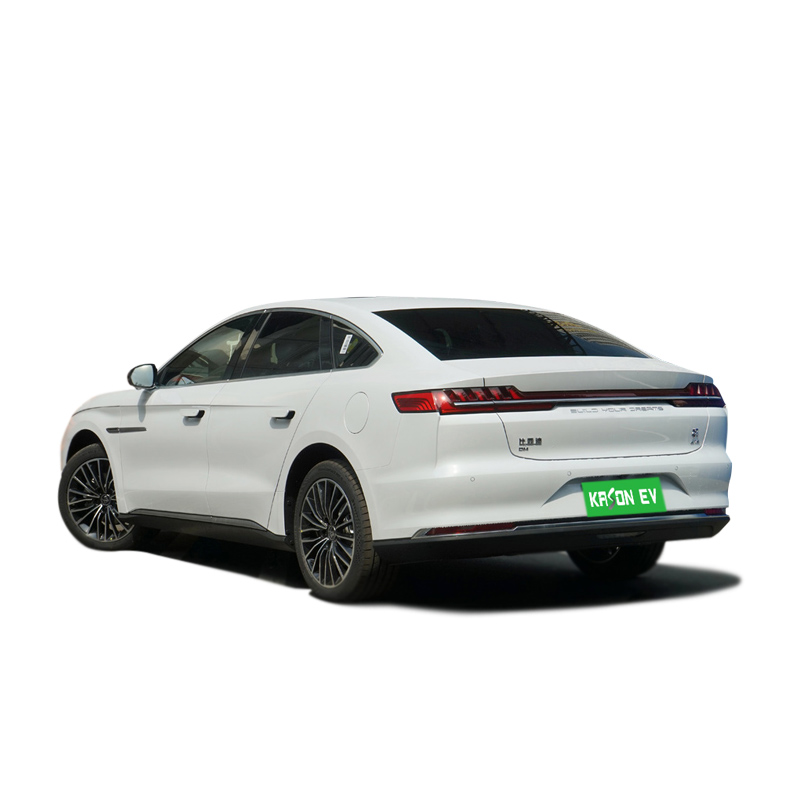

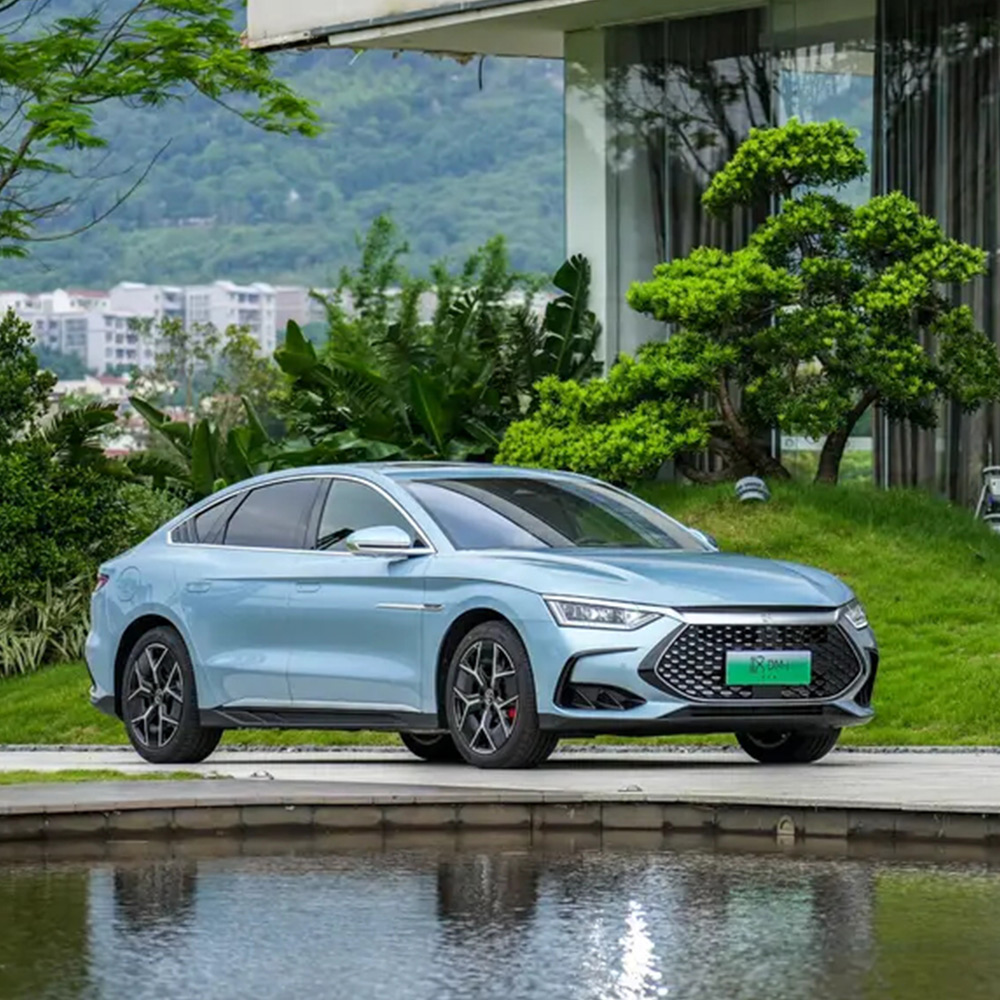

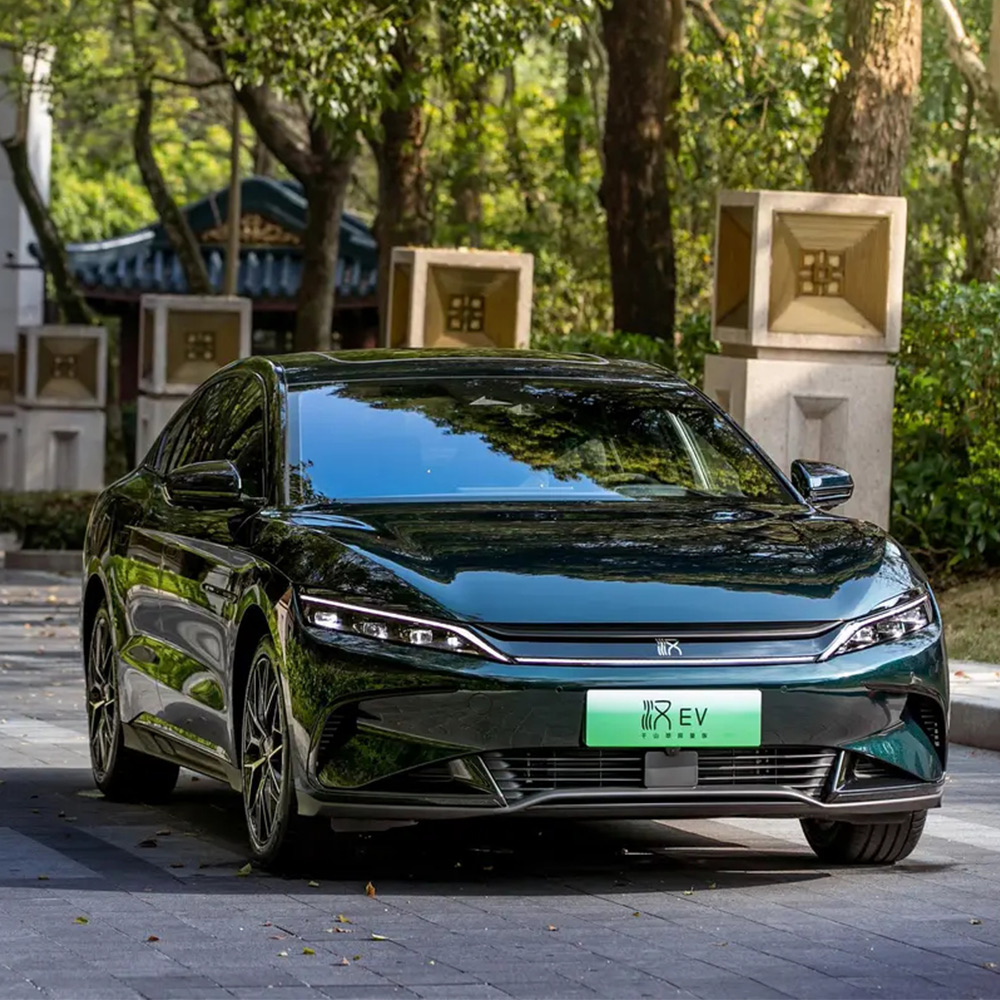

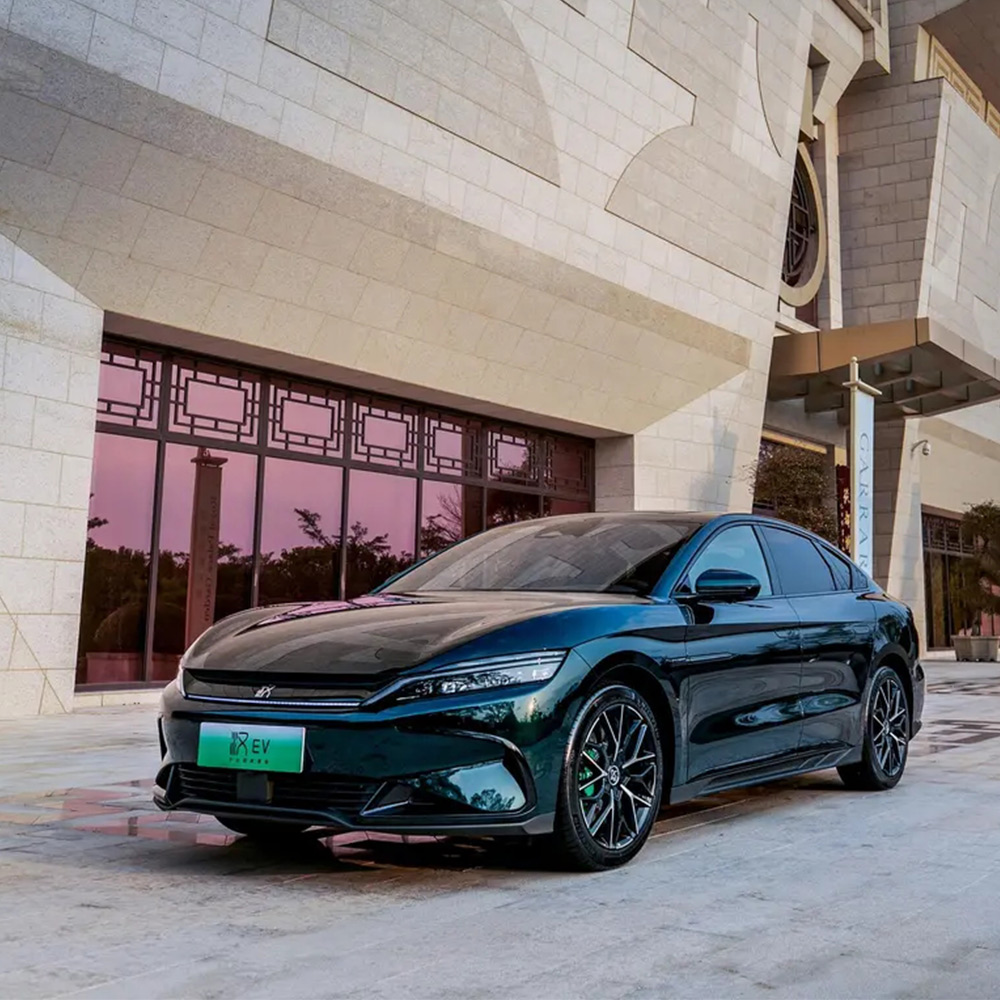

In terms of appearance, the overall shape of the new car has not changed much, and the three-dimensional shape design has a good sense of sport. In details, the new car has optimized the front bumper, the size of the forward air port has become larger, and the two sides have also been changed into black trim decoration, plus the uplifted lines above the engine cover, the vehicle feels full of combat. And the headlights are still penetrating design, printed in the middle of the "Han" LOGO. The side shape of the body is sharp, with the double waist line design, hidden door handle design and dense spoke wheel shape, which further enhances the sense of sport of the whole vehicle. The size of the new car is 4995mm*1910mm*1495mm in length, width and height, and 2920mm in wheelbase. Compared with the current model, the size has been improved by 20mm. However, there will not be much change in actual use. After optimization, the rear of the car becomes more full and perfect. The taillight is still a penetrating taillight shape, and the internal light source adopts the structure of "Chinese knot", which is highly recognizable after lighting. The back envelope echoes the front face, and the black envelope enhances the sport of the vehicle. Both sides of the rear are equipped with sharp diversion slots to further optimize the aerodynamics of the new car.
In terms of power, through the application information of BYD Han EV, the new car continues to provide two combinations of front-drive single motor and four-drive double motor, and the lithium iron carbonate battery is still used. In terms of data, the maximum power of the single-motor version of the system is 180kW, which is 17kW higher than the cash model. And the dual motor version of the model, the front engine maximum power of 180kW, rear drive motor maximum power of 200kW, it is worth mentioning that the high-performance version of the zero hundred acceleration and cash models compared to improve 0.2 seconds, to 3.7 seconds.

Product Specifications

Brand BYD
Model HAN
Basic parameters
Car model medium and large car
Type of Energy Pure electric
NEDC pure electric cruising range (KM) 550
 Fast charging time[h] 0.42
Fast charge capacity [%] 80
Motor maximum horsepower [Ps] 494
Gearbox Electric vehicle single speed gearbox
Length*width*height (mm) 4980*1910*1495
Number of seats 5
Body structure 3 compartment
Top Speed (KM/H) 185
Wheelbase(mm) 2920
Mass (kg) 2170
Electric motor
Motor type Permanent magnet synchronization
Motor maximum horsepower (PS) 494
Total motor power (kw) 363
Total motor torque [Nm] 680
Front motor maximum power (kW) 163
Front motor maximum torque (Nm) 330
Drive mode Pure electric
Number of drive motors Double motor
Motor placement Front+Rear
Total electric motor horsepower [Ps] 494
Battery
Type Lithium iron phosphate battery
Battery capacity(kwh) 76.9
Chassis Steer
Form of drive Electric 4WD
Type of front suspension MacPherson independent suspension
Type of rear suspension Multi-link independent suspension
Car body structure Load bearing
Wheel braking
Type of front brake Ventilated Disc
Type of rear brake Disc type
Type of parking brake Electronic brake
Front Tire Specifications 245/45 R19
Rear tire specifications 245/45 R19
Cab Safety Information
Primary driver airbag YES
Co-pilot airbag YES
