product information

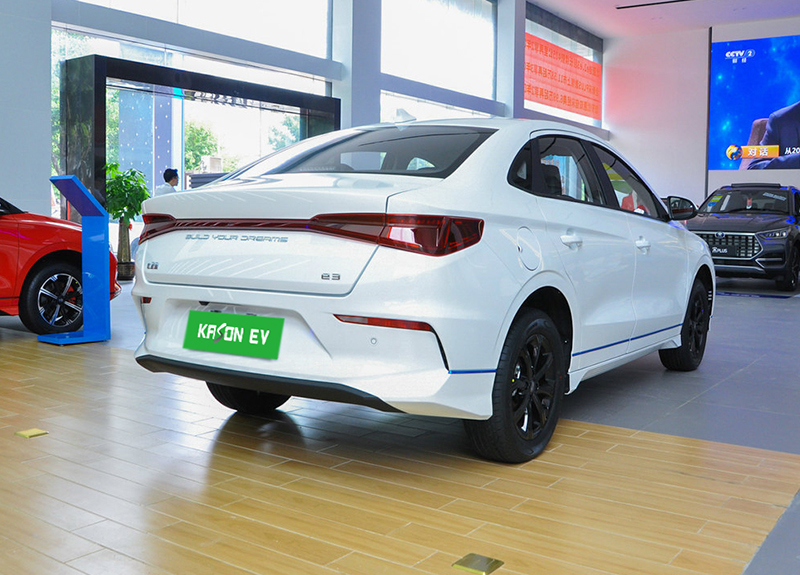

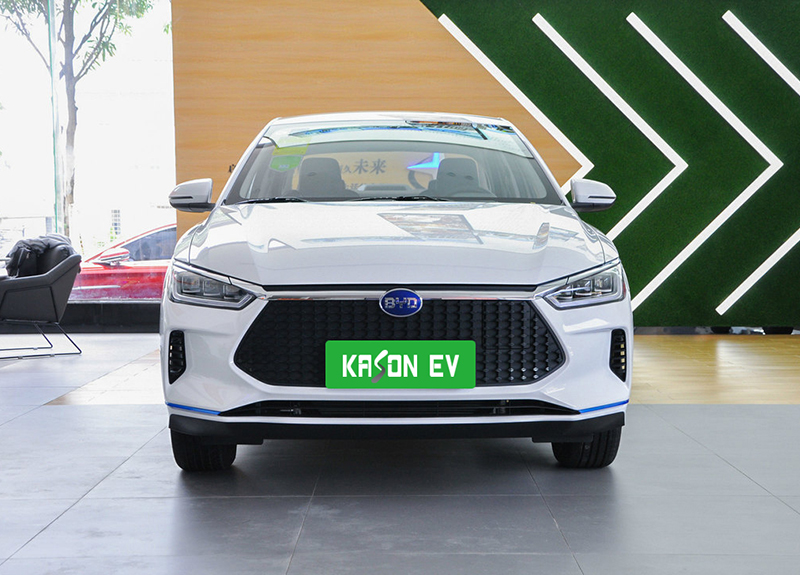

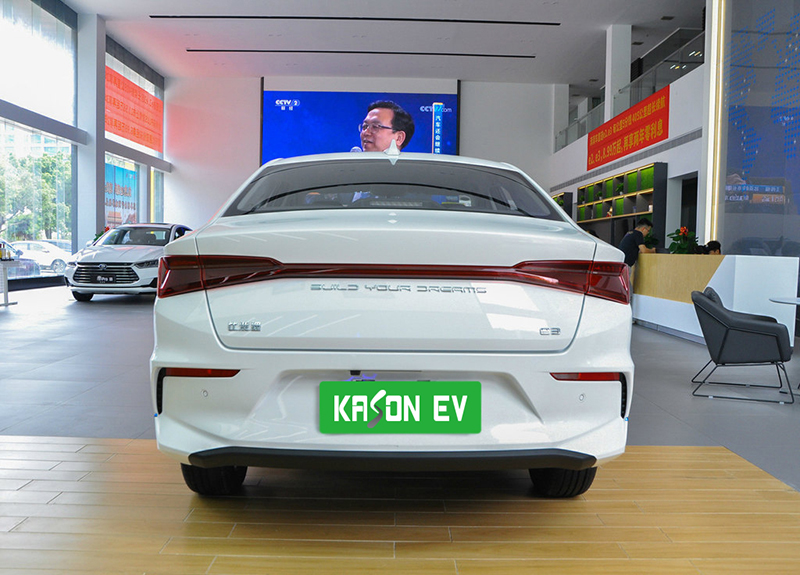

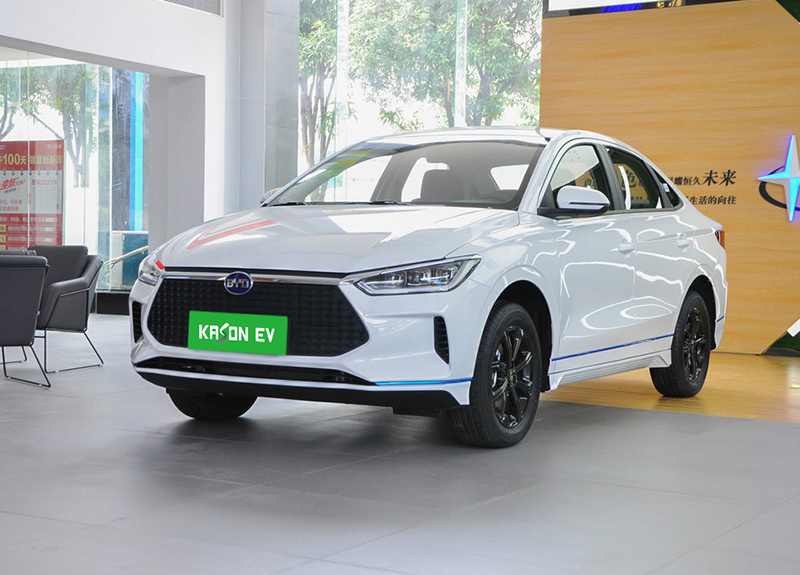

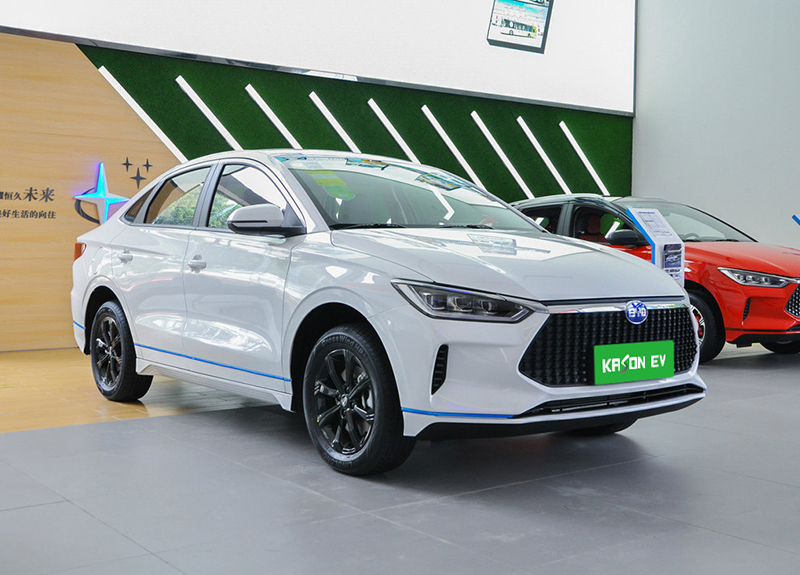

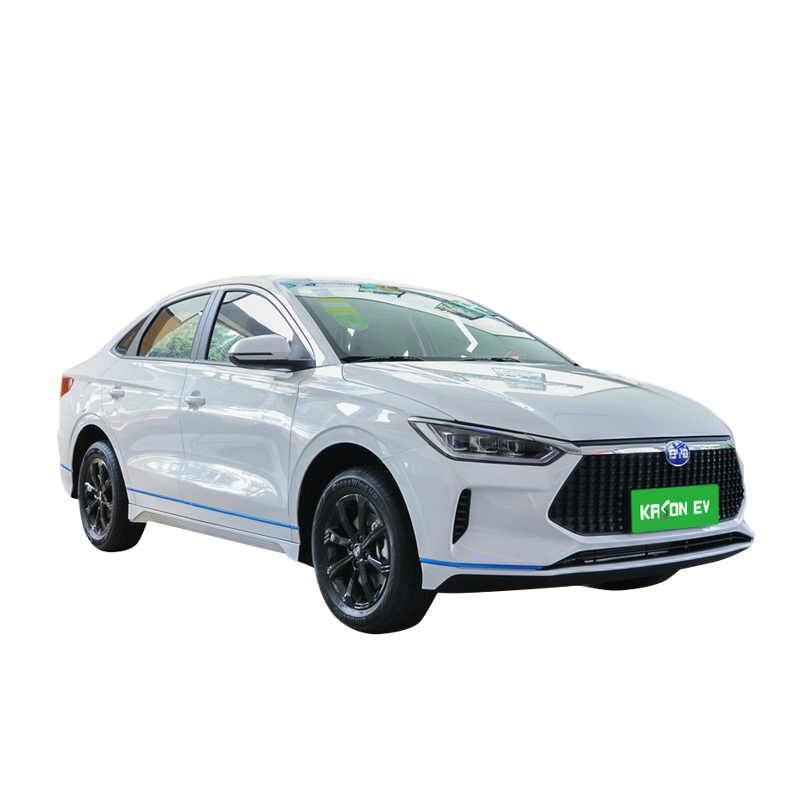

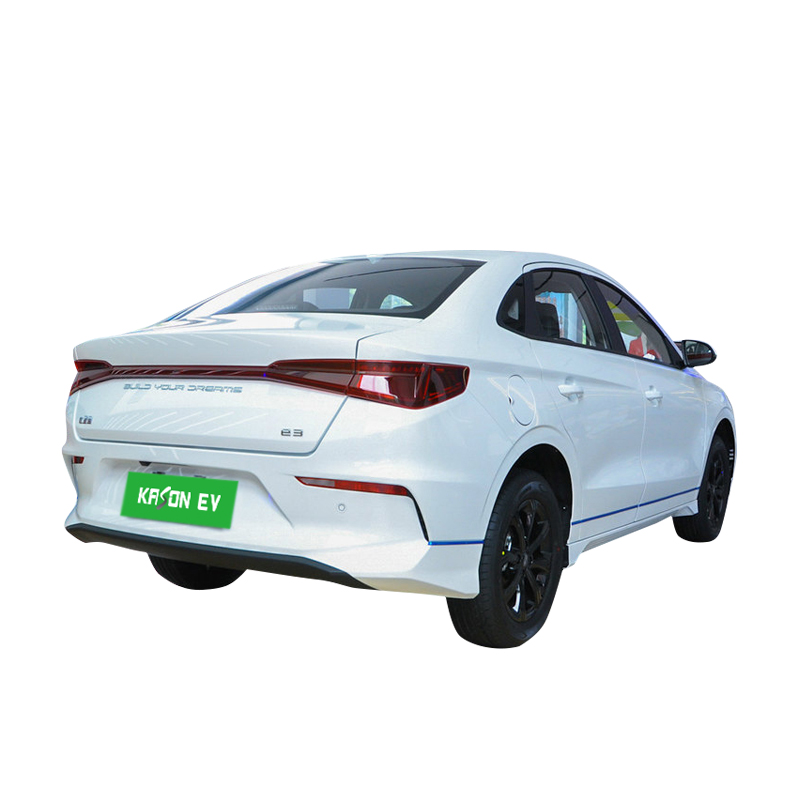

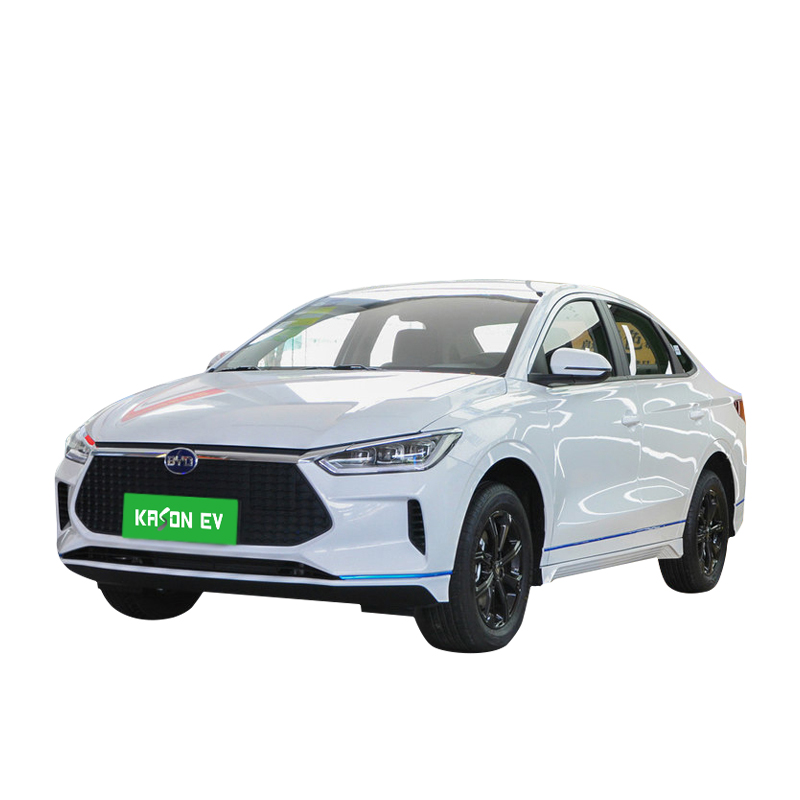

E3 models and E series family are also from BYD's independent E platform. It is 4450 mm long, 1760 mm wide and 1520 mm high, with a wheelbase of 2610 mm. The exterior design is led by the international design team led by Wolfgang Iger, which makes a very beautiful and bold extension on the sporty tone. The unique design concept of Crystal Energy of E series is applied to make this car more textural. The front face of the Roman star matrix grille is very eye-catching, and is connected with the sharp modeling of LED headlights on both sides, the taillight part or the use of the most popular throughout the design, very beautiful design, the vehicle lines not only a sense of strength, details also reveal the charm of young rhythm. X-brake features such as red-sprayed calipers and carbon-fibre fluid-powered rearview mirrors.

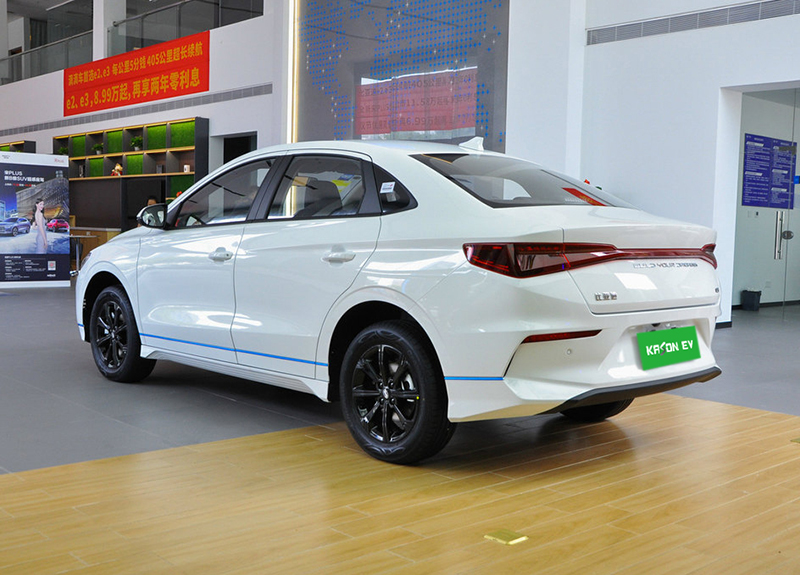

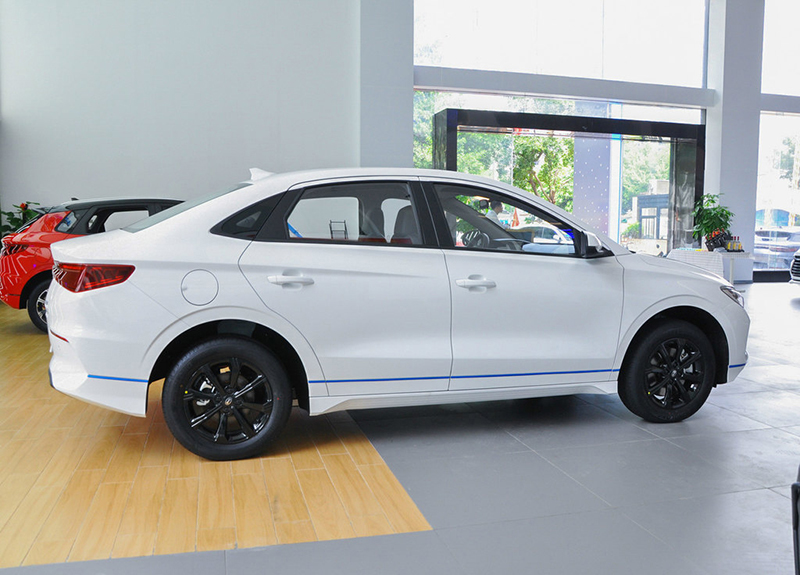

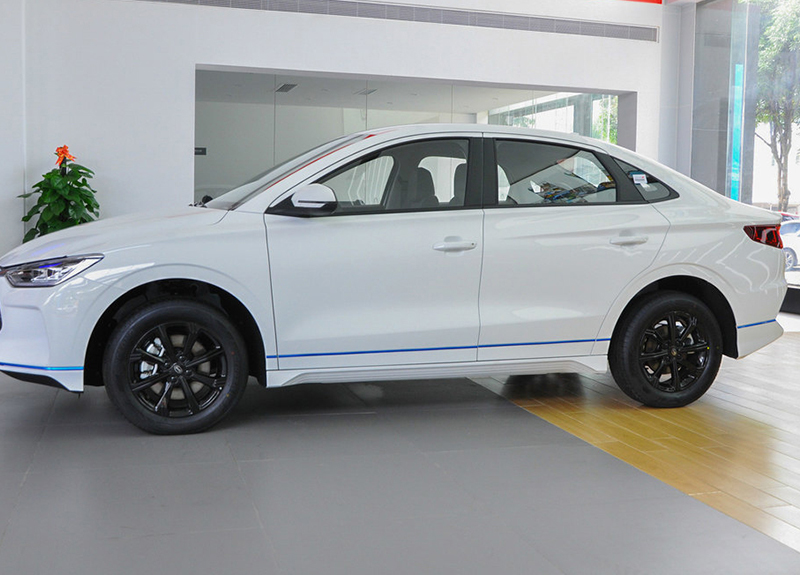

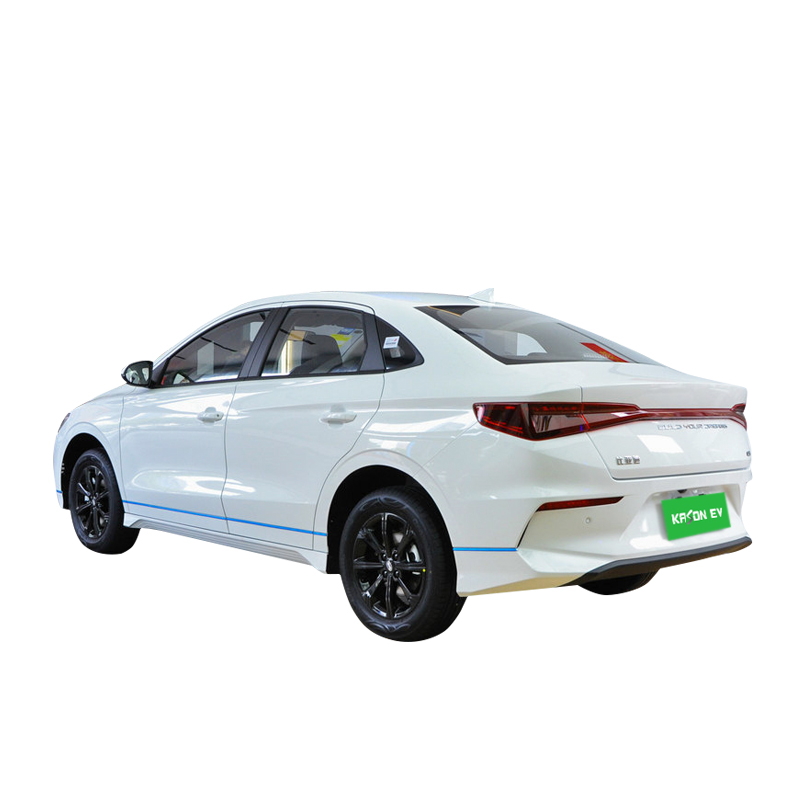

The side of the new car uses more features of horizontal extension to strengthen the width of the body, so that the side of the vehicle looks more powerful. Through multi-level division, the visual effect of this car is very coordinated. It is worth mentioning that the reasonable space division allows E3 models to have a 560L large tailgate space, which has a variety of choices in space combination and is very practical. In addition, e3 models are also known to have cradle-class comfort vibration frequencies of 1-2 Hz, which will greatly improve ride comfort.

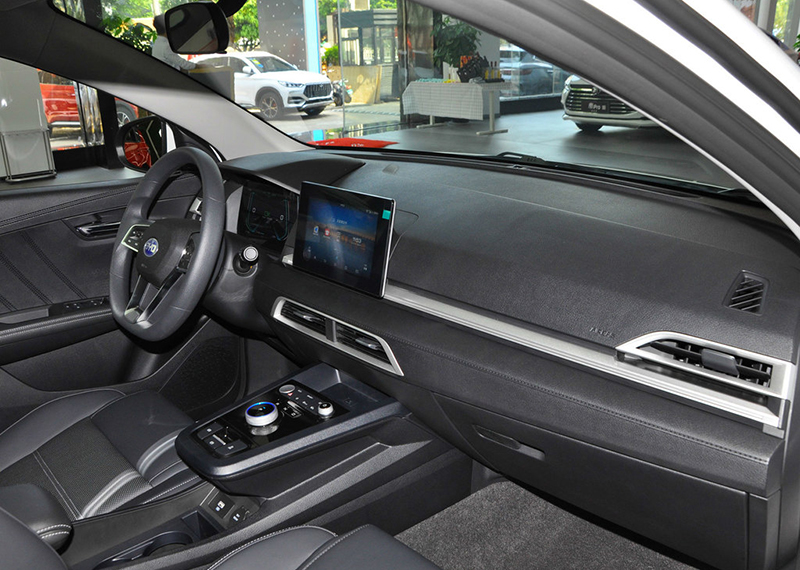

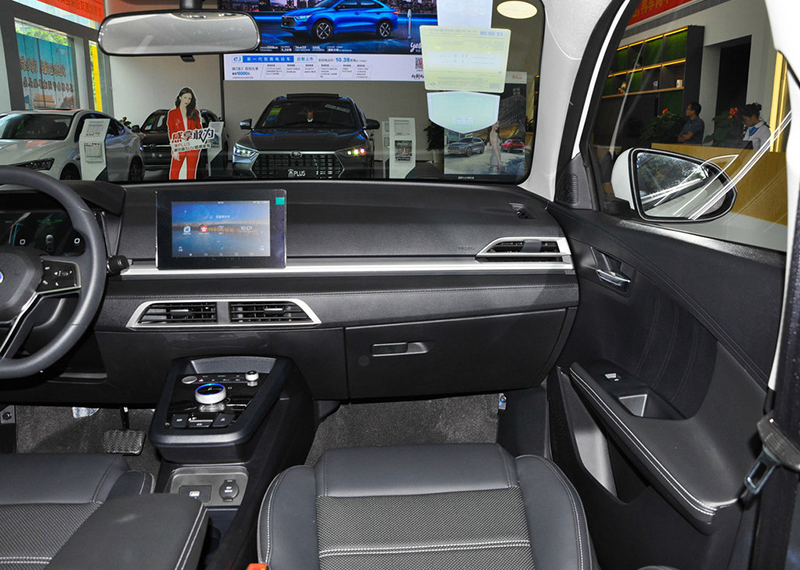

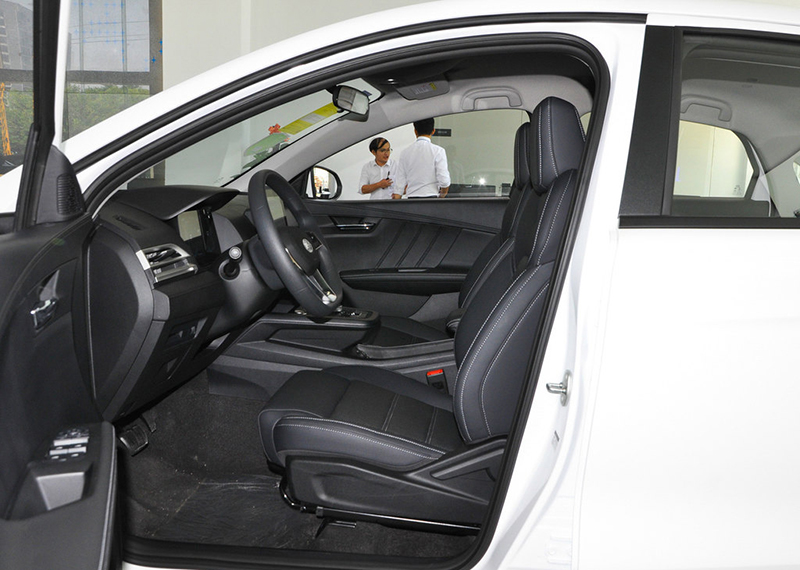

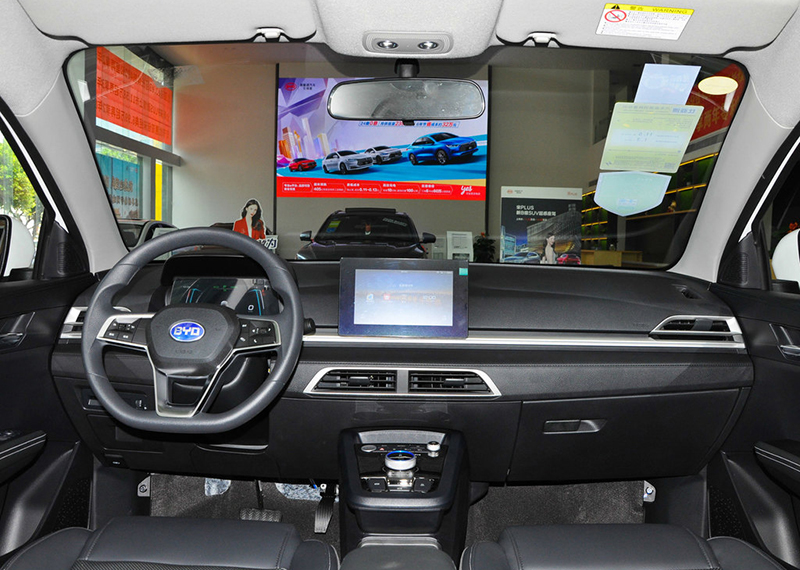

Interior, BYD E3 uses dark black interior, silver decorative strips are well divided into layers. Equipped with 8-inch vertical full LCD instrument and 10.1-inch 8-core floating Pad, the vehicle data is clear and eye-catching. The new car will also be equipped with the latest DiLink2.0 smart connectivity system, with a 10.1-inch pad in the central control area and an easy-to-use interface. In addition, E3 is also equipped with intelligent voice interaction system and OTA intelligent remote upgrade and other functions. In addition to voice control startup, air conditioning navigation and other functions, it can also realize free upgrade of vehicle system and hardware.
In terms of power and endurance, the new car is equipped with a permanent magnet synchronous drive motor with a maximum power of 70kW and an independently developed ternary lithium battery with an energy density of 160Wh /kg. E3 provides two battery versions for consumers to choose, among which the standard battery version has a battery capacity of 35.2kW·h and a battery capacity of 305km under NEDC condition; The high-endurance version is equipped with a battery capacity of 47.3kW·h, which can run 405km in NEDC mode.
Product Specifications
Brand | BYD | BYD |
Model | E3 | E3 |
Version | 2021 Travel Edition | 2021 Lingchang Edition |
Basic parameters | ||
Car model | Compact Car | Compact Car |
Type of Energy | Pure electric | Pure electric |
NEDC pure electric cruising range (KM) | 401 | 401 |
Maximum power (KW) | 100 | 100 |
Maximum torque [Nm] | 180 | 180 |
Motor horsepower [Ps] | 136 | 136 |
Length*width*height (mm) | 4450*1760*1520 | 4450*1760*1520 |
Body structure | 4-door 5-seat Sedan | 4-door 5-seat sedan |
Car body | ||
Longth(mm) | 4450 | 4450 |
Width(mm) | 1760 | 1760 |
Higth(mm) | 1520 | 1520 |
Wheel base(mm) | 2610 | 2610 |
Front track (mm) | 1490 | 1490 |
Rear track (mm) | 1470 | 1470 |
Body structure | Sedan | Sedan |
Number of doors | 4 | 4 |
Number of seats | 5 | 5 |
Trunk volume (L) | 560 | 560 |
Electric motor | ||
Motor type | Permanent magnet synchronization | Permanent magnet synchronization |
Total motor power (kw) | 100 | 100 |
Total motor torque [Nm] | 180 | 180 |
Front motor maximum power (kW) | 100 | 100 |
Front motor maximum torque (Nm) | 180 | 180 |
Number of drive motors | Single motor | Single motor |
Motor placement | Prepended | Prepended |
Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery |
Battery Power(kwh) | 43.2 | 43.2 |
Gearbox | ||
Number of gears | 1 | 1 |
Transmission type | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
Short name | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
Chassis Steer | ||
Form of drive | FF | FF |
Type of front suspension | McPherson independent suspension | McPherson independent suspension |

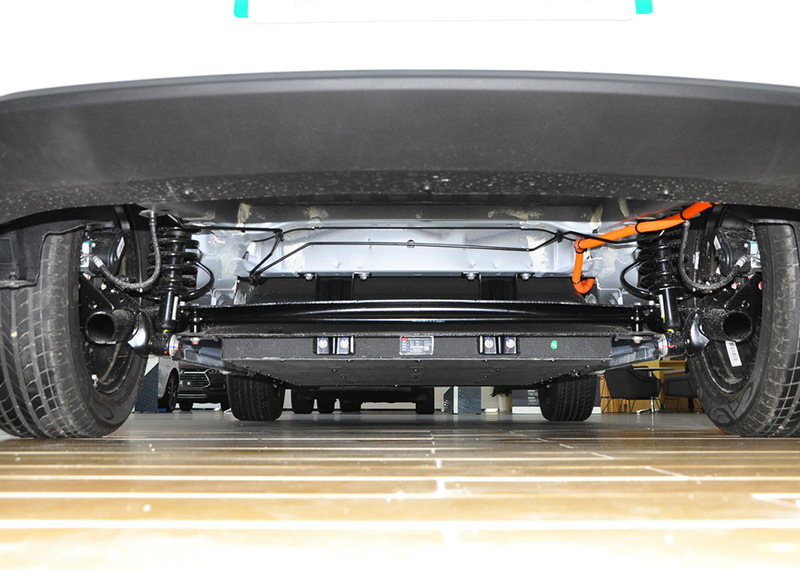

Type of rear suspension | Torsion Beam Dependent Suspension | Torsion Beam Dependent Suspension |
Boost type | Electric assist | Electric assist |
Car body structure | Load bearing | Load bearing |
Wheel braking | ||
Type of front brake | Ventilated Disc | Ventilated Disc |
Type of rear brake | Disc | Disc |
Type of parking brake | Electric brake | Electric brake |
Front Tire Specifications | 205/60 R16 | 205/60 R16 |
Rear tire specifications | 205/60 R16 | 205/60 R16 |
Cab Safety Information | ||
Primary driver airbag | YES | YES |
Co-pilot airbag | YES | YES |
Tire pressure monitoring function | Tire pressure alarm | Tire pressure alarm |
Seat belt not fastened reminder | Driver's seat | Driver's seat |
ISOFIX Child seat connector | YES | YES |
ABS anti-lock | YES | YES |
Brake force distribution (EBD/CBC, etc.) | YES | YES |
Brake Assist (EBA/BAS/BA, etc.) | YES | YES |
Traction Control (ASR/TCS/TRC, etc.) | YES | YES |
Body Stability Control (ESC/ESP/DSC, etc.) | YES | YES |
Assist/Control configuration | ||
Rear parking radar | YES | YES |
Driving assistance video | Reverse image | Reverse image |
Cruise system | Cruise control | Cruise control |
Driving mode switching | Sports/Economy/Snow | Sports/Economy/Snow |
Automatic parking | YES | YES |
Hill assist | YES | YES |
External / Anti-Theft Configuration | ||
Rim material | Aluminum alloy | Aluminum alloy |
Interior central lock | YES | YES |
Key type | Remote key | Remote key |
Keyless start system | YES | YES |
Keyless entry function | Driver's seat | Driver's seat |
Remote start function | YES | YES |
Battery preheating | YES | YES |
Internal configuration | ||
Steering wheel material | Cortex | Cortex |
Steering wheel position adjustment | Manual up and down | Manual up and down |

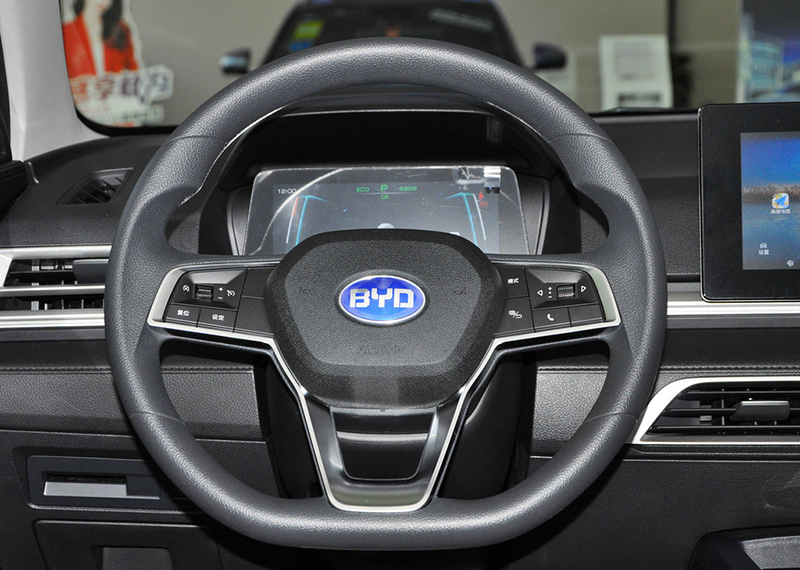

Multifunction steering wheel | YES | YES |
Trip computer display screen | Color | Color |
Full LCD Dashboard | YES | YES |
LCD meter size (inch) | 8 | 8 |
Seat configuration | ||
Seat materials | Imitation leather | Imitation leather |
Driver's seat adjustment | Front and rear adjustment, backrest adjustment | Front and rear adjustment, backrest adjustment |
Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment | Front and rear adjustment, backrest adjustment |
Front seat function | Heating,ventilation(Driver's seat) | Heating,ventilation(Driver's seat) |
Rear seats folded down | whole down | whole down |
Front/rear center armrest | Front | Front |
Multimedia configuration | ||
Central control color screen | Touch LCD | Touch LCD |
Central control screen size (inch) | 10.1 | 10.1 |
Satellite navigation system | YES | YES |
Navigation traffic information display | YES | YES |
Bluetooth/Car Phone | YES | YES |
Internet of Vehicles | YES | YES |
OTA upgrade | YES | YES |
Number of USB/Type-c ports | 1 in front | 1 in front |
Number of speakers (pcs) | 2 | 2 |
Lighting configuration | ||
Low beam light source | Halogen | Halogen |
High beam light source | Halogen | Halogen |
Automatic headlights | YES | YES |
Headlight height adjustable | YES | YES |
Headlights turn off | YES | YES |
Touch reading light | YES | YES |
Glass/Rearview mirror | ||
Front power windows | YES | YES |
Rear power windows | YES | YES |
Post audition feature | Electric adjustment, Rearview mirror heating |
Electric adjustment, Rearview mirror heating |
Inside rearview mirror function | Manual anti-dazzle | Manual anti-dazzle |
Interior vanity mirror | Co-pilot | Co-pilot |
Air conditioner/refrigerator | ||
Air conditioner temperature control method | Manual air conditioner | Manual air conditioner |
