product information
The three-electric system, which consists of electric motor, battery and electric control system, is the core of pure electric vehicle. Baic New Energy EX5 is equipped with its own independent research and development of permanent magnet synchronous motor, with a maximum power of 160kW (218PS) and a maximum torque of 300N·m, which matches the most common single-gear fixed gear ratio transmission in pure electric vehicles. Its power book parameters in tens of thousands of price models is very outstanding, but due to the weight of 1.77 tons, the vehicle's actual power performance can only be counted as abundant, and radical, angry adjectives are not related to.
The power battery adopts ternary lithium battery with capacity of 61.8kW·h, which is arranged under the car in the form of tiling, thus reducing the center of gravity of the vehicle and improving the control performance. The official NEDC operating range is 415km, and it can reach 520km at 60km/h constant speed, so the endurance performance is excellent at this stage.
In terms of the positioning of urban SUV, the power reserve of BAIC New Energy EX5 is more than enough for daily driving. The acceleration at low and medium speeds feels very light, and the acceleration at any speed range is very smooth and linear. Throttle response can only be said to be poor, that is, when driving at a constant speed to a foot of oil, power needs to be delayed before arriving.
Product Specifications
Brand | BEIJING | BEIJING | BEIJING | BEIJING |
Model | EX5 | EX5 | EX5 | EX5 |
Version | 2019 Yuefeng Edition | 2019 Yue Shang Edition | 2019 Yue Chao Edition | 2019 Yueling Edition |
Car model | Compact SUV | Compact SUV | Compact SUV | Compact SUV |
Type of Energy | Pure electric | Pure electric | Pure electric | Pure electric |
NEDC pure electric cruising range (KM) | 415 | 415 | 415 | 415 |
Fast charging time[h] | 0.5 | 0.5 | 0.5 | 0.5 |
Fast charge capacity [%] | 80 | 80 | 80 | 80 |
Slow charging time[h] | 10.5 | 10.5 | 10.5 | 10.5 |
Maximum power (KW) | 160 | 160 | 160 | 160 |
Maximum torque [Nm] | 300 | 300 | 300 | 300 |
Motor horsepower [Ps] | 218 | 218 | 218 | 218 |
Length*width*height (mm) | 4480*1837*1673 | 4480*1837*1673 | 4480*1837*1673 | 4480*1837*1673 |
Body structure | 5-door 5-seat SUV | 5-door 5-seat SUV | 5-door 5-seat SUV | 5-door 5-seat SUV |
Top Speed (KM/H) | 160 | 160 | 160 | 160 |
Car body | ||||
Longth(mm) | 4480 | 4480 | 4480 | 4480 |
Width(mm) | 1837 | 1837 | 1837 | 1837 |
Higth(mm) | 1673 | 1673 | 1673 | 1673 |
Wheel base(mm) | 2665 | 2665 | 2665 | 2665 |
Body structure | SUV | SUV | SUV | SUV |
Number of doors | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 |
Mass (kg) | 1770 | 1770 | 1770 | 1770 |
Electric motor | ||||
Motor type | Permanent magnet synchronization | Permanent magnet synchronization | Permanent magnet synchronization | Permanent magnet synchronization |
Total motor power (kw) | 160 | 160 | 160 | 160 |
Total motor torque [Nm] | 300 | 300 | 300 | 300 |
Front motor maximum power (kW) | 160 | 160 | 160 | 160 |
Front motor maximum torque (Nm) | 300 | 300 | 300 | 300 |
Number of drive motors | Single motor | Single motor | Single motor | Single motor |
Motor placement | Prepended | Prepended | Prepended | Prepended |
Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
Battery Power(kwh) | 61.8 | 61.8 | 61.8 | 61.8 |
Gearbox | ||||
Number of gears | 1 | 1 | 1 | 1 |
Transmission type | Fixed gear ratio gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
Short name | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
Chassis Steer | ||||
Form of drive | FF | FF | FF | FF |
Type of front suspension | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension |
Type of rear suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
Boost type | Electric assist | Electric assist | Electric assist | Electric assist |
Car body structure | Load bearing | Load bearing | Load bearing | Load bearing |
Wheel braking | ||||
Type of front brake | Ventilated Disc | Ventilated Disc | Ventilated Disc | Ventilated Disc |
Type of rear brake | Disc | Disc | Disc | Disc |
Type of parking brake | Electric brake | Electric brake | Electric brake | Electric brake |
Front Tire Specifications | 225/50 R18 | 225/50 R18 | 225/50 R18 | 225/50 R18 |
Rear tire specifications | 225/50 R18 | 225/50 R18 | 225/50 R18 | 225/50 R18 |
Spare tire size | Not full size | Not full size | Not full size | Not full size |
Cab Safety Information | ||||
Primary driver airbag | YES | YES | YES | YES |
Co-pilot airbag | YES | YES | YES | YES |
Front side airbag | ~ | YES | YES | YES |
Front head airbag (curtain) | ~ | YES | YES | YES |
Rear head airbag (curtain) | ~ | YES | YES | YES |
Tire pressure monitoring function | Tire pressure display | Tire pressure display | Tire pressure display | Tire pressure display |
Seat belt not fastened reminder | Driver's seat | Front row | Front row | Front row |
ISOFIX Child seat connector | YES | YES | YES | YES |
ABS anti-lock | YES | YES | YES | YES |
Brake force distribution (EBD/CBC, etc.) | YES | YES | YES | YES |
Brake Assist (EBA/BAS/BA, etc.) | YES | YES | YES | YES |
Traction Control (ASR/TCS/TRC, etc.) | YES | YES | YES | YES |
Body Stability Control (ESC/ESP/DSC, etc.) | YES | YES | YES | YES |
Parallel Auxiliary | ~ | ~ | YES | YES |
Lane Departure Warning System | ~ | ~ | YES | YES |
Active Braking/Active Safety System | ~ | ~ | ~ | YES |
Assist/Control configuration | ||||
Front parking radar | ~ | ~ | YES | YES |
Rear parking radar | YES | YES | YES | YES |
Cruise system | ~ | Cruise control | Cruise control | Adaptive cruise |
Driving mode switching | Sport | Sport | Sport | Sport |
Automatic parking | YES | YES | YES | YES |
Hill assist | YES | YES | YES | YES |
Steep descent | YES | YES | YES | YES |
External / Anti-Theft Configuration | ||||
Sunroof type | Openable panoramic sunroof | Openable panoramic sunroof | Openable panoramic sunroof | Openable panoramic sunroof |
Rim material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
Roof rack | YES | YES | YES | YES |
Interior central lock | YES | YES | YES | YES |
Key type | Remote key | Remote key | Remote key | Remote key |
Keyless start system | YES | YES | YES | YES |
Keyless entry function | Driver's seat | Driver's seat | Driver's seat | Driver's seat |
Remote start function | YES | YES | YES | YES |
Internal configuration | ||||
Steering wheel material | Genuine Leather | Genuine Leather | Genuine Leather | Genuine Leather |
Steering wheel position adjustment | Manual up and down | Manual up and down | Manual up and down | Manual up and down |
Multifunction steering wheel | YES | YES | YES | YES |
Trip computer display screen | Color | Color | Color | Color |
Full LCD Dashboard | YES | YES | YES | YES |
LCD meter size (inch) | 12.3 | 12.3 | 12.3 | 12.3 |
Seat configuration | ||||

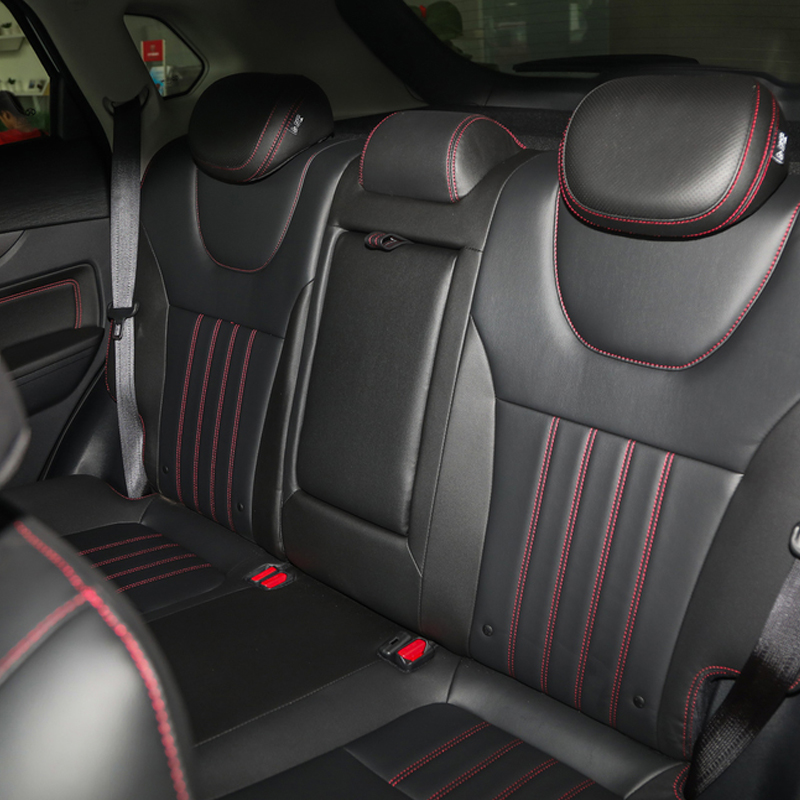

Seat materials | Fabric | Imitation leather | Imitation leather | Imitation leather |
Driver's seat adjustment | Front and rear adjustment, backrest adjustment,height adjustment (2-way) | Front and rear adjustment, backrest adjustment, height adjustment (2-way) | Front and rear adjustment, backrest adjustment, height adjustment (2-way) | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment | Front and rear adjustment, backrest adjustment | Front and rear adjustment, backrest adjustment | Front and rear adjustment, backrest adjustment |
Main/assistant seat electric adjustment | ~ | Driver's seat | Driver's seat | Driver's seat |
Front seat function | ~ | Heating | Heating | Heating |
Rear seats folded down | Proportion down | Proportion down | Proportion down | Proportion down |
Front/rear center armrest | Front | Front/rear | Front/rear | Front/rear |
Multimedia configuration | ||||
Central control color screen | Touch LCD | Touch LCD | Touch LCD | Touch LCD |
Central control screen size (inch) | 9 | 9 | 9 | 9 |
Satellite navigation system | YES | YES | YES | YES |
Navigation traffic information display | YES | YES | YES | YES |
Roadside assistance call | YES | YES | YES | YES |
Bluetooth/Car Phone | YES | YES | YES | YES |
Mobile phone interconnection/mapping | Support CarLife | Support CarLife | Support CarLife | Support CarLife |
Voice recognition control system | Multimedia system, navigation, telephone, air conditioning | Multimedia system, navigation, telephone, air conditioning | Multimedia system, navigation, telephone, air conditioning | Multimedia system, navigation, telephone, air conditioning |
Internet of Vehicles | YES | YES | YES | YES |
OTA upgrade | YES | YES | YES | YES |
Multimedia/charging interface | USB | USB | USB | USB |
Number of USB/Type-c ports | 2 in front/2 in rear | 2 in front/2 in rear | 2 in front/2 in rear | 2 in front/2 in rear |
Luggage compartment 12V power interface | YES | YES | YES | YES |
Number of speakers (pcs) | 6 | 6 | 6 | 6 |
Lighting configuration | ||||

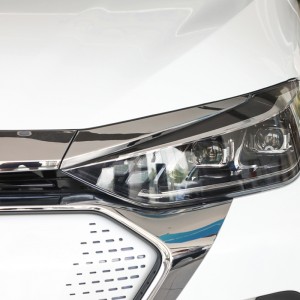

Low beam light source | LED | LED | LED | LED |
High beam light source | LED | LED | LED | LED |
Lighting Features | matrix | matrix | matrix | matrix |
LED daytime running lights | YES | YES | YES | YES |
Automatic lamp head | YES | YES | YES | YES |
Headlight height adjustable | YES | YES | YES | YES |
Headlights turn off | YES | YES | YES | YES |
Glass/Rearview mirror | ||||
Front power windows | YES | YES | YES | YES |
Rear power windows | YES | YES | YES | YES |
Window one-button lift function | Driver's seat | Driver's seat | Driver's seat | Driver's seat |
Window anti-pinch function | YES | YES | YES | YES |
Post audition feature | Electric adjustment | Electric adjustment, electric folding, rearview mirror heating, automatic folding after locking the car | Electric adjustment, electric folding, rearview mirror heating, automatic folding after locking the car | Electric adjustment, electric folding, rearview mirror heating, automatic folding after locking the car |
Inside rearview mirror function | Manual anti-dazzle | Manual anti-dazzle | Manual anti-dazzle | Manual anti-dazzle |
Interior vanity mirror | Driver's seat Co-pilot |
Driver's seat Co-pilot |
Driver's seat Co-pilot |
Driver's seat Co-pilot |
Rear side privacy glass | YES | YES | YES | YES |
Rear wiper | YES | YES | YES | YES |
Sensor wiper function | Rain sensor | Rain sensor | Rain sensor | Rain sensor |
Air conditioner/refrigerator | ||||
Air conditioner temperature control method | Manual air conditioner | Manual air conditionerr | Manual air conditionerr | Manual air conditioner |
In-car PM2.5 filter | YES | YES | YES | YES |
